Huntingtown520hc

What size o-ring for 520 h hydraulic cylinder hose? I just rebuilt the cylinder and want to replace the o-rings

Recommended Posts

Huntingtown520hc

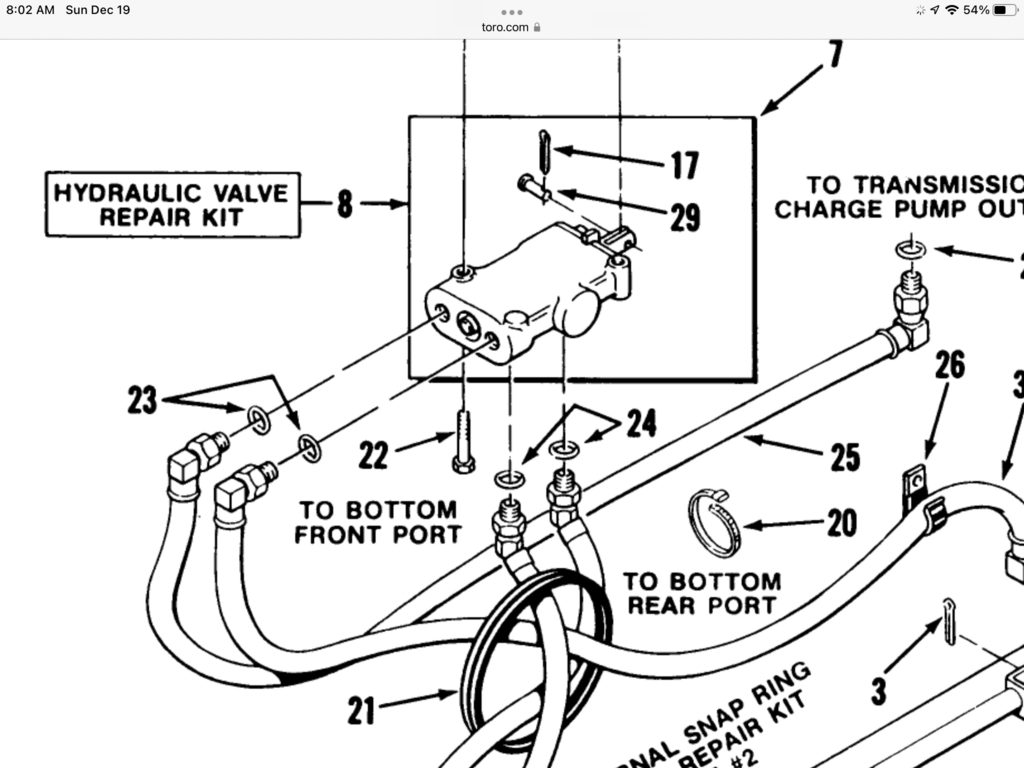

What size o-ring for the cylinder hoses for 520hc 1989? I would appreciate any help someone could provide.. thanks

Share this post


Link to post
Share on other sites

pfrederi
Posted (edited)

I am pretty sure by the 520 series WH had adopted SAE ORB# 6 fittings.  If so the #6 use dash #906 ( 9/16 18 tpi thread)

Edited by pfrederi

Share this post


Link to post
Share on other sites

peter lena

@Huntingtown520hc, use a silicone grease , like dielectric grease on those o ring areas , not a lot , but it will help the ring seal and seat, instead of twisting in its place, pete

























@huntingtown520hc

Share this post


Link to post
Share on other sites

Jeff-C175
Posted (edited)
30 minutes ago, peter lena said:

silicone grease



You'll only need a tiny amount so go to box store and pick up a small container of the stuff they sell in the plumbing aisle for use on faucets.



I wouldn't trust their o-rings though.  I would go to one of the hydraulic suppliers and get good quality.  Viton material is good stuff.

Edited by Jeff-C175
  • Like 1

Share this post


Link to post
Share on other sites

Huntingtown520hc

Thanks. The rebuild appears to be leak free

Share this post


Link to post
Share on other sites
