Gt 14 321 kohler triangle coil, no spark slow death

Recommended Posts

John Galt

A year and a half ago my gt 14 started to run bad, low power output. Then it quit running as a pulled a load of wood and I couldn't start it again. When I trouble shot the tractor the electronic box was pretty corroded. Then a wire came off. So I replaced the box.  I've drained the gas rebuilt the carb and It fired off maybe three or four sparks. Now, I get nothing. I haven't been able to find the coil that is triangular. This kohler doesn't have any points.

My question is could it be something else?  Any ideas welcomed.

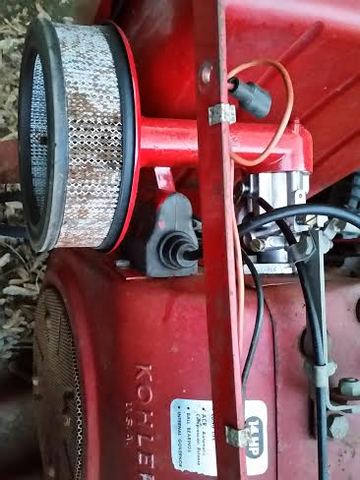

gt14 coil.jpg

gt14 electronics.jpg

Share this post


Link to post
Share on other sites

gwest_ca

A year and a half ago my gt 14 started to run bad, low power output. Then it quit running as a pulled a load of wood and I couldn't start it again. When I trouble shot the tractor the electronic box was pretty corroded. Then a wire came off. So I replaced the box.  I've drained the gas rebuilt the carb and It fired off maybe three or four sparks. Now, I get nothing. I haven't been able to find the coil that is triangular. This kohler doesn't have any points.

My question is could it be something else?  Any ideas welcomed.



gt14 electronics.jpg

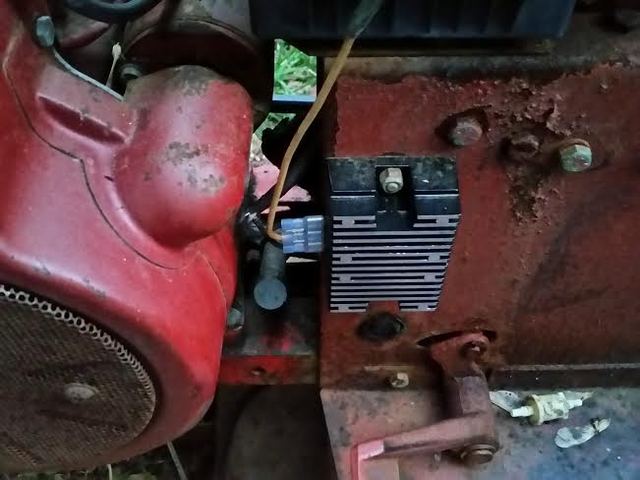

​The finned box looks like an aftermarket rectifier/regulator for the charging system. That simply controls the charging voltage to keep the battery charged up and has nothing to do with the ignition.

The ignition is self-powered and the single ignition wire that goes to the ignition switch grounds the ignition to shut it off. With the ignition switch in RUN or START position that wire should not be connected to anything and the ignition should work. See if you can disconnect that ignition wire near the coil and try again. Doing this will eliminate any chance the ignition wire is grounded and preventing the ignition from working. Remove the spark plug and lay it on top of the engine with the spark plug wire connected to it. You should see spark at the plug tip when cranking. The metal hex on the spark plug needs to be grounded to the engine metal to complete the circuit. A special test plug has a spring loaded clamp so it can be clipped onto the engine but not everyone has such a tool. If you have booster cables clamp the plug hex into one cable end and the other end onto a good chassis ground.

Let us know what happens.

Garry

Edited by gwest_ca

Share this post


Link to post
Share on other sites

pfrederi

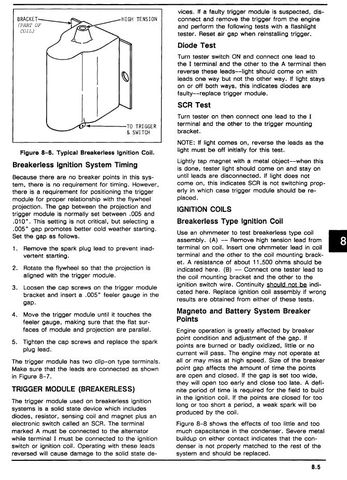

Kohler manual has diagnostics for your ignition system






  • Like 1

Share this post


Link to post
Share on other sites

John Galt

Thanks for your post. I'll try your advise tomorrow. I did have a spark at the plug as you suggested. Then I didn't. Now I have a direction to start trouble shooting. I'll post what I find.

Share this post


Link to post
Share on other sites

John Galt

I've done the test as follows. Coil checked at 13k ohms. the diode test with the ohm meter indicates the diodes are good. Src test also checked good.
Could it be the ignition switch? I did get another new plug. Ideas?

Share this post


Link to post
Share on other sites

gwest_ca

Only thing I can think of is to remove the ignition wire that goes to the switch from the engine end of the wire. If there is a short to ground somewhere between the coil and the ignition switch it will defeat the ignition. That would also rule out a faulty ignition switch.

Garry

Share this post


Link to post
Share on other sites

Rob R

I totally agree with taking the shroud off and chking all the wires first, I had an identical problem and that's what it was, also to prevent damage to the electronic module (it is very sensitive) Wheel horse does not directly short the module directly to ground they put a resistor in the line going to ground, this line and all the connections were loose and shot I completely replaced this and put in the line a larger one (Radio Shack) on the same resistance, carefully soldered and sealed everything with good shrink wrap spaghetti and this solved all my issues. Hope this helps

Share this post


Link to post
Share on other sites
