Plowboytime

Looking for a pulling hitch and Wheelie bars for a 1985 314-8 Wheel Horse.

Share this post


Link to post
Share on other sites

KC9KAS

@Plowboytime :text-welcomeconfetti: to :rs:

I would imagine your request will have to be "custom made"!

Share this post


Link to post
Share on other sites

SylvanLakeWH

:text-welcomeconfetti:

Share this post


Link to post
Share on other sites

TonyToro

There is a guy here on the club that makes them. I have seen some of the ones he made. He does great work!  I was in a rush so what I did is bought a cub cadet pulling hitch, welded the top mounting plate and drilled the 2 bolt holes to mount on the rear end and then welded 2 nuts to the bottom for the factor hitch pin.



For the wheelie bars I used angle iron made and x welded and mounted it to the rear end.

Share this post


Link to post
Share on other sites

Spareparts

I used the boss in the bottom of the diff that the draw bar attached to for the bottom mount

made a couple of tabs for the pin to slide thru and welded a piece of 3/8" X 2" flat bar across them

2 vertical 2"X2"X1/8" angle iron with a 1/4" plate welded on. This plate extended over the top of my diff

 where their were 2- 3/8"X16  holes, that is where I mounted the tpo plate to. Then the standard

3/4" all thread upright's for the hitch plate to be mounted to. When I did mine I welded the bottom nut on the all thread

and the top nut was just pulled down tight, well it got loose and fell off and got me DQ,ed, it got welded to.

The hitch plate is 3/8" and has a 1-1/2" hole  that is offset towards the diff with only about 1/2" of meat by the diff.

 You want the hook point as close to the diff as possible, The 3/4" all thread has 6 nuts on each side 2 on top 2 on bottom

and one on each side of the hitch plate. It is a vary basic hitch and strong as hell, been using it for 6 years

and no problem.







  • Excellent 1

Share this post


Link to post
Share on other sites

Plowboytime

Thanks For the info!

Do you have some pics so I can see them?

Again Thanks!

Share this post


Link to post
Share on other sites

TonyToro

Here’s is a picture of the Cub hitch and mock up of the wheelie bars.






  • Like 1

Share this post


Link to post
Share on other sites

TonyToro

And here are the wheelie bars done




  • Excellent 1

Share this post


Link to post
Share on other sites

Spareparts

I like Tony's hitch better, only change I would make is the hitch hole, round and closer to the diff, very simple design

I am going to look mine over and probally redeisgn eliminate the angle uprights, your only pulling on the all thread anyway

good looking hitch.

  • Like 1

Share this post


Link to post
Share on other sites

Daron1965

Any luck with a hitch?  I'm looking for a hitch for my C120..

Share this post


Link to post
Share on other sites

Spareparts

Check out post #6, that is exactly what you need

Share this post


Link to post
Share on other sites

jimkemp
On ‎9‎/‎19‎/‎2018 at 6:55 PM, Daron1965 said:

Any luck with a hitch?  I'm looking for a hitch for my C120..

I'm trying to put some pulling hitches together , I almost have the first one done and will post pictures as soon as its done

  • Like 1

Share this post


Link to post
Share on other sites

Daron1965

Sounds good,  will be checking back.

Share this post


Link to post
Share on other sites

jimkemp

Pictures soon , I finish the first one today and painted it , as soon as the paint dries I will get it mounted back on the tractor and get some good pictures

  • Like 1

Share this post


Link to post
Share on other sites

jimkemp

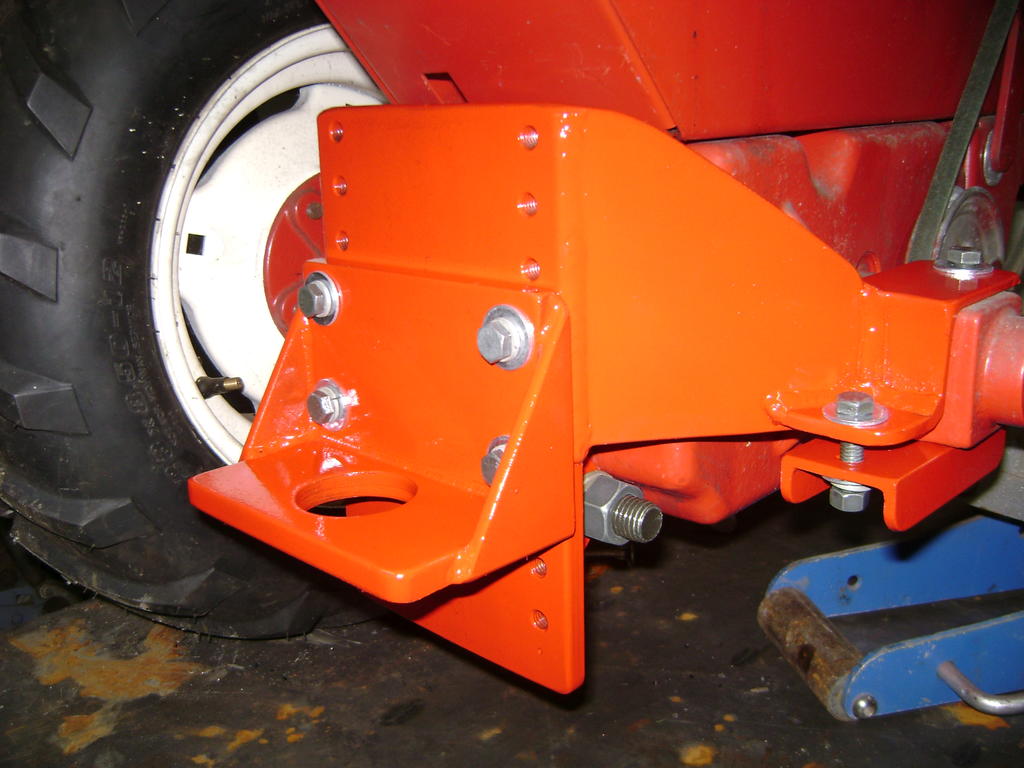

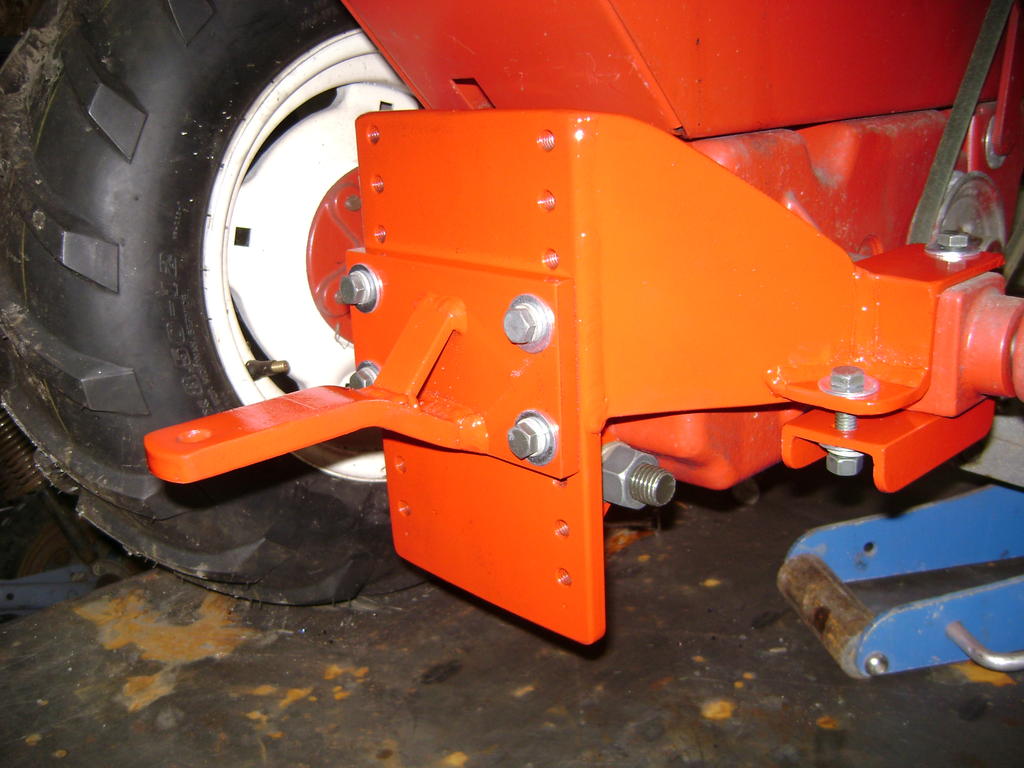

Here are some pictures of the proto typeDSC02922.JPG.123c2866e5b2ea361c207d2afe72c9cf.JPGDSC02924.JPG.4a11d933dfabe56f2859153f28da2665.JPG

  • Like 2
  • Excellent 3

Share this post


Link to post
Share on other sites

Daron1965

That hitch looks great,  I really like the fact that it is versatile. Great work.

Share this post


Link to post
Share on other sites

ebinmaine
9 hours ago, Daron1965 said:

 I really like the fact that it is versatile. Great work.

One of my first thoughts too

  • Like 1

Share this post


Link to post
Share on other sites

Pullstart

The way it wraps around the axle looks like it ain’t goin’ nowhere but to the top!

  • Like 1

Share this post


Link to post
Share on other sites

ebinmaine
15 hours ago, jimkemp said:

Here are some pictures of the proto type

Have you come up with a rough pricing structure yet?

Share this post


Link to post
Share on other sites

Justice77

That's very nice. Looks factory!

My Suburban could use a wheelie bar. I'm considering using spring steel - like leaf springs maybe. Prob just need one in the center with a short axle and wheels.

Edited by Justice77
  • Like 2

Share this post


Link to post
Share on other sites

jimkemp
8 hours ago, ebinmaine said:

Have you come up with a rough pricing structure yet?

Well I did and I didn't like what I came up with , if you add up the material and the hours to build and weld its really more than it worth for someone to buy , I stuck this one on feebay at 250 and I'm sure it wont sell , off feebay it would be 200 , and I think that still is just way to much for a hitch but at least I can say I tried and found out I just don't see it happening , but I can say you would brake the axle long before this hitch would brake , so most likely it will just go on one of my tractors

  • Like 1

Share this post


Link to post
Share on other sites

dieselpuller
On 9/8/2018 at 3:34 PM, Plowboytime said:

Looking for a pulling hitch and Wheelie bars for a 1985 314-8 Wheel Horse.

I have one I will sell it is used works fine can send pics $ 60 plus shipping , Thanks Walt

  • Like 1

Share this post


Link to post
Share on other sites

TonyToro
4 hours ago, dieselpuller said:

I have one I will sell it is used works fine can send pics $ 60 plus shipping , Thanks Walt

Please message me pictures.

Share this post


Link to post
Share on other sites
