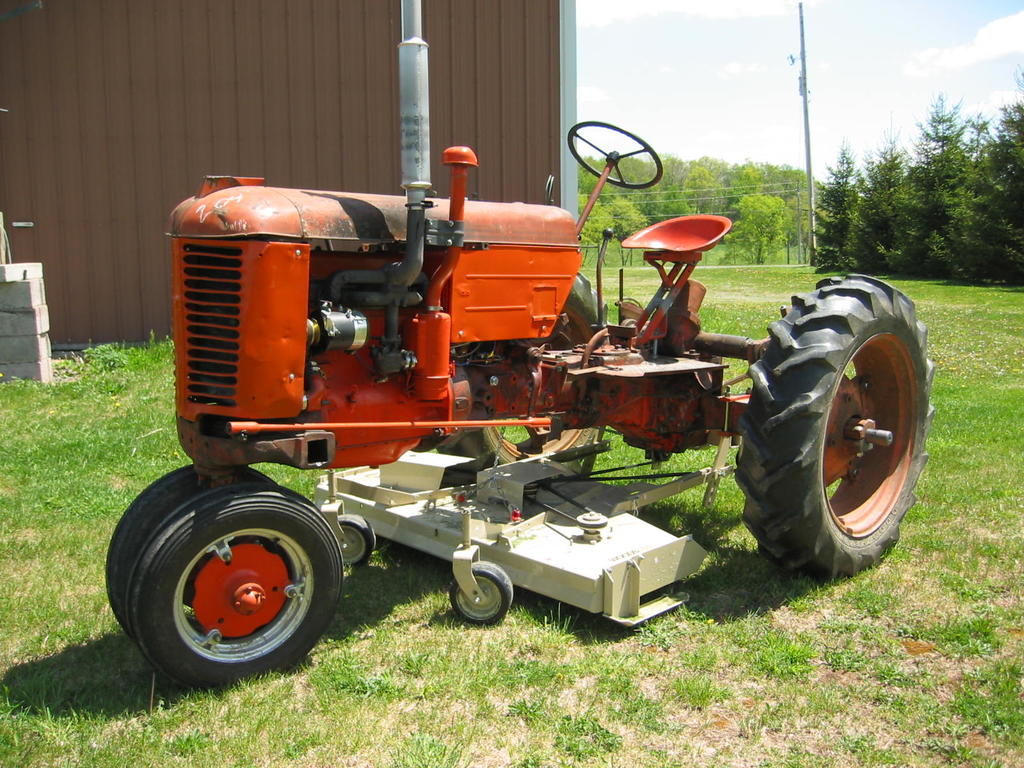

charlesk 0 #1 Posted August 5, 2018 I have a 3 point mower for my D200 I'm looking for any info on parts? Blades and belt. I know the mower is 60in and was made by the woods company but that is all I know. Thank you for any info Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,475 #2 Posted August 5, 2018 Maybe this one. Click on picture Garry Share this post Link to post Share on other sites
charlesk 0 #3 Posted August 5, 2018 Thanks for the info Now and try to cross the numbers for the parts. Share this post Link to post Share on other sites

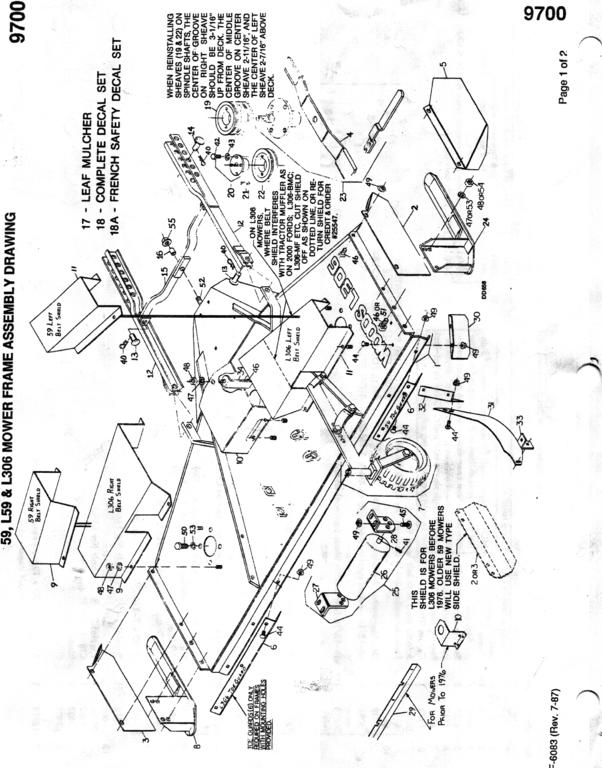

gwest_ca-(File Mod) 10,475 #4 Posted August 5, 2018 More. Click on the photos Garry 1 Share this post Link to post Share on other sites
pfrederi 17,114 #5 Posted August 5, 2018 It is based on the popular Woods L-59. Spindles, bearings, blades etc are widely available under that, I have the belt number out in the shop will look for it tomorrow. This is the more common L-59 as a belly mount. 1 Share this post Link to post Share on other sites
Digger 66 3,476 #6 Posted August 5, 2018 42 minutes ago, charlesk said: I have a 3 point mower for my D200 I'm looking for any info on parts? Blades and belt. I know the mower is 60in and was made by the woods company but that is all I know. Thank you for any info Welcome to Red Square . Share this post Link to post Share on other sites
charlesk 0 #7 Posted August 5, 2018 Thanks for all the info I did cross the belt number in ereplacement parts 197$ for the belt I'm not paying that much. I just hope napa is much cheaper Share this post Link to post Share on other sites

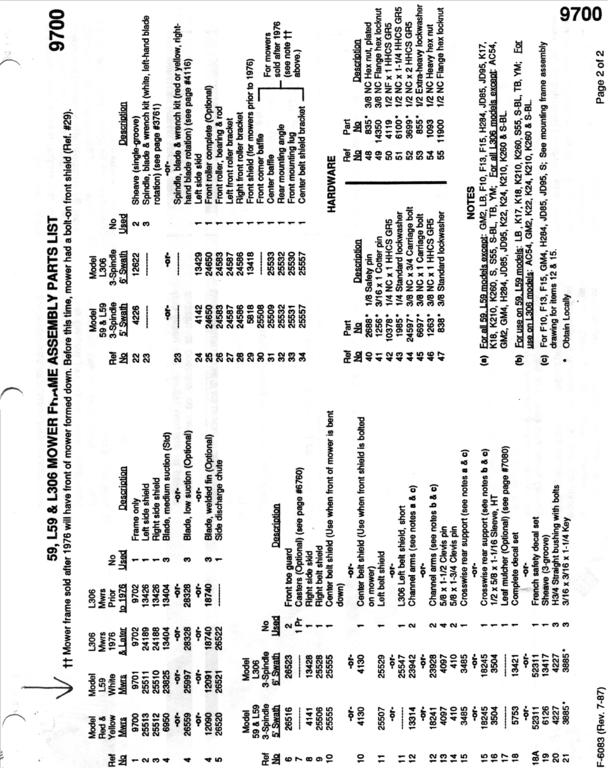

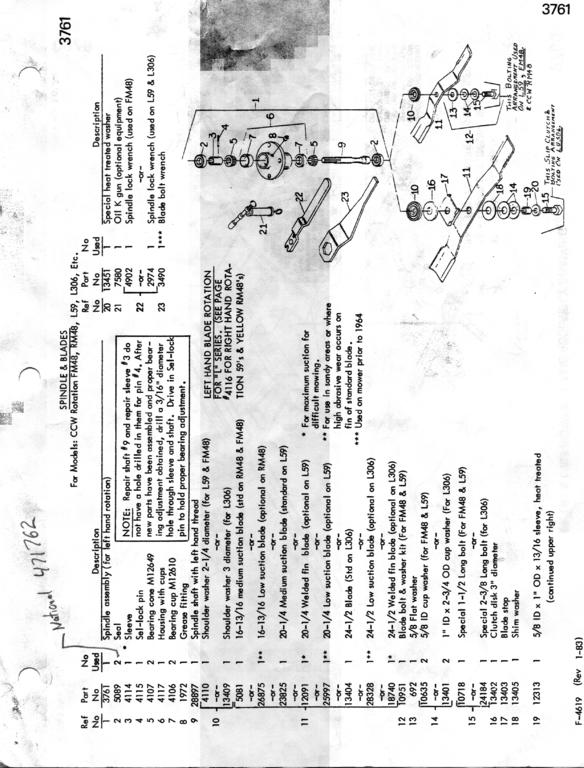

pfrederi 17,114 #8 Posted August 5, 2018 (edited) 25 minutes ago, charlesk said: Thanks for all the info I did cross the belt number in ereplacement parts 197$ for the belt I'm not paying that much. I just hope napa is much cheaper I got mine from Vbelts for less. way cheaper Will get you the number tomorow These are the Woods parts numbers for blades bearings spindles and seals ...much easier to cross reference that WH#s I have most eh seal and bearing #s as I rebuilt some spindles on the D200s 60" deck Edited August 5, 2018 by pfrederi Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,475 #10 Posted August 6, 2018 3 page pdf format Garry Share this post Link to post Share on other sites
