HotRodMike

312 8 Tractor- Transmission Shifter Handle

Recommended Posts

HotRodMike

Just picked up a 312 8 Tractor, Shifter handle is very loose and it won't go into none of the gears. Any ideas? Fixes?

Share this post


Link to post
Share on other sites

953 nut

:WRS:

Your shifter is held in place by what is known as a "Dogpoint Screw". The attached pictures and explanation should get you going.



image.png.62be6562abdf3a7b0160d50327731d6e.pngimage.png.39418665dbf759b462f9cda916d574af.png

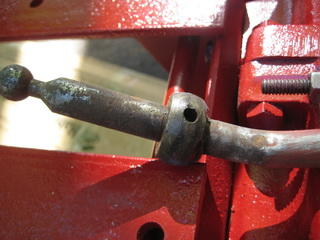

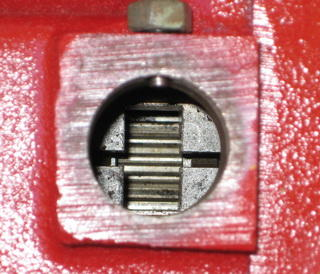

If your shift lever comes out of the transmission or is stuck in one gear first back out the “Dog-point” screw that retained the shifter. Take a look in the hole the shifter came out of to be sure it is in neutral as shown above.

image.png.95de845192542f1fbcbd9842156a2bda.pngimage.png.81f5609ab1ff5d1f85805acc4f5b3a63.png

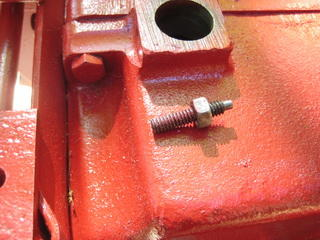

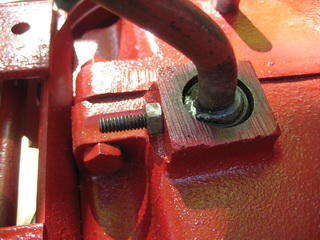

Inspect the dog-point to be sure it is in good condition and back off on the locking nut a couple of turns. Insert the shifter and run the dog-point into the dimple in the shift lever collar snugging it up with an allen wrench, don’t tighten it. Be sure the shifter works smoothly then tighten the lock nut while holding the dog-point steady with the allen wrench.



  • Like 4
  • Excellent 2
  • Thanks 1

Share this post


Link to post
Share on other sites

oldlineman

Very good explanation and pictures. Should be saved for future questions about shifter problems.

  • Like 3

Share this post


Link to post
Share on other sites

stevasaurus

If I would add anything...the Allen Wrench is 1/8" and with a long one, you can reach it easily from under the frame...like from under the battery.  :)

  • Like 3

Share this post


Link to post
Share on other sites

gwest_ca

The donut is welded to some shifters.

If not welded it is retained by a 933168 roll pin replaced by 32121-114 spirol pin. (5/32" x 13/16")

If the pin is broken the shifter tries to rotate instead of sliding the shift rails into position. Give the donut a good twist to make sure it won't rotate on the shifter.

The pin shares the same hole as the set screw but stays farther to the rear to leave room for the dog-point.



Garry

  • Like 6

Share this post


Link to post
Share on other sites

KC9KAS

@HotRodMike :text-welcomeconfetti: to :rs:

Why are there 2 HotRodMike's when I did the @HotRodMike

  • Like 1

Share this post


Link to post
Share on other sites

KW1

Thanks for the information! I had the dog-point screw go south on my 312-8. Ask for one and most people look at you cross eyed! Got a 1/4 x 20 x 1 inch set screw and filed down the end to match a dog point. I used 2,  1/4 x 20 nuts ... figured the amount of nose , locked them together and put them in a vise. Used a file and went around and around to keep it even. It took $1.20 and about 20 minutes. All good now. The 1" gave me enough room to reach in from under the seat and make it finger tight, then add the single jam nut. Nice having people who actually KNOW what I'm trying to do. Thanks again!!



  • Like 1

Share this post


Link to post
Share on other sites

The Tuul Crib

:text-welcomeconfetti:to :rs:



:wwp:

  • Like 1

Share this post


Link to post
Share on other sites
