don 76 wheel horse 24 #1 Posted July 15, 2018 I found a wheel horse two wheel trailer. Anyone have any info about it. Don 2 Share this post Link to post Share on other sites
953 nut 51,464 #2 Posted July 15, 2018 These dump trailers were made from the mid '60s to the mid '70s and are very popular. Share this post Link to post Share on other sites
Wild Bill in VA 1,366 #3 Posted July 16, 2018 (edited) Don, The Wheel Horse dump cart LTD-244 you have came out in 1964, the previous model the LTD-243 was welded sheet steel type with no rounded edges. The LTD-244 you have was made some time during 1965 or later, you can tell this by the data plate that is missing on the front of your cart but left a imprint as Wheel Horse started to use the metal data plate in 1965. In 1964 was the last year Wheel Horse used a decal with the serial number. If my eyes are seeing correctly you have the red axle hub caps, if so then your LTD-244 was made after 1968 of when Wheel Horse came out with the red cap with wheel and horse logo on them. Wheel Horse used both the LTD-244 dump cart or a snow plow blade as a incentive give away to purchase a tractor. You have a dump cart in good shape, take a look on the back edge for lip on the rail. This lip is to help you dump a load of dirt when backing up the cart because the lip will dig into the ground and help tip the cart. Wild Bill in Richmond, VA Edited July 16, 2018 by Wild Bill in VA 2 Share this post Link to post Share on other sites

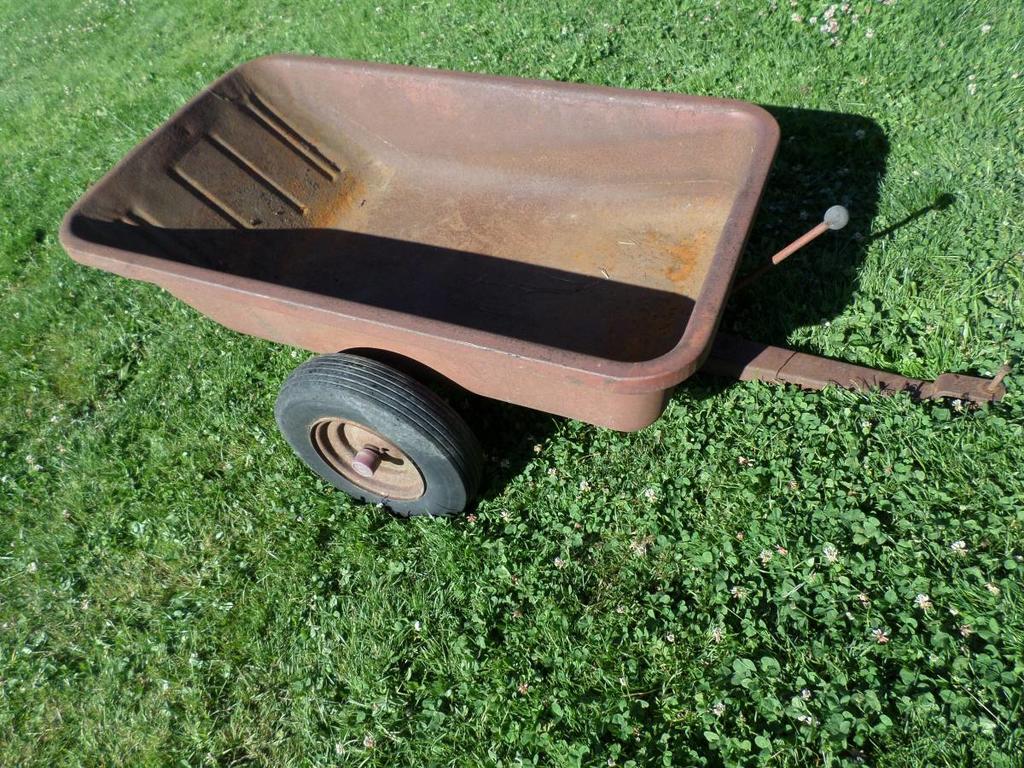

AMC RULES 36,940 #4 Posted July 16, 2018 Don, cool little cart you've found there. Might you have any info to share on this earlier version, square backed cart to share with us Bill? Share this post Link to post Share on other sites
Wild Bill in VA 1,366 #5 Posted July 16, 2018 OK Craig now your keeping me from bed time ..... but for you ok. Wheel Horse did make two other sheet metal carts, I believe the first one had a "U" shaped tube that supported the bottom of the cart and connected to the axle and sold with the 1955 to 1957 Ride Away series. The second type used the bar stock for support which is the one you pictured, it should also have a lift up tail gate (easy to make). The 1958 dump cart also had the same frame but had a slanted back. The sheet metal 1962 LTD -242 used a "T" type frame support and the same for the LTD-243. Wild Bill in Richmond, VA 3 Share this post Link to post Share on other sites

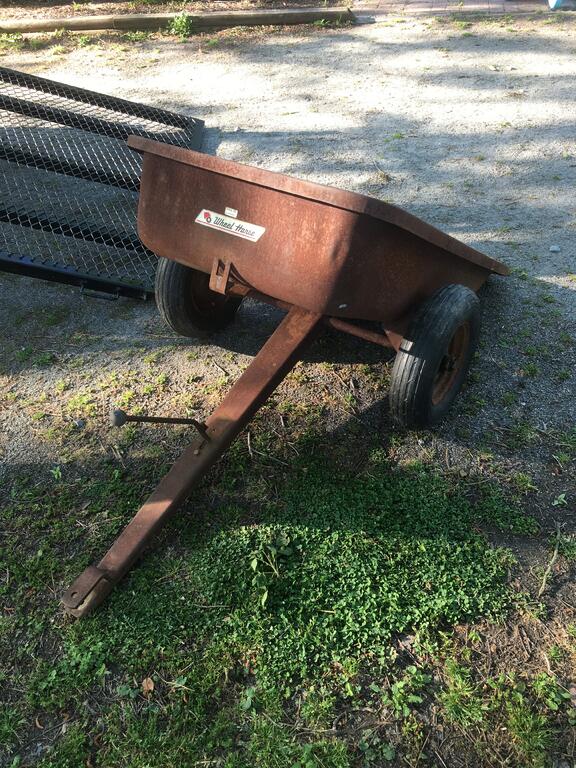

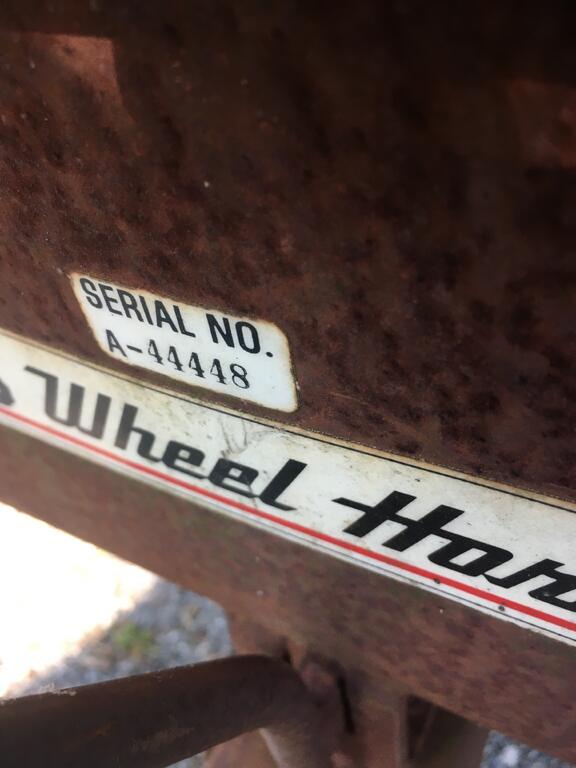

Slempm 9 #6 Posted May 6, 2021 Can y’all help me with my cart? I just picked this up today in Williamsburg, VA for $35. 1 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,478 #7 Posted May 6, 2021 Welcome to the forum. Will guess this is the one you have. An early 1964 model. Click on the picture in the link. Garry Share this post Link to post Share on other sites
