Spring for parking brake and idler on Sundstrand

Recommended Posts

mikeeyre74

There is a non-original spring on my 1969 Charger that holds the engine to transmission idler puller tight. I don’t have another to compare it to. Can someone give me a part number or some dimensions or tension or some kind of guidance as to a proper replacement, maybe from Tractor Supply or something? Or is it just not that critical and I’m over thinking it?

Share this post


Link to post
Share on other sites

gwest_ca

Part number 6135? It is still available from Toro

3-5/16" between hooks

coil 5/8" diameter 2-3/8" long

 34 coils of .070" wire

Garry

  • Excellent 1

Share this post


Link to post
Share on other sites

mikeeyre74

And don’t that beat all....



Original parts!



..an original from back in the day right on the shelf at my sorta local place. Thanks!



Share this post


Link to post
Share on other sites

mikeeyre74
Where does this go?



I’m having a bit of a brain fart here, but is this how the spring is supposed to be attached?  What’s that little nut and bolt sticking out right in back of the spring supposed to do… Is that just a stop for the idler when it’s in the “up“ position? Or does something else go there?



Share this post


Link to post
Share on other sites

mikeeyre74

Also, what goes in this hole? Is it just a cotter pin or something more?



What holds this?



Share this post


Link to post
Share on other sites

KC9KAS

The spring looks correct.

In the 2nd photo, this is what I use:



5/16 in. x 2-3/4 in. Wire Round Lock Pin (5-Pack)

Share this post


Link to post
Share on other sites

gwest_ca

Hairpin cotter in a manual - no mention of size

Garry

Share this post


Link to post
Share on other sites

gwest_ca

If you have a newer tractor with the pto hoop this same pin is used at the bottom of the hoop where it pivots at the tractor frame.

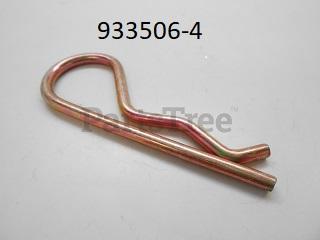

Spring pin 933506-4.jpg

Share this post


Link to post
Share on other sites

mikeeyre74

Thanks fellows! I couldn’t manage to find that info by myself. Thanks for the assist. I’ll get the right piece tomorrow.
