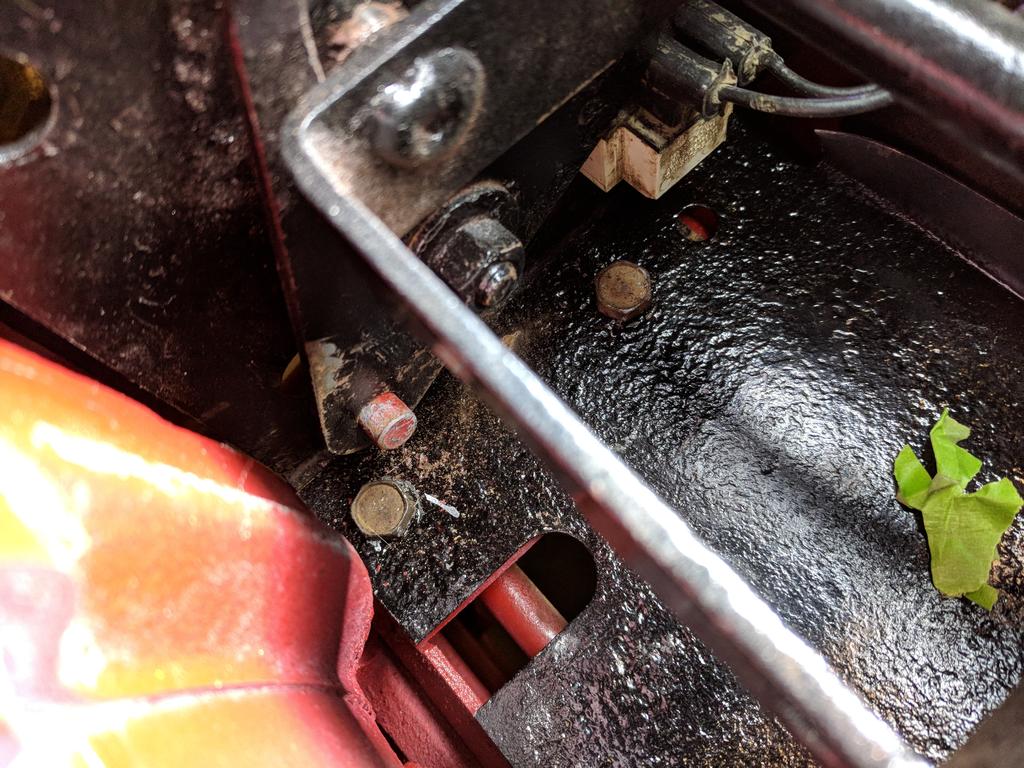

Hey guys,. I am putting my 1985 314-A back together and can't recall how the brake arm attaches to the assembly in the tunnel?  See the red shaft tip in the bottom left corner?  Thanks


Share this post


Link to post
Share on other sites

@PeacemakerJack is working on a 418-c with his son and is likely to have a picture or teo in his thread.



Share this post


Link to post
Share on other sites

Thanks. I took a look again but no pictures of that area. After hours of searching pictures I am fairly confident to there is not a single picture of that area on the internet:D

Share this post


Link to post
Share on other sites

Thank you. Based on that diagram and every other one I saw there should be a cotter pin. I will take a closer look and see.

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now


  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By Rozlo
      I finally got my snow blade attached to my new to me 314 Hydro.  I have a few questions:

      1.  When I attached the blade I may have something out of adjustment because when I raise it or lower it it does not sit level.

      2. When i raise the blade the frame hits the attach-O-matic on the front.  Actually hits the mower deck pulleys and guard when it is up all the way.

      3.  Also can anyone give me a sketch or the dimensions for the down pressure bar, i would like to build one.

      I'm a newbie at this but learning fast.  If anyone can help me with these I would appreciate it very much.  I will try to get pictures of these problems.
×
