Rob R

Snow Plow Scrapper Blade

Recommended Posts

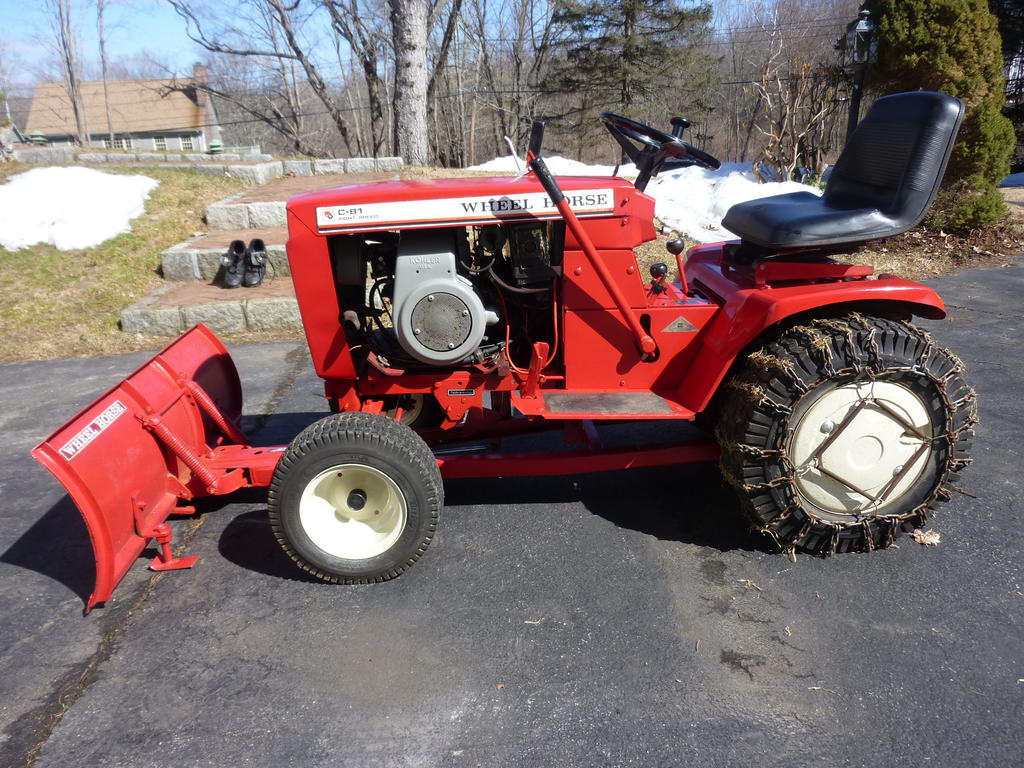

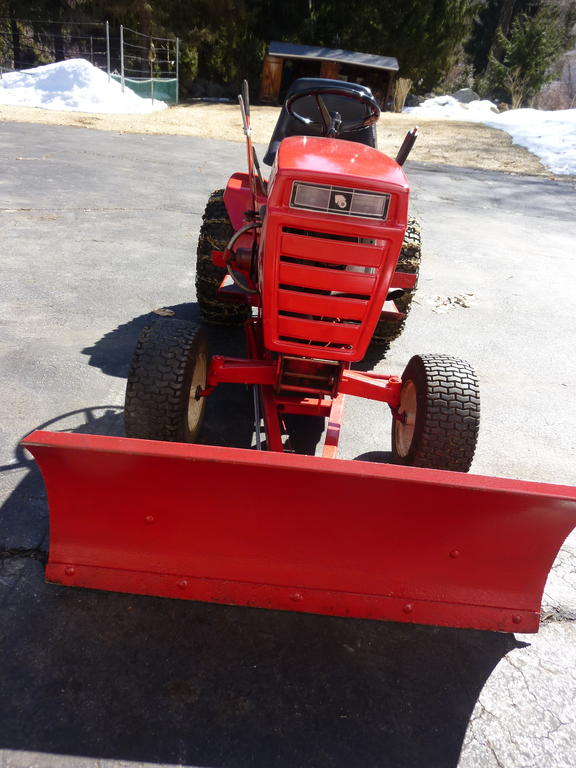

Have  a C-81 with a 48" Snow Plow, the current Steel Bottom Scrapper  Blade  is on it's last season..... I have noticed as of late that quite a few folks are installing the POLY blades.....  I plow a 100' macadam driveway and my concern and/or question is how well and how DURABLE are these blade. I did install feet on my existing steel blade plow (see pics) to limit the normal wear.   Thanks for you input

Wheel Horse C81 2.JPG

Wheel Horse C81 3.JPG

Wheel Horse C81 4.JPG

  • Like 5

Share this post


Link to post
Share on other sites

Rob:

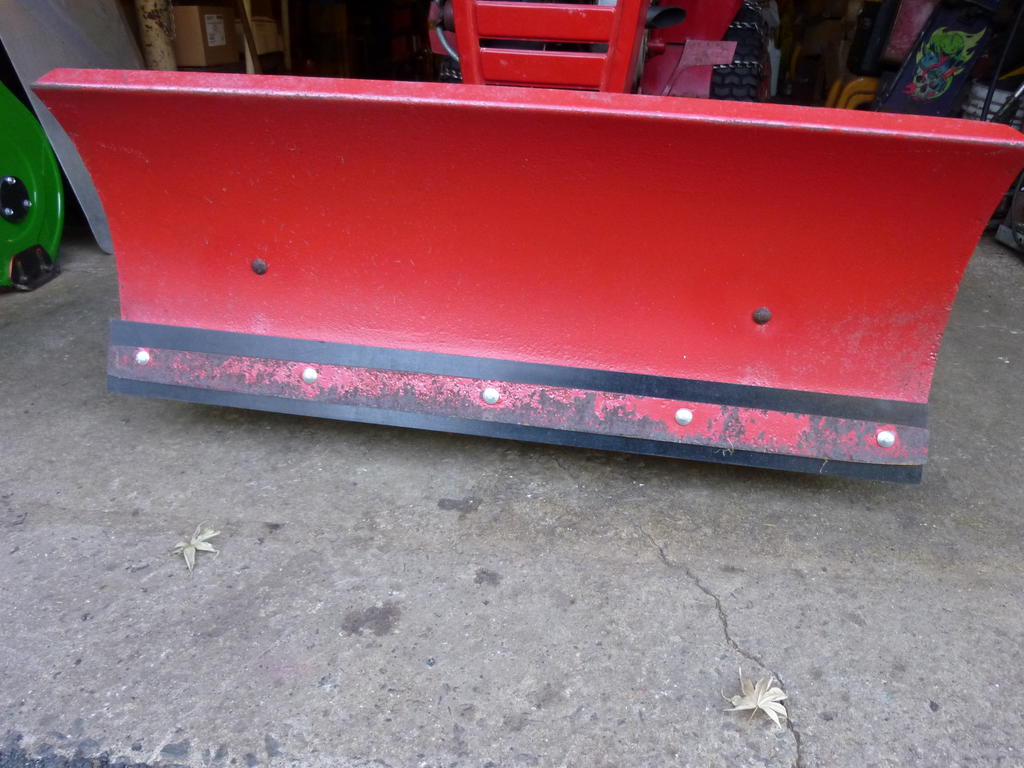

This will be the 3rd season I've had them on and there is very minimal wear (year #1 was only about 10 hours of use, year #2 about 25 hours and this year about 10 hours so far), the wear is just noticeable, I feel I should get 7-8 years of good use at this rate, and then I reverse the blade for 7-8 more years of use.  I have a 90% asphalt drive, 10% concrete -- the kind of drive you have will make a difference.  I think the asphalt is the least worst (less wear) and that a rough gravel drive may be the worst,  I have 5,000 square feet of drive and plow right down to the asphalt surface, -- but notice that you use skids which would cause almost no wear since you're only plowing snow and not riding on a hard surface.

Glen

  • Like 3

Share this post


Link to post
Share on other sites

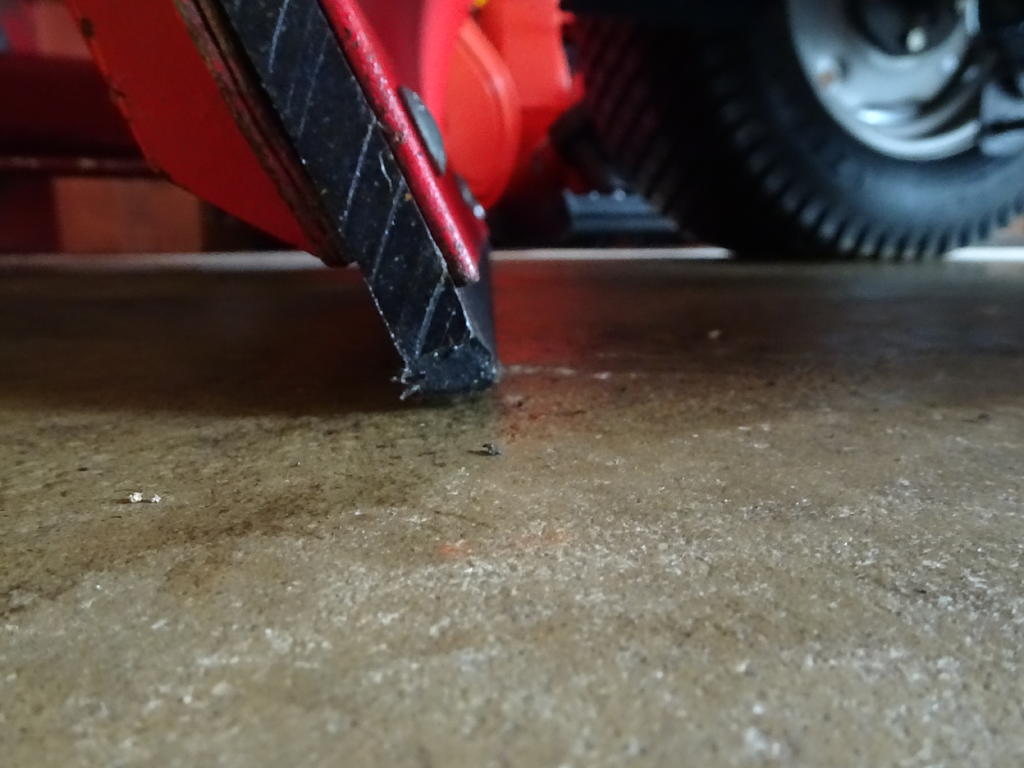

I use 3/4" rubber stall mat cut twice the width of my steel cutting edge holes that line up with the cutting edge drilled I. The center so about 1"hangs past on top and bottom sandwich that between your plow and cutting edge works great when you wear out 1 side you just flip it over I get a couple years out of one normally and I plow asphalt and gravel and the mats are 4ft by 6ft so you get a lot of them out of 1 and for about 30 bucks

  • Like 5

Share this post


Link to post
Share on other sites

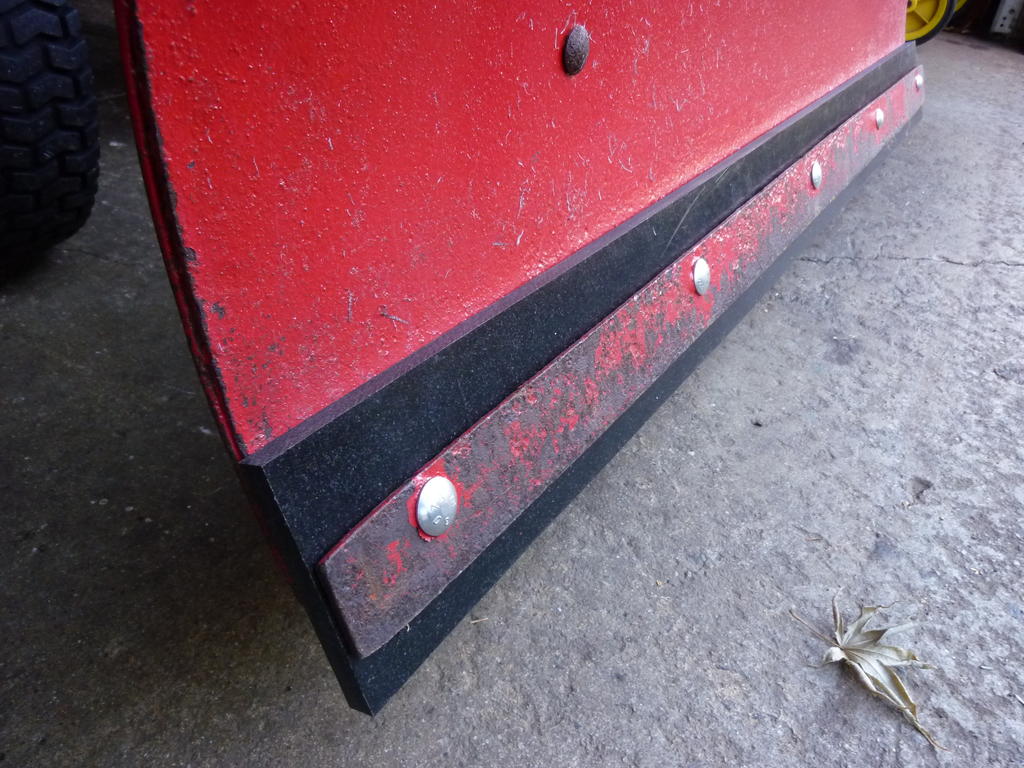

I went with the poly blade this year as well and probably have about 5 hours on it so far.



Plow a few of the neighbors which is a mix of new and old (uneven and sometimes broken up) blacktop.



Very minimal wear ... would project I can get about 5 years or so out of it ...   and then I'll flip to the other edge for another 5.



  • Like 2

Share this post


Link to post
Share on other sites
39 minutes ago, bigplow1 said:

I use 3/4" rubber stall mat cut twice the width of my steel cutting edge holes that line up with the cutting edge drilled I. The center so about 1"hangs past on top and bottom sandwich that between your plow and cutting edge works great when you wear out 1 side you just flip it over I get a couple years out of one normally and I plow asphalt and gravel and the mats are 4ft by 6ft so you get a lot of them out of 1 and for about 30 bucks

Sounds good what is the best way to cut the material and cut it straight?  Thanks

Share this post


Link to post
Share on other sites

I use a straight edge I have a 60" steel ruler and a sharp utility knife take your time usually takes about 3 to 4 cuts with a sharp blade I usually put in a new one

  • Like 2

Share this post


Link to post
Share on other sites
2 hours ago, emdmat1981 said:

I went with the poly blade this year as well and probably have about 5 hours on it so far.



Plow a few of the neighbors which is a mix of new and old (uneven and sometimes broken up) blacktop.



Very minimal wear ... would project I can get about 5 years or so out of it ...   and then I'll flip to the other edge for another 5.



Where do we get the poly blades again. I forgot about them, they might work as a snowblower scrapper bar to.



Thanks,    Glenn

  • Like 3

Share this post


Link to post
Share on other sites
1 hour ago, bigplow1 said:

I use a straight edge I have a 60" steel ruler and a sharp utility knife take your time usually takes about 3 to 4 cuts with a sharp blade I usually put in a new one

Thank you bigplow1, will give this a try........

Share this post


Link to post
Share on other sites

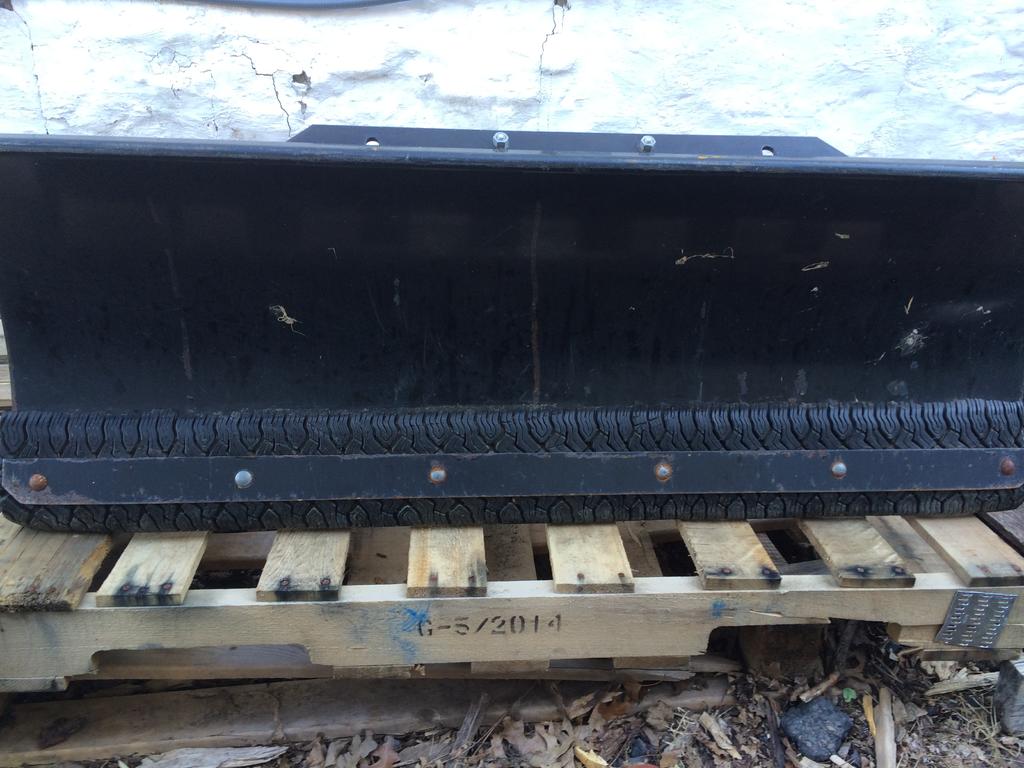

Never used this blade but, interesting. :think:



Given to me, an old timer moving South to a "NO SNOW" zone.  :icecream:


Edited by Tankman
  • Like 2
  • Thanks 1

Share this post


Link to post
Share on other sites

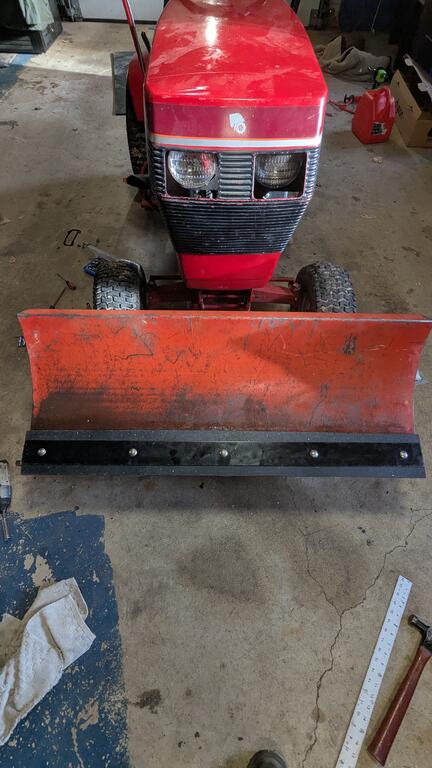

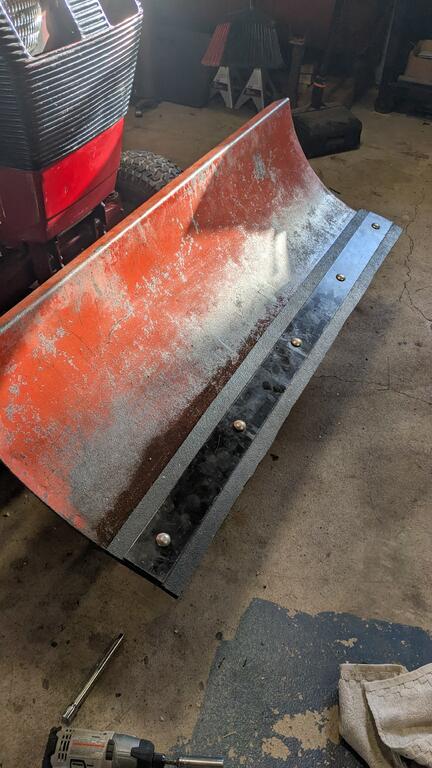

I purchased a Poly Blade off eBay and installed last season - or maybe he year prior(?). Live in MA and have not had too much snow since it was installed and looks like it has worn quite a bit. Went with it to avoid damaging the asphalt and it has done a good job in that respect. It came pre-drilled with one edge (top as installed) not having enough meat between the bolts and edge to flip and use again.  Bought some 1/2" conveyor belt strips to try when its completely worn.



Discussed wear strips on another thread a couple of weeks ago and one member do not recall the name/handle (Old-timers disease kicking in...).  He cut strips from old tires to use on his blade.  Sounds like an excellent idea - very cheap and should not damage the D-Way surface..

  • Like 2

Share this post


Link to post
Share on other sites

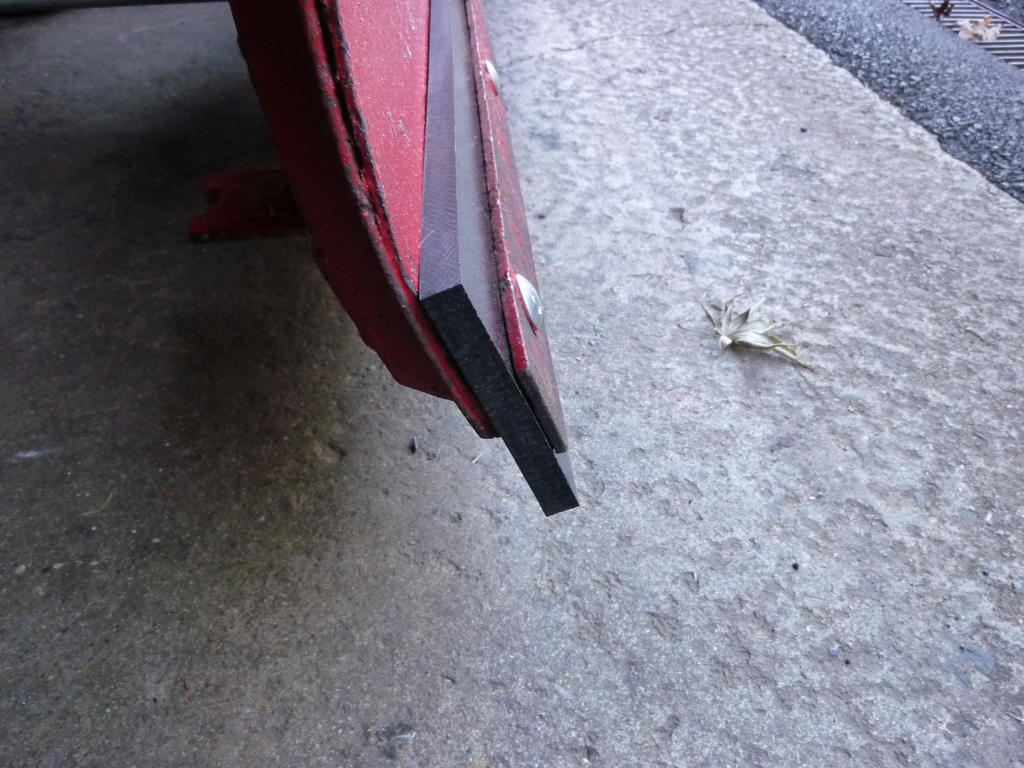

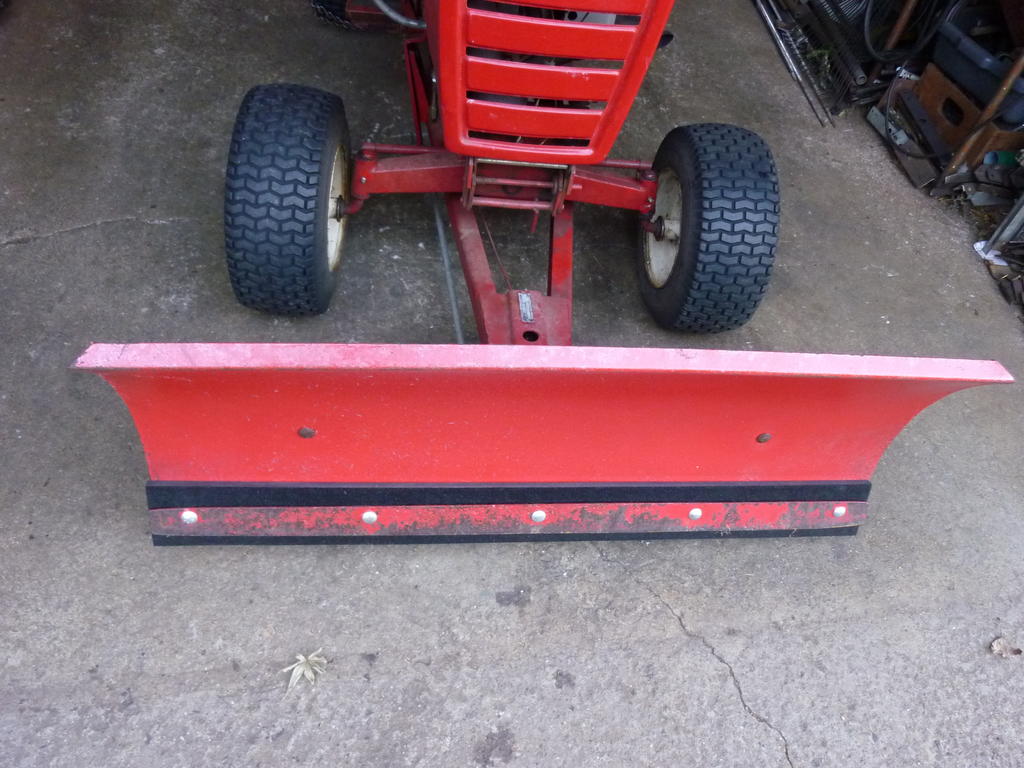

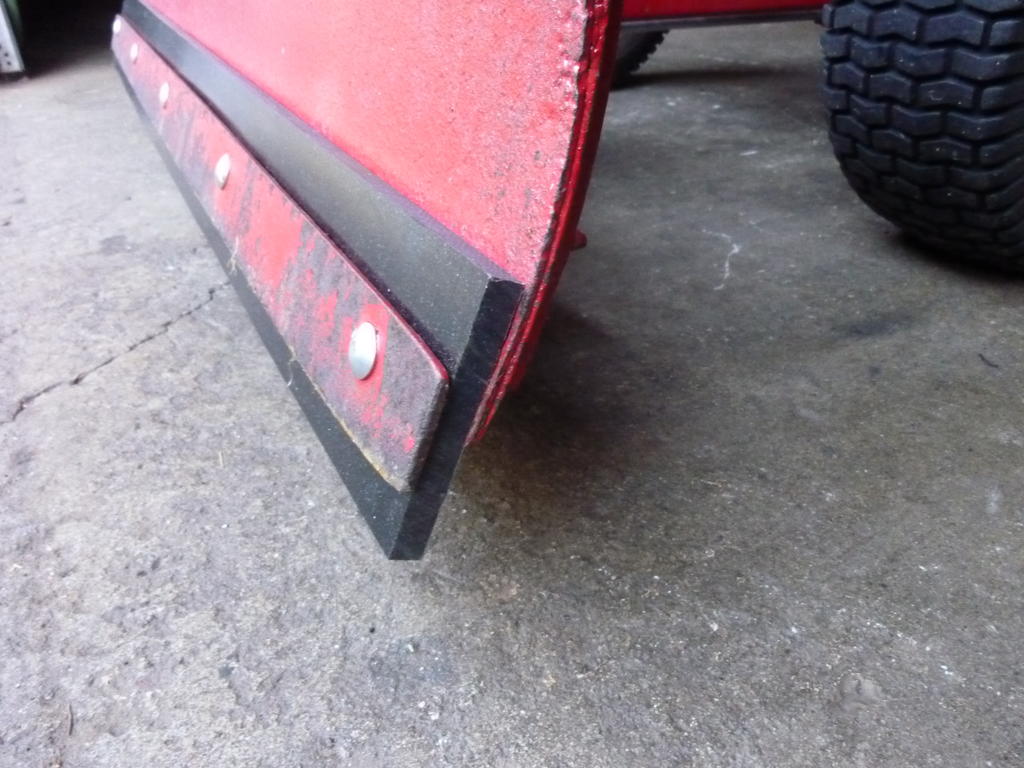

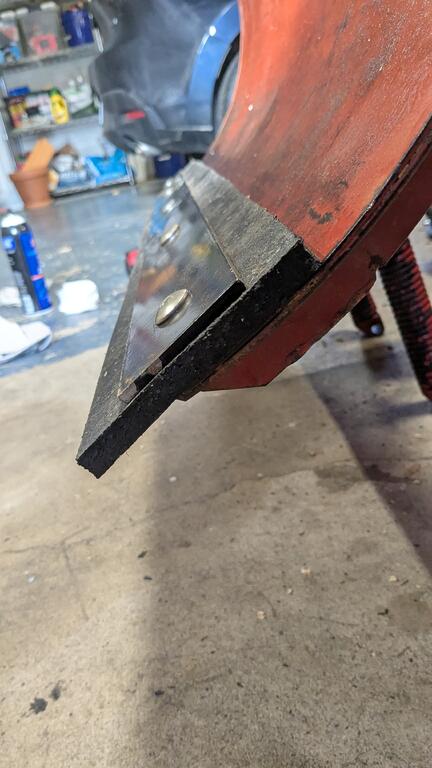

I have used both rubber and UHMW. Originally I bought a rubber horse mat, then cut a strip to bolt onto the blade. Use the blade's wear strip to use as a template and then sandwich them to the blade. It worked pretty good and didn't leave marks. I use to call it my 48" squeegee. But then I sold that dozer blade so decided to try a UHMW edge for the other blade.



For that I ordered a 48" x 4"  x 1/2" black UHMW remnant on eBay less than half what are sold for snow blades. The white UHMW is virgin so the black must be recycled. Used the wear strip again as a template and sandwiched them too. I also cut about a 45 degree angle at the very ends to prevent a snag. Three seasons and it is showing some wear. But I find that it tends to "ride" on the snow so doesn't scrape as well. I think part of the problem is that the front edge is at a positive angle with the rear edge doing the scraping. It really needs to have the edge planed so that it bites at the front. After taking the photo, it appears that is how it is wearing.








  • Like 2
  • Thanks 1

Share this post


Link to post
Share on other sites

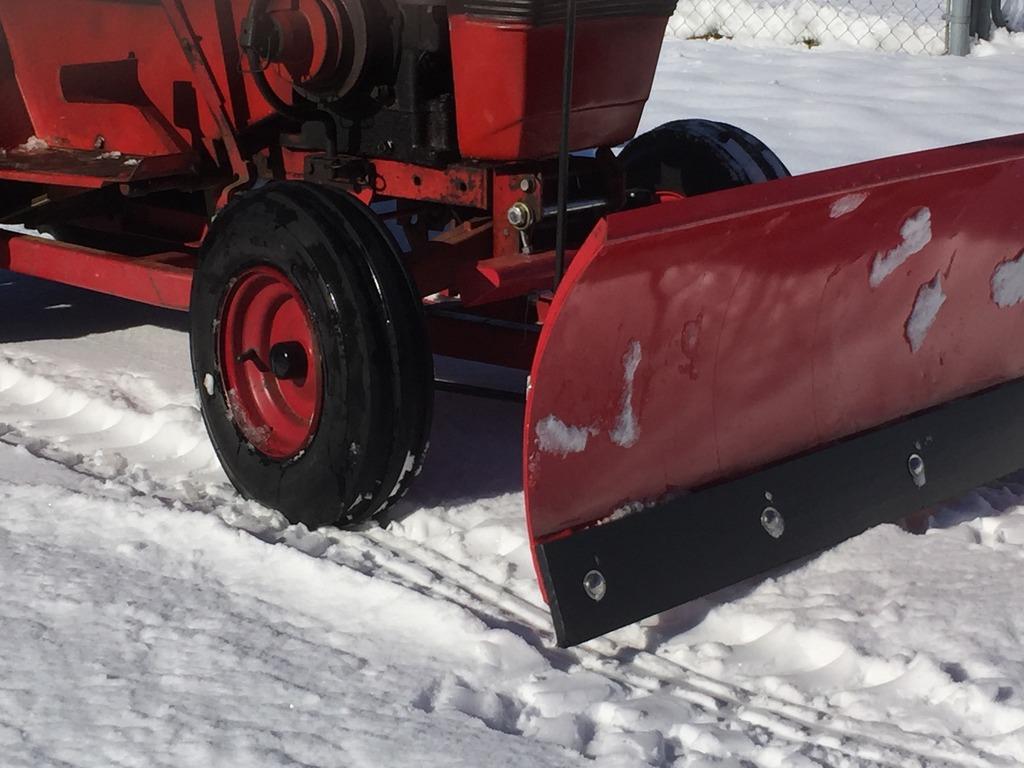

I used a 1/2" x 4" poly edge on a 48" blade that I installed before last season began on my 414/8.  I have a 450' asphalt drive

with parking area and turn around.  I plowed all last winter and 7 times this winter (so far) and the blade edge shows NO perceptible

wear (just a little rounding on the outside corners).  Before installing the edge I chamfered the the cutting edge with my wood

plane so that it mated at the correct angle with the driveway surface.



I am very pleased with the poly edge. It doesn't wear and it doesn't scratch.  The only negative is that it looks a little klutzy being

1/2" thick.  For me that is OK as performance trumps looks.



I also use the rubber tire chains modified to 2 link spacing.  I have also found them to work well. as they don't scratch the drive.

I have found the traction to be a little less than steel chains when pushing up the hill on the drive.  The slipping of the rubber chains

does not mark the drive and the straps show little evidence of wear.  I used to use steel chains and they really marked the drive

when slipping.



Conclusion: I am very satisfied with the poly blade edge and the rubber tire chains.



Eric
