Kurt-NEPA

522xi Hydro Problems

Recommended Posts

The hydro on my 522xi appears to be badly worn.  When cold it seems to run fine, but slower than it should.  When it warms up, it slows down.  Especially when going up hill.  On a hot summer day its at a crawl.  Its getting progressively worse.



My guess is that the Eaton 1100 is shot.



What I've done so far.

1. I changed the oil and filter.  WH filter and Mobil One 10W30
2. Adjusted the linkage in an attempt to speed things up.  No luck.
3. I parked with a front tire against a tree and pushed the motion control pedal forward.  The hdyro just slipped. I should spin the tires, but did not.
4. Checked what I could see.  No leaks and the hydro is clean.



So where do I go from here?  Anyone have any experience?



My options seem to be.

1. Find a used Eaton 1100, but they are scarce for the 5xi's.  I looks just like the 520H hydro, I wonder if they interchange.  Lots of 520H hydros out there.  Maybe the guts will interchange.  So far I can't find parts for it.
2. Find someone to rebuild this one, or if I can get parts, try to do it my self.
3. Swap the one from my 520xi and retire that tractor.
4. Purchase a new Eaton 1100, but at over $2000 that makes little sense.
5. Find a 5xi with a blown engine, purchase it and swap the hydros.

6. Try some heavier oil.  I have some 15W40.



I'm not sure what to do.  I might just swap the 520xi hydro into it.  It has a new engine in it and I would probably swap that too.  That way I make two tractors into one.



BTW, I love this 522xi.  The power steering is fantastic on these old arms.



Any thoughts anyone?

  • Like 1

Share this post


Link to post
Share on other sites

I could be wrong but I believe that the Wheel Horse 1100 transaxles are different internally due to the 5xi Hi-N-Lo feature. The transmission is where you probably have the problem. That should be able to be rebuilt as it is just a big gear pump. The clearances have probably opened up. Other manufacturers used the same transmission, including Cub Cadet and even Kubota, on their tractors.



  • Excellent 1

Share this post


Link to post
Share on other sites

Thanks for the comment Sailor.  I think you right about the Eaton 1100 being different.  Everything points to a badly worn unit.  I would try a rebuild if I can locate parts.



Anyone know what other tractors used this transmission.  That would really help in finding a used transmission.

Share this post


Link to post
Share on other sites

I believer the pump unit internals are the same, but they may have used different bearing arrangement with shaftdrive vs belt drive and bevel gear on drive side as opposed to straight gear. I vote you get one and give it a shot! I think my eaton is similarly abused, but it's not as bad yet.



These xi tractors put a bit more wear and tear/pressure on that eaton that easily lasted 40 years in a c series or 300/400/500 series. They wont last as long in our xi's so we will have to figure out how to recondition them or find reasonably priced parts.



I plan on integrating a oil cooler into mine for my next modifications. I think especially with power steering that hydro oil gets really toasty!

Share this post


Link to post
Share on other sites

Thanks bmsgaffer.  I suspect you are right about the input and out put shafts.  I'm thinking that the internals may swap with a 520H unit.  Might just try that this winter.



I suspect this thing is running really hot.  Especially since it gets worse with heat.  I like that oil cooler idea.  Kohler make one for their V-twins that might adapt nicely.



I just cleaned the power steering filter, just in case that was the issue.  But it was nice and clean.  The only short term thing left to do is to try a heaver oil.  The manual says I can use 10W-40, but I'm thinking of some 15W-40 Shell Rotella.  I have a gallon or two of it.

Share this post


Link to post
Share on other sites

The Hi - Lo is a gear change - nothing to do with the pump. The output shaft on the pump may be different. I haven't had a 520 hydro apart.

I will do some research on it.

Share this post


Link to post
Share on other sites

My biggest concern is the output side of Eaton 1100 transmission (pump).  I wish I could find some pictures of the 5xi units.  If I remember correctly, the 520H transmission has a splined shaft where it connects into the gear box. I think I could adapt the input side if need be.



I just changed the oil and put 15W-40 in it.  Cold it seems to work just fine.  I just pulled up a steep hill without issue.  I need to mow for an hour or two and see what happens.



Share this post


Link to post
Share on other sites

I have looked over the prints and it looks like the input and output are the same.

I can't post the drawings but if you pm me with your email I can email them to you.







  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

Take a look at this. It shows the internals. There is also a troubleshooting flow diagram.



I looked at the parts diagrams for a 5xi 1100 and a 520-H 1100. The output shaft has a different number. The 5xi turns the input 90 degrees via a bevel gear.



On the topic of a cooler, a small power steering cooler might be installed between the sump and pump on the rubber line.



http://truturf.com/wp-content/uploads/2015/09/old_manuals_Eaton-11-Hydrostatic-Manual.pdf

Edited by shallowwatersailor
  • Like 1

Share this post


Link to post
Share on other sites

Nice find Sailor.  That manual lays out the disassembly/assembly really nice.  Make it look do-able.



Thanks much.  Now I have some studying to do.

Share this post


Link to post
Share on other sites

:text-yeahthat:          Great manual.    :woohoo:

Share this post


Link to post
Share on other sites

Update:  I've spent the last several weeks studying all the great manuals and drawings that were shared.  I'm starting to understand how this thing works.  Before I when the hydro route I decided to check everything out.  New oil, filter, and serviced the PS filter, and then I adjusted the linkage according to the manual.  No help.  It would still move at half speed max and slow on hills.  Getting desperate, I removed the "Smart Steering" linkage and got the full speed back - SUCCESS!!!!



I think something is off on my linkage in the back.  It was binding up the "Smart Steering" and slowing the tractor.  I still have work to do, but I have full speed and a working tractor again.



Thanks for all the help.



Kurt

  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

I'm glad to hear that! It gives me hope that mine will come back after some fiddling. I never readjusted everything after I did the smart-steer delete kit.

Share this post


Link to post
Share on other sites

Obviously this is my old 522.

The oil & filter were just changed and P/S filter was cleaned when I installed the transaxle ~ which was only 1.5 hours before you bought it.
The tractor that transaxle came out of has 453 hours on the meter and I believe it to be accurate.
I thought I had the linkage correctly adjusted upon installation, but apparently I was wrong.
Sorry for the trouble.

  • Like 1

Share this post


Link to post
Share on other sites

No worries Terry!  I thought maybe the Smart Steer linkage was out., but it was adjusted according to the manual.  I'm still playing with this, but I have maxed out the linkage.  Then I checked the the engine speed.  It was a bit less than 3300 rpm.  under the spec of 3400.  At first I thought this was insignificant.  But I checked the Eaton 1100 manual and that said 3600 rpm and Kohler says 3750 rpm.  So I increased the engine speed to 3580 and what a difference in ground speed.  Its like a different tractor.  I'm going to run it this way for a bit.  But I am pleased at the moment.  Time to mount the two stage blower .



BTW,  I love this tractor.  Thanks Terry.

  • Like 1

Share this post


Link to post
Share on other sites

I do remember it seeming slow, but - compared to my pewter Horse - they all are! 😁

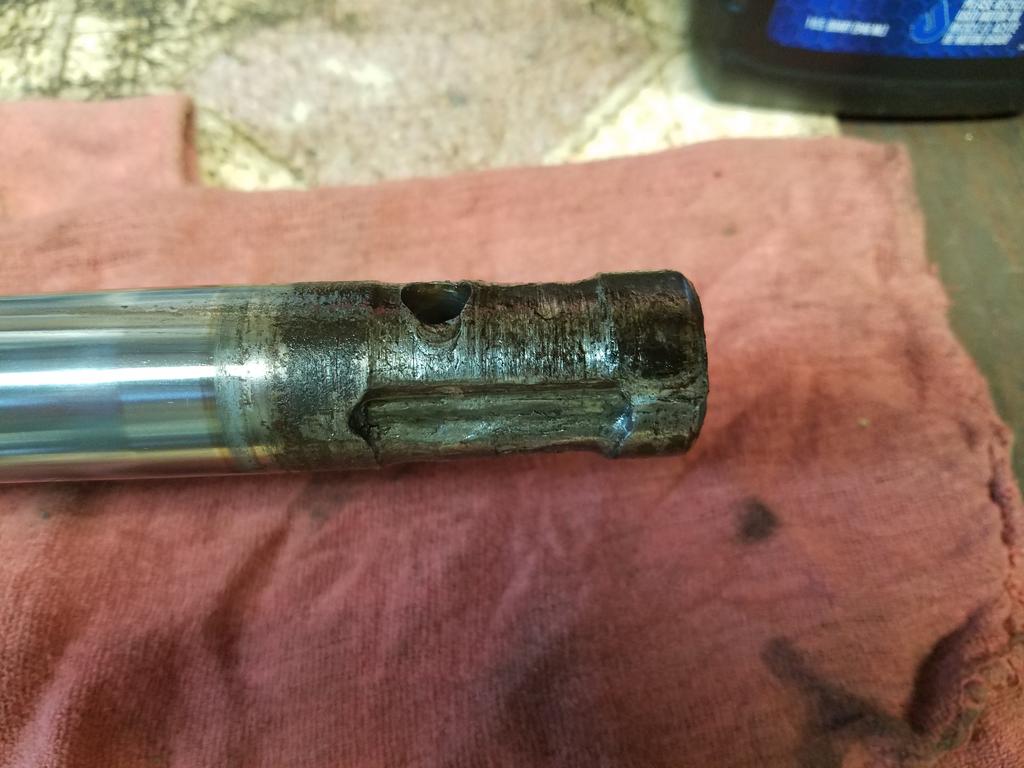

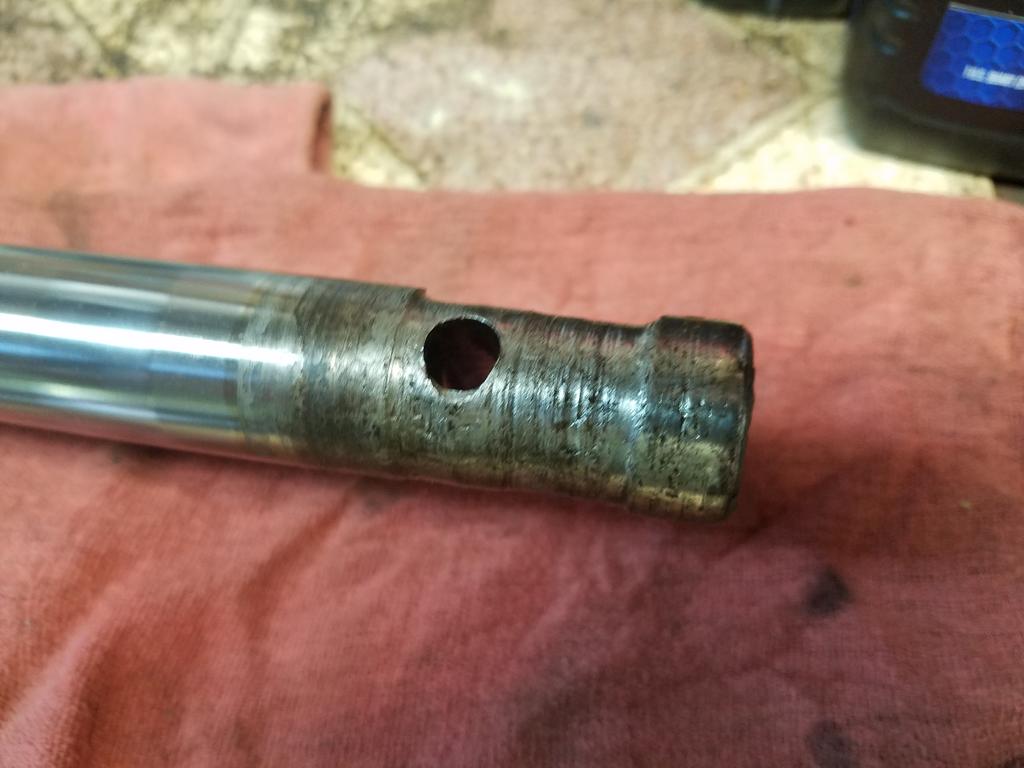

Here's the reason I swapped transaxles in your 522.....  a really nasty right axle:

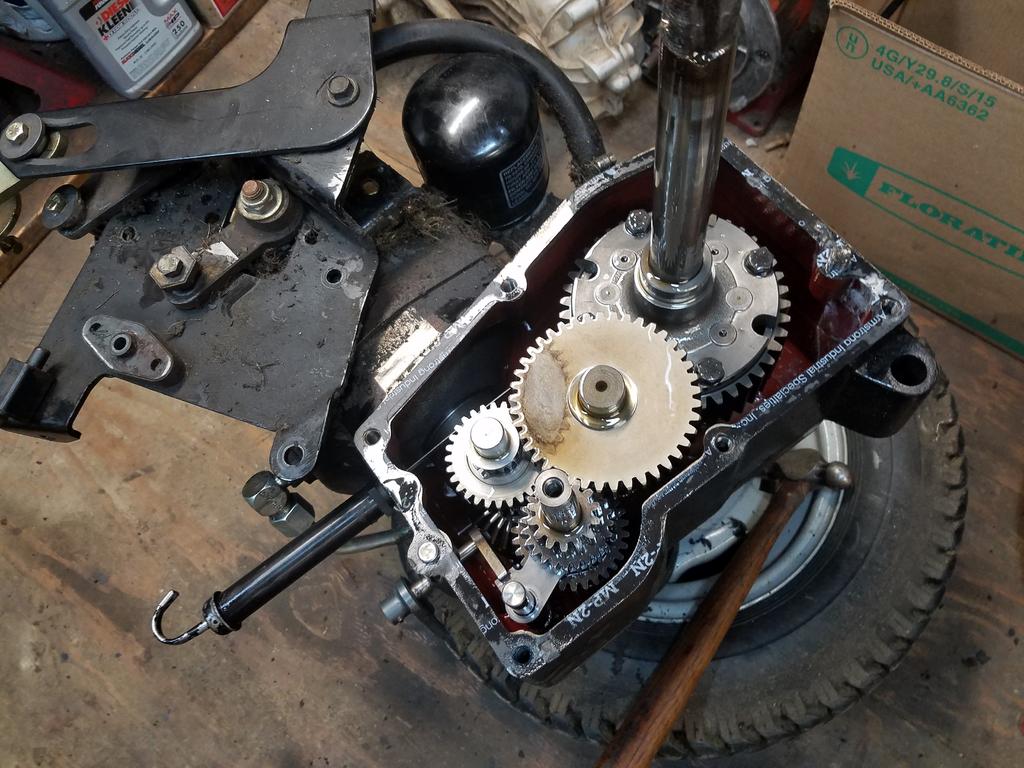

For those who are curious......  the layout of the innards of the xi tranz:

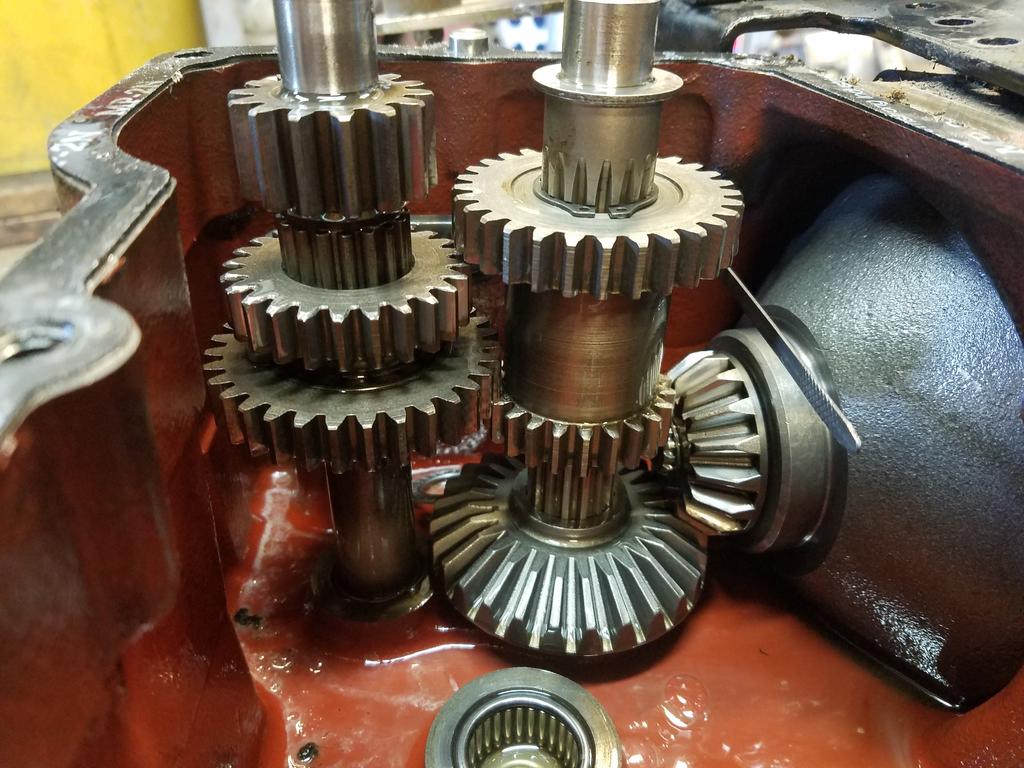

Input bevel gears, hi-lo cluster, and primary reduction shaft:




With the exception of the square vs. woodruff key, the axles appear to be the same as the "classic" 8 speed and Eaton hydro tranz 1.125" pieces.



  • Like 1

Share this post


Link to post
Share on other sites

Wow Terry.  I remember seeing the hub that went with that axle.  It was just a bad.  All of that from a leaking seal.  How could somebody abuse a nice tractor like that?



What are you going to do with it?  If the axles are the same, they might swap out with those from a 520H.  They sure do look the same.  If you decide to scrap it, I might want the hydro.

Share this post


Link to post
Share on other sites

I'm fixing it for in the '00 520xi ~ hopefully before winter.

I haven't decided on using the Honda v-twin or rebuilding the Kohler though.

I guess I need to get busy. 😎





  • Like 1

Share this post


Link to post
Share on other sites

When the cold front we just got here gets your way - you'll move faster , lol . I went into fall overdrive yesterday getting stuff ready - going to freeze my butt off finishing it today . Saturday night here they are calling for a hard freeze and a lot of wind again - just what we need .


Sarge

  • Like 1

Share this post


Link to post
Share on other sites
2 hours ago, TT said:

I'm fixing it for in the '00 520xi ~ hopefully before winter.

I haven't decided on using the Honda v-twin or rebuilding the Kohler though.

I guess I need to get busy. 😎





I thought that is what you were planning.  That Honda would be a beast in there, but will be harder to fit up.  Especially the muffler.



Best of luck!
