608KEB

520H dead

Recommended Posts

520H is dead. Things I've tested so far. I've jumped a wire from + battery to blue wire on starter. It cranks over good. I cleaned safety switches, starter, ignition connections. I notice if I jiggle or slowly turn key the lighted board will come on. A couple of times the tachometer reset itself.

 the lights will not turn on. Is it possibly the ignition switch?


Edited by 608KEB

Share this post


Link to post
Share on other sites

Molex plug!







  • Like 4

Share this post


Link to post
Share on other sites
49 minutes ago, squonk said:

Molex plug!







:text-yeahthat:



  • Like 1

Share this post


Link to post
Share on other sites

Could be corroded terminals in the plug that connects to the ignition switch.

  • Like 1

Share this post


Link to post
Share on other sites

I don't think it's the molex plug. I cleaned that pretty decent last winter. I had to bypass 1 of the 9 connectors. I'll try a ignition  switch. It's really corroded. I also did some soldering and heat shrinking to the 3 fuse holder last winter. I'll report

back my findings.

Share this post


Link to post
Share on other sites

Where can I pick up a 5 prong key switch locally?  Napa?

Share this post


Link to post
Share on other sites

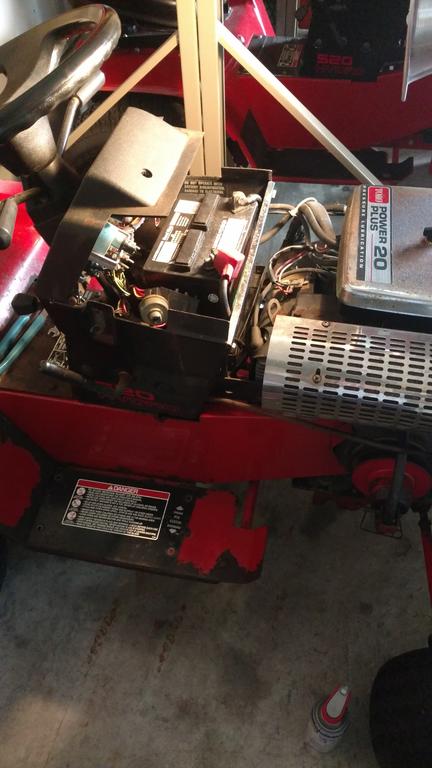

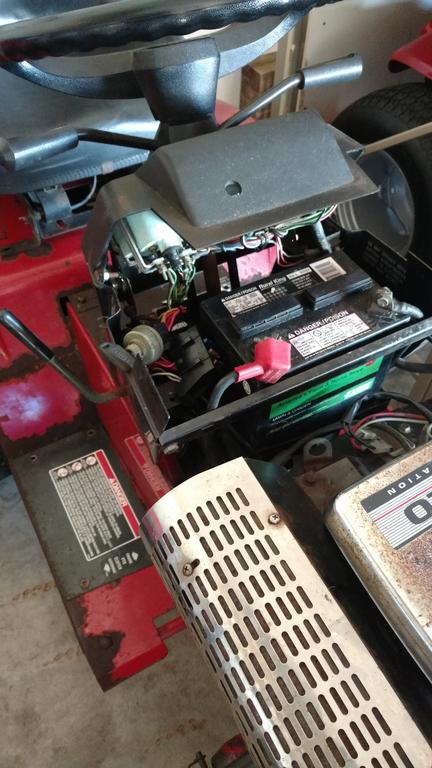

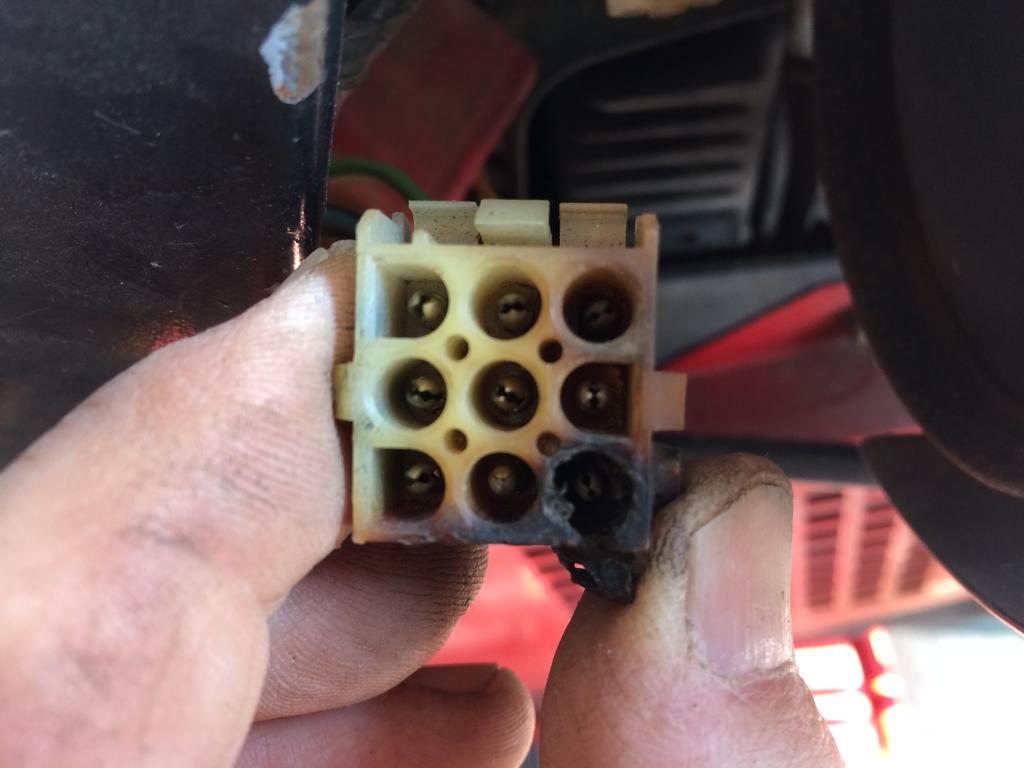

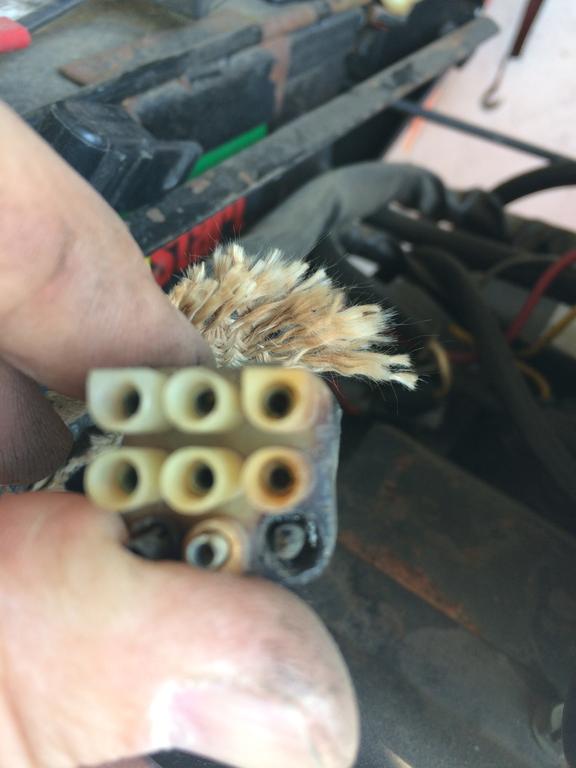

9 pin connector was the problem!:wacko:IMG_20170928_083347910.jpg

Edited by 608KEB
  • Thanks 1

Share this post


Link to post
Share on other sites
