Easiest Way to put a 4 Bolt transmission on a frame

Recommended Posts

Timely info! Thanks

  • Like 3

Share this post


Link to post
Share on other sites



Perhaps they could be called "tranny stud hangers"?


  • Like 3

Share this post


Link to post
Share on other sites

I have some of those I made for splitting our ford tractors we had here. Big dowel pins pretty much. Great idea Lane

  • Like 3

Share this post


Link to post
Share on other sites

Similar studs are directed in the Sundstrand manual  (to align the hidden O-rings )for the separated system as in the D series as I have made several of them.

Once the hex head is off, use hack saw to cut a slot for a flat screwdriver to remove the stud. Works great...

  • Like 5

Share this post


Link to post
Share on other sites

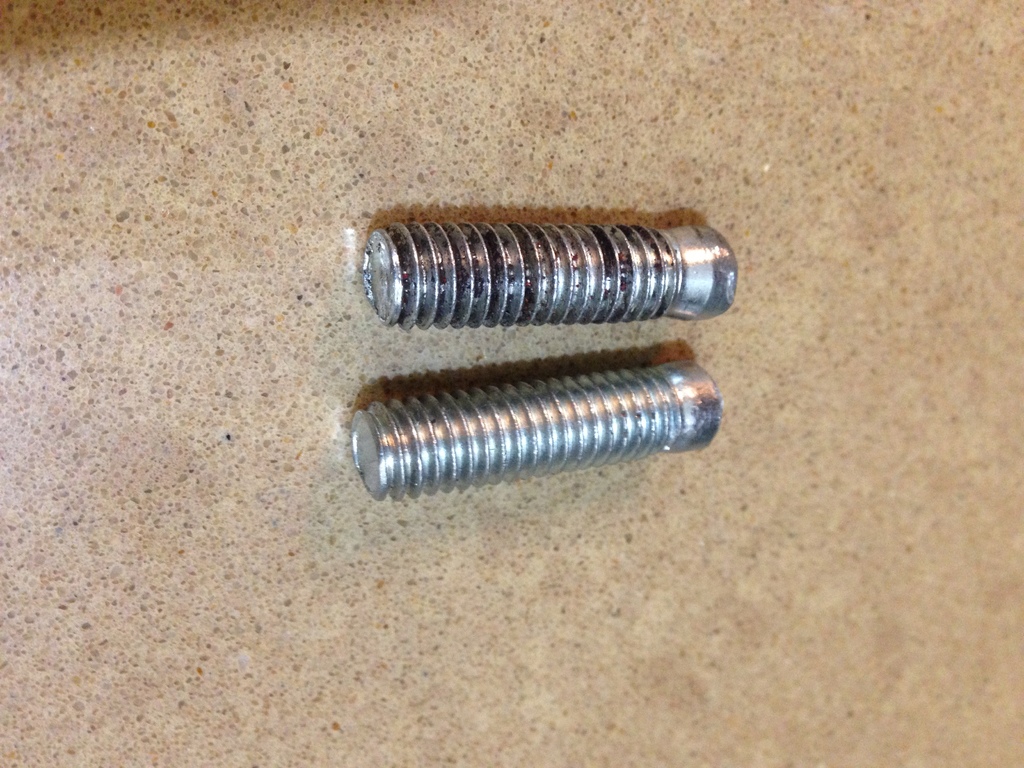

I have a pair of 3/8-16 X 2" set screws that I use. They align the transaxle and I run nuts up on them to snug it into place and then insert the lower bolts. Once the lower bolts are tight I replace them with regular bolts.Couple of bucks, but saves a lot of time.


  • Like 8

Share this post


Link to post
Share on other sites

Add in a HF lift table. Have the frame on stands. Put the tranny on the table. Lift the tranny with the table and roll the tranny in place. :)

  • Like 5

Share this post


Link to post
Share on other sites

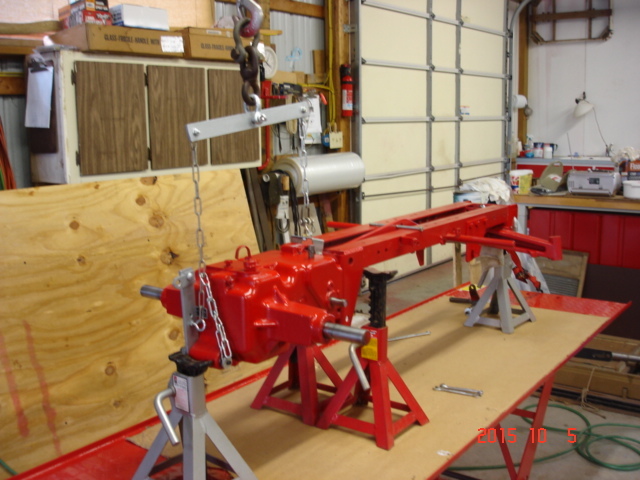

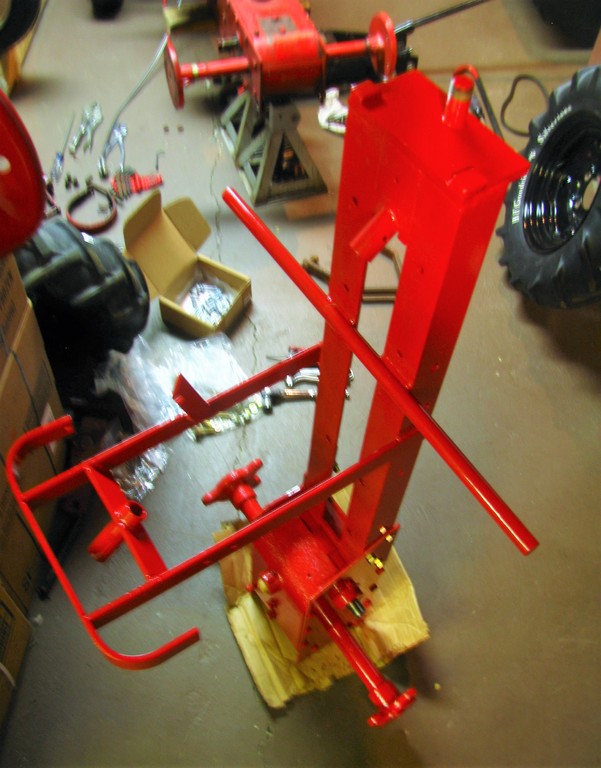

Here is another Way.

Marv


  • Like 6

Share this post


Link to post
Share on other sites

I do it with the wheels on the rear axle , roll it into place using a floor jack to hold the nose up and align it with the frame - never had an issue .



Sarge

  • Like 4

Share this post


Link to post
Share on other sites
22 hours ago, AMC RULES said:


That's a wittle tranny.:)

  • Like 2

Share this post


Link to post
Share on other sites
