520 Kwik Way Loader Help

Recommended Posts

           I picked up a Kwik Way Loader to put on my 520-8 speed. I'm still trying to get the front mount and the two Brace arms from the seller, but i'm starting to feel it might not happen. So can any of you Kwik way owners help me with the correct measurements for the "Front Mount" and the 2 "Brace Arms" that i need to complete this implement PLEASE...  Thank you.

  • Like 1

Share this post


Link to post
Share on other sites

Shouldn't be too hard to fabricate or have made.

It just snaps into the front tach a matic & the braces are just tubes flattened on the ends with holes drilled in them to bolt in between the two.

I'll see if I can dig mine out for some pictures.

  • Like 2

Share this post


Link to post
Share on other sites

Not to hard at all. The manual shows the parts to be built with stock pieces, cut to shape and welded. I'm looking to make a exact reproduction of the originals.

My cell number is (860)930-3354 if you would like to verbal the measurements. Thank you.

  • Like 1

Share this post


Link to post
Share on other sites

Still looking for some help please.

Share this post


Link to post
Share on other sites

I should be able to help you later this week when I move things around.  PM me your contact information if you can wait.

Share this post


Link to post
Share on other sites

The loader is mounted to the sub frame and just sitting there till i can install those items. Any help will be appreciated.

Thank you, Jason

My email: jlindell@megahvac.com

My Cell: (860)930-3354

Share this post


Link to post
Share on other sites
Posted (edited)

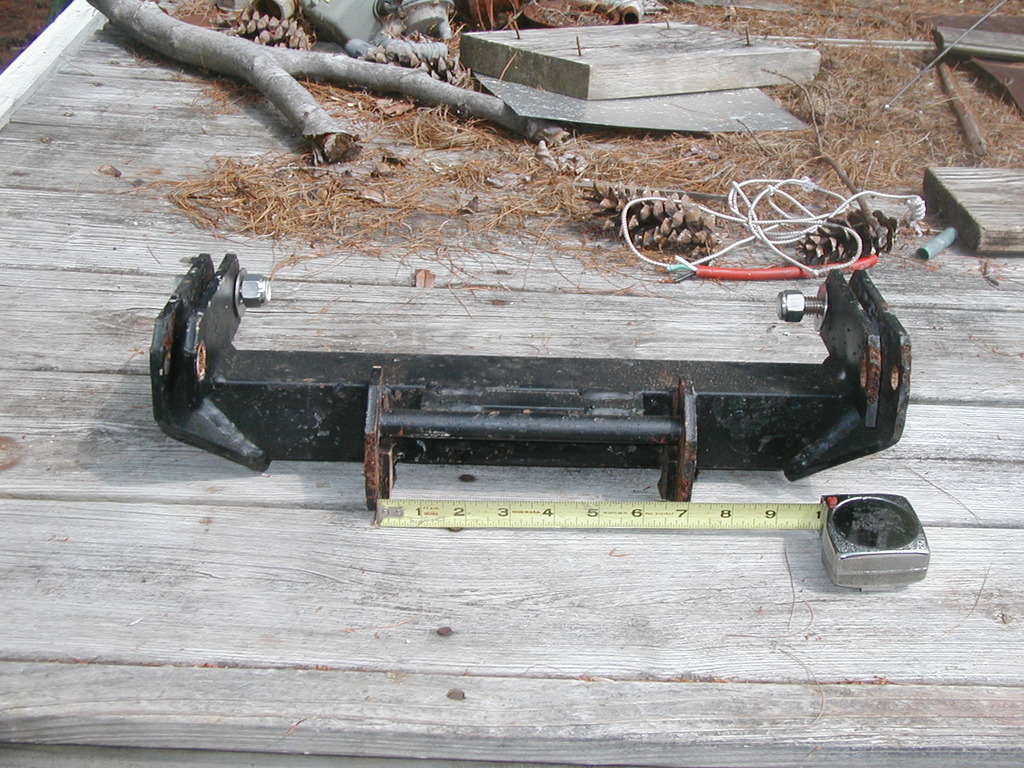

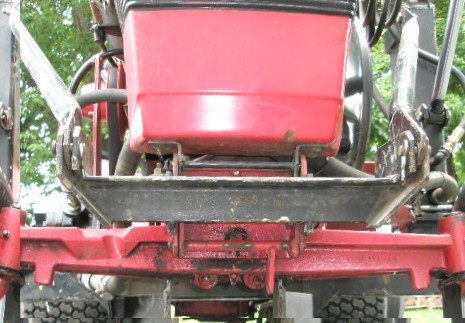

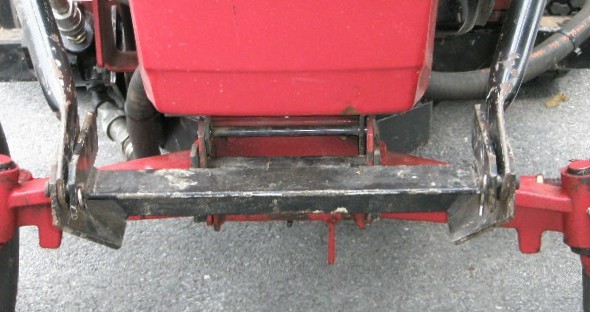

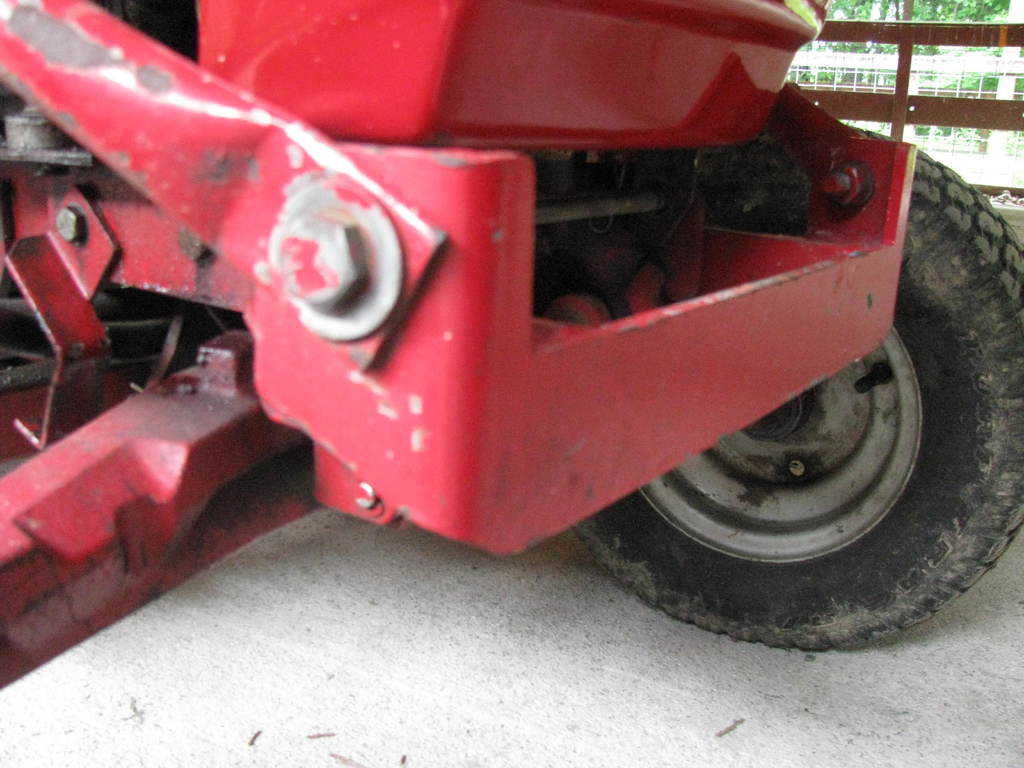

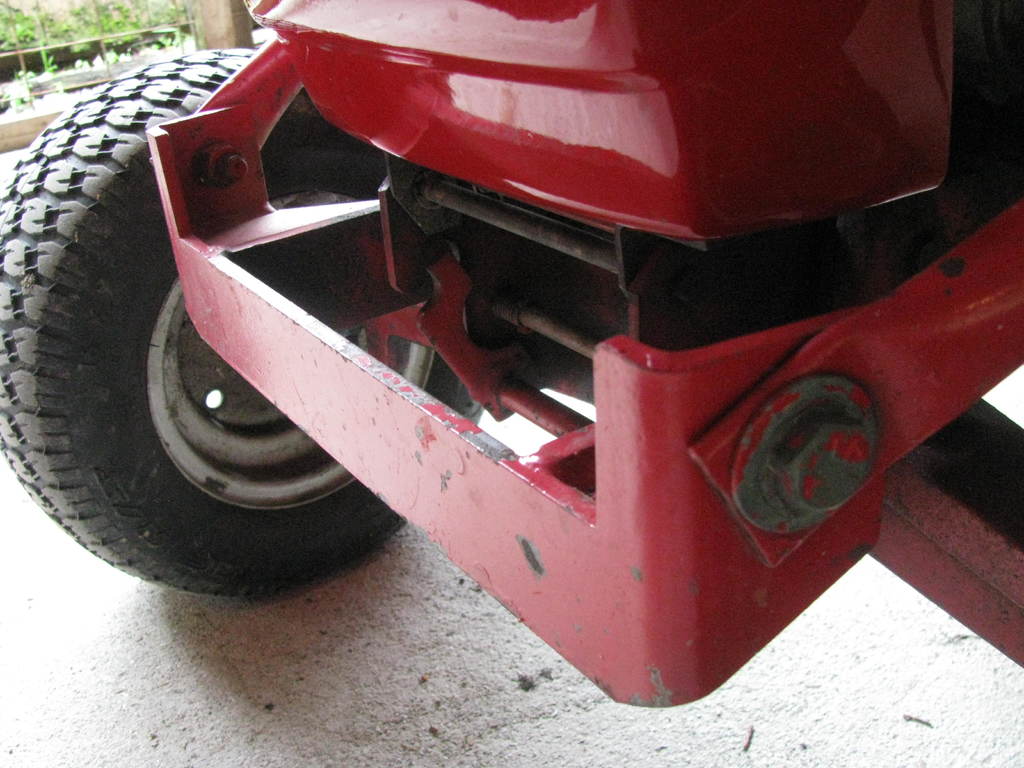

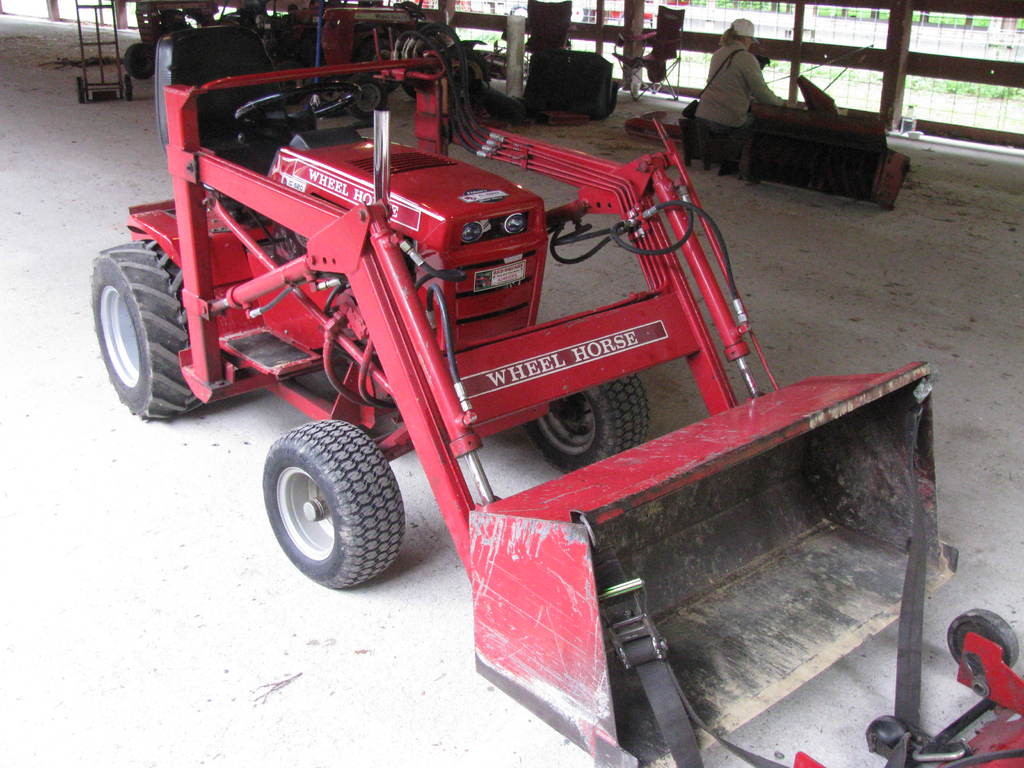

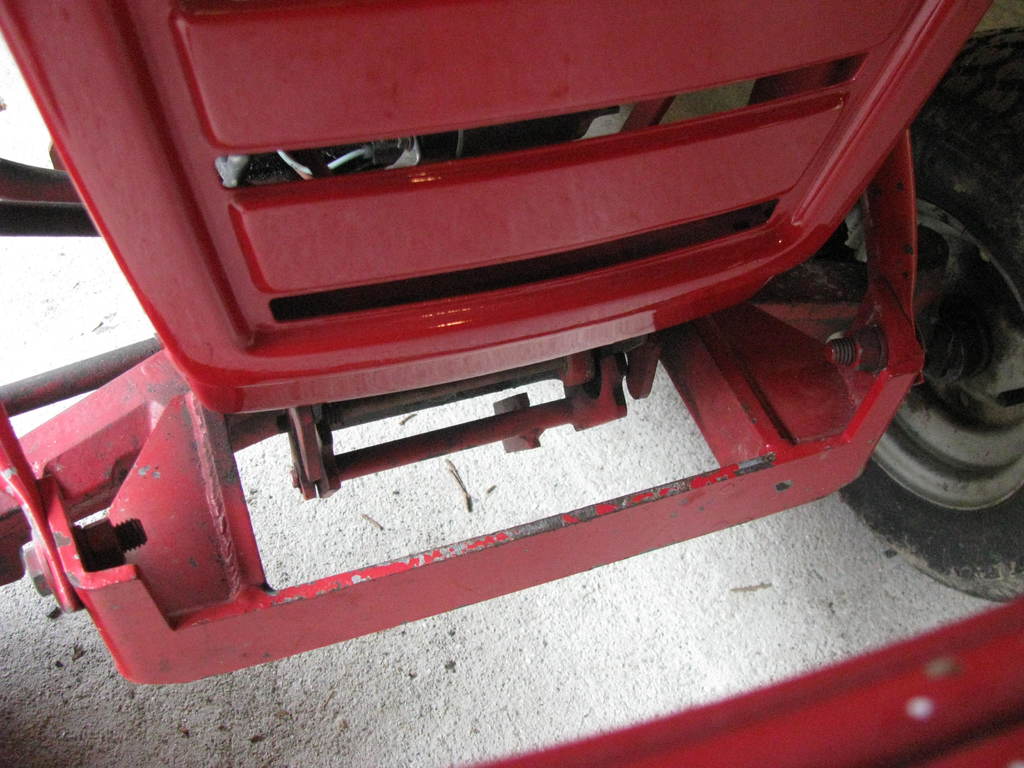

Some front mount picts I captured here Jason...

from the 2014 big :wh: show.   :confusion-shrug:

IMG_1954.JPG.cf723cb6a811122b5525f638fa728690.JPGIMG_1951.JPG.3dad1994d19bcc8b0768ac0fd3bc6899.JPGIMG_1952.JPG.7fcdc2b99f1e97b86b373c693c9c8d70.JPGIMG_1953.JPG.cde6fcbeebc48a9245283eeea6c02f0c.JPG





Edited by AMC RULES
  • Like 1

Share this post


Link to post
Share on other sites

I cant be the only one with a 520 with a kwik way loader. Please help:(

Share this post


Link to post
Share on other sites
Posted (edited)

OK, here is a materials list:



2 Side Support Tubes: 1.35" OD, .10 wall thickness, 34" overall length.

   Ends are flattened at 45 degree angle with 2-3/8" on the short side.

   Holes are 5/8" from the ends.



2 Side Plates: 1/4" x 5" x 5-1/2"

  Part is bent 45 degrees at 2-1/4"



2 Inner Side Plates: 1/4" x 2" x 5-1/2"



1 Main Cross Piece: 1/4" x 2" x 2" x 16" angle iron

   Cut to fit Side Plate angles.



2 Hitch Side Plates: 1/4" x 2" x 3"



2 Hitch Side Plate Supports: 1/4" x 1-1/2" x 1-7/16"

   Welded to above.



1 Hitch Pin: 5/8" diameter x 7-1/4" long



1 Hitch Pin Support: 1/4" x 3/4" x 5"

   Welded to Hitch Pin, note location on photo.



That should give you a start.  I'm sure there will be some questions.














Edited by lynnmor
  • Like 1

Share this post


Link to post
Share on other sites

This is exactly what i was looking for, thank you very much! I will get started on gathering up the material and cutting up those dimensions.

Share this post


Link to post
Share on other sites
1 hour ago, DTOM said:

This is exactly what i was looking for, thank you very much! I will get started on gathering up the material and cutting up those dimensions.

I changed some quantities, see above.

  • Like 1

Share this post


Link to post
Share on other sites

Photobucket has my pics currently. I have tried to order up the complete download but I never get the email.

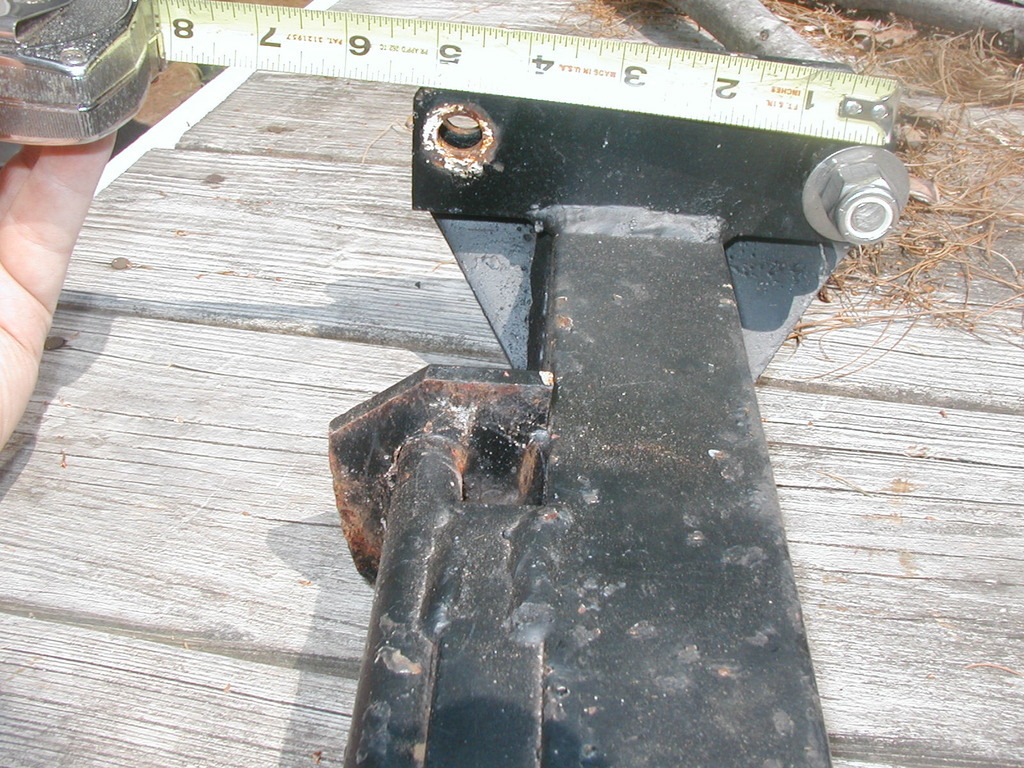

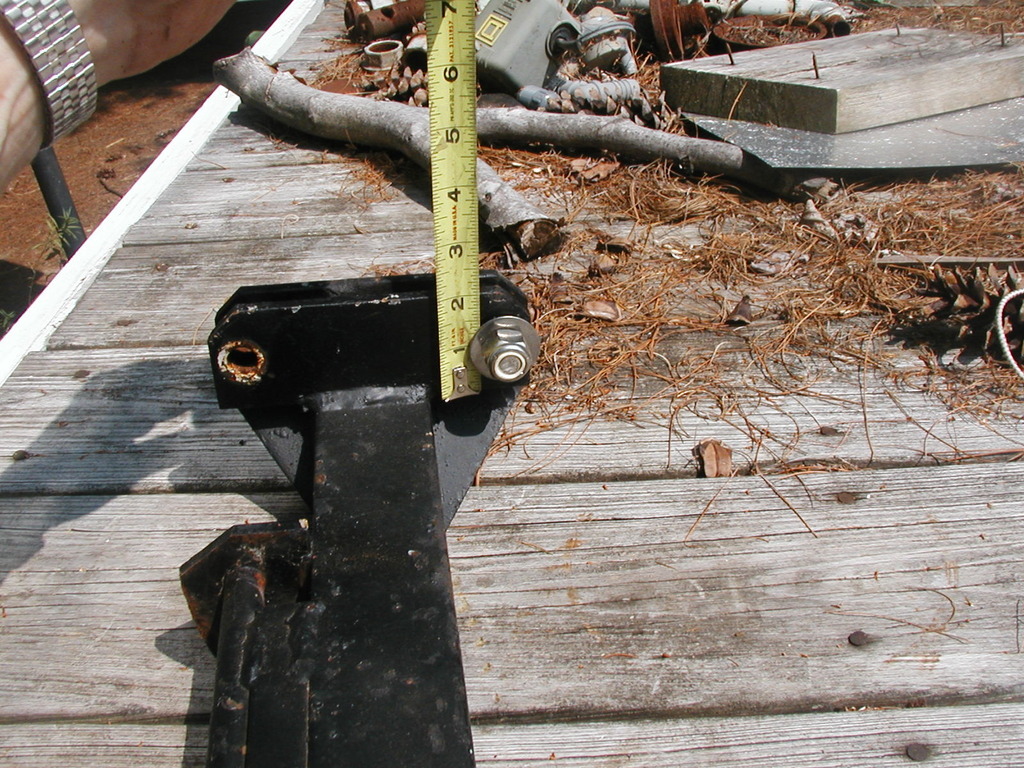

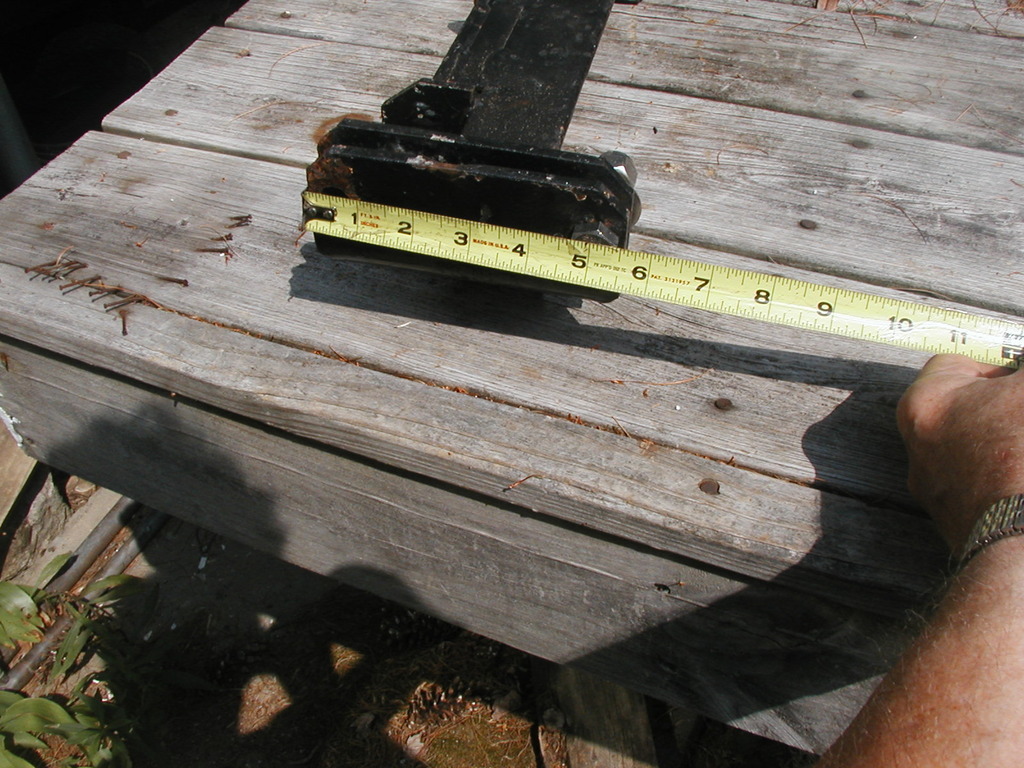

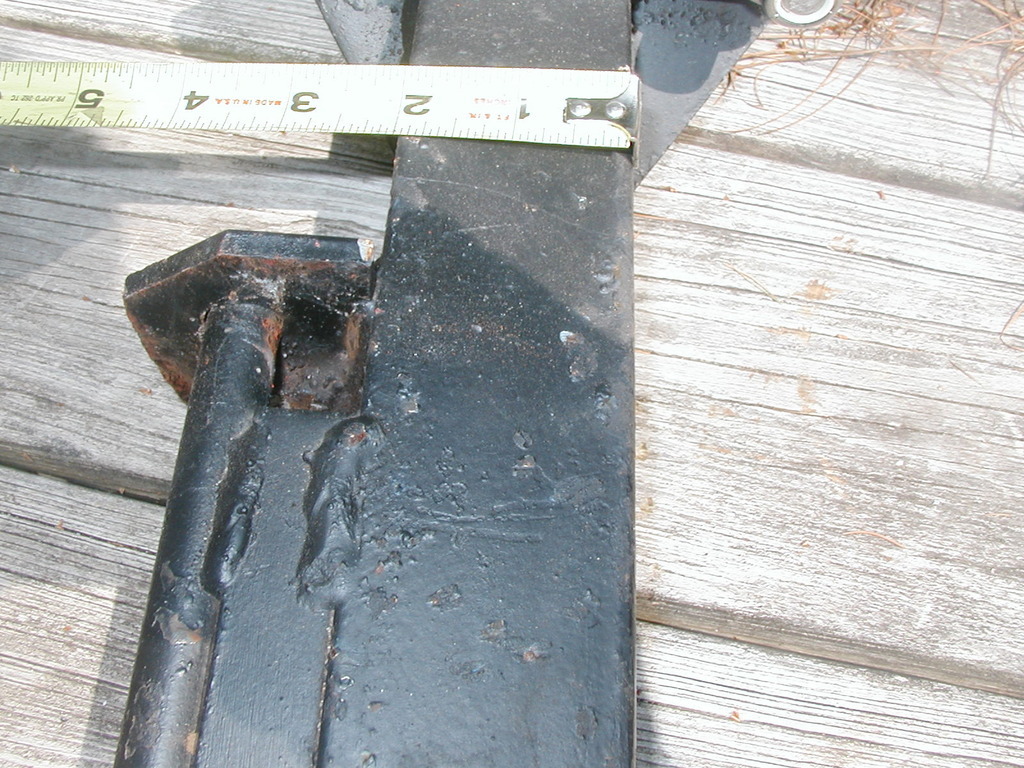

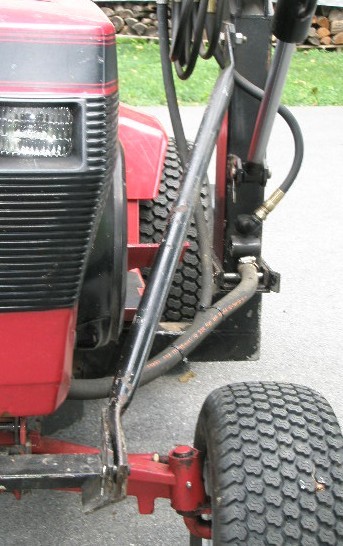

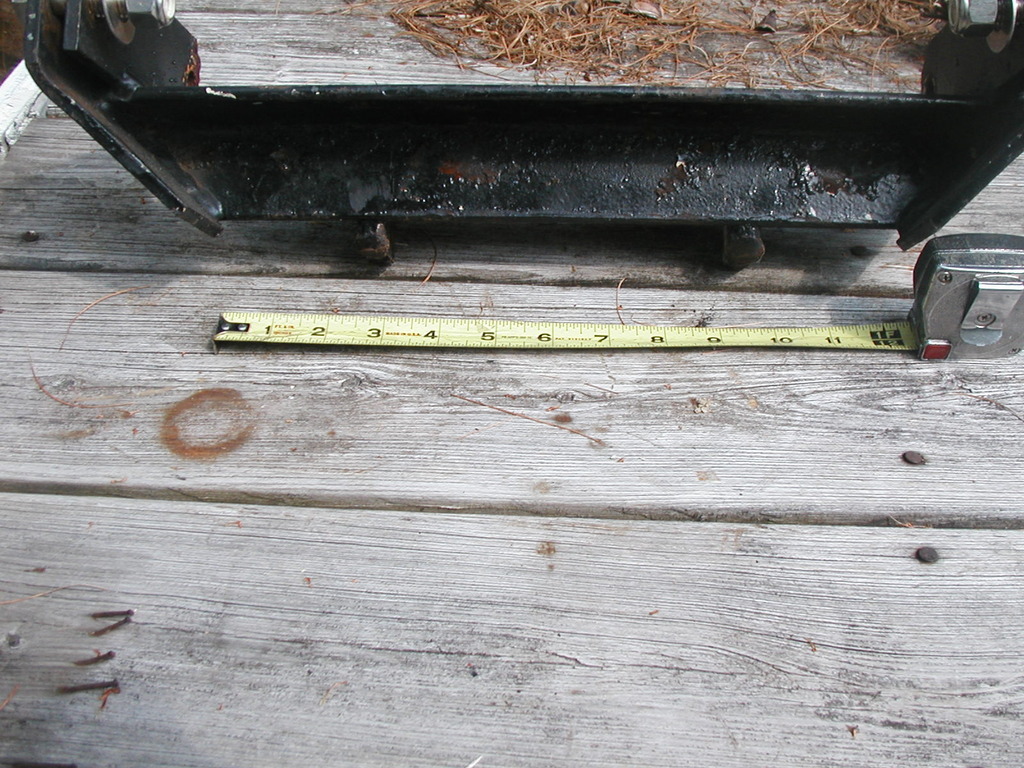

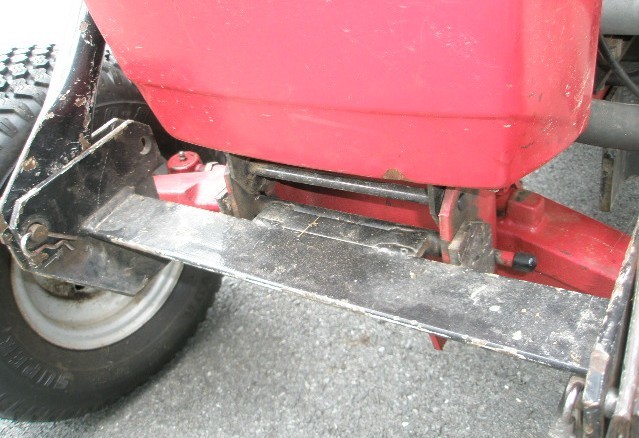

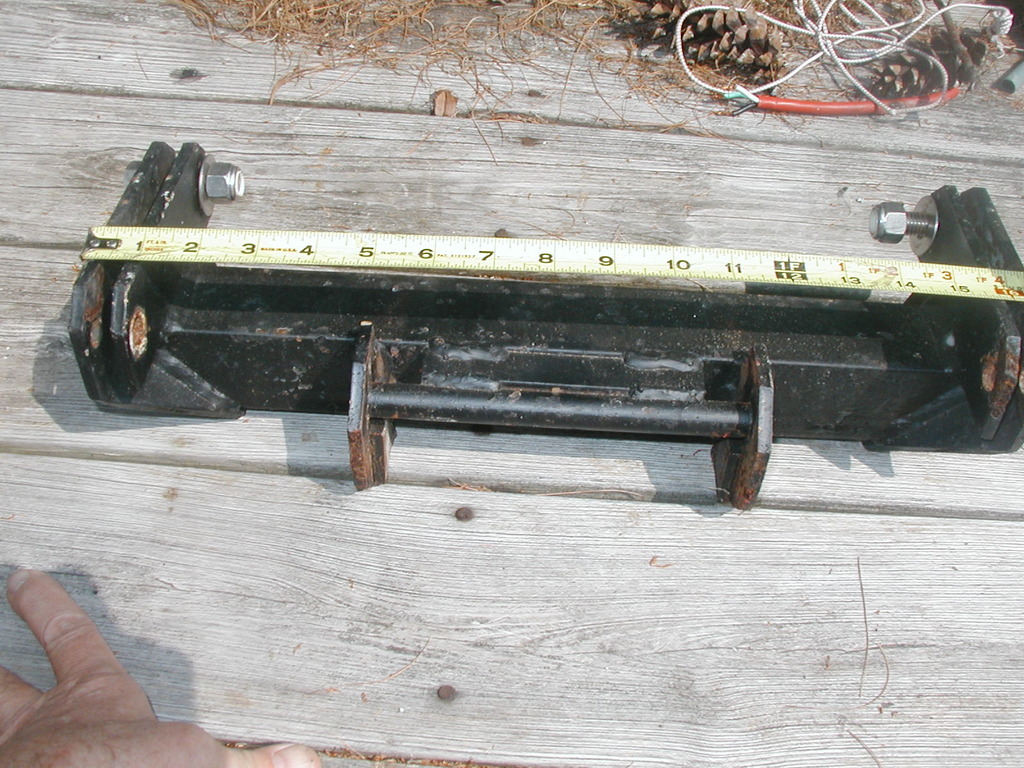

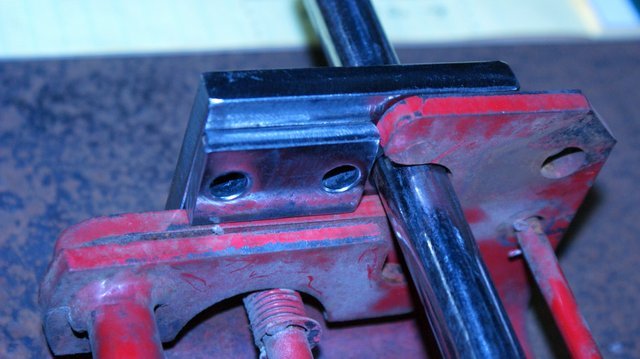

Here are a few pics from a fellow member JackC. I have complete build pics as well. I will try to find them.





I












  • Like 1

Share this post


Link to post
Share on other sites

Thank you for the pictures and measurements. What is the measurement between the two inner and outer plates? Where the brace arms bolts in. I'm guessing 1/2".

Share this post


Link to post
Share on other sites
Posted (edited)
11 hours ago, DTOM said:

Thank you for the pictures and measurements. What is the measurement between the two inner and outer plates? Where the brace arms bolts in. I'm guessing 1/2".

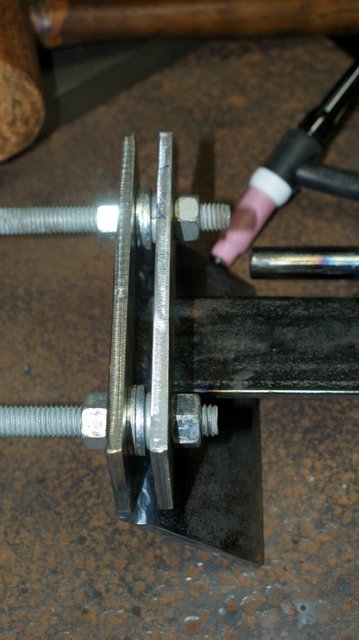

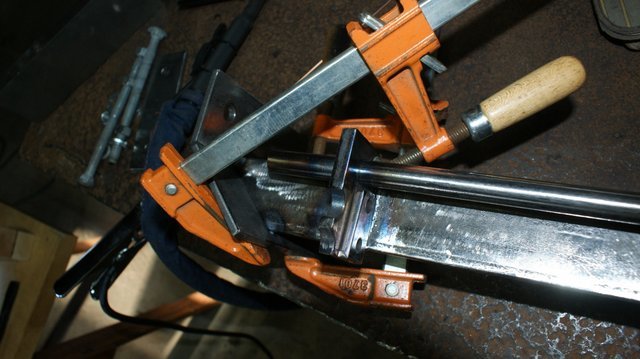

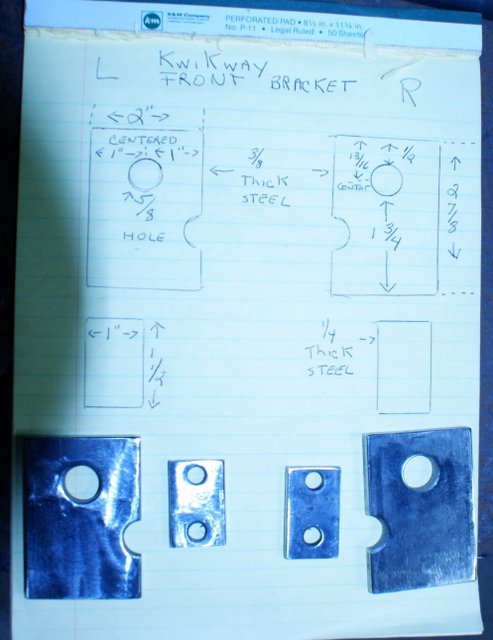

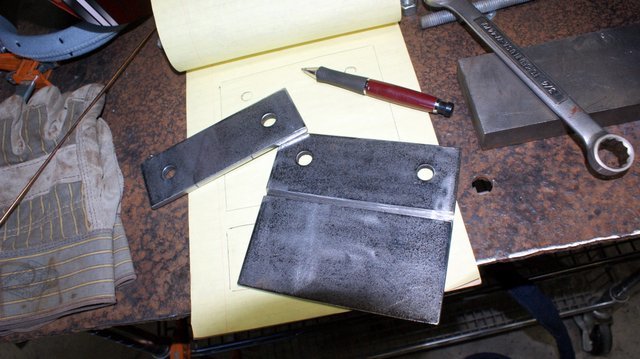

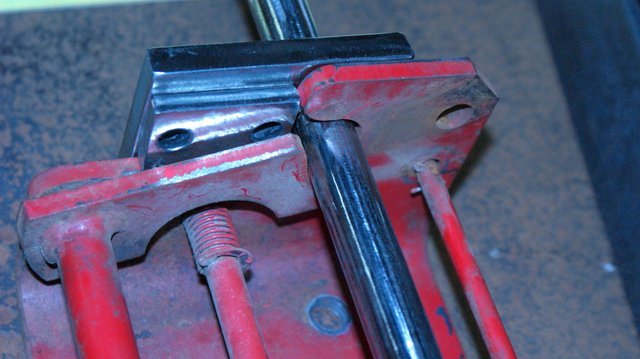

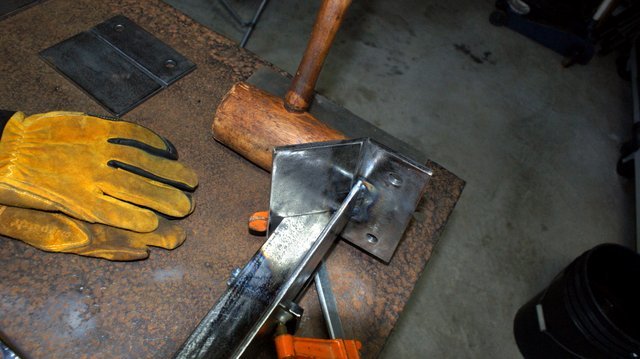

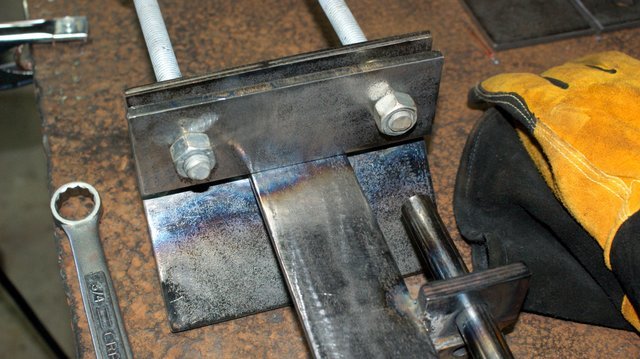

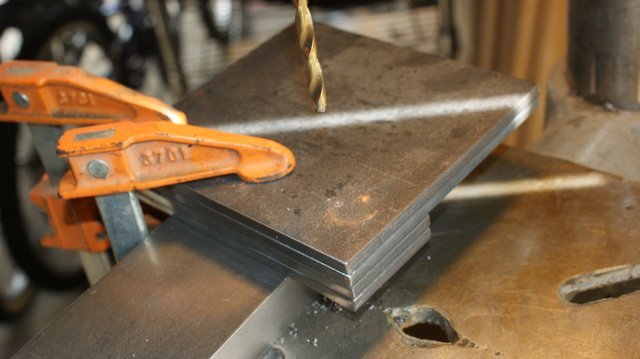

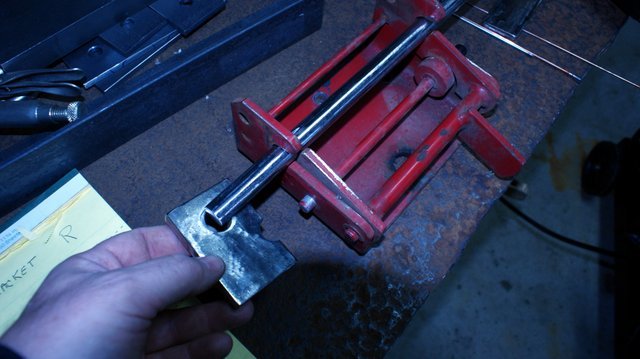

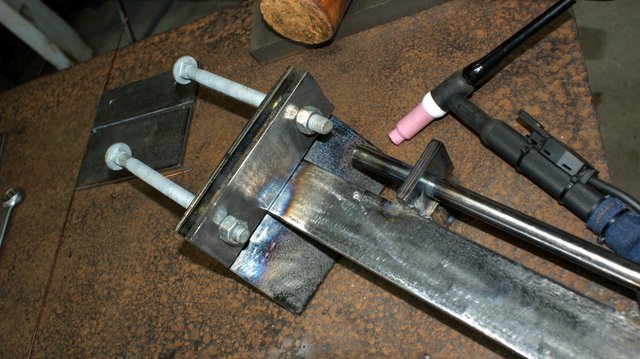

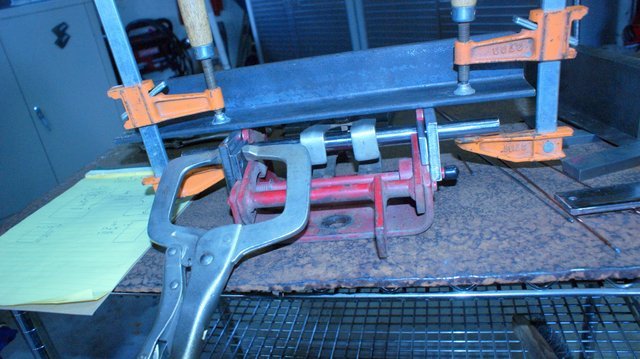

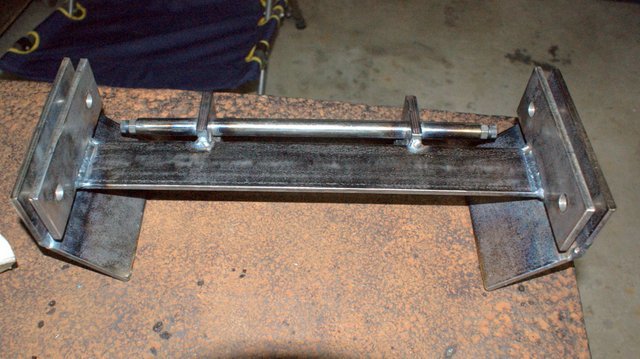

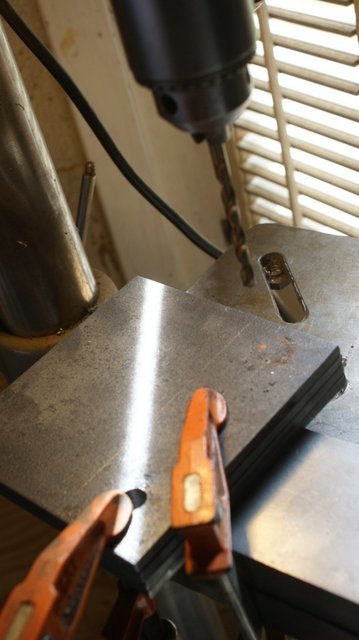

I found the pics. Still a few missing. I have all the dimensions on a note pad. tonight I will check my garage. Here are my build pics in no order.















Edited by Lost Pup
Pics Edit
