22 hours ago, Ed Kennell said:

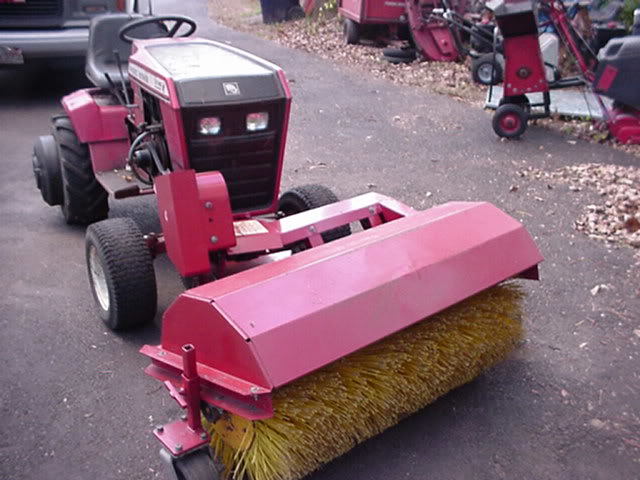

A few of mine....



The plow frame mounted tiller and ball hitch.

IMG_5566.JPG.ed5d69b8eed48e84f0bbf4f50606e509.JPGIMG_7364.JPG.573742b1d9668a2cdf4f6b16457a562c.JPG



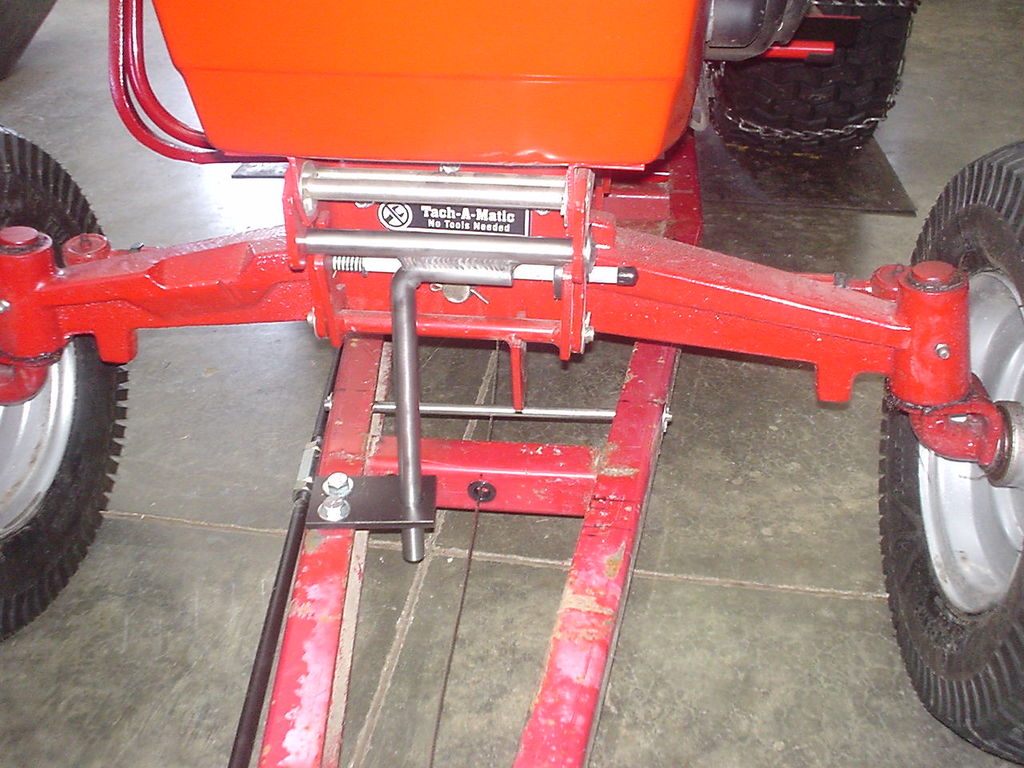

The plow frame stabilizer.






The sun top.




The mole killer.






Deck roller springs.




Forward/reverse  hydro foot control.






Anti scalping rollers on 42" decks.








Heat collector for snow blower cab.






Snow blower auger rubber paddles.






Snow blower chute controls.












Oh I'd like to see more about the chute control!

  • Like 5

Share this post


Link to post
Share on other sites
14 hours ago, elcamino/wheelhorse said:

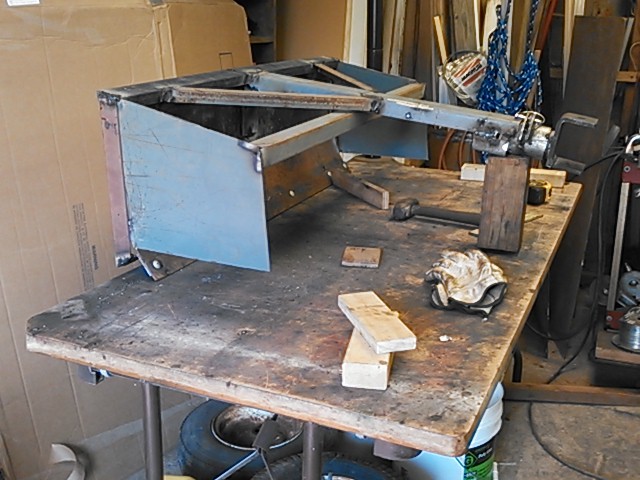

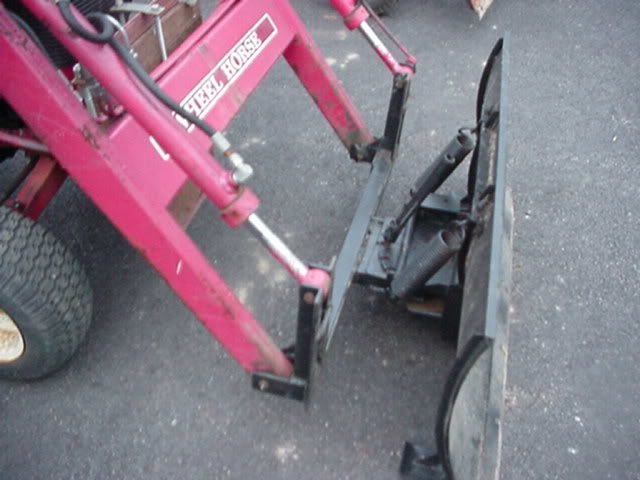

@Ed Kennell I think Ed has been holding out on all his engineering skills , he needs to bring step by step pictures to the Big Show and teach a class. FEL my main I wish I had. I did put an electric actuator on the rear of my 310-8 to operate the clevis hitch . If I have time before the show I will post pictures of my 416-8 "What the What" ( notice I cleaned that phase up a bit ) @JPWH needs to provide more details on that rear blade .



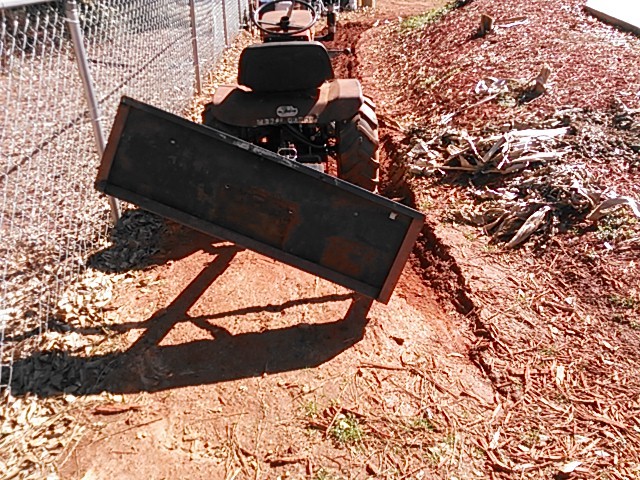

NCM_0169.JPG.2afaf841a6bfb55813a573c84240fbca.JPGNCM_0167.JPG.9cf9552bfdd4d7354a943770a7e6789c.JPG


  • Like 8

Share this post


Link to post
Share on other sites

:techie-idea:Maybe it's time we add another forum for Wheel Horse Modifications so we can access some of these great ideas more easily. :)

  • Like 3

Share this post


Link to post
Share on other sites
1 hour ago, cafoose said:

:techie-idea:Maybe it's time we add another forum for Wheel Horse Modifications so we can access some of these great ideas more easily. :)



umm..... it's right here?




http://www.wheelhorseforum.com/forum/45-restorations-modifications-customizations/



  • Like 5

Share this post


Link to post
Share on other sites
3 hours ago, CasualObserver said:



That is why I put this thread under this forum. My hope is it will grow like the "What's in your Mirror" posts so people can see all the cool mods that RedSquare folks have done over the years...I am already amazed what's posted in only a couple of days...



Keep them coming!!!



:wwp:

  • Like 3

Share this post


Link to post
Share on other sites

Snowblower wings, helps keep it from pulling into deeper snow. and Led cab lights









  • Like 8

Share this post


Link to post
Share on other sites
7 hours ago, CasualObserver said:

I realized that however, I thought it might be a good idea to devote a forum to modifications only and split up the current forum because of the wide interest in modifications. On my computer when a file gets really big I like to split it up into smaller files for better organization and to make it easier to find certain common groups of files and I believe that would work here too. :)

  • Like 2

Share this post


Link to post
Share on other sites

Your way out of our league Cleat ... I never get tired of seeing your work.....nice! :handgestures-thumbupright:

  • Like 2

Share this post


Link to post
Share on other sites

Any chance that comes in a 3 point version Craig?  :lol:

  • Like 1

Share this post


Link to post
Share on other sites
On 6/14/2017 at 7:41 AM, DennisThornton said:

How did you mount the weights?

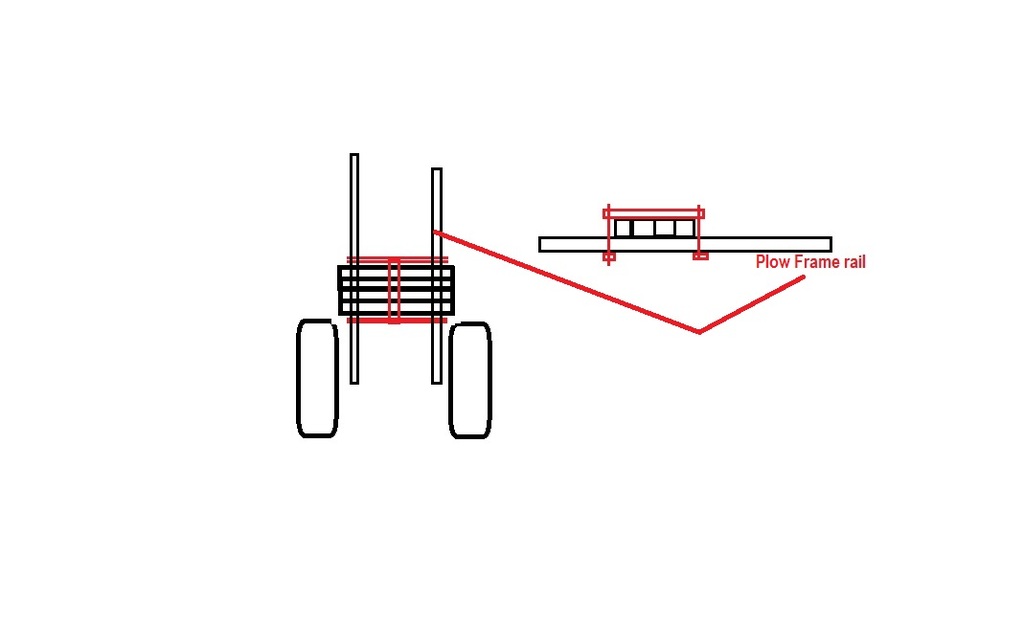

The weight is 2x2 steel bars which span the frame rails. They're clamped on with some smaller flat bar and threaded rod




  • Like 5

Share this post


Link to post
Share on other sites
On June 15, 2017 at 10:07 PM, WHX11 said:

Any chance that comes in a 3 point version Craig?  :lol:



Hah. That's as close to a 3 point as I'll get on the 161...

  • Like 2

Share this post


Link to post
Share on other sites

I like that backhoe. Did you build it? Nice fish too.



  • Like 2

Share this post


Link to post
Share on other sites

How old is that fish pict?  :ychain:

  • Like 1

Share this post


Link to post
Share on other sites
2 hours ago, wallfish said:








Is that   THE FISH that's on THE WALL ?

Share this post


Link to post
Share on other sites
2 hours ago, wallfish said:

Another useful modification







2 hours ago, JPWH said:

I like that backhoe. Did you build it? Nice fish too.





Could you add some details? Manufacturer (self-built?), close up picks of attachment method etc.?

  • Like 2

Share this post


Link to post
Share on other sites
14 minutes ago, Ed Kennell said:

Is that   THE FISH that's on THE WALL ?

So far the biggest Large Mouth I ever caught and it was let go right after that pic was taken. The plan was to meet her again someday but now the access to that lake is blocked off by the town. Quite a large fish for New England waters. Never actually weighed it but estimate about 10 lbs since it was as long as my arm.



34 minutes ago, AMC RULES said:

How old is that fish pict?  :ychain:

No kid'n. huh.

Think it was around the same time the back hoe was built. '08



19 minutes ago, SylvanLakeWH said:

Could you add some details? Manufacturer (self-built?), close up picks of attachment method etc.?

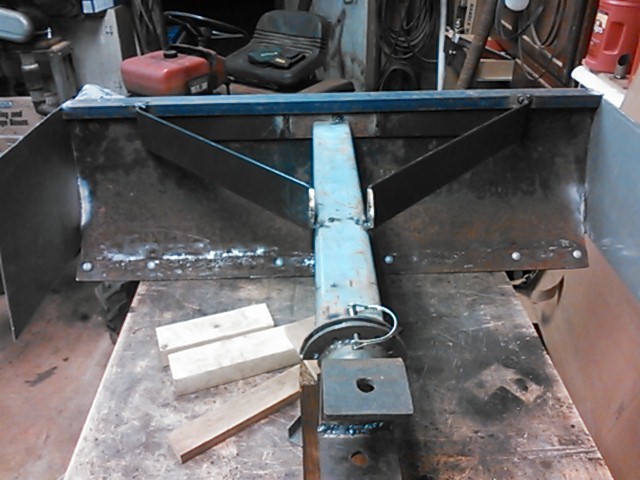

Home built using the PF Engineering plans. Made a few modifications to the plans as it was built and I don't have any pics of the mount to the tractor. That question comes up a lot and I have a basic drawing of what I did somewhere.

The build was done back in 08 and the thread for it was one of my first posts on Red Square. Unfortunately the forum has changed since then and many of the old threads were lost or portions of them went missing.

  • Like 2

Share this post


Link to post
Share on other sites
On 6/15/2017 at 4:57 AM, WVHillbilly520H said:

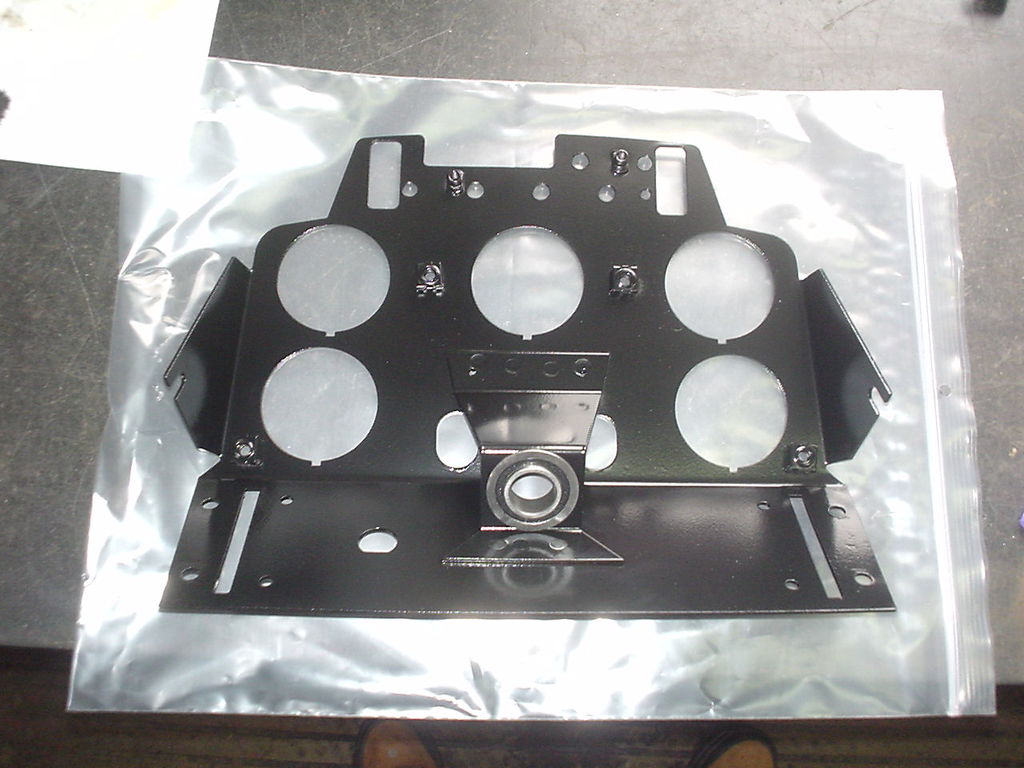

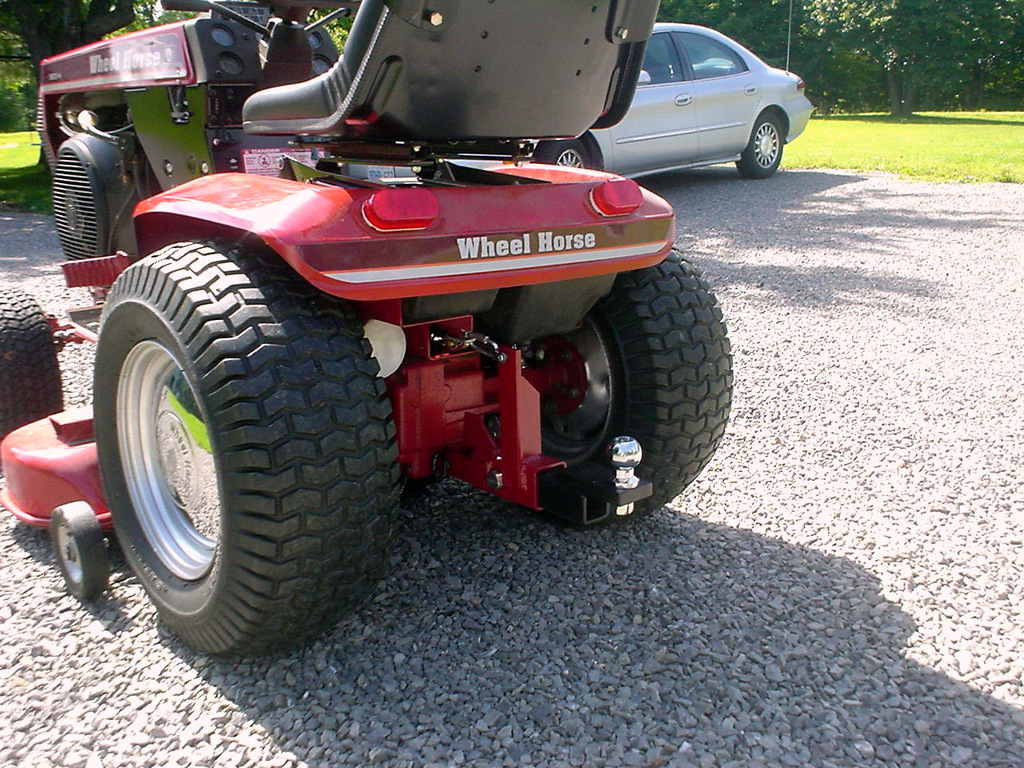

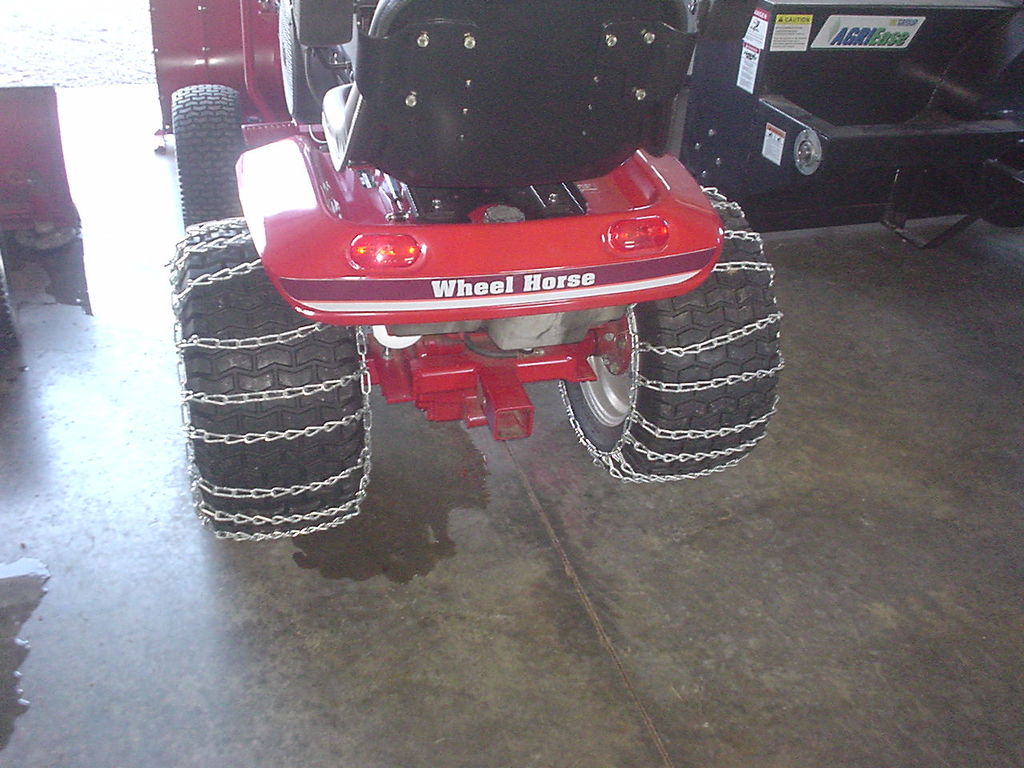

The front weight hanger when using rear mounted attachments (tiller, box blade, moldboard plow) , which I modified to fit the rear for snowblowing/plowing and my custom engraved wheel weight center caps, Jeff.











How was the embossing done?  Awesome!

On 6/15/2017 at 4:57 AM, WVHillbilly520H said:

The front weight hanger when using rear mounted attachments (tiller, box blade, moldboard plow) , which I modified to fit the rear for snowblowing/plowing and my custom engraved wheel weight center caps, Jeff.











How was the embossing done?  Awesome!



And I love the backhoe!  Mine is much bigger but hard to get into some spots.

  • Like 3

Share this post


Link to post
Share on other sites
Posted (edited)



Here are a few of my favorites !











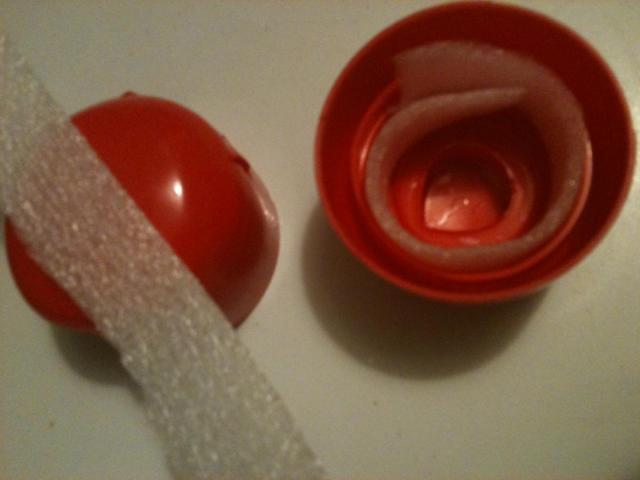

My famous Nestle Coffee Creamer front  wheel caps!






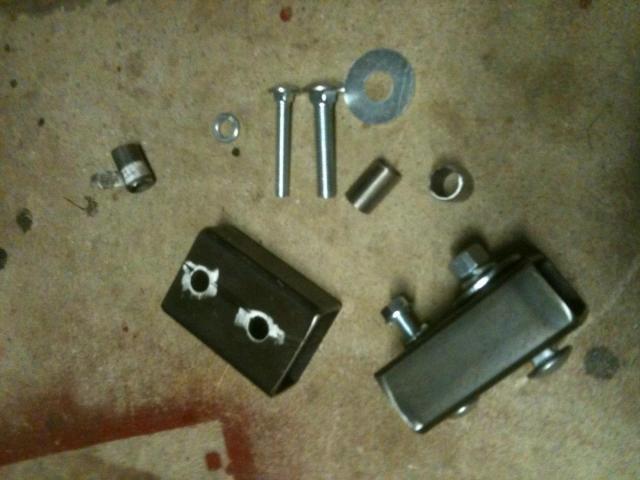

Seat lift for Round Hood Wheel Horse with spring seat  (square Pan or  Round Pan)

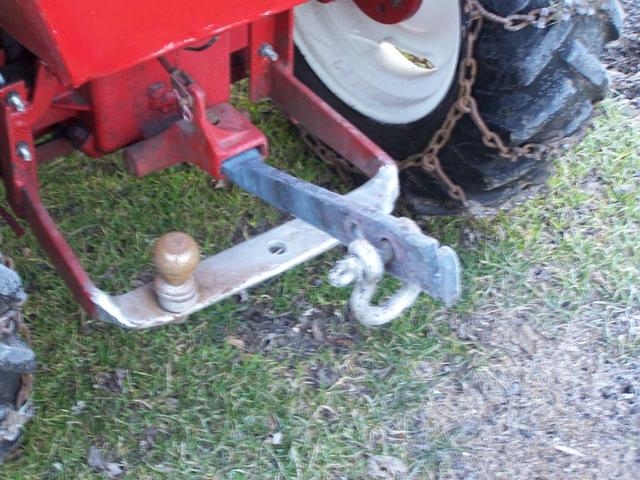

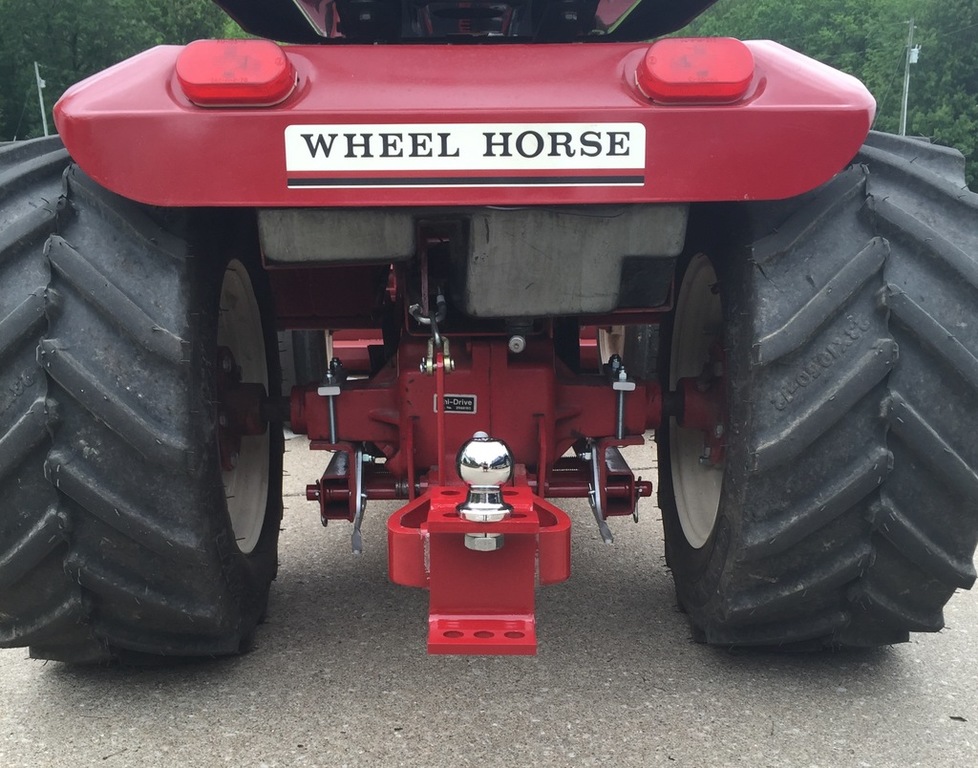

Draw bar hitch  for Wheel Horse  attached  with angle iron to rear of  snowplow hitch  (953/1054 and others)

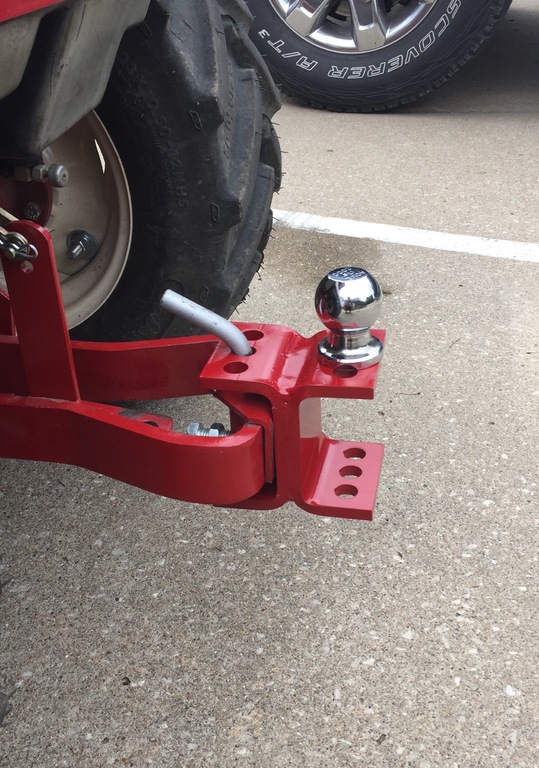

Front ball hitch on  314-8 and B-80 Wheel Horses





Edited by Lane Ranger
  • Like 8

Share this post


Link to post
Share on other sites
Posted (edited)

@DennisThornton, the embossing/engraving was done with a C.A.D. program then transferred to a C.N.C. milling machine where I used a center drill or carbide spade bit to actually do the recessed engraving, here's a picture of the D.R.O. on the mill I did for the wife and I, Jeff. @Lane Ranger that drawbar you made for the 953 looks like the old Farmall/ Allis Chalmers style from the 50s cool MOD...


Edited by WVHillbilly520H
  • Like 7

Share this post


Link to post
Share on other sites
On 6/14/2017 at 9:33 AM, Ed Kennell said:

A few of mine....



The plow frame mounted tiller and ball hitch.

IMG_5566.JPG.ed5d69b8eed48e84f0bbf4f50606e509.JPGIMG_7364.JPG.573742b1d9668a2cdf4f6b16457a562c.JPG



The plow frame stabilizer.






The sun top.




The mole killer.






Deck roller springs.




Forward/reverse  hydro foot control.






Anti scalping rollers on 42" decks.








Heat collector for snow blower cab.






Snow blower auger rubber paddles.






Snow blower chute controls.












How did you attach the end of that foot control rod setup there to the hand control? I can't quite make it out in the picture.... ?

Share this post


Link to post
Share on other sites
