racin_ny

Need help 1993 314H Hydraulic lift valve

Recommended Posts

racin_ny

I have a leak on the elbow that screws into the front of the lift valve. Does anyone know how that is sealed? I looked at parts tree at it doesn't show an o-ring or seal?  The elbow is Toro part number 108365. Part #1 on the diagram. Thanks for the help.

https://www.partstree.com/parts/toro/mowers-lawn-garden-tractor/73403-314-h-toro-314-h-garden-tractor-sn-6900001-6999999-1996/hydraulic-lift-system_2/

Share this post


Link to post
Share on other sites

daveoman1966

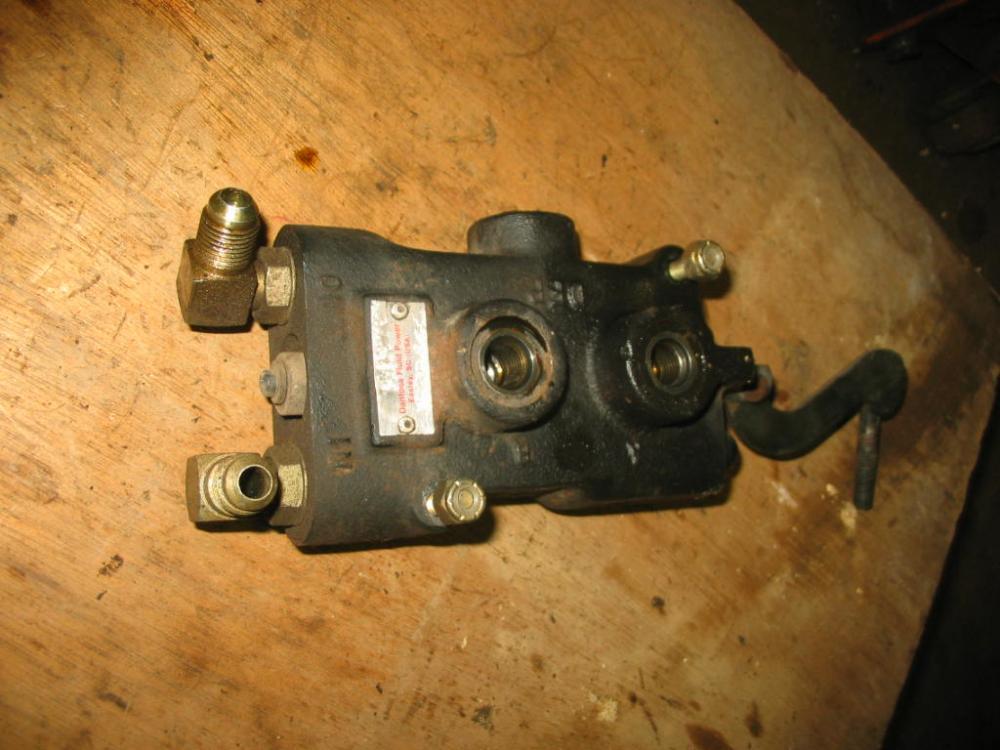

You mean these two elbows.....

They appear to be compression fittings.  I can sell these to you if you want....

.




Share this post


Link to post
Share on other sites

racin_ny

Is the seal a crush washer or an O ring?

Share this post


Link to post
Share on other sites

gwest_ca

The answer may be in this service manual

Garry

Share this post


Link to post
Share on other sites

pfrederi

Fitting uses what is called an ORB (O-Ring Boss) The O ring probably need to be replaced.  My older units (Chargers electros used ORB #5.) ORB#5 has fallen out of favor (try to find a ORB#5 Right angle hose end).  The end ports in the newer models are I believe ORB#6.  The bottom ports are ORB#5.

If the threads on the fitting are 1/2" NF it is ORB #5 and uses a Dash # 905 Oring.  If the threads are bigger than 1/2 then you have ORB #6 and use a Dash # 906 O ring.

  • Like 2

Share this post


Link to post
Share on other sites

racin_ny
9 hours ago, pfrederi said:



Fitting uses what is called an ORB (O-Ring Boss) The O ring probably need to be replaced.  My older units (Chargers electros used ORB #5.) ORB#5 has fallen out of favor (try to find a ORB#5 Right angle hose end).  The end ports in the newer models are I believe ORB#6.  The bottom ports are ORB#5.

If the threads on the fitting are 1/2" NF it is ORB #5 and uses a Dash # 905 Oring.  If the threads are bigger than 1/2 then you have ORB #6 and use a Dash # 906 O ring.



 Thank You so much pfrederi

Share this post


Link to post
Share on other sites
