Aldon

GT22-8 Modifying GT14 to 8 speed and 22hp Predator

Recommended Posts

8 hours ago, stevasaurus said:

Aldon, do you mind if I throw out a few facts about these transmissions?  This may help some to understand what you are trying to do, or what you have run across.  :ph34r:

1.  Only 10 pinion transmissions are Limited Slip

2.  All 10 pinion transmissions are Limited Slip

3.  Not one 8 pinion transmission built by Wheel Horse has Limited Slip

4.  All 10 pinion differentials have one axle shorter then the other...and so one end plate is shorter then the other...1 part # for left and a different part # for right

5.  All 8 pinion differentials have axles that are the same length...1 part number for both axles

6.  If a hydro has the 10 pinion differential or the 8 pinion differential...all of the above applies

7.  Only the #5060 10 pinion LS differential (1968) had aluminum end plates...1969 and up have steel end plates

8.  Service Bulletin #252 explains the conversion of limited slip differential to 8 pinion differential

9.  If you have 4 pinions, you have 1" axles

10. If you have 8 or 10 pinions, you have 1 1/8" axles

11.  All 1 1/8" axles from Wheel Horse transmissions "should" be able to interchange



OK...what does all this mean?  If Aldon has 2 axles the same length and they are the length he wants (so his tires fit), he will be putting them into an 8 pinion differential and he will not have limited slip.  If he wants to modify (cut one axle shorter then the other), so as to have the same distance sticking out past the frame, then he could use a 10 pinion LS differential.  Hope all that makes since.  :)

That's a keeper!

  • Like 2

Share this post


Link to post
Share on other sites
19 hours ago, Aldon said:

post such a minor event,

No not at all... accomplishment right up there with getting a steering wheel off or a belligerent hub. :)

  • Like 2

Share this post


Link to post
Share on other sites

I saw a really nice tractor at the Big show with a paint job that costs as much as a few of my tractors combined. It had Nitrous. So it's in the back of my mind. Just not sure it would ROI.

Edited by Aldon
  • Like 1

Share this post


Link to post
Share on other sites

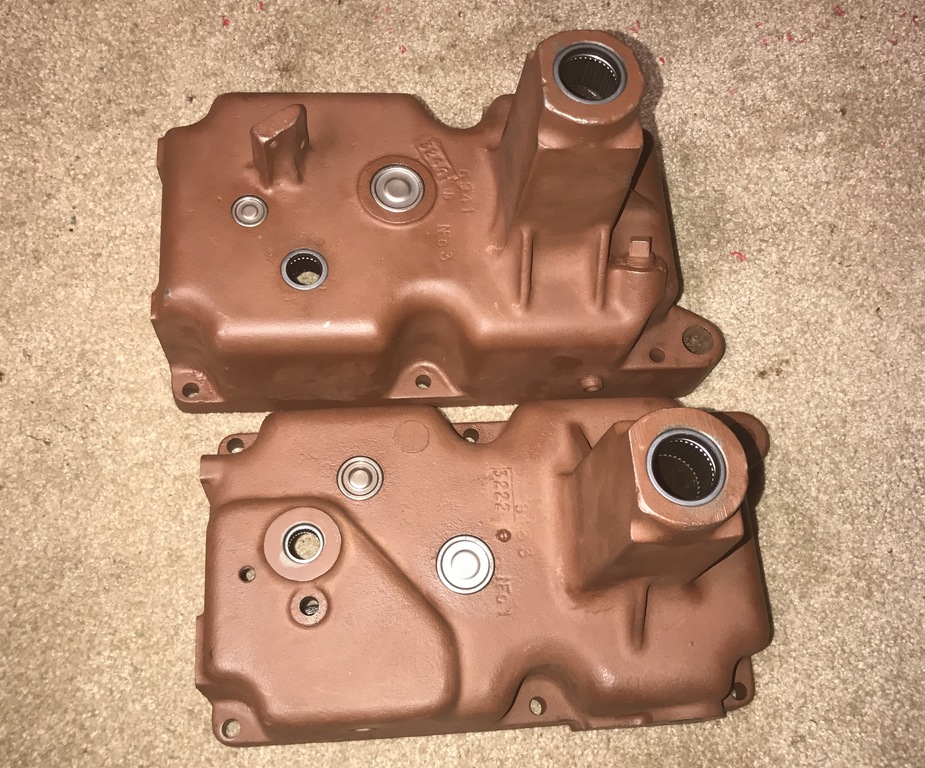

So I am finally getting to the re-assembly portion. I have seated the bearings. I managed to damage the small input shaft seal so I'll see if I can pick one up at Napa in morning otherwise I'm down a week waiting for a spare seal. Then it's putting the puzzle back together.


  • Like 5

Share this post


Link to post
Share on other sites

:text-bravo:  So I see you have selected GOLD as your undercarriage color. Is that reflective of the cost involved in this venture?  :ychain:

  • Like 4

Share this post


Link to post
Share on other sites
Just now, 953 nut said:

:text-bravo:  So I see you have selected GOLD as your undercarriage color. Is that reflective of the cost involved in this venture?  :ychain:

It sure seems like I need another mortgage whenever I decide to build a custom project. But in this instance it's simply poor lighting. That's rust colored primer. I'm very likely going to use same color scheme I used on my GT16 restomod. Matching pair. Black frame and tranny.

  • Like 4

Share this post


Link to post
Share on other sites

Aldon, I love these projects! My 312-8 is fully assembled and operational. I belive I still have the engine mount plate for the m18/m20 if you or anyone on red square has the interest of using it. I am also very eager to start a 4x4 project as my first "custom" project as far as fabrication. however i am limited currently due to the access of a mill welder and lathe. Im interested to see how the 2 gt tractors match up next to one another.

  • Like 2

Share this post


Link to post
Share on other sites

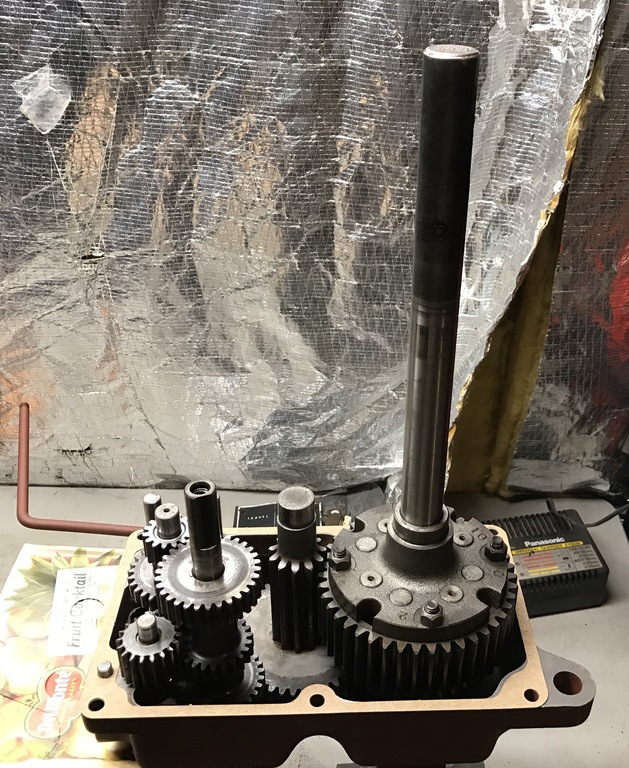

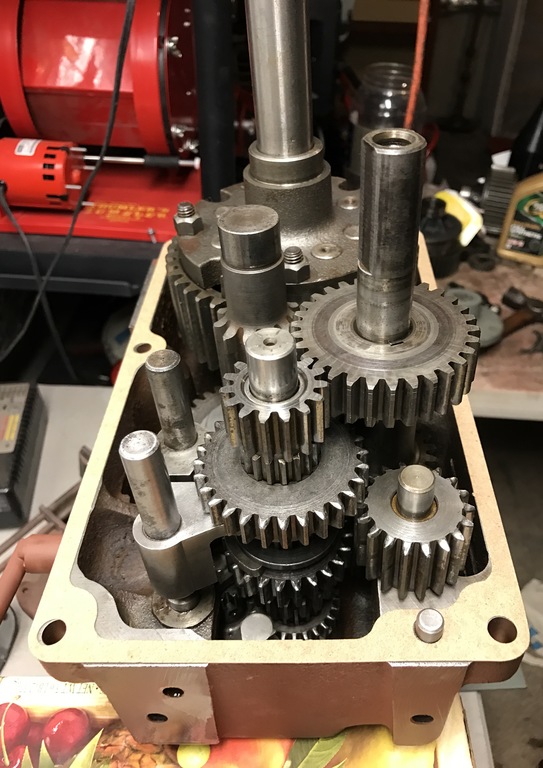

So I have the widened 8 speed ready to bolt together and paint.



I was sure I had new bolts and nuts. Alas, I hate it when you get ready to close out a major project milestone and have to delay for something so insignificant.



Regardless, I should have this sealed up and painted in next few days.



Special thanks to @stevasaurus for his assistance and his videos!!!!


Edited by Aldon
  • Like 8

Share this post


Link to post
Share on other sites

Thanks Aldon for the kind words.  :handgestures-thumbupright:  WOW!!! That looks like a tall drink or water coming out of that differential.  :handgestures-thumbupright:  I like what you did...you can see how the bull gear meets with the 11/44 toothed gear in your 8 pinion differential.  Well done my friend.  :)

  • Like 4

Share this post


Link to post
Share on other sites

Are either of my axles in this assembly, Dr. Trimble???

  • Like 1

Share this post


Link to post
Share on other sites
1 minute ago, ztnoo said:

Are either of my axles in this assembly, Dr. Trimble???



Yes. I used the longer one. The 14 3/4" axle. The GT14 axles in hydro transaxle are two different lengths. So I used the longer of the pair I got from you along with the longer one I had on hand. The 8 speed uses axles of same length on each side. Viola!

  • Like 1

Share this post


Link to post
Share on other sites

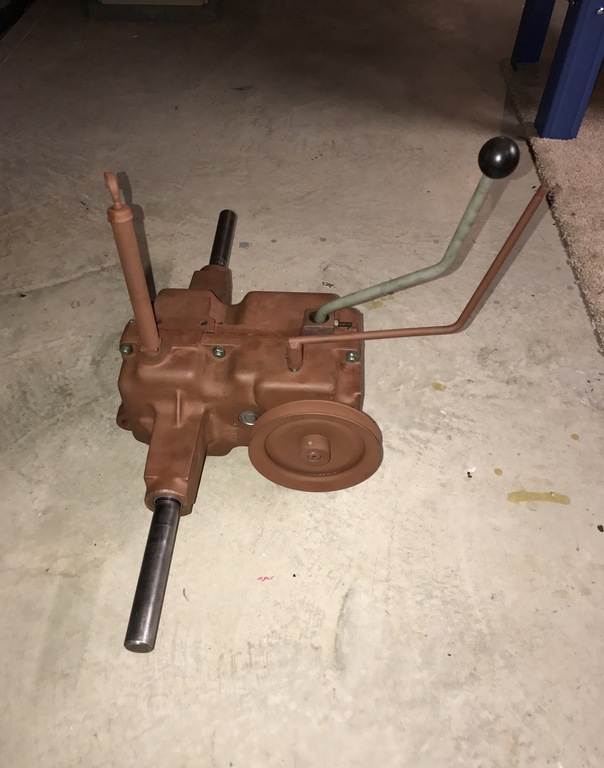

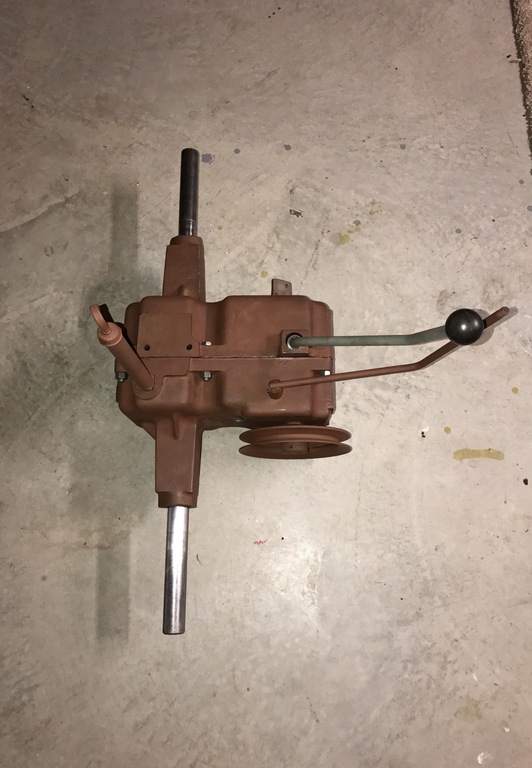

Ready for cleanup and paint. I thought I had masking tape. Nay




  • Like 5

Share this post


Link to post
Share on other sites

The GT22-8 project I have in my head will look like the brother to my resto-mod GT16 "Elijah".



When dust settles these may be the only 2 GT14's in the herd. Going to spruce up the runt of the litter B100 for routine mowing duty.



Then I have my eye on Tackling a D250.

  • Like 1

Share this post


Link to post
Share on other sites
3 hours ago, Aldon said:

The GT22-8 project I have in my head will look like the brother to my resto-mod GT16 "Elijah".



When dust settles these may be the only 2 GT14's in the herd. Going to spruce up the runt of the litter B100 for routine mowing duty.



Then I have my eye on Tackling a D250.

I guess you should consider calling the GT22-8 Samson considering the fact that it will be so strong.

I thought you just sold your D250, how many of them do you have?

  • Like 1

Share this post


Link to post
Share on other sites

Rich I have way too many and yet not nearly as many as a lot of you.



I started this journey with  C161 twin Briggs w/fiberglass good which I still have.



In addition I now have 3 complete running GT14's 1 of which is dubbed "Lazarus".



I also have the GT14/2 or GT16 restomod dubbed "Elijah".



I picked up the B100 on a whim. I have grown fond of it. I think it will now around the wife's flowers and shrubs with less carnage which will mean more marital bliss.



 And by spring I will have the GT22-8 quite a ways through the build process.



I like your your suggestion as to name. It is one of the top contenders.



I will also have to come up with a suitable name for the B100 as I'm think it's going to stick for a while.



I will likely be selling or trading at least 2 of the GT14's as I've decided I want to bring a D250 into the fold next.





Share this post


Link to post
Share on other sites

Got a bit done on my project today while waiting out the Nor'easter.

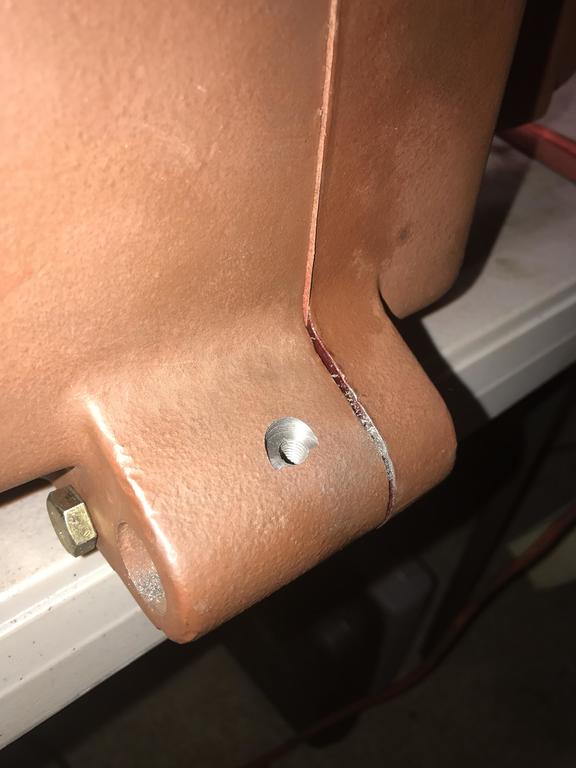

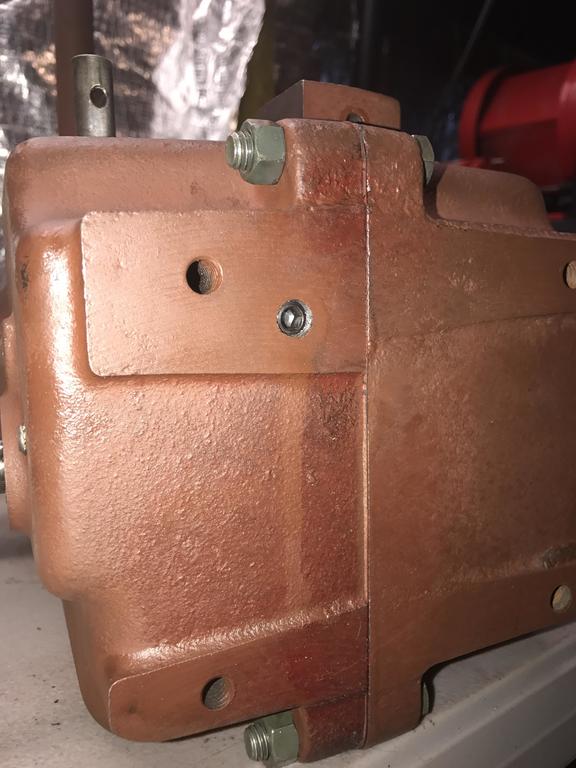

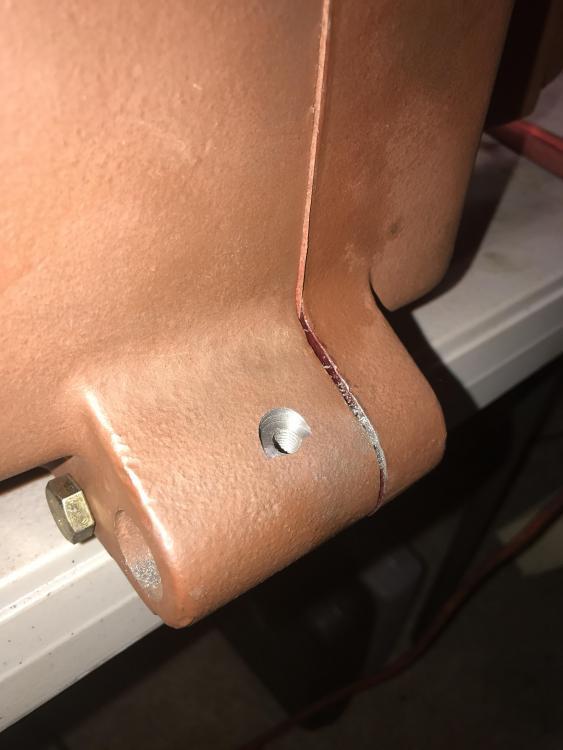

Added a zerk fitting to the hitch and threaded the hi-lo ball bearing/spring access hole and installed a set screw.

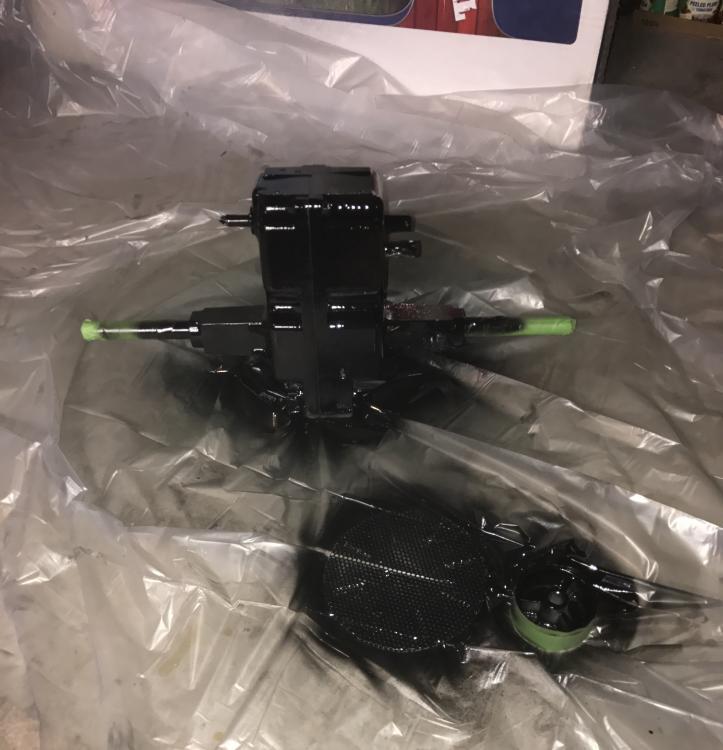

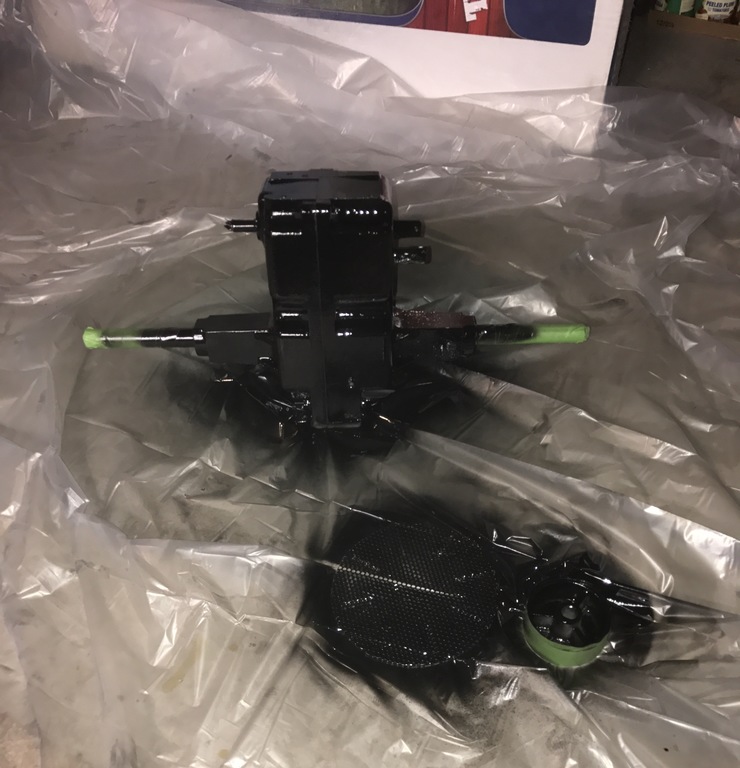

 Tranny and accessories painted and are drying.

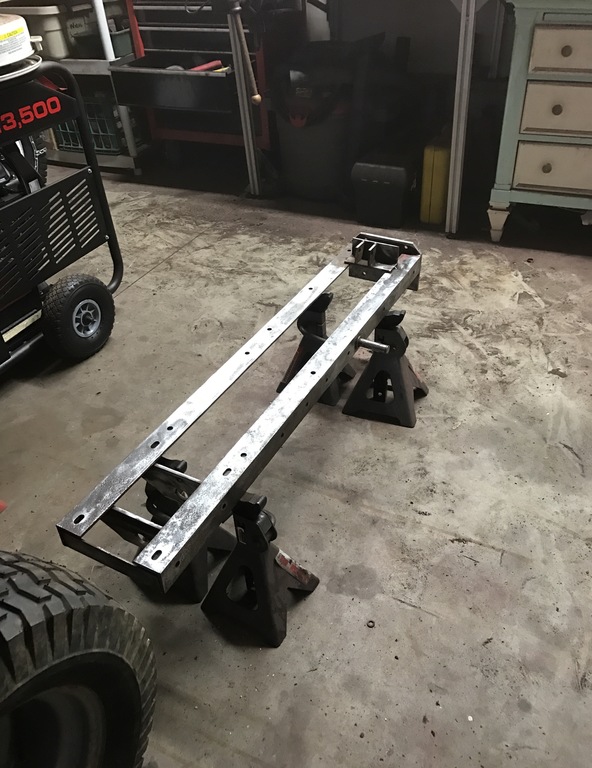

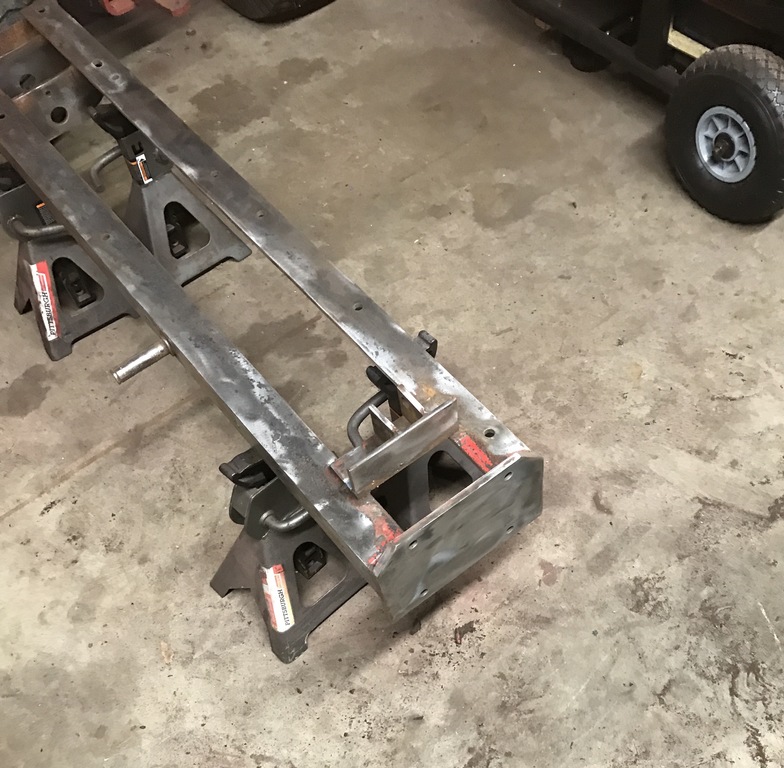

Got the frame prepped to start mocking the tractor up once the tranny paint has cured.

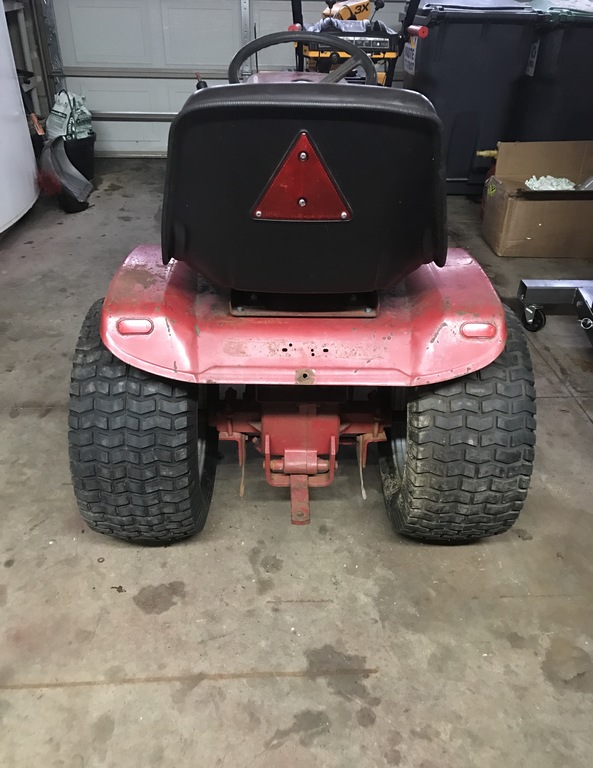

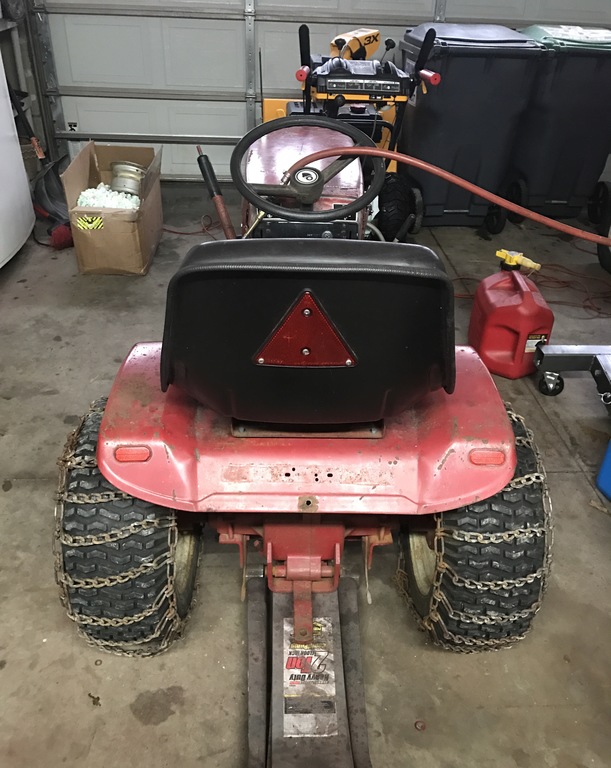

And while it's not part of this build I got my B100 running good and new rear tread. Before picture is one with chains.

IMG_0231.thumb.JPG.4154f88355c8d9edc64b6bdf7dc1c36d.JPGIMG_0233.thumb.JPG.84dae4ef5656762c8beabd8a36c858d6.JPGIMG_0244.thumb.JPG.fde7021fcdf5a4fdf52053461ae2ff50.JPGIMG_0245.thumb.JPG.5be689fe1cd34ca6c4ec100cc834c794.JPGIMG_0246.thumb.JPG.80e7b81b4fdc3e42550affa8bf88a6cc.JPGIMG_0238.thumb.JPG.80aba877d2b5bd199d5ac17fcde425cf.JPGIMG_0239.thumb.JPG.155d504cb082318e166108a3d3841695.JPG

Edited by Aldon
  • Like 3

Share this post


Link to post
Share on other sites

would that happen to be the d250 near whitehall  with the rototiller? Also you should get plenty of pictures with matching gt-14s in case one gets sold to make room...

  • Like 1

Share this post


Link to post
Share on other sites

Excuse my ignorance Aldon but is that a typo to mean zerk instead of zero? If so what is the thought behind the milled placement? Also what is the purpose of tapping the hi/lo spring / ball access.... I just siliconed mine shut since the ball spring is trapped in ther?

BTW nice to see you are goin back in black :lol:

Share this post


Link to post
Share on other sites
15 hours ago, HorseHead1089 said:



Zerk fitting. For grease. It is a typo due to my eternal nemesis...auto correct. I wrestled for a few weeks getting the old pin out. Saw on another thread someone added a zerk fitting so I thought I'd borrow that idea. The reason I drilled the zerk where I did was to do it where the steel was thick. As to not weaken it. I milled it down so it allowed the zerk to tighten flush.



I like the set screw better than silicone but both work equally well. If I ever have to work on the hi-"lo again, I feel like the set screw will be easier to pull. Depends on how cleanly the silicone plug comes out. Whatever was in their when I tore it down did not clean out all that easy.

Edited by Aldon
  • Like 2

Share this post


Link to post
Share on other sites
