Spindle bearing question

Recommended Posts

05 42ms05 deck

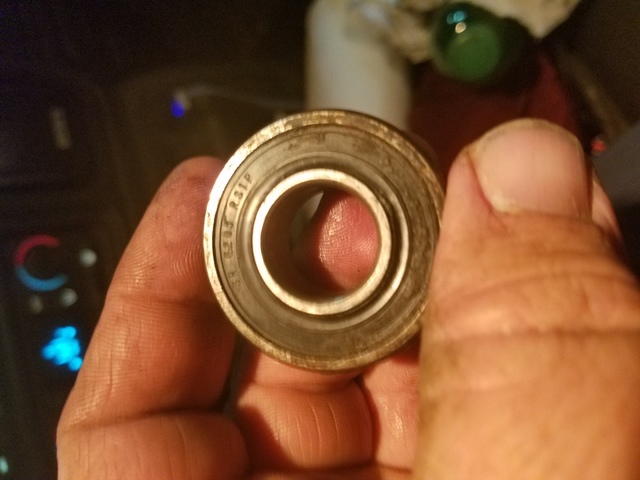

Took spindles apart tonight to replace bearings and I had 6203rc bearings. Correct od and width but id is 3/4". Shaft is smaller like 5/8. What bearing do I need?



Of course only found out after pulling seals and building first spindle. Oh well more practice for my son and I.  Lol

Share this post


Link to post
Share on other sites

A 6203 bearing has a 17 mm ID but they also make one with a 3/4" ID. It is often numbered 6203-12 (12/16" = 3/4"). There is also one made with a 5/8" ID and numbered 6203-10.

Just ask for the 6203 with a 3/4" ID. They will know exactly what you need.

A 6203-12 RS has one seal

A 6203-12 2RS has 2 seals and the common one stocked. If you want just one seal use an awl to pop one out.



Garry

Share this post


Link to post
Share on other sites
13 hours ago, gwest_ca said:

A 6203 bearing has a 17 mm ID but they also make one with a 3/4" ID. It is often numbered 6203-12 (12/16" = 3/4"). There is also one made with a 5/8" ID and numbered 6203-10.

Just ask for the 6203 with a 3/4" ID. They will know exactly what you need.

A 6203-12 RS has one seal

A 6203-12 2RS has 2 seals and the common one stocked. If you want just one seal use an awl to pop one out.



Garry

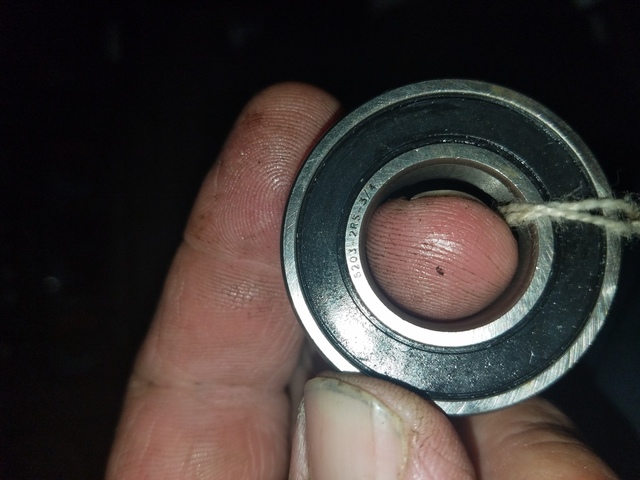

I have the 3/4 but need the 17mm. Never knew that the same number could have 2 different sizes.



The older I'm getting the harder it is too see those numbers. Lol

Edited by Tinys
