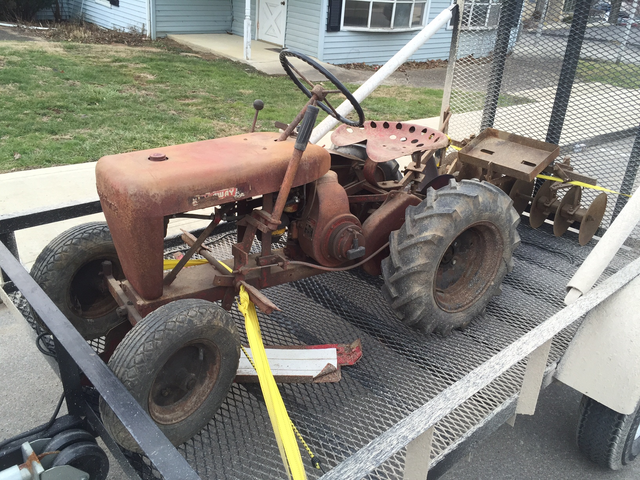

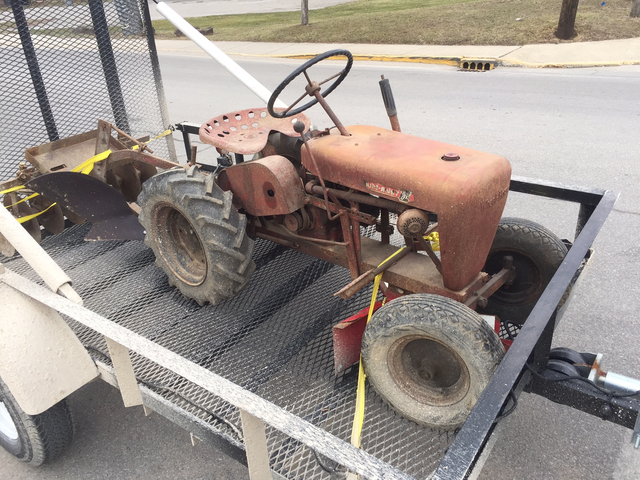

Here is my early production RJ35. Made probably in the 2nd batch of 1955 tractors, not in the first 100 produced. Has the cast iron steering wheel, gas tank stand and some other early production parts. I added the non original Kohler engine but it should be a Clinton engine.
6 pages 3.73MB
Includes PSB #023 #052 #058 #060 #080
10 pages 938.48KB
Transmission drive belt 1567 - (4L x 29" or 1/2" x 29")
Details & Attachments
2 pages 107.33KB
1958 model RJ-58
1958 serial numbers that have shown up for the RJ-58
Early models used Kohler K90T-27107D equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
03501 - Located in UK
03796 - Kohler K90T-27107D with serial 364044 equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
06528 - May be 16528
07649 - Transmission J12-8 October 12, 1958
11628 - # 3521 spline gear with 10 splines changed to 11 splines in 5003 and 5010 transmissions at serial # 11628 PSB #023
16528 - May be 06528
18500 and lower
Late 1958 units came with a Kohler K-91T-31307A equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
Details & Attachments
2 pages 106.94KB
1959 model RJ-59
1959 serial numbers that have shown up for the RJ-59
Early 1959 units came with a Kohler K-91T-31307A equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
18501 and up - Possible 1100 units built
Late model RJ-59 tractors with a Kohler would have a K-91T-31388A with the Fairbanks recoil starter and paper air filter element. The 31388A was also used on the 1960 Suburban 400.
Well, most of the regulars here are aware I will be relocating this Spring/Summer. I had hoped to take the remaining collection of tractors with me. However more and more it is becoming obvious that this plan wont work out for numerous reasons. As such, once I make up my mind as to which one to keep, I will be posting the remainder as well as most parts etc up for sale in the Forum Classifieds and CL.
As I hope shows in poll info, I have 2 Stage Blower, Restored 48 & 60 inch(195) decks, 54 inch blade, GT14 style Tiller and a project Sickle Bar. The Sickle BAr can likely be made to work on the GT14 style tractors and the C160.
I enjoy working on them but as I get older I may not have time or ability to do so. As such, maintenance and parts and ease of use of a single tractor are part of the equation.
A couple of these I have poured a lot of time into but I am not emotionally tied to them and I believe if I relocate back east where Grass and tractor need becomes more necessary, I can re-create them.
So help me out with my decision.
A couple pics of the beasts in question:
Hi, I'm rebuilding an RJ-58 tranny and its all together except the left side cover will not go on because the brake shaft is not lining up with the bearing. Its off by about 1/16th of an inch. The bearing on the other side cover is not cocked. The only parts that are not original in the tranny is the big differential gear and a couple bearings but they are the correct size bearings. It is the correct gear, its just out of another unit. Same part number and everything-3502. Did those big gears vary slightly in size during production? because it seems like if the big gear was about 1/16 smaller, I would be able to push the gears together and the cover would slight right on. Any help would be appreciated. Thanks
