Kwikway Loader Owners Brace Arm Mount Dimensions

[Lost Pup 172]

Just picked up a Kwikway Loader which is missing the "Brace Arm Mount".

Any chance anyone owner could post up a few pics of it with the dimension ?

I would like to fab it up close to OEM if possible.

Thanks
Missing Part Pic Below

[Lost Pup 172]

Another Pic.

[fast88pu 3,313]

was this the $1,500 CL one ?

[Lost Pup 172]

Yes , $1500 , really looking for just a loader but it was a package deal.

[fast88pu 3,313]

I seen it on there . What model machine did they have it on ?

[Lost Pup 172]

The loader was attached to a 418C.

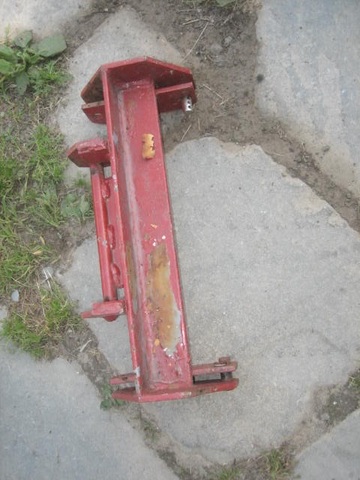

Here are a few more pics of the brace. Close to the black style above maybe made a bit eariler.


[Lost Pup 172]

Many thanks to member JackC for the speedy and detailed pics. He emailed them directly to me.
Great members we have here.

Last four Pics:

[ecsi635j 34]

Hello Lost Pup

I know this is a very,very .

old post.I found it after hours of searching the forums .

I'm in the process of fabing up a loader for my 520H and I would like to duplicate the Kwik-Way design of the original front brace bracket.

Thankfully I found these pictures of the actual bracket with dimensions .

Problem is the picture's are a little difficult to get a clear view past the "Photo Bucket" water mark

Is it possible to view the pictures with out the water mark? I do have a Photo Bucket account.

[WheelhorseBob 1,548]

If you wait till spring, I’ll remove mine and provide pics and dimensions.

[ecsi635j 34]

2 hours ago, WheelhorseBob said:

If you wait till spring, I’ll remove mine and provide pics and dimensions.

Well thank you Wheelhorsebob, any help at any time is greatly appreciated.

[Lost Pup 172]

7 hours ago, ecsi635j said:

Hello Lost Pup

I know this is a very,very .

old post.I found it after hours of searching the forums .

I'm in the process of fabing up a loader for my 520H and I would like to duplicate the Kwik-Way design of the original front brace bracket.

Thankfully I found these pictures of the actual bracket with dimensions .

Problem is the picture's are a little difficult to get a clear view past the "Photo Bucket" water mark

Is it possible to view the pictures with out the water mark? I do have a Photo Bucket account.

I did build my copy. I can look for my drawings and the original pics if I can find them.
I can pull my bracket and take pics as well.
No problem.


[ecsi635j 34]

A big thank you  to you  Lost Pup, Greatly appreciate the help!

[Lost Pup 172]

On 11/27/2020 at 9:09 AM, ecsi635j said:

A big thank you  to you  Lost Pup, Greatly appreciate the help!

I didn’t get out there today. Darkness around 4:30 here.


Tomorrow for sure.



PM me here your cell # or email and I can send ASAP by cell or email with my iPad.



Edited November 29, 2020 by Lost Pup

[Lost Pup 172]

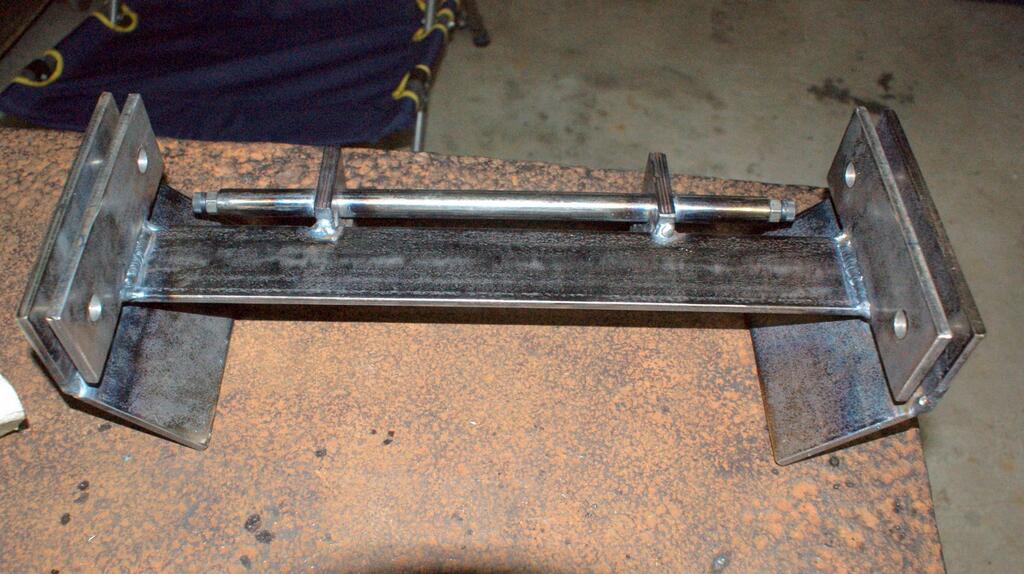

Ok guys , found the pics for this. Sorry I forgot to upload, put the bracket on the loader and never looked back.



Looking for the final dimensioned drawings I made......bracket works perfectly.  2015 was a long time ago even in Wheel Horse years.



The one rod piece I left it long for no reason as it was scrap I have around.

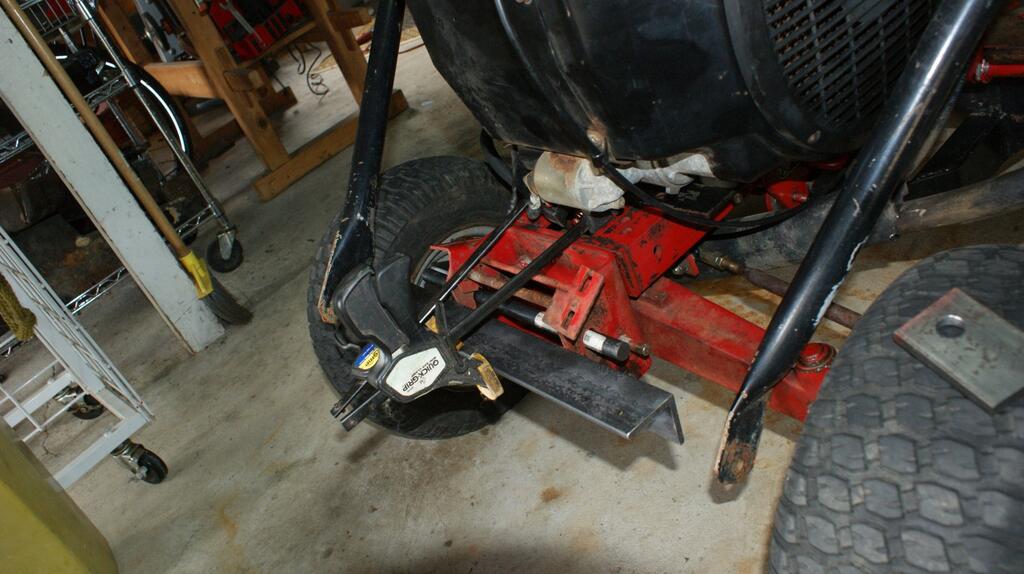

Only problem was that PO used the loader without the bracket and the two towers were out of square. A drift pin was needed to get the bolts to line up with the new bracket.

[Lost Pup 172]

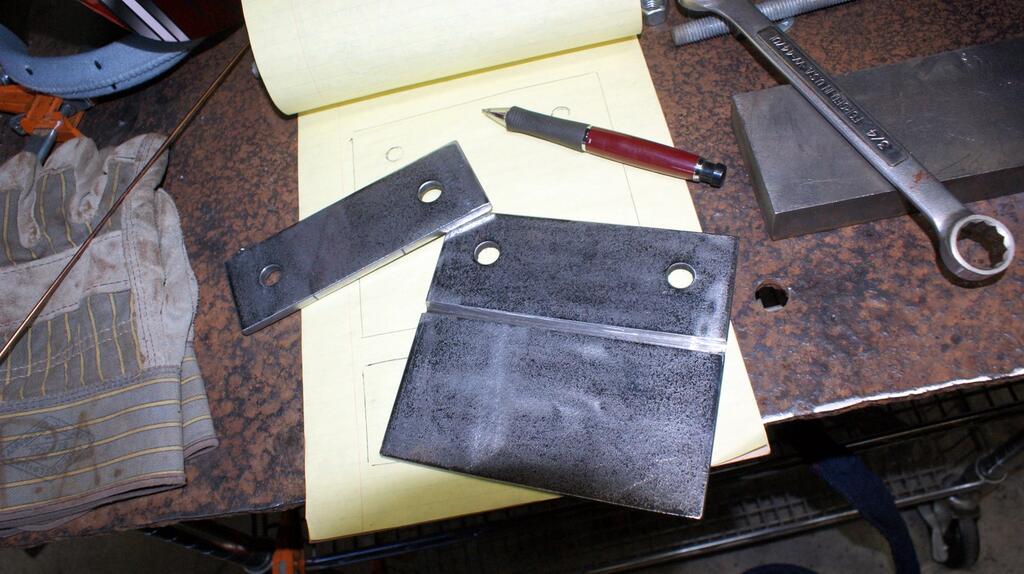

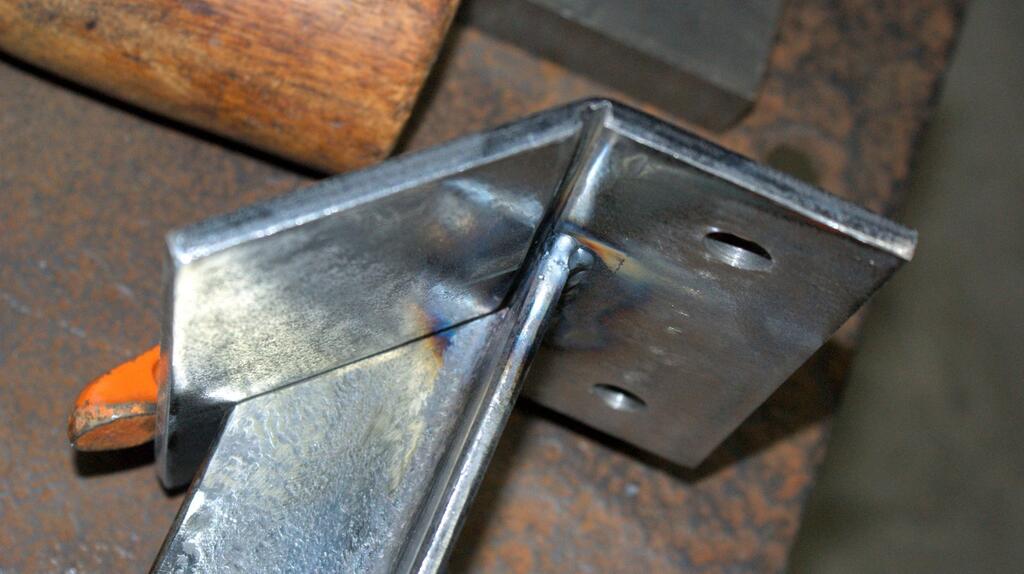

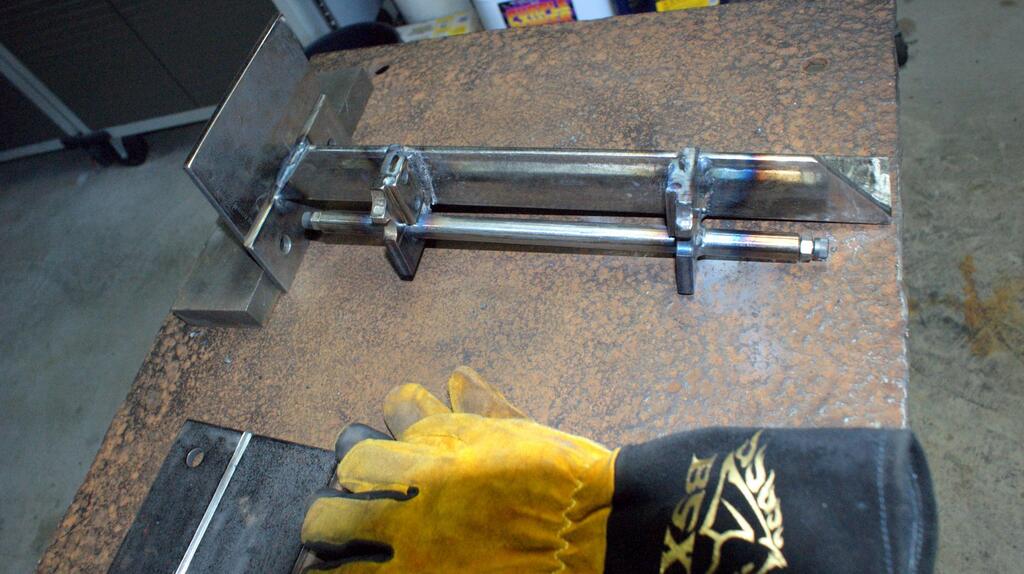

In no particular order here are some more build pics.

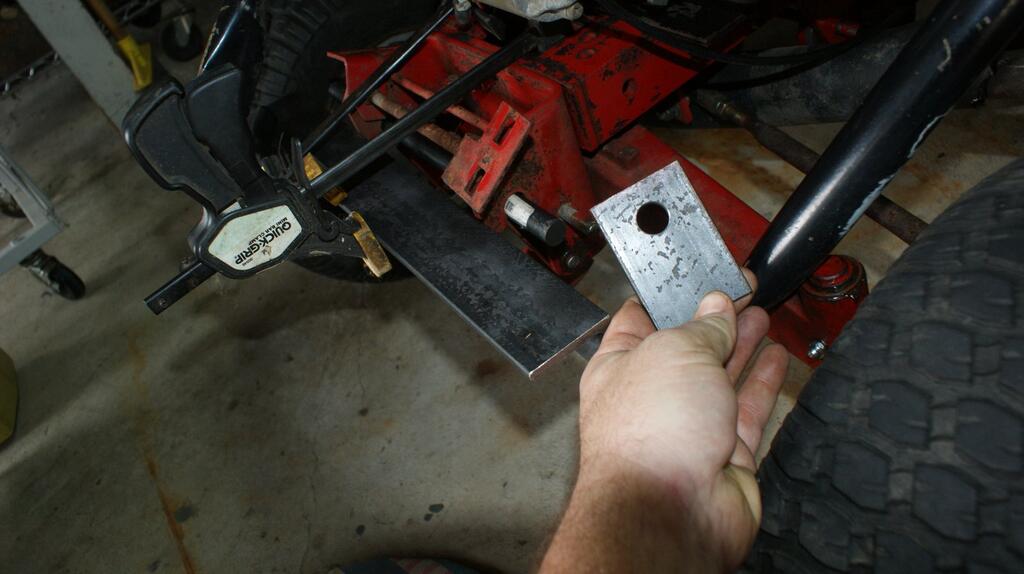

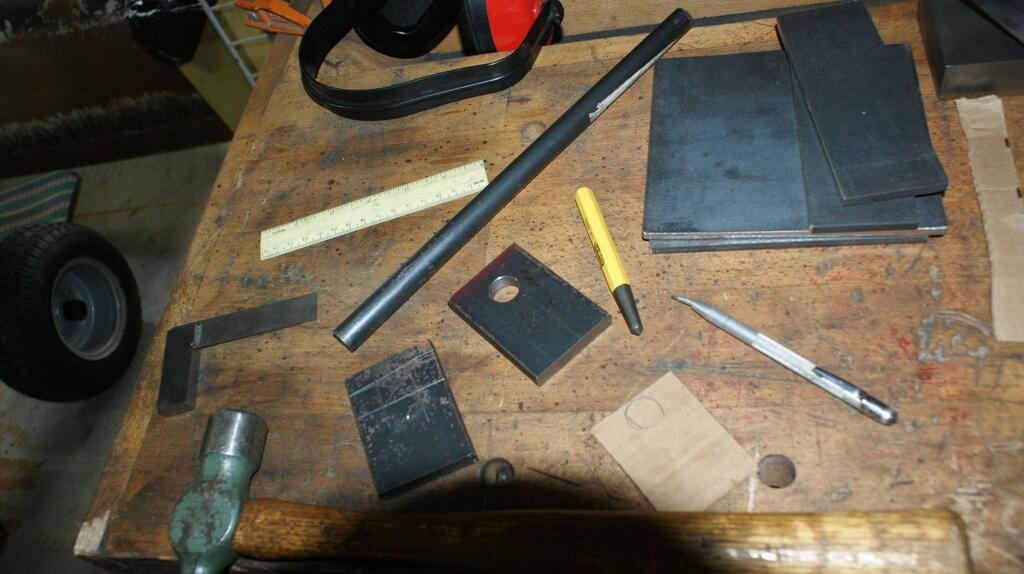

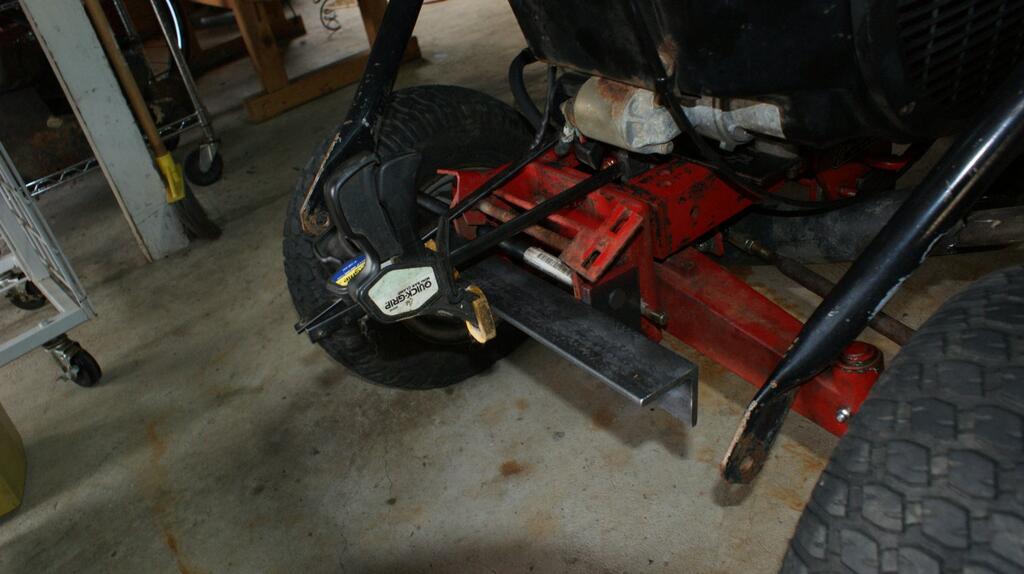

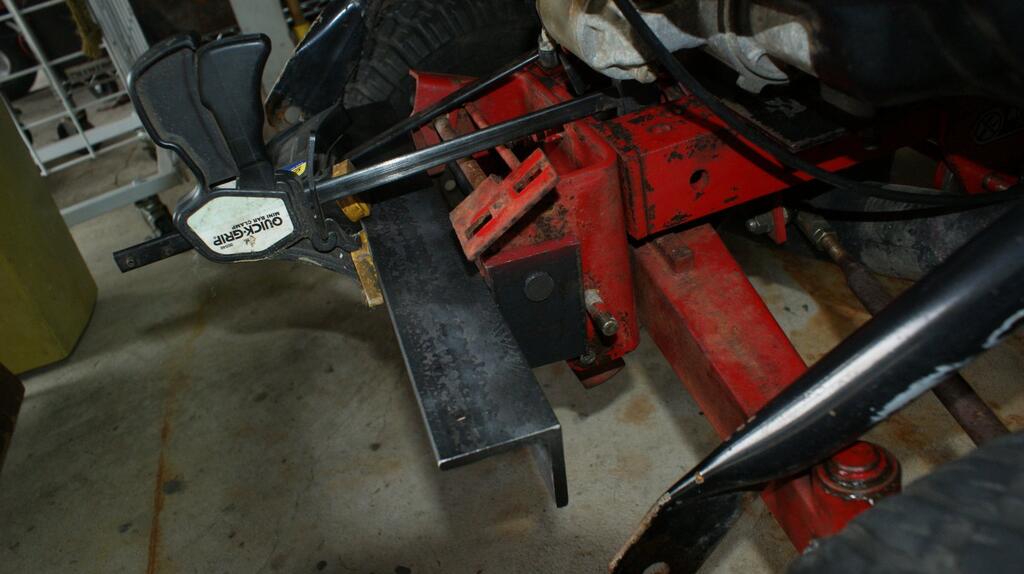

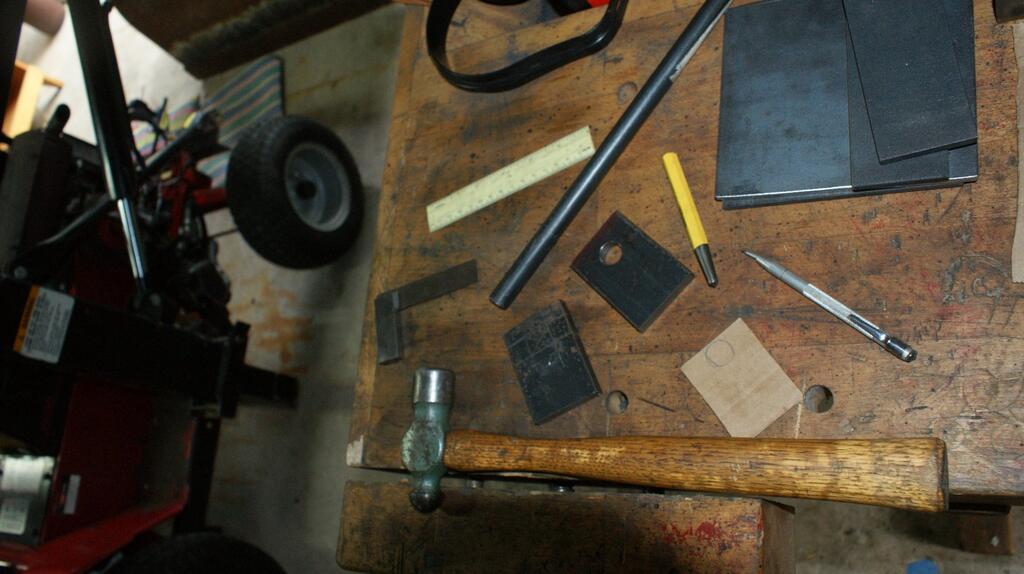

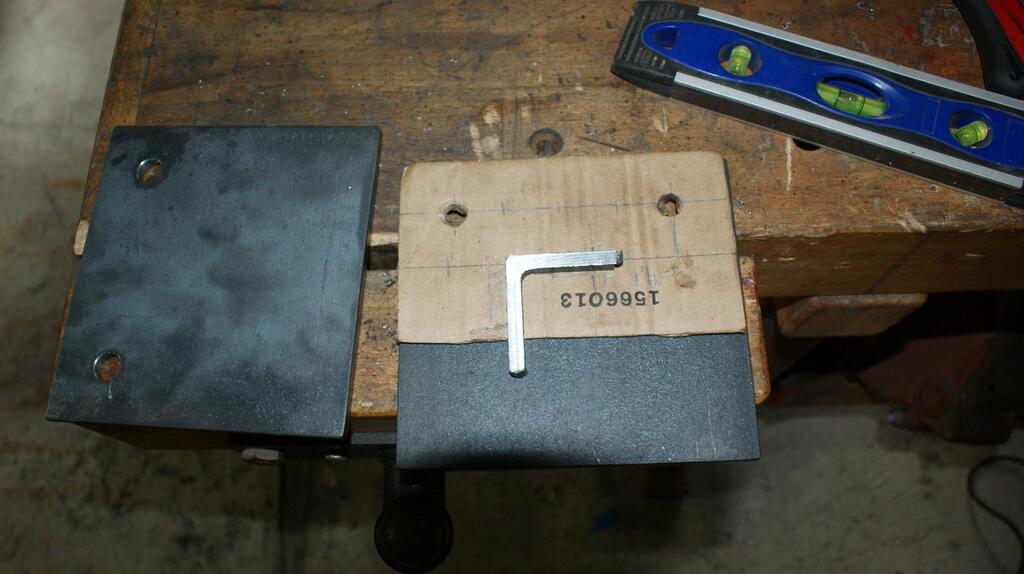

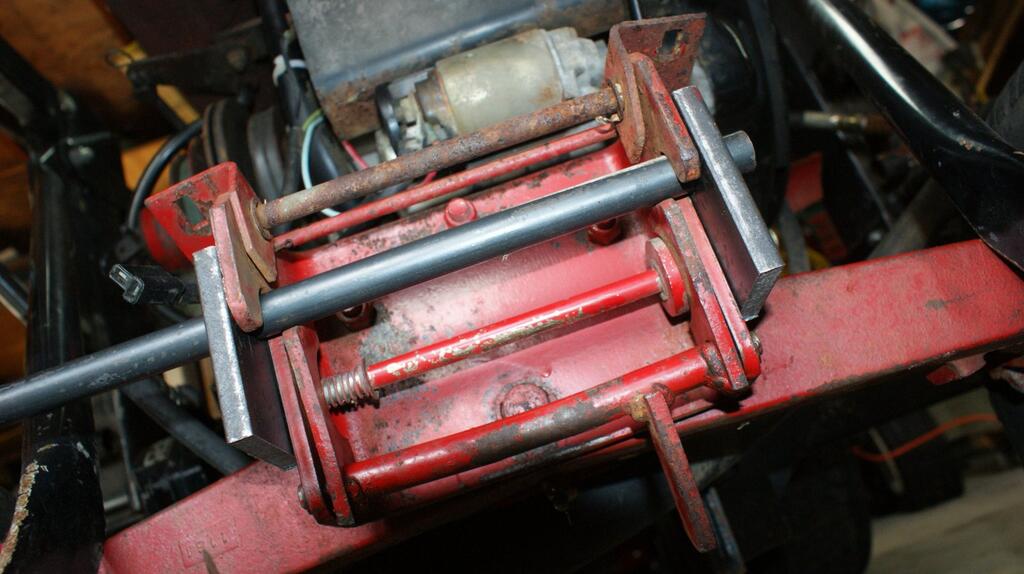

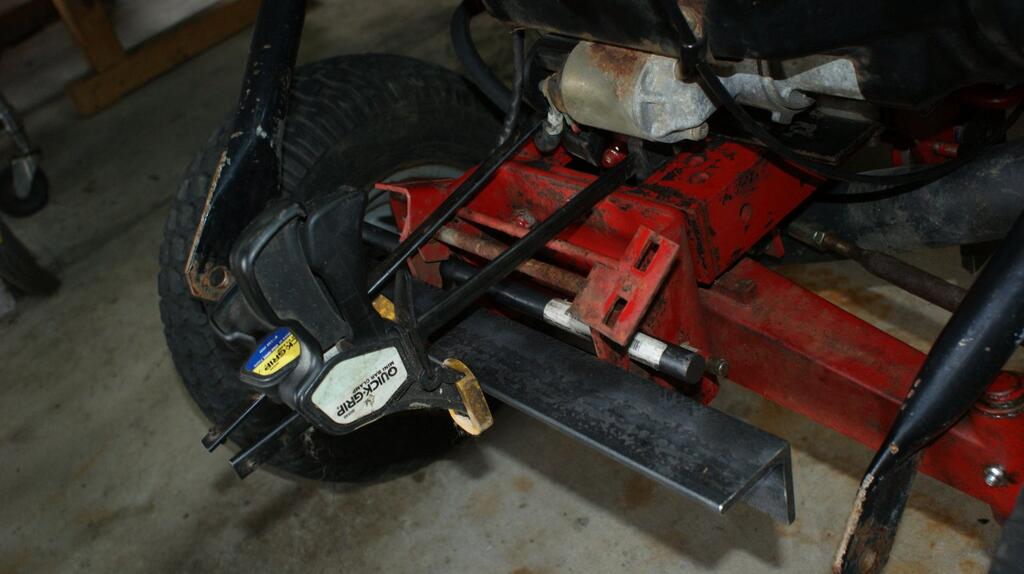

I used the actuall front tractor attachment bracket as the jig to tack up at the start. A few carboard templates to work things out.

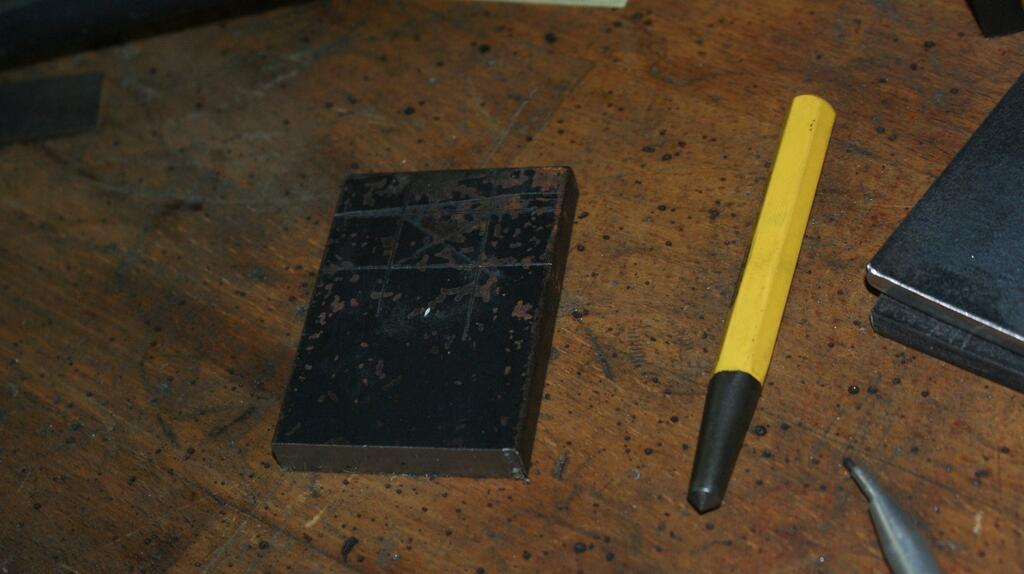

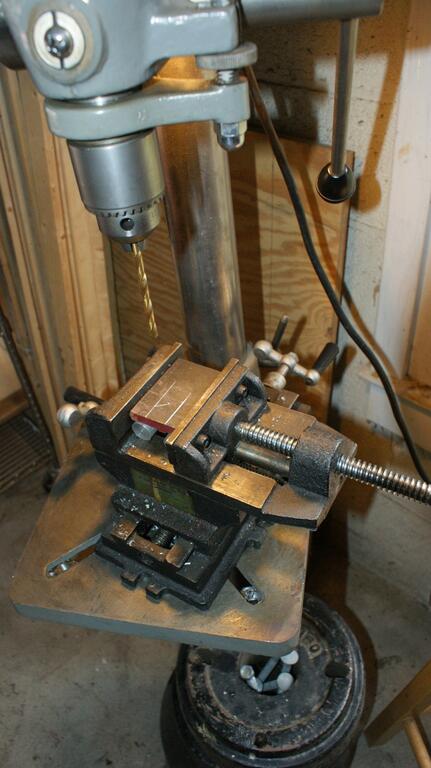

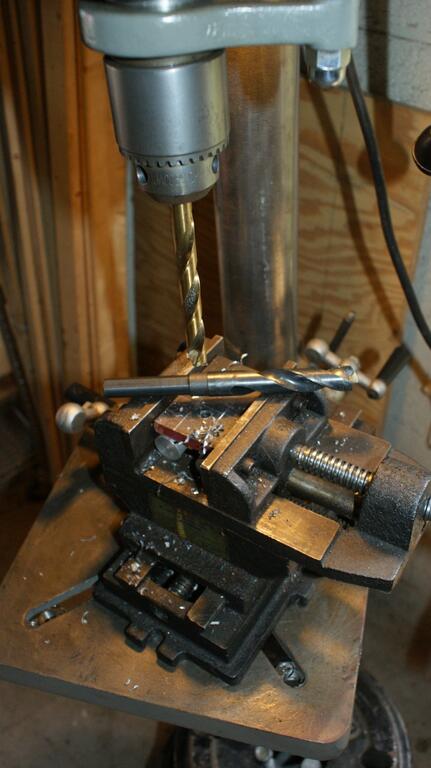

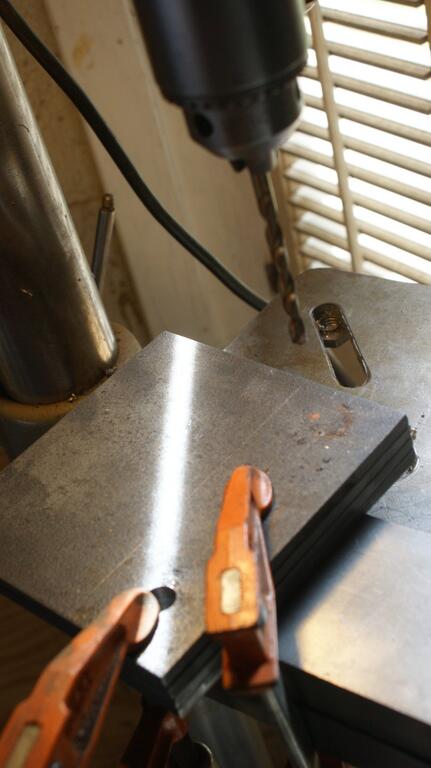

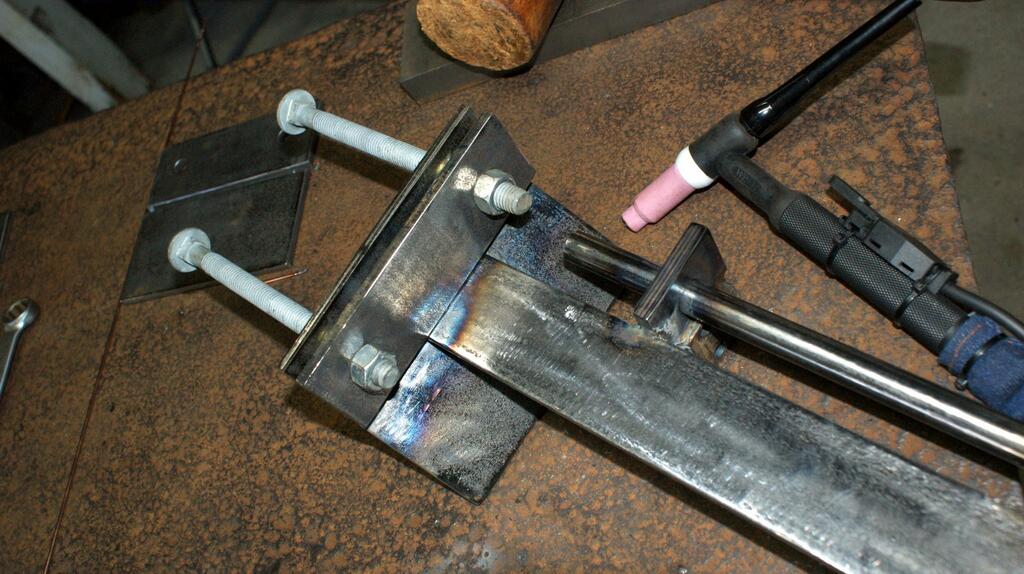

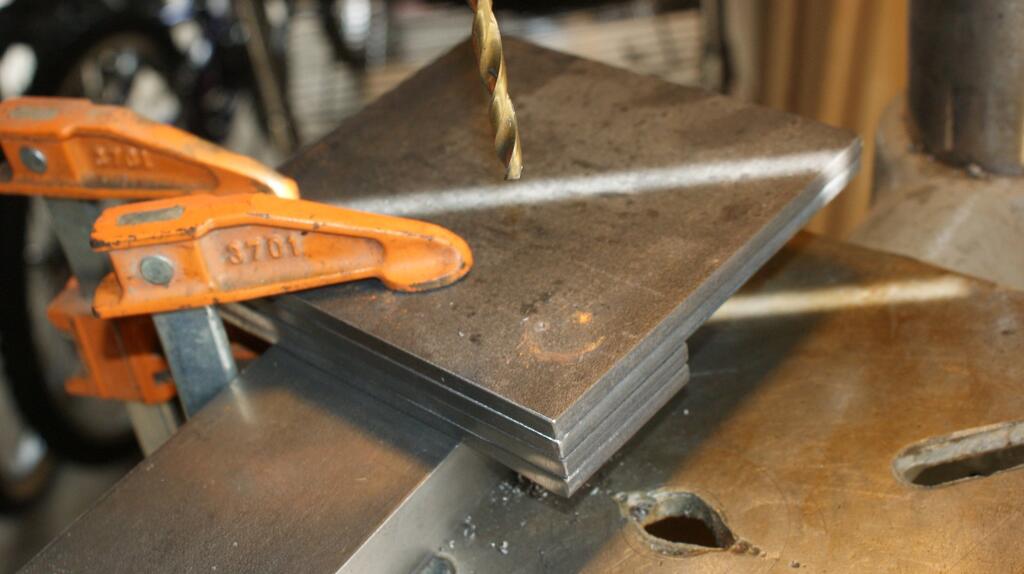

I stacked the side plates and gang drilled them so the holes would align when welded. Used bolts and washers to align the ends when I tacked them up.
