Toro_14-38HXL

New owner to a Toro wheel horse 14-38 hxl

Recommended Posts

Toro_14-38HXL

Hi I just bought a Toro wheel horse 14-38 hxl and I wonder which year model  it is and if parts from other models fits my lawn tractor. These are the serial number: 2m2jp75.jpg

Share this post


Link to post
Share on other sites

gwest_ca

Welcome to the forum.



1997



Will look for more



Garry

Share this post


Link to post
Share on other sites

Toro_14-38HXL

Tnx for the quick reply :)

  • Like 1

Share this post


Link to post
Share on other sites

gwest_ca

Not knowing what language you prefer you can download an operator manual and more from Toro

https://lookup3.toro.com/request/request.cfm



Just need to enter the 71217 model number and 7901018 serial number.



Garry

Share this post


Link to post
Share on other sites

Toro_14-38HXL

Tnx I'm from Sweden but if there is no Swedish manual,  English will do fine :)

Share this post


Link to post
Share on other sites

gwest_ca

Added a few more files to the library



Garry

Share this post


Link to post
Share on other sites

gwest_ca

14-38HXL is the model name.

This model has 5 different model numbers.

When the same model number was used more than one year the serial number identifies the model year.



Garry

Share this post


Link to post
Share on other sites

Toro_14-38HXL

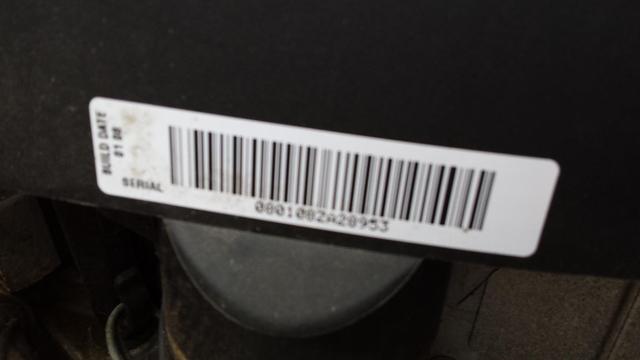

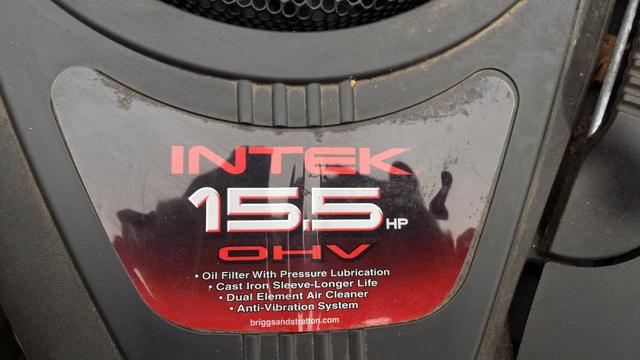

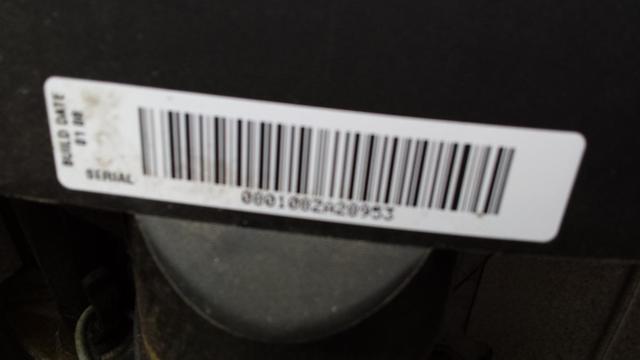

I have a Briggs & Stratton 15.5hp engine but I don´t know which year it is or which model. I have my Toro at my cabin so I can not look at the serial plate but I took this pics last time. Anyone that recognize the year and the model of this B&S?  post-14787-0-02898400-1426179076_thumb.jpost-14787-0-04379200-1426179096_thumb.jpost-14787-0-81513500-1426179102_thumb.j

Share this post


Link to post
Share on other sites

gwest_ca

I can't tell from the photos but this is what Toro has listed



The Details and Attachment file shows the engine model and the tractor illustrated parts list includes the ipl for the engine.



The end of the sticker looks like BUILD DATE but can't read the numbers.



Toro says 14hp and the engine 15.5hp. Perhaps the engine has been replaced?



Garry

Share this post


Link to post
Share on other sites

Toro_14-38HXL

Yes the engine has been replaced

Share this post


Link to post
Share on other sites

gwest_ca

Toro used these 15.5hp engines



in 1995 and 1996 - B&S model 28Q777-0068-03 on tractor 15-44HXL model 71192



in 1999 - B&S model 28Q777-0690-E1 on tractor 15-38HXL models 71221 and 71240



in 2000 - B&S model 28Q777-0690-E1 on tractor 16-38HXL model 71225



in 2004 - B&S model 282H07-9235-02 on tractor 150-DH model 74571



Garry

Share this post


Link to post
Share on other sites

Toro_14-38HXL

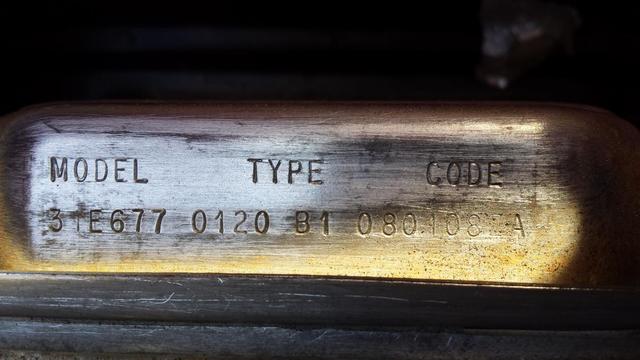

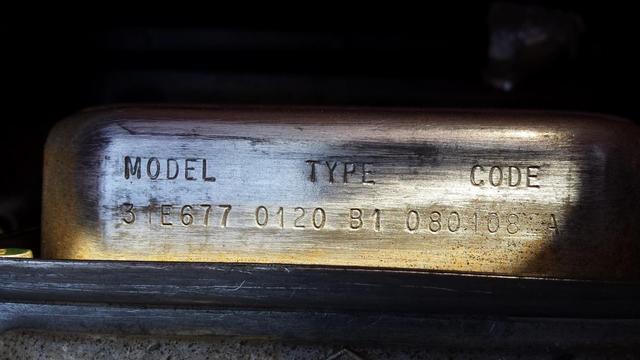

It's a bit rusty but this is the serial number

post-14787-0-10295600-1426426530_thumb.j

post-14787-0-79039500-1426426587_thumb.j

Share this post


Link to post
Share on other sites

Toro_14-38HXL

I'm thinking the serial number is 3IE677-0120-B1-080108ZA

Share this post


Link to post
Share on other sites

Toro_14-38HXL

These are maybe better?

Share this post


Link to post
Share on other sites

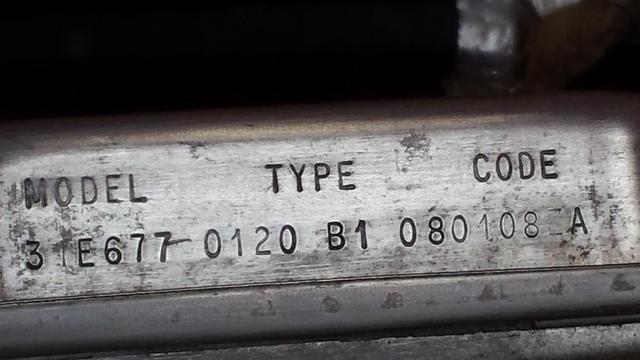

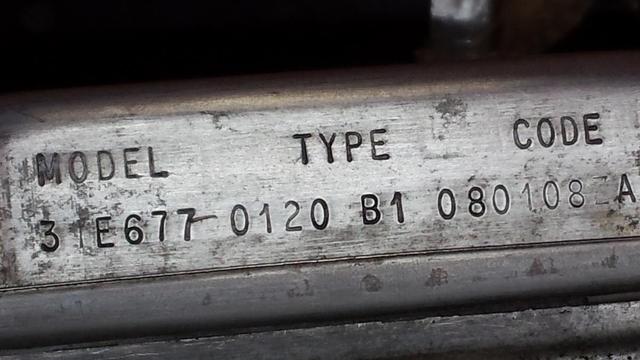

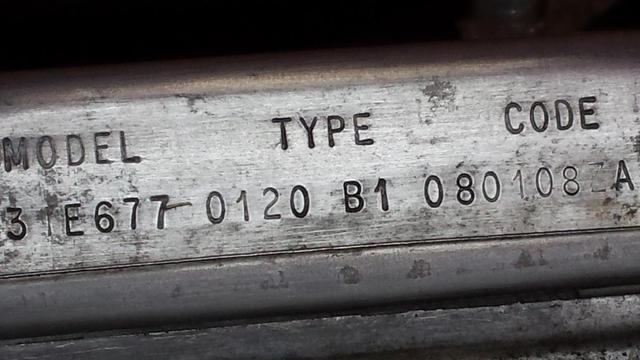

Toro_14-38HXL

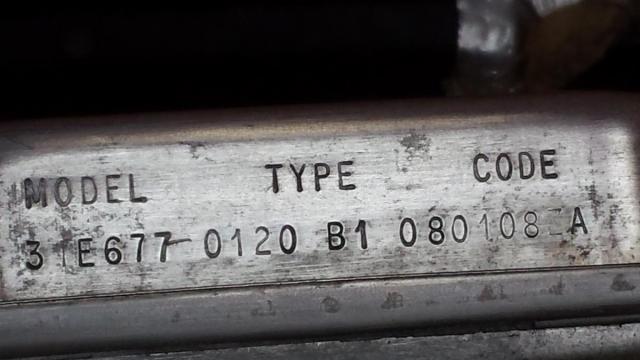

These are maybe better?

post-14787-0-60047900-1426429764_thumb.j

post-14787-0-98729800-1426429793_thumb.j

post-14787-0-78229000-1426429815_thumb.j

Share this post


Link to post
Share on other sites

Toro_14-38HXL

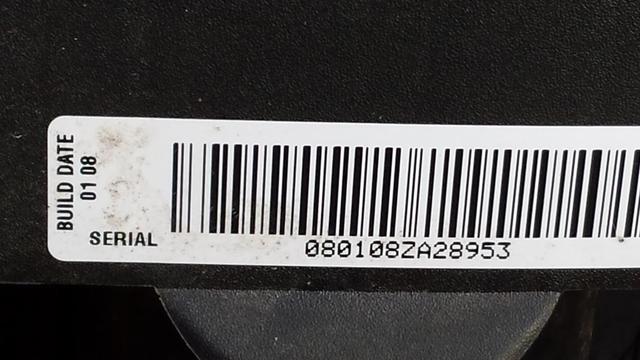

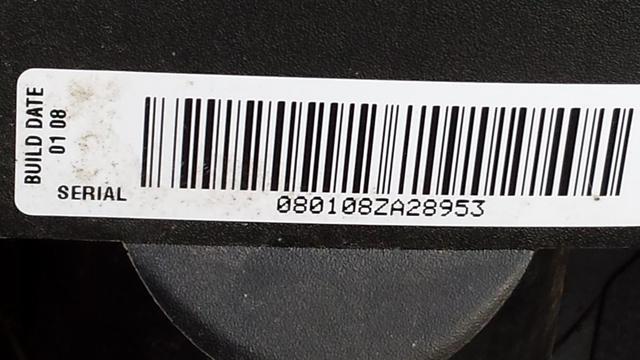

And better pics of the serial number on the side of the engine

post-14787-0-39910800-1426430094_thumb.j

post-14787-0-94640600-1426430115_thumb.j

Share this post


Link to post
Share on other sites

gwest_ca

Model number is 31E677

Engine type is 0120

Trim is B1



The serial or code is 080108ZA

08 = Built in 2008

01 = January

08 = 8th day



ZA I believe is the factory that built the engine.



You can download the engine manuals from

http://www.briggsandstratton.com/us/en

Find the manuals and go until you see 2 boxes to enter the model numbers. 31E677 in one and 0120 in the other. When it comes up the B1 is included.



These are copyrighted or I would post in our files so you could get them there. Let us know if you have trouble.



The engine numbers are different than we usually see so perhaps this one is manufactured in Europe.



Garry

  • Like 1

Share this post


Link to post
Share on other sites

Toro_14-38HXL

Is it  possible to make the hydrostat go any faster?
