saminmn

gt14 tow valve

Recommended Posts

I have a gt14 we pulled out of the woods this summer but the tow valve will not move .Which way should the lever  turn? clock or counter

Share this post


Link to post
Share on other sites

Should be counter but i could be wrong. Just do it slowly tho. You shouldn't hurt anything.

  • Like 1

Share this post


Link to post
Share on other sites

It will actually turn completely around.

It needs to be turned 90* to go from "Go to Tow" or "Tow to Go".



Right now I can't remember if it needs to be parallel or perpendictular with the frame for towing.

Share this post


Link to post
Share on other sites

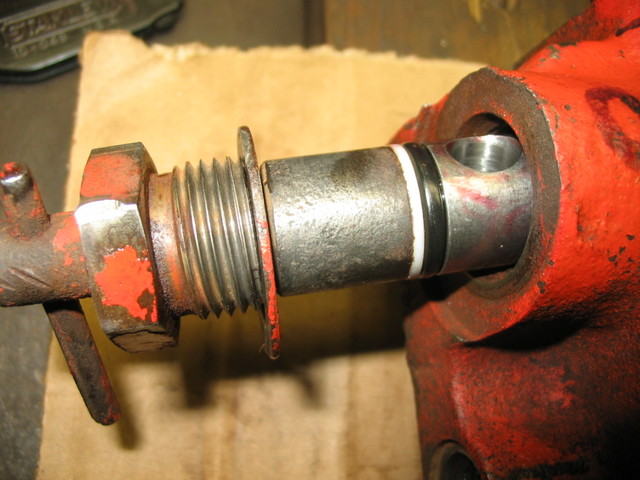

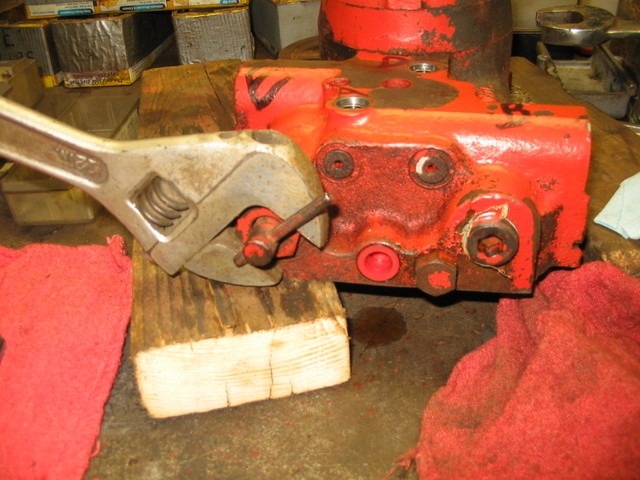

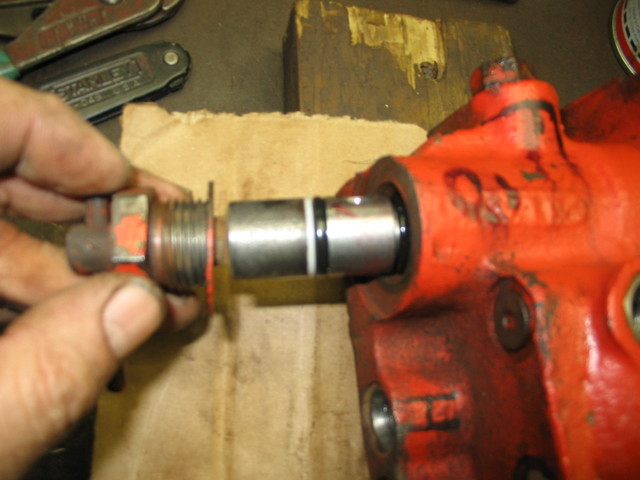

If the tow valve is stuck,  use a crescent wrench to back off (out) the top nut several turns.  The whole valve comes out, then cleaned it up refit it.

post-1200-0-73286200-1422943354_thumb.jp

post-1200-0-29708500-1422943360_thumb.jp

post-1200-0-78438300-1422943451_thumb.jp

  • Like 2

Share this post


Link to post
Share on other sites

btw,the later ones were different, they were 1/2 turn on the piston-piston sundstrands

  • Like 1

Share this post


Link to post
Share on other sites
