anyone have pics of a homemade wheelhorse wagon

Recommended Posts

876wheelhorse

like to build a wagon i have 2 axles with spindles from a couple tractors. Id like to make it be able to dump. so im not sure if i want a tandem axle trailer or not. like to fill with stone dirt snow etc I need ideas how to do it. I have a winch like to lift it to dump with that.

Share this post


Link to post
Share on other sites

Japple67

I have a dump wagon that is fairly lightweight, I'll get some pictures and dimensions if you want, but the design might need to be beefed up for your purposes.



Also have a flatbed I'll take some pictures of.

Edited by Japple67

Share this post


Link to post
Share on other sites

876wheelhorse

sweet give me some measurements and ideas thanks

Share this post


Link to post
Share on other sites

rollingflat

Great idea am working on four wheeled wagon

Myself right now. Have frame rails cut spindles ready,

Waiting for wh axles to show up.

Plains r for making it 3'x 7' with liener actuator for a dump.keep us posted.

Share this post


Link to post
Share on other sites

stevasaurus

Here is mine...it is home made.  I do not know who made it, my Dad got it from somewhere, but it works great.  The back end gate is like on a couple of hooby-doobys at the top that let the gate open up when dumped.  :)






















  • Like 3

Share this post


Link to post
Share on other sites

tunahead72

What kind of doobys did you say those were, Steve?

  • Like 4

Share this post


Link to post
Share on other sites

Geno

Hooby doobys.  :laughing-rolling:

  • Like 1

Share this post


Link to post
Share on other sites

squonk

I think they are 'Honey Wagon" Hooby Doobys!  :) That is one of the coolest wagons I've seen. Like to see that double axled!  :thumbs:

Edited by squonk

Share this post


Link to post
Share on other sites

AMC RULES

What kind of doobys did you say those were, Steve?

:ychain:   I'm thinkin'...     :angry-nono:

those leftover Woodstock doobies.

  • Like 1

Share this post


Link to post
Share on other sites

stevasaurus

I could have said "nipples", but I was afraid you guys would go somewhere else.  I was just trying to keep it out of the gutter and on a Red Neck tangent.  Here Hold my beer and watch this.  :)

  • Like 4

Share this post


Link to post
Share on other sites

AMC RULES

When will you ever learn Dino...

have you ever met me?   :)

  • Like 1

Share this post


Link to post
Share on other sites

Japple67

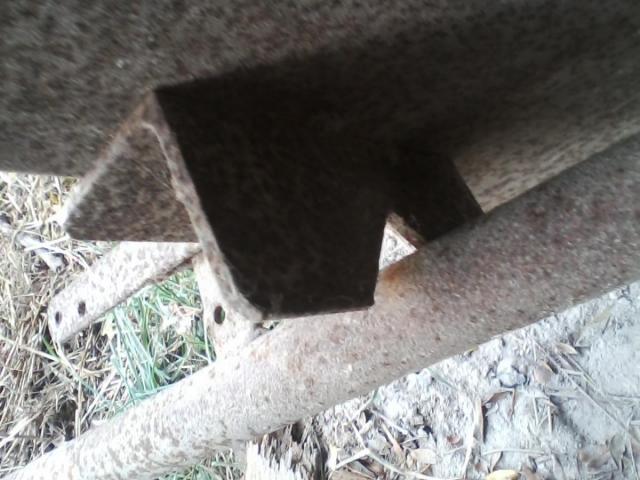

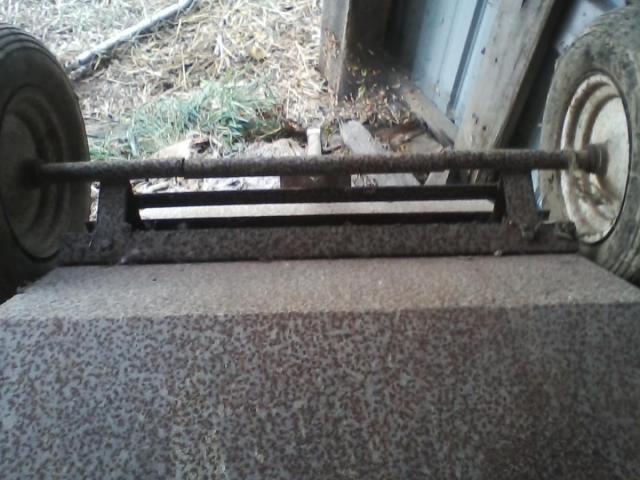

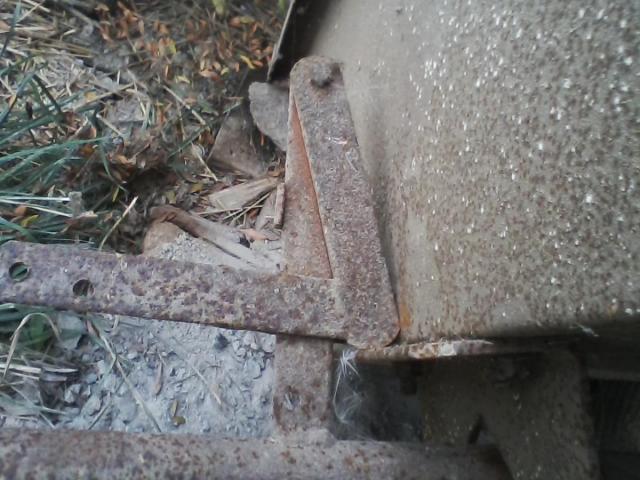

The larger one out of sheet metal I think was boughten not home built but it's 12" deep, 26" wide, the floor is 32" long and the top is 44" long. 28 3/4" long axle tube is cut in two places to allow the tongue to hinge on the axle. axle tube is mounted via a triangle the lower point being, the axle tube, and the top points being angle irons welded to the trailer bottom. the rear slope is 17" and the tongue is 36" with a slight bend in it. the axle center is 22 3'4 from the front of the bed.



That's a mess I know, but I have another I'll Get some of the same info and pictures for. it's also a dump bed but welded out of garage door pieces and angle iron with plywood sides and floor.

post-14087-0-13940300-1413844998_thumb.j


post-14087-0-47896800-1413845012_thumb.j

post-14087-0-54824600-1413845020_thumb.j

  • Like 1

Share this post


Link to post
Share on other sites

876wheelhorse

I am thinking a dumping tandem axle trailer just gotta figure out how big and how to use my winch to dump ideas ideas

Share this post


Link to post
Share on other sites

squonk

I could have said "nipples", but I was afraid you guys would go somewhere else.  I was just trying to keep it out of the gutter and on a Red Neck tangent.  Here Hold my beer and watch this.  :)

you didn't throw it high enough to keep it out of gutter. Most Honey Wagons are quite high.

Share this post


Link to post
Share on other sites

Japple67

maybe mount the winch underneath on the stationary part and have it pull on the end of the bed, or a bracket. or maybe in front on the tongue and run the cable up over a pulley down to the front of the bed

Share this post


Link to post
Share on other sites

Sycoticca

Go check out my threads and see the trailer i built for some ideas...,

Edited by Sycoticca

Share this post


Link to post
Share on other sites
