Good tease Mark, could that 3D image be an alternative for a standard front Axle. Could it be an Electric Steer set up ?.

Getting warm Richard....

4X4 Turbocharged Rockcrawlin' Stud Horse :bow-blue:    :handgestures-thumbupright:

Now there's an idea :D

Share this post


Link to post
Share on other sites

Hmm wheel horse super snow plow tractor, with and electric angle snow plow?

Share this post


Link to post
Share on other sites

Would this have anything to do with the robot you showed in the Super Bendy post? :text-lol:

Share this post


Link to post
Share on other sites

First pic is of tires the same size as the rear Lawn Ranger tires. The second is of a hydro drive motor. The third is a hydro drive foot pedal. The fourth is a modified hydro pedal. So it has to be a 4x4 hydro Lawn Ranger with a lift kit? :confusion-scratchheadblue:

Share this post


Link to post
Share on other sites

Loving the answers guys, I'm giving the biggest clue so far and some of you did good on the guessing, less so on the what it is!

7ecb86ff356a19093cab2b8cab5ca935_zps8c22

Share this post


Link to post
Share on other sites

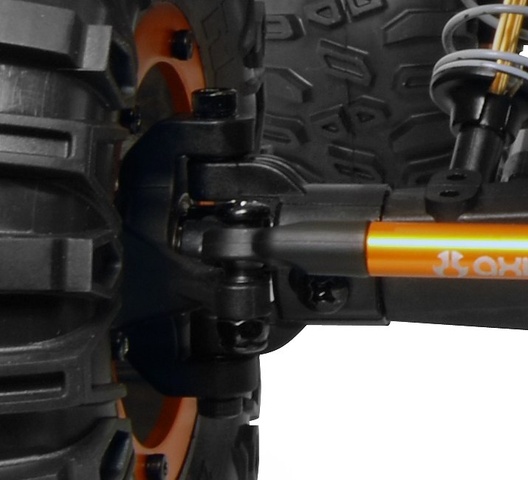

Aha! Hmmm, is it something to do with rear steering set up!?

post-9595-0-70628500-1383029613_thumb.jp

Edited by Charlie Smith

Share this post


Link to post
Share on other sites

Ok, I reckon it's a kind of FWD or Steering system judging by the CV Joints. Electric/Hydraulics may feature as a power assisted steering system. Suspect you'd need that with the Width of the front Rims/Rubber. Doubt if the standard steering would cope.

Share this post


Link to post
Share on other sites

You are are very warm and I'm sure the suspense is killing you :D

I think this will help...

24edfb950c2f663449b72a293da32ad3_zpseef7

Edited by meadowfield

Share this post


Link to post
Share on other sites

Mmm, I reckon it's the Rear Axle from a White Outdoor mower. As I don't know what Chassis is being used, it may be an All Wheel Steer IF 2 of those Axles are used?.

Share this post


Link to post
Share on other sites

Hmmm, I struggled to find information on the usage or manufacturer despite finding the drawings and parts lists. Yes they were used on at least 2 flavours of mower and this took some hunting down....

Here's the early blueprint of what I was trying to achieve long before I tracked down an axle

3903f1fcf49aa594923df88c83bc33e4_zps068e

  • Like 1

Share this post


Link to post
Share on other sites

Oh boy….I'm in love…and its only on paper…Been trying to find a front diff/axle like that for awhile over here…always priced too darn high

Share this post


Link to post
Share on other sites

Oh boy….I'm in love…and its only on paper…Been trying to find a front diff/axle like that for awhile over here…always priced too darn high



:D it gets better...

Share this post


Link to post
Share on other sites

Oh boy….I'm in love…and its only on paper…Been trying to find a front diff/axle like that for awhile over here…always priced too darn high



Here is one Model it is used in-  White Outdoor 132-786G190 FST-14 (1992) . If you  :text-google:  that, you'll find drawings/part nbrs etc.

  I'm sure you'll find them for sale easily in the States. Look's like a very strong design.



Good work so far Mark. Very interesting project :bow-blue:

Share this post


Link to post
Share on other sites



Oh boy….I'm in love…and its only on paper…Been trying to find a front diff/axle like that for awhile over here…always priced too darn high



Here is one Model it is used in-  White Outdoor 132-786G190 FST-14 (1992) . If you  :text-google:  that, you'll find drawings/part nbrs etc.

  I'm sure you'll find them for sale easily in the States. Look's like a very strong design.



Good work so far Mark. Very interesting project :bow-blue:





that's the one Richard - also made by Yardman!  taken a year of planning so far...  So much that when the axle arrived I had already made it all fit in my mind  :icecream:



500 views or 50 replies and I'll post another teaser!!!!

Edited by meadowfield

Share this post


Link to post
Share on other sites

Your a tease Mark.....  But I know what your up to.... I think :)

Share this post


Link to post
Share on other sites

:D

Given that we discussed it a few times and it's been a dream for some time you are probably spot on!

Let's see if tonight gets enough interest for the final installment.....

Share this post


Link to post
Share on other sites

YES, I am interested! Post # 49, need more.  :text-goodpost:


OK, OK, Post # 50, tell us more!  :woohoo:

Share this post


Link to post
Share on other sites

You got my attention. Let's see another pic!!!

Share this post


Link to post
Share on other sites
