Today's update, after being 12 nuts short of a full packet you can stop picking on me.

A quick zap in my magic tank


And voila, shiny nuts :D


Great weather up here today so time for some painting :)



Edited by meadowfield
  • Like 4

Share this post


Link to post
Share on other sites

Looks amazing as usual, can you tell me your secrets of your tank (please) i need to know it looks amazing. a pm would be taken nicely.



james

Share this post


Link to post
Share on other sites

Been a while since the last update...A kind of naked front end picture whilst the engine was being rebuilt.


and a close up of the remote gear linkage for those who wondered how it worked


And the engine is now back in and running :)


  • Like 2

Share this post


Link to post
Share on other sites

I love this build, really interesting stuff.

the lights look great! just finished wiring LEDs on my WH too.

Share this post


Link to post
Share on other sites

A long overdue update... bendy now has decals!





I finally made an exhaust :D, it was annoying the neighbours

Cue a piece of child's swing, a table leg and lots of holes


Filled with fibreglass and welded up


and a nice stainless heat guard


And finally.... Bendy now has a remote locking diff :)

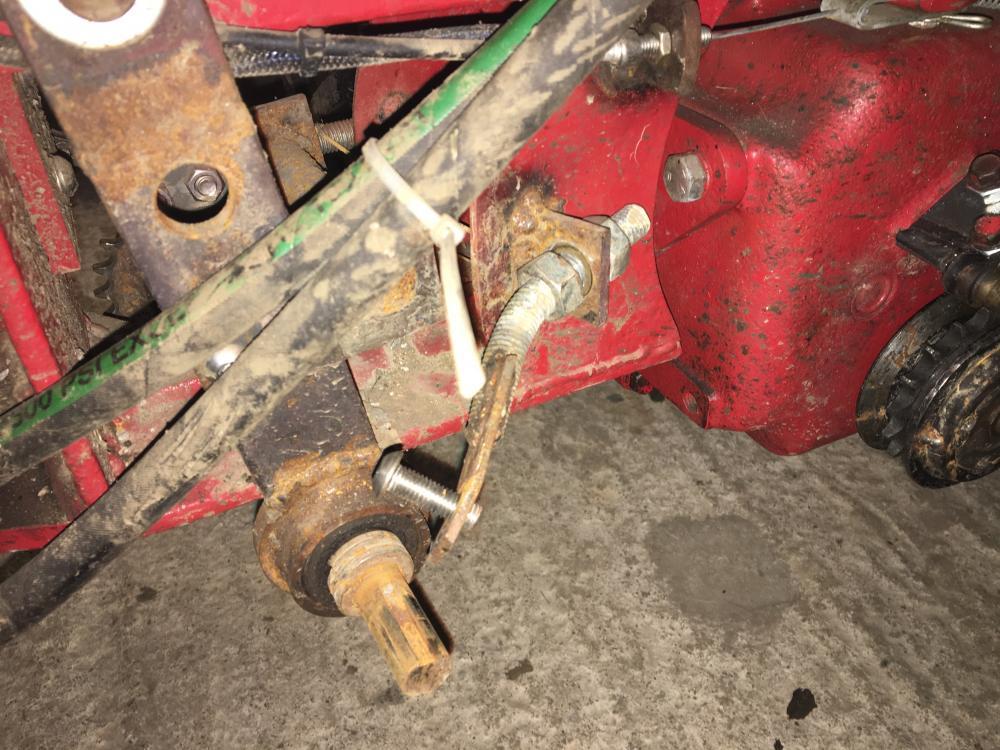

Used a bike brake cable in order to span the articulation joints and make life a bit easier.


Spring loaded selector keeps it in or out of lock

And a quick video


http://youtu.be/Kw6FG_wYTqA






Edited by meadowfield
  • Like 4

Share this post


Link to post
Share on other sites

Fantastic build and really like the new muffler. Gives me ideas. :)

Share this post


Link to post
Share on other sites

My son has been helping me this week whilst I've been at work :thumbs:

The exhaust heat shield is now done

0CBB54A1-0524-42EC-809D-5C2E6143FE0B_zps

The front hitch is well underway

7BE11F8B-8EDF-4608-86F8-ABBC5A73C842_zps

And the rear 3 point is painted and has check chains

09B4BB28-3F26-439F-B21B-B5F321B3DC0C_zps

Wired the front lights when I got home, not much to do now for Newby :)

  • Like 3

Share this post


Link to post
Share on other sites

this thread has been sparse on updates - having moved house and starting other projects...

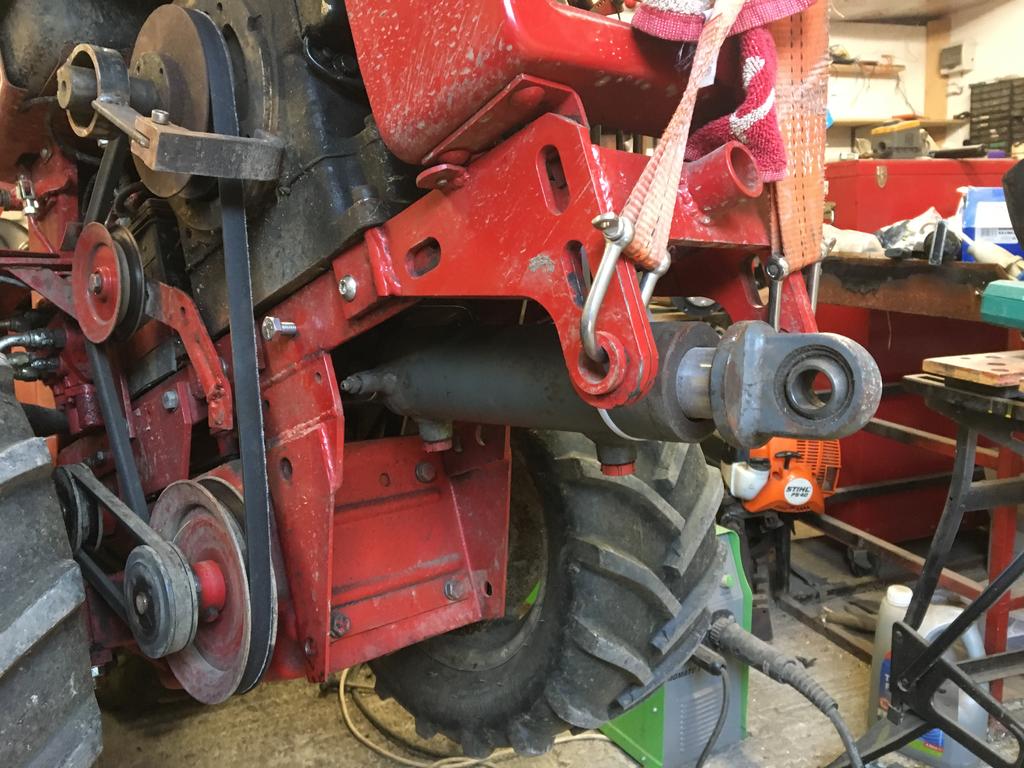

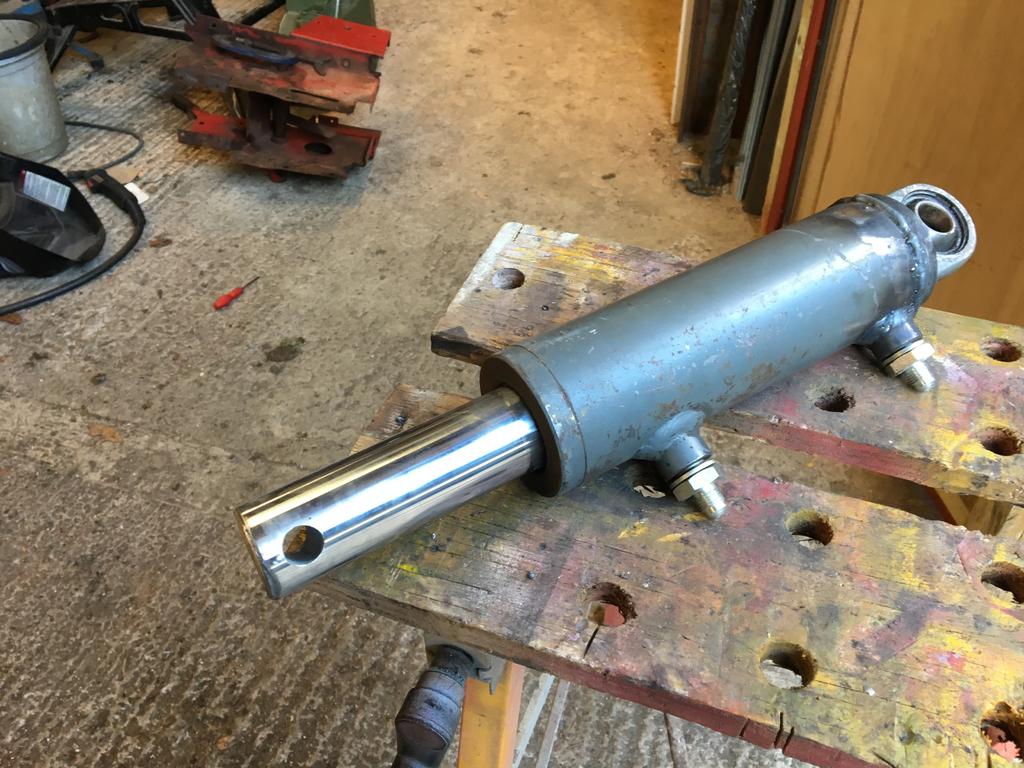

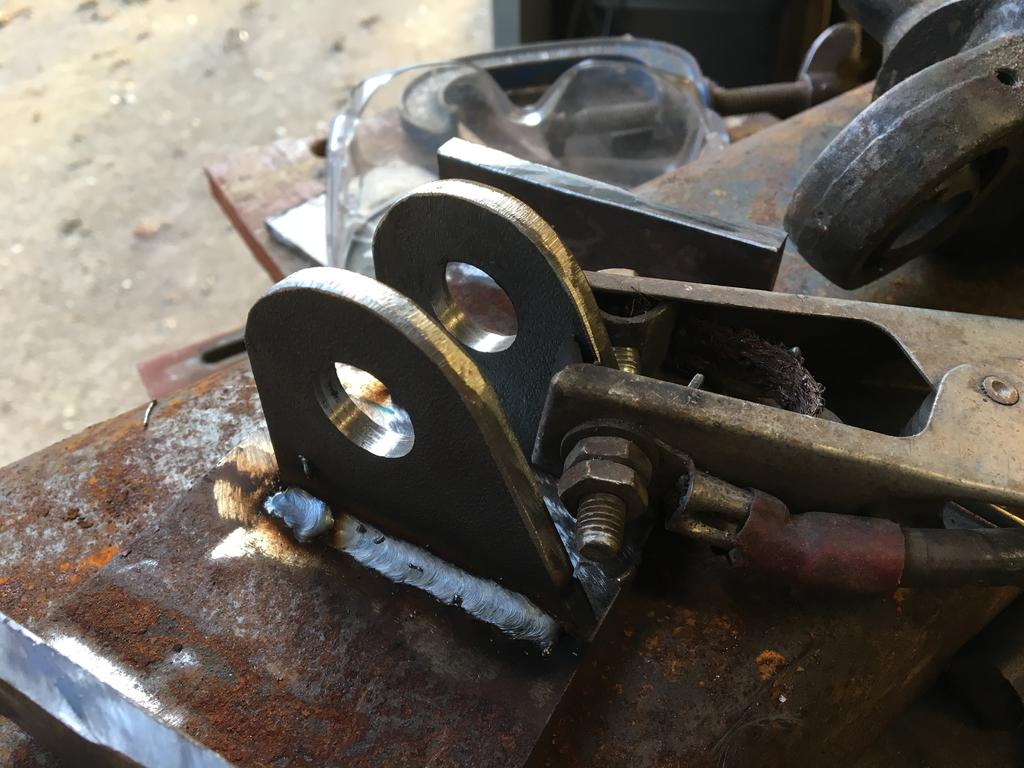

It's time bendy had it's hydraulics finished, there's also a heap of other jobs to complete, including stopping the rear drive slipping when under water, rebuilding the magnum engine, adding a diff lock indicator, etc

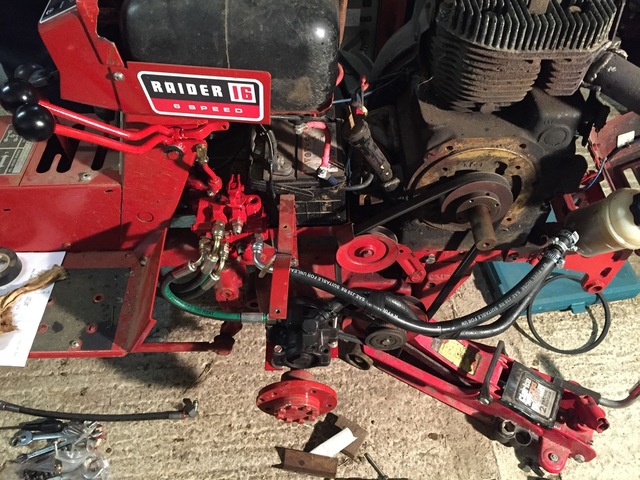

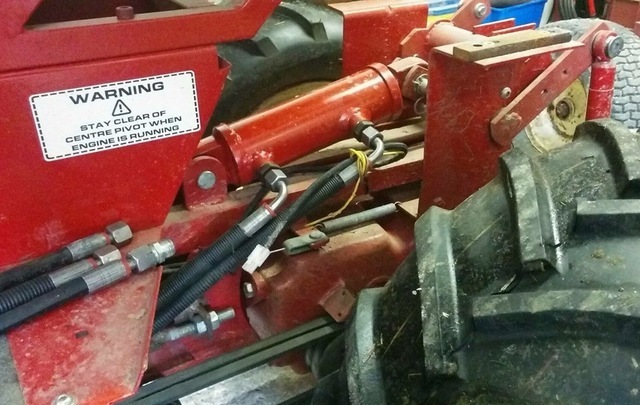

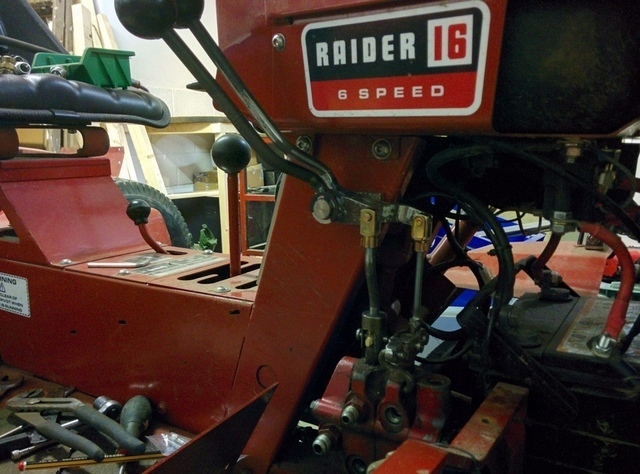

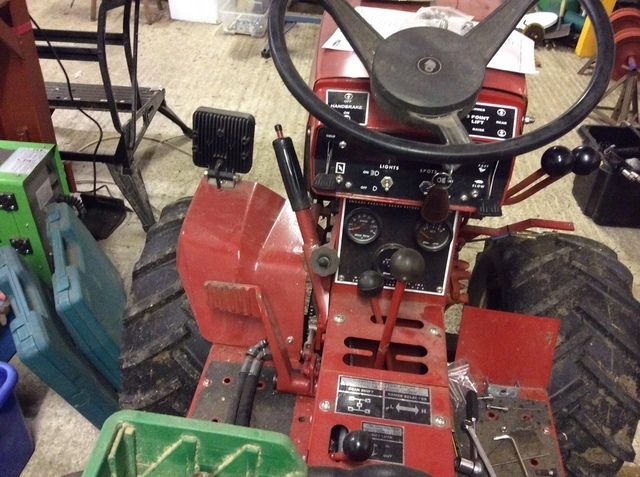

For now, here is the D-series spool valve mounted with easy reach levers and linkages and decal to finish it off. I'm just starting on adding a power steering pump to the axle, driven from the clutch.




  • Like 4

Share this post


Link to post
Share on other sites

wow didn't realise you were doing a front 3pt hitch! what will you use that for? dozer blade? power steering pump sounds like a great idea a few people have done that on youtube.

Callum:)

Share this post


Link to post
Share on other sites

This is one hell of a build! Very unique.  Do you have any videos of it running and driving?

  • Like 1

Share this post


Link to post
Share on other sites

From Marks Youtube channel...always an awesome watch.  :handgestures-thumbsup:



Edited by AMC RULES
  • Like 3

Share this post


Link to post
Share on other sites

I have just sat here and read this entire thread. I have been a machinist for 17 years and have been lucky to work on some pretty cool stuff, it takes a lot to impress me engineering wise, and im certainly inpressed, my wife is not however as I kept shoving my phone in here face saying "wow check out what he did here" lol. I love how you used the u joint  to crate a knuckle. One question have you hung anything on your three point, and how did the steeing pump handle the weight?

  • Like 1

Share this post


Link to post
Share on other sites
On 31 August 2016 at 3:09 PM, Abe01 said:

I have just sat here and read this entire thread. I have been a machinist for 17 years and have been lucky to work on some pretty cool stuff, it takes a lot to impress me engineering wise, and im certainly inpressed, my wife is not however as I kept shoving my phone in here face saying "wow check out what he did here" lol. I love how you used the u joint  to crate a knuckle. One question have you hung anything on your three point, and how did the steeing pump handle the weight?



Thanks, I realised I haven't done an update for a while.



the three point will lift 200lbs, or easily push down to lift the rear end...

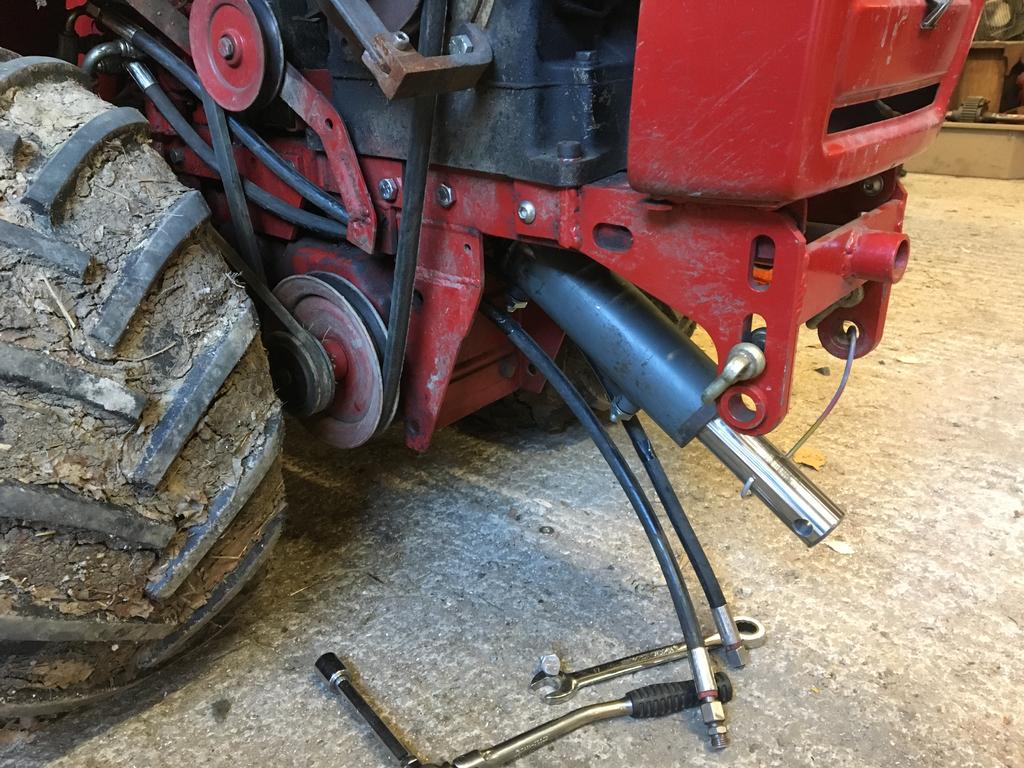

Here's a few more pics of the power steering pump.









  • Like 3

Share this post


Link to post
Share on other sites
Posted (edited)

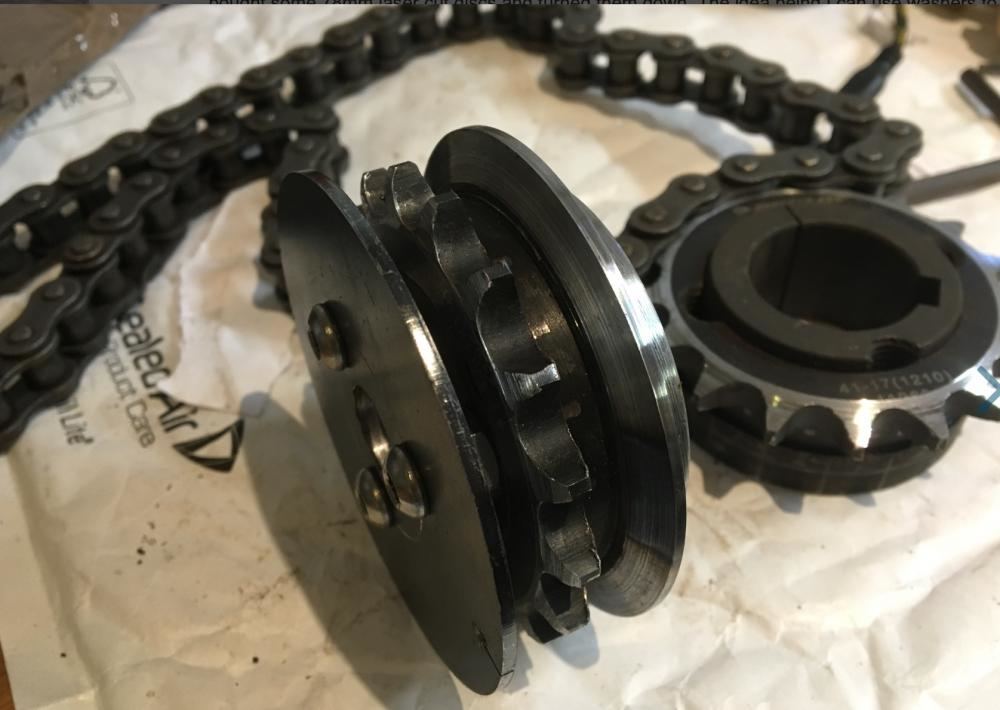

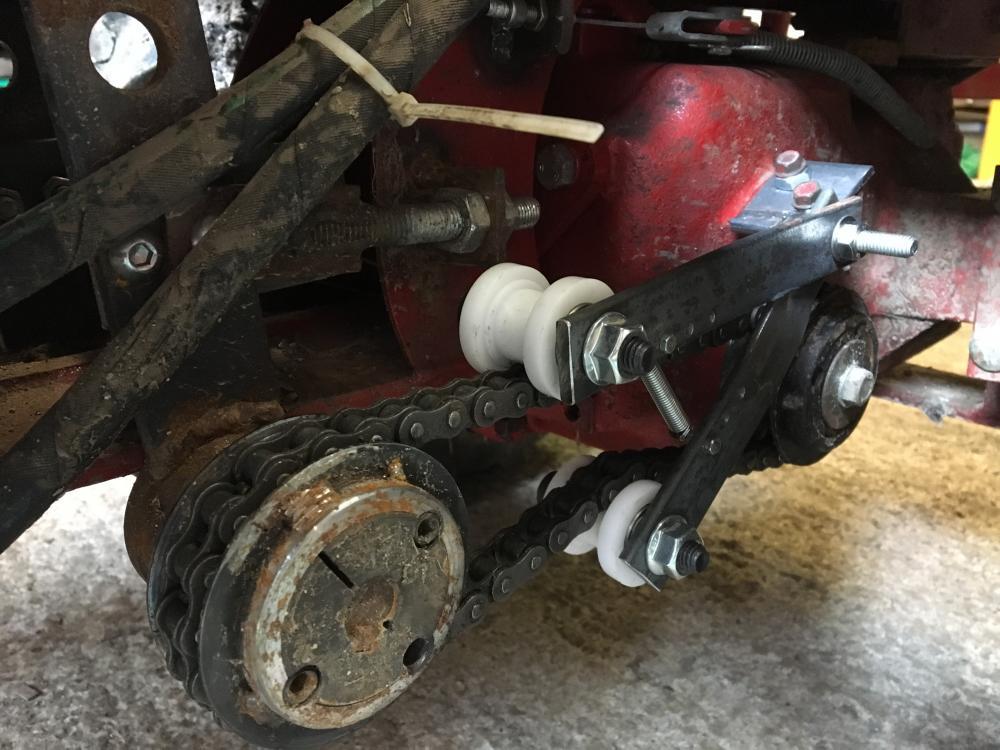

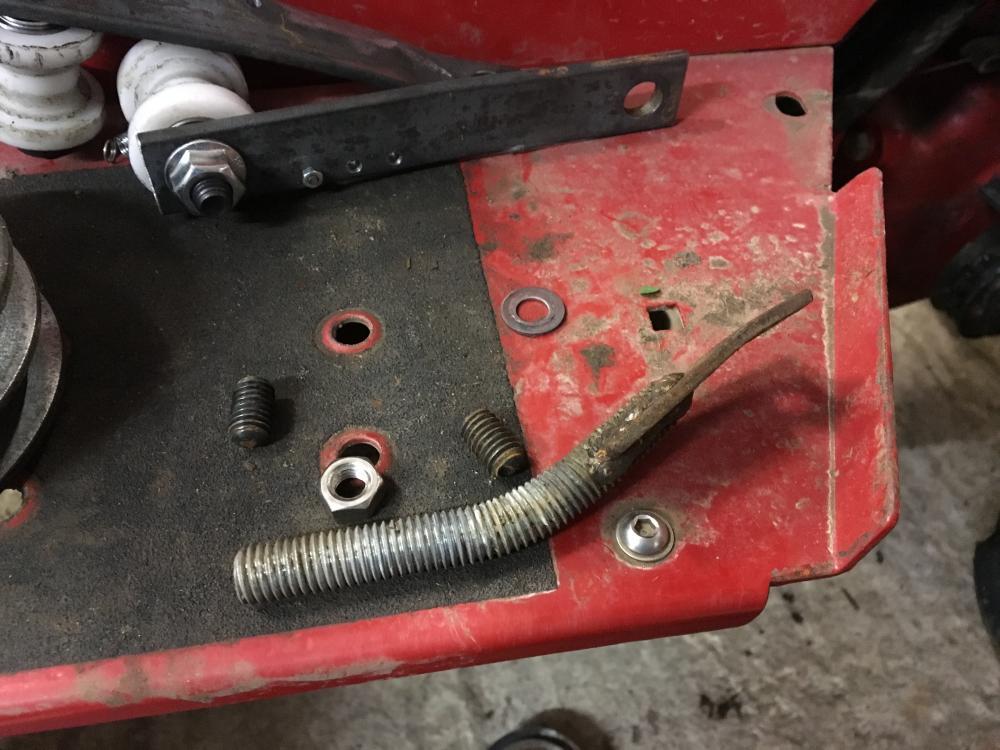

Been a while since the last update,  I was determined to lose the belts at the rear and use chains. Here's a few pics along the way, I've tried 3 or 4 different ideas, the final one  caused a bit of damage and forced me to abandon it. Despite adding large flanges to the sprockets, and tensioners, it all went wrong and jamm d up pretty bad!









Edited by meadowfield
  • Like 2

Share this post


Link to post
Share on other sites

Might want to give these some thought -

http://www.ebay.com/itm/18MP012-6FA2-Imperial-Pitch-Pulley/182451940028?_trksid=p2047675.c100005.m1851&_trkparms=aid%3D222007%26algo%3DSIC.MBE%26ao%3D2%26asc%3D41670%26meid%3Dcd428539bc414e058a031b0e9160d274%26pid%3D100005%26rk%3D4%26rkt%3D4%26sd%3D182451930678



Figuring out the cog belt length is the biggest challenge but there are charts out there to match tooth pitch vs pulley diameter vs centerline....can't find it right now .



Sarge

Share this post


Link to post
Share on other sites
17 hours ago, meadowfield said:

 I was determined to lose the belts at the rear and use chains.

Did you consider using the drive system from a Harley Davidson? They are built for all weather conditions and lots of power.

Image result for harley davidson drive belt

Share this post


Link to post
Share on other sites

Exactly what I linked - many equipment manufacturers use that exact type of belt drive for high torque loads . If you want cheap access to those type of parts - go hunting in an auto wrecking yard and start pulling timing covers - many Japanese engines use that same belt design and many small idler pulleys and such - some even have stamped sheet metal flanges to help guide the belt and prevent contaminants from getting in the drive . Those belts can transfer more torque than most chains , won't stretch due to the Kevlar/Aramid fibers and can actually outlast a chain by quite a lot . I've watched a brother in law dump the clutch on a fully dressed Harley and snap that rear tire loose like nothing - which is a sight to behold...lol .



Sarge

Share this post


Link to post
Share on other sites

The problem with those cogged belts is exactly the same problem as steel roller chain-they won't twist. They will transmit a lot of torque, but the pulleys have to be held in exact rigid alignment. The problem Mark is dealing with is that the rear axle assembly on Bendy is the articulating section and the drive has to be able to run under load, but out of alignment. I'm not sure what to suggest, but I don't think a timing belt from an engine would stay on the pulleys at all.

  • Like 1

Share this post


Link to post
Share on other sites

well I went back to belts and Bendy has continued working well (as long as the belts aren't wet)

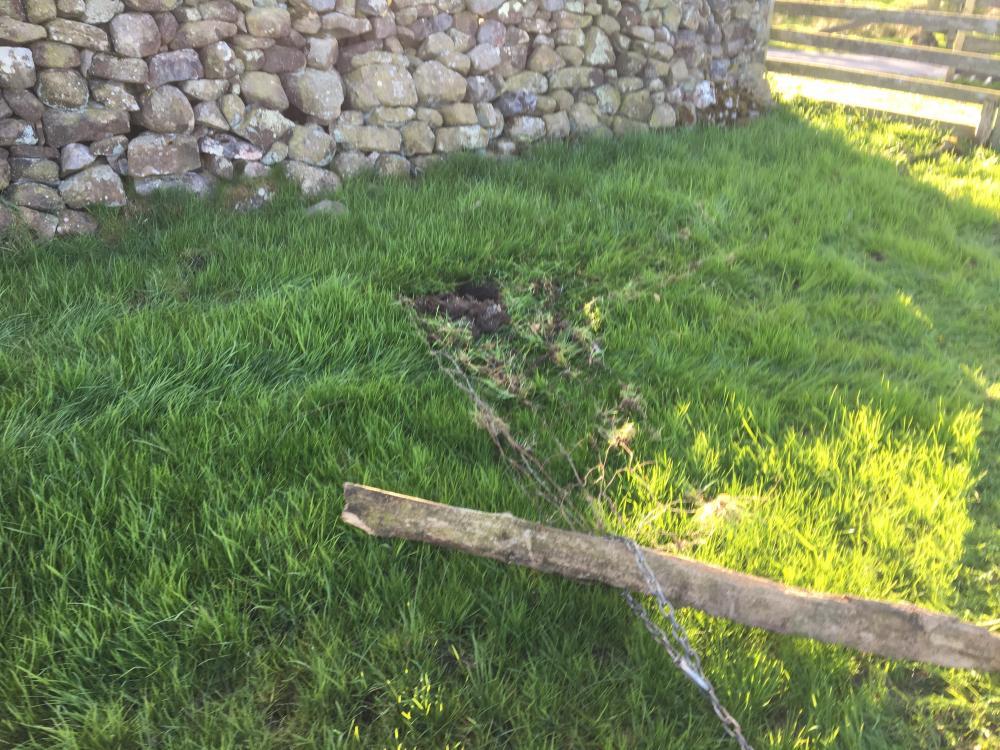

I've continued pulling old fence out that has been buried in the ground, and isn't good for mowing or kids.

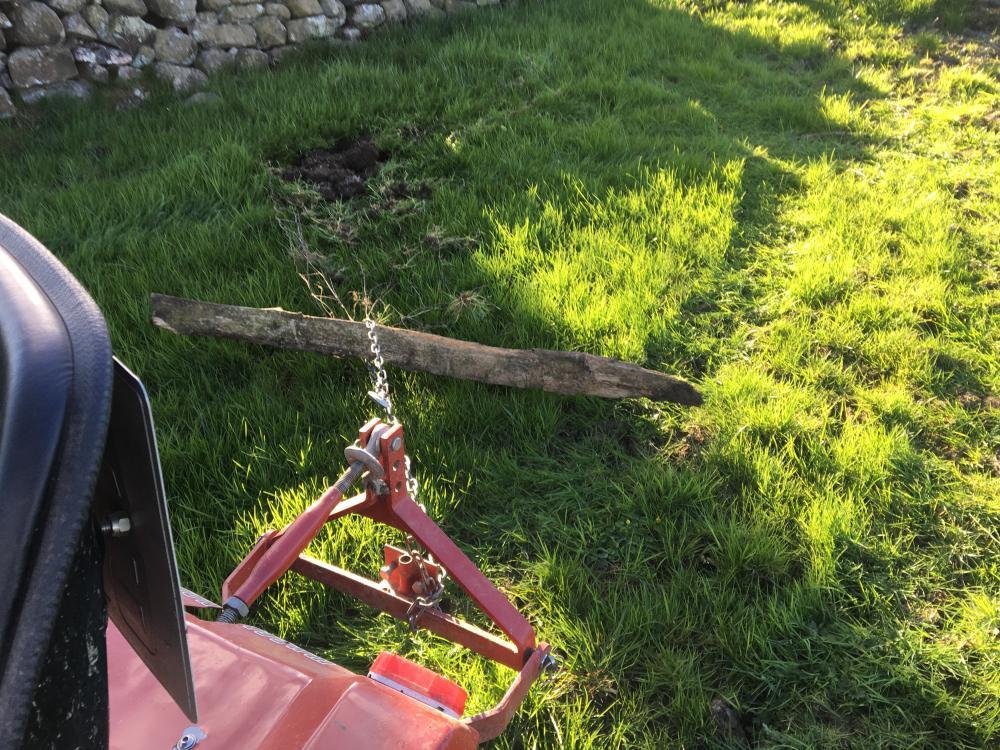

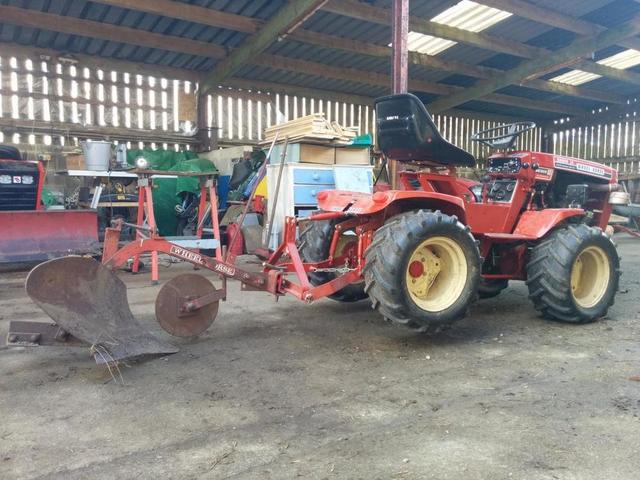

it's pulling great :D

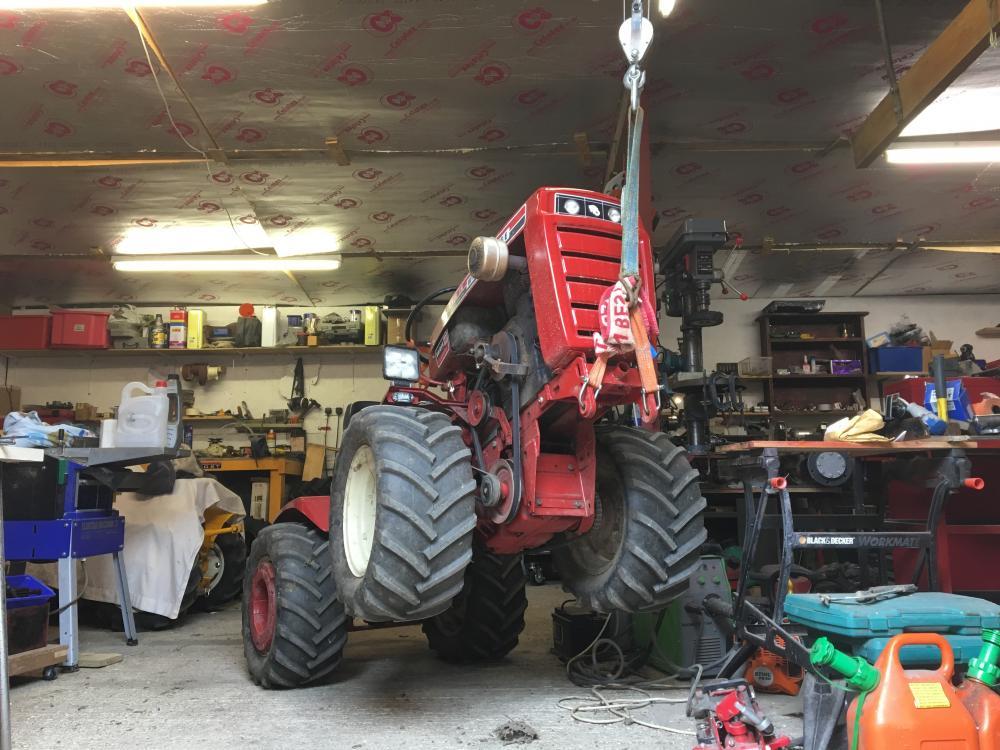

I lifted the front on sunday to have a look underneath and check all was ok...






and noticed this

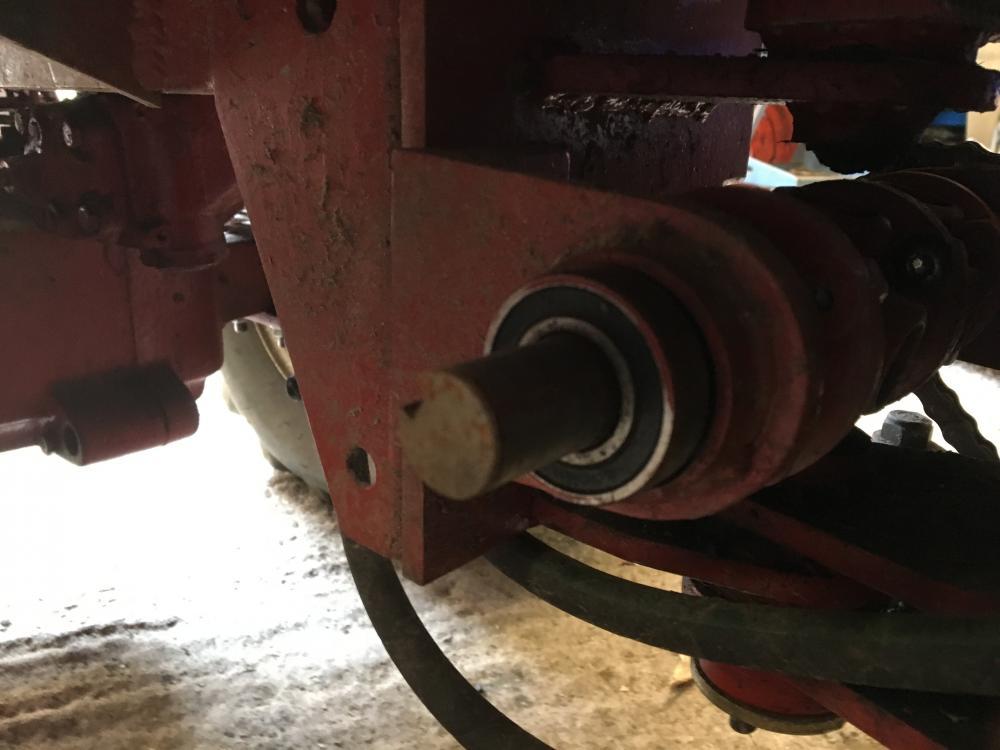

one of my bearing carriers for the centre cardon joint had left the bearing out. I must've not noticed i needed a collar to hold the bearing in. Luckily there doesn't seem to be any damage done, so I've added a collar and reassembled.

Share this post


Link to post
Share on other sites
