D-250 3 point hitch drawing & Dimentions


  • Please log in to reply
5 replies to this topic

#1 OFFLINE   3spaniels

3spaniels

    Member

  • Members
  • PipPip
  • 34 posts
  • Joined 02-September 10
  • 0 thanks
    • Member No: 3508
  • LocationMinneSNOWta

Posted 22 May 2012 - 05:25 AM

I would like to add a three point hitch to my D-250. I have been looking for the factory hitch for some time now with no luck. Does anyone have a drawing with dimensions of the hitch that was available from WH to fit this tractor they would be willing to share? I have my welder set-up and looking to get some fire in the wire.

#2 OFFLINE   meadowfield

meadowfield

    Nut Job :)

  • Supporter
  • 2,284 posts
  • Joined 24-July 10
  • 51 thanks
    • Member No: 3321
  • LocationYorkshire - England

Posted 22 May 2012 - 06:53 AM

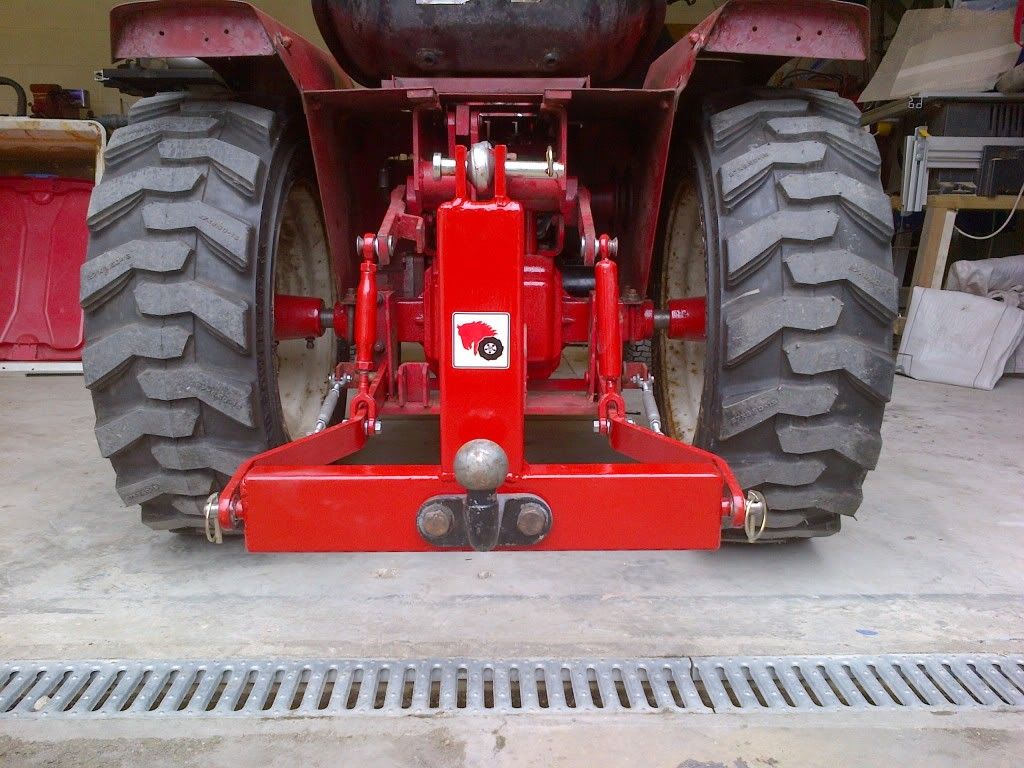

Whilst maybe not identical, here is my thread and dimensions.

http://www.wheelhors...oint-link-gt14/

Posted Image

Posted Image

mark

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#3 OFFLINE   wheeledhorseman

wheeledhorseman

    Dysfunctional 'D' family member

  • Supporter
  • 1,186 posts
  • Joined 13-April 11
  • 40 thanks
    • Member No: 4509
  • LocationRomsey, Hampshire, United Kingdom

Posted 22 May 2012 - 05:23 PM

As far as I know and can work out from the Toro site a D-250 had the same 3-point as the other Ds. One product number supersedes to another with time but they're all pretty much the same.

You'll find the diagram of a 1977 product here
https://lookup3.toro...Toro&lang=us_en

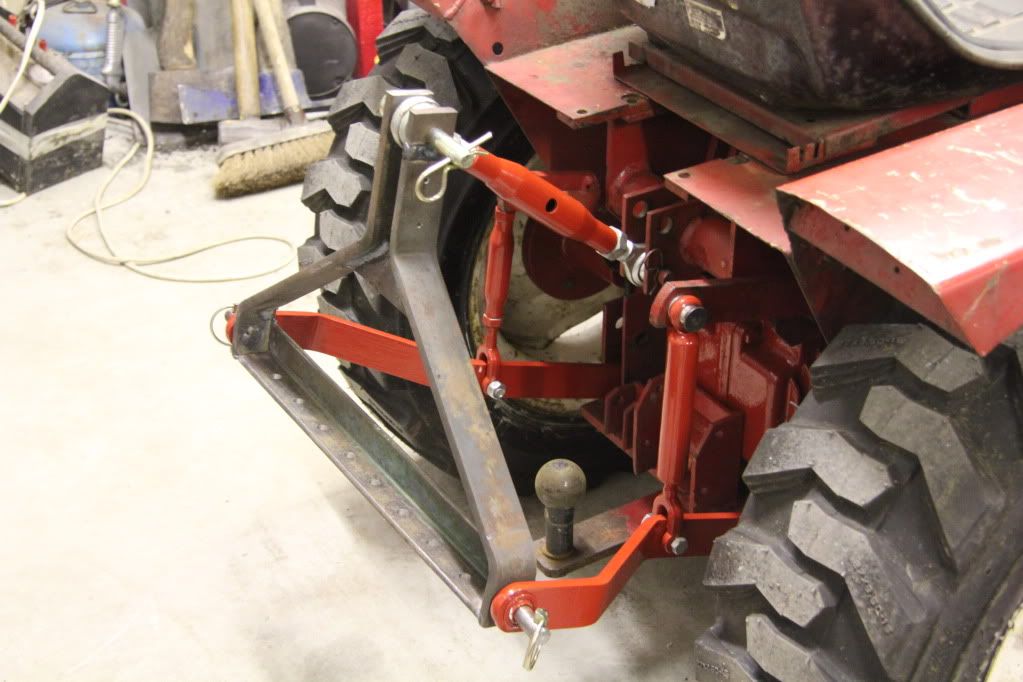

Here's a photo of mine on a D-200

Posted Image


Andy

A-800 Ranger (1974). B-111 (1979) a future project, C-100 (1977) with 42" SD deck, C-120 Auto (1975) with 42" RD deck, D-200 Auto (1977) with 3-point hitch and 42" RD deck, D-200 Auto (1978), 210-4 (1988) with 36" RD deck, 227-5 (1988) with 42" RD deck and powered grass / leaf collector, 216-5 (1985), 316-8 (1989) with 42" RD deck, 8-25 RER (1994) WH attachments: Dozer / Snow blade x 2, mid mount grader, lawn aerator, garden roller, 5 cu ft dump cart, 10 cu ft dump cart.

Other makes: Agrifab row crop cultivator, Westwood, tipping trailer, dump cart, garden roller. Unknown make boom crop sprayer.

Wheel Horses are like Pringles - one is never enough!


#4 OFFLINE   wheeledhorseman

wheeledhorseman

    Dysfunctional 'D' family member

  • Supporter
  • 1,186 posts
  • Joined 13-April 11
  • 40 thanks
    • Member No: 4509
  • LocationRomsey, Hampshire, United Kingdom

Posted 22 May 2012 - 05:26 PM

Sorry copying that link didn't work try this link
https://lookup3.toro...&DrawingIndex=1

Andy

A-800 Ranger (1974). B-111 (1979) a future project, C-100 (1977) with 42" SD deck, C-120 Auto (1975) with 42" RD deck, D-200 Auto (1977) with 3-point hitch and 42" RD deck, D-200 Auto (1978), 210-4 (1988) with 36" RD deck, 227-5 (1988) with 42" RD deck and powered grass / leaf collector, 216-5 (1985), 316-8 (1989) with 42" RD deck, 8-25 RER (1994) WH attachments: Dozer / Snow blade x 2, mid mount grader, lawn aerator, garden roller, 5 cu ft dump cart, 10 cu ft dump cart.

Other makes: Agrifab row crop cultivator, Westwood, tipping trailer, dump cart, garden roller. Unknown make boom crop sprayer.

Wheel Horses are like Pringles - one is never enough!


#5 OFFLINE   3spaniels

3spaniels

    Member

  • Topic Starter
  • Members
  • PipPip
  • 34 posts
  • Joined 02-September 10
  • 0 thanks
    • Member No: 3508
  • LocationMinneSNOWta

Posted 24 May 2012 - 11:09 AM

Thanks for the help, I really do appreciate the assistance. :)

Now, I have to get to work on one.

Bill

#6 OFFLINE   jmack

jmack

    Member

  • Members
  • PipPip
  • 20 posts
  • Joined 09-June 13
  • 0 thanks
    • Member No: 10735
  • LocationLizton, IN

Posted 01 September 2013 - 02:56 PM

Did you get your 3 point hitch fabricated?  I'm looking for one as well to upgrade my D-180.
