Blown Bearing In My Snow thrower too...

Recommended Posts

As i tell my customers the only dumb question is one you don't  ask....thanks Glenn .... just threw another buck into your cab  fund....and two into mine.....:lol:

  • Like 1

Share this post


Link to post
Share on other sites
31 minutes ago, JERSEYHAWG / Glenn said:

Jim, your not dumb, you just dont know. We all learn here.



Glenn





Really. I know almost nothing. I would be up the creek without the advice I get here.

  • Like 1

Share this post


Link to post
Share on other sites

I wouldn't say up the creek Brian... but saving us a ton of money not to mention time and most importantly doing it right!:bow-blue:

  • Like 2

Share this post


Link to post
Share on other sites
On December 18, 2015 at 3:47 PM, gwest_ca said:

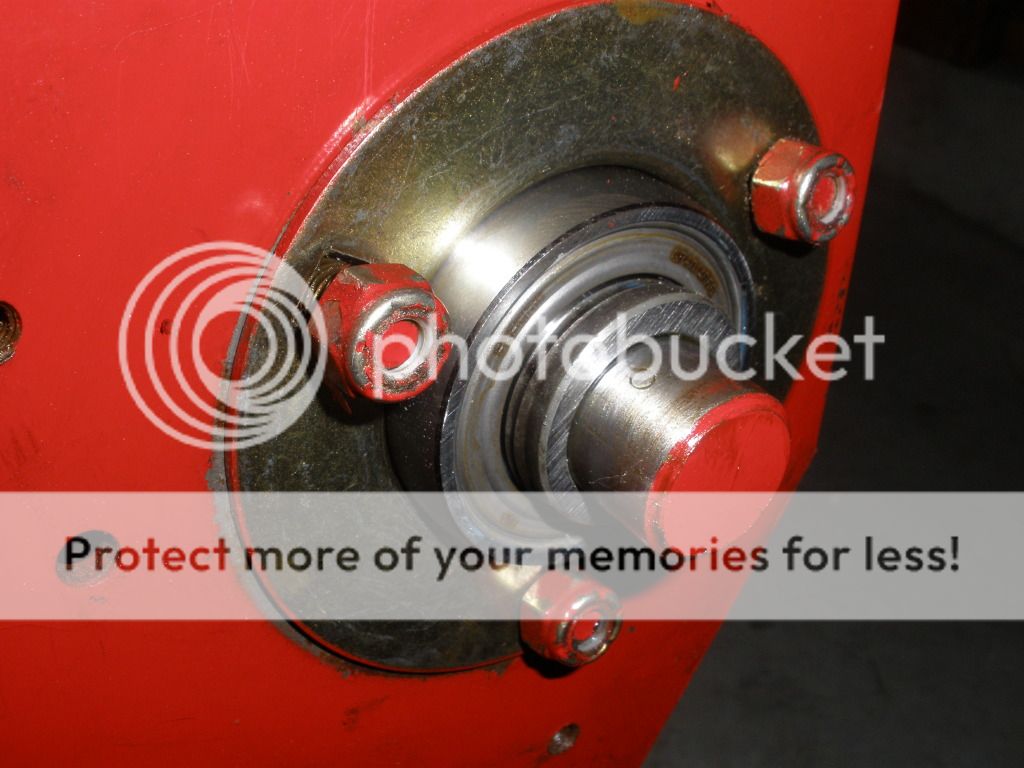

If you look at one side of the locking collar you will see the counter bore is not round. The inner race of the bearing is extended and has the same out of round shape. When you put the two together they will not rotate within each other. This is the feature that locks the bearing inner race to the shaft so it does not rotate on the shaft under use. Stick a round punch up against the side of the hole in the collar and tap it tight in the direction the shaft is going to rotate and tighten the set screw. The two out of round parts are jammed together.



The shaft and bearing are a good place to apply Never-seize.



Garry



OK, so I have determined the PTO on the 522xi turns clockwise. With the way the pluuey box is set up on the 2 stage blower, it appears the blower pulley would turn CCW. Can anyone confirm?

Share this post


Link to post
Share on other sites

If it is like the single-stage drive, it will be opposite the PTO.



When you determined the PTO direction, were you looking over the hood in the driver seat, or in front of the tractor?

  • Like 1

Share this post


Link to post
Share on other sites
1 hour ago, shallowwatersailor said:

If it is like the single-stage drive, it will be opposite the PTO.



When you determined the PTO direction, were you looking over the hood in the driver seat, or in front of the tractor?





Over the hood from drivers seat.

The PTO turns CW, which pulls the belt upward on the left side, which should pull it down on the left side of the blower pulley, from my reasoning. Hopefully it is correct, because I just finished. I would hate to have to tear it back down. Though I admit, it was easier to put together than take apart, since the bearings were locked on by the broken collar pieces.



I also could not turn the locking collars on the bearings 90 degrees, I got about 50 to 60 degrees and it started turning the shaft, with the PTO and chain connected, which takes a bit of force, so I think they are tight enough. I was afraid I would break them, like the PO.

Edited by WNYPCRepair

Share this post


Link to post
Share on other sites

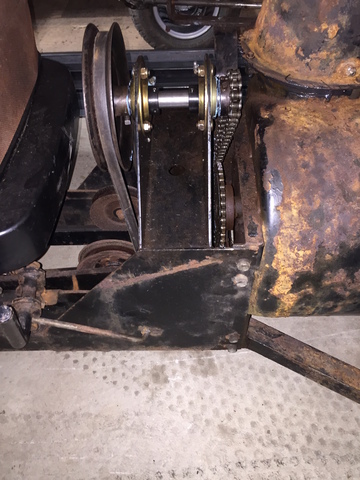

After it is all back together, I notice the chain and the belt are at a slight angle, as if the sprocket and pulley both have to be closer to the bearings, but they are almost touching now. The parts diagram show the flanges for the set screws facing the bearings, but it was almost impossible to get the set screws tight with them that way. I am pretty sure they were facing away from the bearings before, but I am not positive, and not that confident the PO had done it correctly anyway, so I followed the parts diagram, but I think I need to flip them to get the belt and chain to line up properly, and to be able to tighten the set screws.

Does anyone else have a 2 stage for an XI that can verify which direction they go?

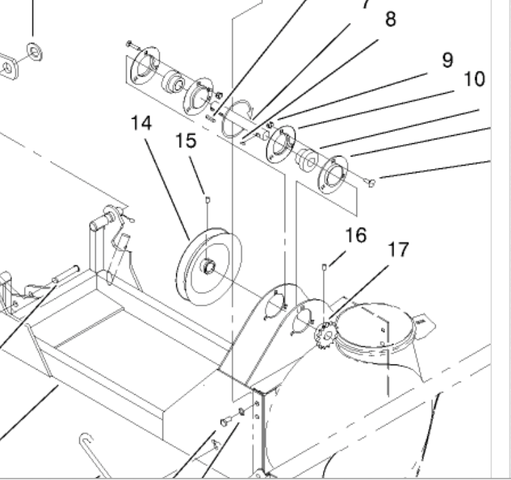

Oh, and now that I am done, I notice the diagram shows the direction of rotation, so I was correct. :)




Looking closer at the diagram, they show the bolts on the tractor side of the pulley, so I will have to reverse it. The only way I can tell is the line from the set screw seems to go behind the pulley in the diagram. Hopefully, someone can confirm.






5692c0b916930_shaftdone.thumb.JPG.e1b35d





5692c1577ea46_ScreenShot2016-01-10at3.38



Edited by WNYPCRepair

Share this post


Link to post
Share on other sites

Looks like I finished just in time too, it just started snowing



Share this post


Link to post
Share on other sites

Brian, I think that you have the flanges on wrong. All four should be inside the frame assembly. The flanges sandwich the bearings and then the pairs are bolted in place. That way the pulley and sprocket can be in-line.



I had the same problem with my single stage being assembled wrong by the PO. They were on either side of the frame and allowed the bearing to wallow inside of them.

  • Like 1

Share this post


Link to post
Share on other sites
2 hours ago, shallowwatersailor said:

Brian, I think that you have the flanges on wrong. All four should be inside the frame assembly. The flanges sandwich the bearings and then the pairs are bolted in place. That way the pulley and sprocket can be in-line.



I had the same problem with my single stage being assembled wrong by the PO. They were on either side of the frame and allowed the bearing to wallow inside of them.



Thanks. I should have figured he had that wrong too. Looks like I get to tear ir apart again tomorrow. If I can find time. I am still wondering about the flange with the set screws on the sprocket. I am sure he had them reversed, I'm just not sure which is correct. If you do it like the parts diagram, it is next to impossible to tighten the set screws



Share this post


Link to post
Share on other sites

I think I understand what you are saying. If the flanges are inside, you should pickup the width of the housing in extra clearance.

  • Like 1

Share this post


Link to post
Share on other sites
25 minutes ago, shallowwatersailor said:

I think I understand what you are saying. If the flanges are inside, you should pickup the width of the housing in extra clearance.



It may very well, the bump on the flange won't let the wrench turn far enough to get another grab with the wrench. Once it is on the other side, I should be good.

Share this post


Link to post
Share on other sites
21 hours ago, shallowwatersailor said:

Brian, I think that you have the flanges on wrong. All four should be inside the frame assembly. The flanges sandwich the bearings and then the pairs are bolted in place. That way the pulley and sprocket can be in-line.



I had the same problem with my single stage being assembled wrong by the PO. They were on either side of the frame and allowed the bearing to wallow inside of them.

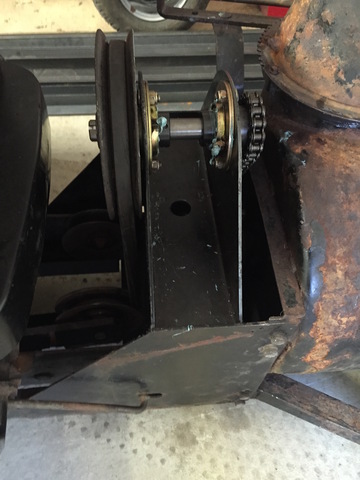

All better now.  Thanks john. Tragedy averted. And the belt and chain line up now



56940633ac7aa_shaftcorrect.thumb.JPG.a06

Share this post


Link to post
Share on other sites
1 hour ago, WNYPCRepair said:



All better now.  Thanks john. Tragedy averted. And the belt and chain line up now



56940633ac7aa_shaftcorrect.thumb.JPG.a06

Too much money, time, and aggravation on your part to have it mess up again. When you mentioned about the pulley and sprocket not lining up, I looked at your photo closely and compared it to the parts blowup drawing. That is where I noticed that the flanges needed to be inside. That along with my prior experience with my single stage flanges - and a PO! I was hoping that someone with a two-stage 79366 would pipe in to confirm that. And thankfully I was right!

Edited by shallowwatersailor
  • Like 1

Share this post


Link to post
Share on other sites
6 minutes ago, shallowwatersailor said:

Too much money, time, and aggravation on your part to have it mess up again. When you mentioned about the pulley and sprocket not lining up, I looked at your photo closely and compared it to the parts blowup drawing. That is where I noticed that the flanges needed to be inside. That along with my prior experience with my single stage flanges - and a PO! I was hoping that someone with a two-stage 79366 would pipe in to confirm that. And thankfully I was right!



Yeah, once I took a closer look at the parts diagram, it was obvious. These old eyes are getting tired, I think I need real glasses now, the readers aren't doing the job.

It also explains why there was 1/2" of grease in that little tray formed by the mounting bracket. When he greased it, the grease would come right out once it started to spin. It did it to me too, I just assumed it was the excess I hadn't wiped off yet.



Edited by WNYPCRepair
  • Like 1

Share this post


Link to post
Share on other sites
