Vinylguy

MORE PUSH VALVE DECAL HELP

Recommended Posts

Vinylguy

These are the push valve decals that I have so far. I think this is all off them.

Decal (A) is the one I do not have dimensions or a part number for. I think it was used on some of the

older D Series Tractors. Hope someome can get me the correct dimensions.

I have been working for the past 3 days on reorganizing my website store to make it easier

to navigate. Hope to get it all done this week. Should have started long ago.


Share this post


Link to post
Share on other sites

Martin

terry, i have one more for you. this is the one on my 1277.

internet sux right now will try to email it to you a bit later.

Share this post


Link to post
Share on other sites

meadowfield

Terry,

dimensions are: 156mm x 43mm with a 25.4mm hole in the centre. I've sent you a mail.

mark

Share this post


Link to post
Share on other sites

Martin

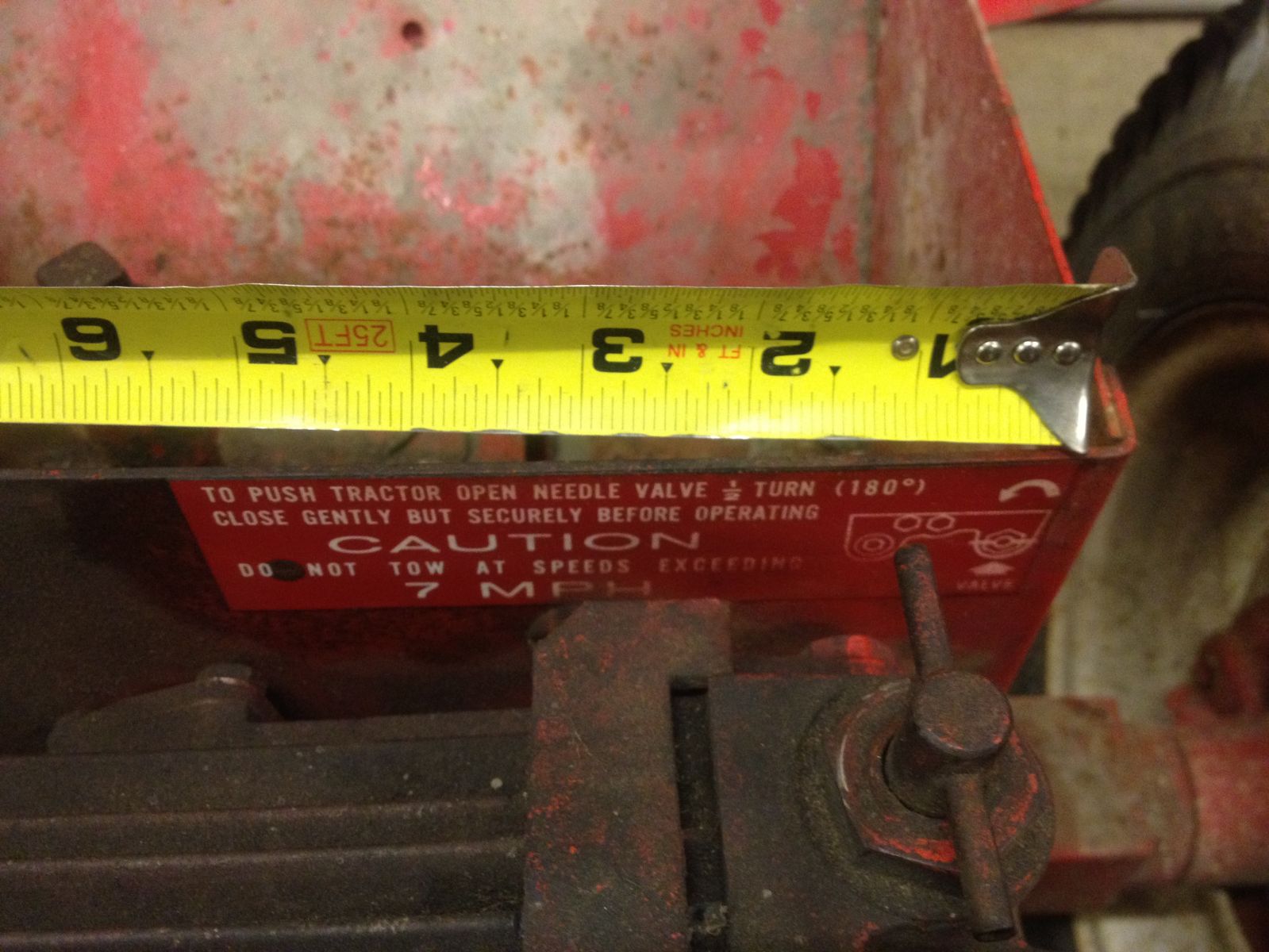

didnt have time to remove the seat box from the tractor tonight to get a better pic but you can see how it looks.


Share this post


Link to post
Share on other sites

bobert94

Terry, The dim for the push valve [A] are 6 1/8 wide 1 1/2 tall with a 1" hole part # 102850 Red with white lettering used on the 18 automatics & other early D series

Share this post


Link to post
Share on other sites

Vinylguy

Thanks Bober

Now if I can just find the dang file i had it in. :eusa-think:
