Posted 20 November 2011 - 01:53 PM

managed to lay my hands on a GT14 at last - they are apparently very rare in Europe, urban myth has it that under 50 were imported??

Posted Image

It looked very sorry for itself, having been parked under cover for over 20 years after the drive belt snapped.

Posted Image

Anyhow, 40 miles later and with some air in the tyres she rolled off the trailer! (after we undid the valve)

Posted Image

According to the serial no, it's a 1972 model year - engine model matches too :wh:

Posted Image

and after a bit of tinkering she started and settled down to a nice idle :dunno:


Lots of odds and sods to sort out over the winter, but first on the list will be:

Drive belt
Lift valve - missing completely
Choke knob
Steering - either drag link is fitted backwards or theres something missing!!!

So my first question is... can anyone tell me the belt type and length for a GT14?

thanks

mark
  • GlenPettit likes this
My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#2 OFFLINE   Rollerman


Rollerman

    Super Moderator

  • Supporter
  • 4,338 posts
  • Joined 09-December 06
  • 5 thanks
    • Member No: 18
  • Lifetime Supporter:
  • LocationGoshen, IN


Posted 20 November 2011 - 05:13 PM

In the links section here...
viewtopic.php?f=3&t=143

There is a Gates/Napa cross referance for Wheel Horse belts.

Looks like the GT 14 uses an 85x21/32'nds belt.
Gates part# 6985
Napa part# 21616
My Signature
Stephen
Goshen, IN

#3 OFFLINE   Stigian


Stigian

    Senile member

  • Supporter
  • 2,476 posts
  • Joined 03-January 08
  • 21 thanks
    • Member No: 110
  • LocationHawkhurst, Kent, UK


Posted 20 November 2011 - 05:17 PM

That's a nice find Mark, it looks quite good for all it's years of being parked up.
Looking forward to see how the rebuild/get in usable condition (not sure what your plans are for it) goes..
My Signature

My UKWheelHorseBloke YouTube channel
http://www.youtube.c...WheelHorseBloke



Read my Video making blog here.

http://www.wheelhors...eo-making-blog/



Quote - "You may be the most watched Uk celebrity after David Tennant.  So it's Dr. Who, Broadchurch and UkWheelHorseBloke!"  :D

"An optimist will tell you the glass is half-full; the pessimist, half-empty; and the engineer will tell you the glass is twice the size it needs to be"


#4 OFFLINE   AMC RULES


AMC RULES

    401 - '73 Javelin AMX

  • Supporter
  • 11,906 posts
  • Joined 31-August 10
  • 311 thanks
    • Member No: 3498
  • LocationDeep in the heart of Megalopolis


Posted 20 November 2011 - 05:36 PM

:wh: Hard to believe someone would put that horse down because a belt broke. Glad your brought it back to life. :dunno:
My Signature

          Craig Alan
          I've got a Horse.....or two.






















#5 OFFLINE   Lars


Lars

    Supporter

  • Supporter
  • 937 posts
  • Joined 07-September 11
  • 24 thanks
    • Member No: 5333
  • Locationnorway
  • WH of the Month Winner:


Posted 20 November 2011 - 05:55 PM

nice find.. looks good after so many years of storage
here in norway i have seen one for sale whit plowblade and the price is aauch...14000Nok=$2500

#6 OFFLINE   Anglo Traction


Anglo Traction

    Senior Advanced Member

  • Supporter
  • 1,353 posts
  • Joined 04-September 10
  • 45 thanks
    • Member No: 3520
  • LocationHorley,Surrey,England(UK).


Posted 20 November 2011 - 07:56 PM

'Well Played' on the bargaining for it Mark! :dunno: . you have a good Hunk of :wh: there.
Look forward to following the work your planning on it.

#7 OFFLINE   Sparky-(Admin)


Sparky

    Site Admin

  • Administrators-(Admin)
  • 8,965 posts
  • Joined 14-November 06
  • 163 thanks
    • Member No: 2
  • LocationAndover CT


Posted 20 November 2011 - 08:16 PM

Great find! Looking forward to reading and seeing the progress on it.
Mike.......
My Signature

From Beautiful Downtown Andover Connecticut!


#8 OFFLINE   meadowfield


meadowfield

    Nut Job :)

  • Topic Starter
  • Supporter
  • 2,423 posts
  • Joined 24-July 10
  • 57 thanks
    • Member No: 3321
  • LocationYorkshire - England


Posted 21 November 2011 - 12:42 PM

In the links section here...
viewtopic.php?f=3&t=143

There is a Gates/Napa cross referance for Wheel Horse belts.

Looks like the GT 14 uses an 85x21/32'nds belt.
Gates part# 6985
Napa part# 21616


great thanks for that, in the UK I'll have to chase for a metric equivalent. Thats 2160x16mm - does anyone know what profile that eqautes to?

mark
My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#9 OFFLINE   gus-lopez


gus-lopez

    Newbie

  • Members
  • Pip
  • 7 posts
  • Joined 17-May 11
  • 0 thanks
    • Member No: 4733
  • LocationLorca, Spain.


Posted 21 November 2011 - 02:32 PM

See here for belt charts.

http://www.naismith....lyv/vpulley.pdf

#10 OFFLINE   wh1257


wh1257

    Senior Advanced Member

  • Members
  • PipPipPipPipPip
  • 1,165 posts
  • Joined 06-July 09
  • 3 thanks
    • Member No: 1646
  • Locationbelguim


Posted 21 November 2011 - 03:23 PM

looks like my gt 14 have this tractor a 3 pt hitch ?

#11 OFFLINE   meadowfield


meadowfield

    Nut Job :)

  • Topic Starter
  • Supporter
  • 2,423 posts
  • Joined 24-July 10
  • 57 thanks
    • Member No: 3321
  • LocationYorkshire - England


Posted 21 November 2011 - 03:38 PM

See here for belt charts.

http://www.naismith....lyv/vpulley.pdf


B83 looks closest - 10mm shorter , if that's the right way to go

Thanks
My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#12 OFFLINE   meadowfield


meadowfield

    Nut Job :)

  • Topic Starter
  • Supporter
  • 2,423 posts
  • Joined 24-July 10
  • 57 thanks
    • Member No: 3321
  • LocationYorkshire - England


Posted 21 November 2011 - 03:40 PM

looks like my gt 14 have this tractor a 3 pt hitch ?


Missing the lower link arms and lift spool valve.... Looking for valve and cat 0 arms of anyone knows of any?

Mark
My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#13 OFFLINE   wh1257


wh1257

    Senior Advanced Member

  • Members
  • PipPipPipPipPip
  • 1,165 posts
  • Joined 06-July 09
  • 3 thanks
    • Member No: 1646
  • Locationbelguim


Posted 22 November 2011 - 11:42 AM

here is my gt 14 in belguim I sold this tractor with no 3 pt. I sold a 3 pt hitch in amerika it was a nos hitch
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

#14 OFFLINE   meadowfield


meadowfield

    Nut Job :)

  • Topic Starter
  • Supporter
  • 2,423 posts
  • Joined 24-July 10
  • 57 thanks
    • Member No: 3321
  • LocationYorkshire - England


Posted 22 November 2011 - 12:12 PM

I've already been admiring your GT14 ! my 3 point has a position for mounting the lift cylinder at the back - should the need arise for separate mid lift and rear. I can't see them on yours, perhaps it's just the angle the photo is taken at.
Mine is mounted the same as yours though with a the long steel bar connecting the mid hitch and the rocker.

I would appreciate some measurements of the lower arms if you could give me them.

thanks mark
My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#15 OFFLINE   meadowfield


meadowfield

    Nut Job :)

  • Topic Starter
  • Supporter
  • 2,423 posts
  • Joined 24-July 10
  • 57 thanks
    • Member No: 3321
  • LocationYorkshire - England


Posted 28 November 2011 - 03:12 AM

Posted Image

Vincent, could you please give me some measurements for the lower link arms. I can't find any CAT 0 ones, so am happy to make some.

thanks in advance

mark
My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#16 OFFLINE   meadowfield


meadowfield

    Nut Job :)

  • Topic Starter
  • Supporter
  • 2,423 posts
  • Joined 24-July 10
  • 57 thanks
    • Member No: 3321
  • LocationYorkshire - England


Posted 04 January 2012 - 02:25 PM

Got a replacement belt - though in the conversion from the US measurements to metric the belt is way too long !!!

Size chart said 85" x 21/32" which in european money is 2160x16mm - closest Euro belt code is B83 - ended up with B82- maybe they measure OD instead of ID?


Anyway, its running, drives OK, idler/clutch linkage is worn and belt rides up out of grooves, speed control link is very worn and needs welding and machining back out. Transmission makes some noise, but no idea what it should sound like - it's not really any worse than an 8 speed can be. It will stall on low revs if I overload by trying to push something immoveable :eek: which I hope is a good sign.


Haven't got it hot enough to be certain the pump and motor are fully serviceable though.


The required parts list is building up!!!


still looking for some lower link arm dimensions if anyone can help?


Also implement lift valve, choke cable/knob and pepper pot muffler !


mark


My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#17 OFFLINE   TT-(Moderator)


TT

    Got Wheel Horse?

  • Moderators-(Moderator)
  • 10,644 posts
  • Joined 06-August 07
  • 148 thanks
    • Member No: 33
  • LocationJulian, PA


Posted 04 January 2012 - 02:44 PM

still looking for some lower link arm dimensions if anyone can help?


Try here: :eusa-whistle:

http://www.wheelhors...322-1969-gt-14/


My Signature

Terry



Interested in becoming a forum supporter?


#18 OFFLINE   meadowfield


meadowfield

    Nut Job :)

  • Topic Starter
  • Supporter
  • 2,423 posts
  • Joined 24-July 10
  • 57 thanks
    • Member No: 3321
  • LocationYorkshire - England


Posted 04 January 2012 - 02:53 PM

still looking for some lower link arm dimensions if anyone can help?


Try here: :eusa-whistle:

http://www.wheelhors...322-1969-gt-14/


gee, what a ****** - like a said I had been busy and missed the post !!!!

thanks again Terry
My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#19 ONLINE   Brrly1


Brrly1

    Supporter

  • Supporter
  • 2,389 posts
  • Joined 25-September 07
  • 13 thanks
    • Member No: 45
  • LocationToledo,Ohio


Posted 04 January 2012 - 05:22 PM

Mark, the orginal belts are still available. Belt # is 8334
My Signature

See Ya, Bye, Burly

John - alias Burly from Toledo,Ohio





1 - GT14 Dad's tractor (started the whole thing)
1 - GT16 with trike front end and grader blade
plus three point
1 - GT16 with frontend loader, indep. three point







"Keep the Red, throw away the green"


#20 OFFLINE   meadowfield


meadowfield

    Nut Job :)

  • Topic Starter
  • Supporter
  • 2,423 posts
  • Joined 24-July 10
  • 57 thanks
    • Member No: 3321
  • LocationYorkshire - England


Posted 22 January 2012 - 10:55 AM

Right, it's taking me longer than I hoped to get on with the GT14, my workshop is taking a lot of time!

But I have now managed to source an implement lift valve from that auction site.

That leaves me with the issue of finding out how it mounts... I know it mounts somewhere on the frame at the side of the speed linkage, and two of the hoses from the lift cylinder connect. But exactly where does it mount and what linkage do I have missing??

Does anyone has suitable pictures they can share? The manuals are not very clear, also looking for the correct hose length for send return pipes, and how they connect into the transmission - maybe when I remove the rear fender and clean 40 years of crud it might be more apparent how it hangs together....

Mark
My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#21 OFFLINE   meadowfield


meadowfield

    Nut Job :)

  • Topic Starter
  • Supporter
  • 2,423 posts
  • Joined 24-July 10
  • 57 thanks
    • Member No: 3321
  • LocationYorkshire - England


Posted 11 February 2012 - 04:10 PM

Been a while since the last update...

Took the sheet off - attached a fresh battery - not even a click :banghead: Checked wires from battery to solenoid and beyond...

No power to solenoid or coil :confusion-scratchheadblue:

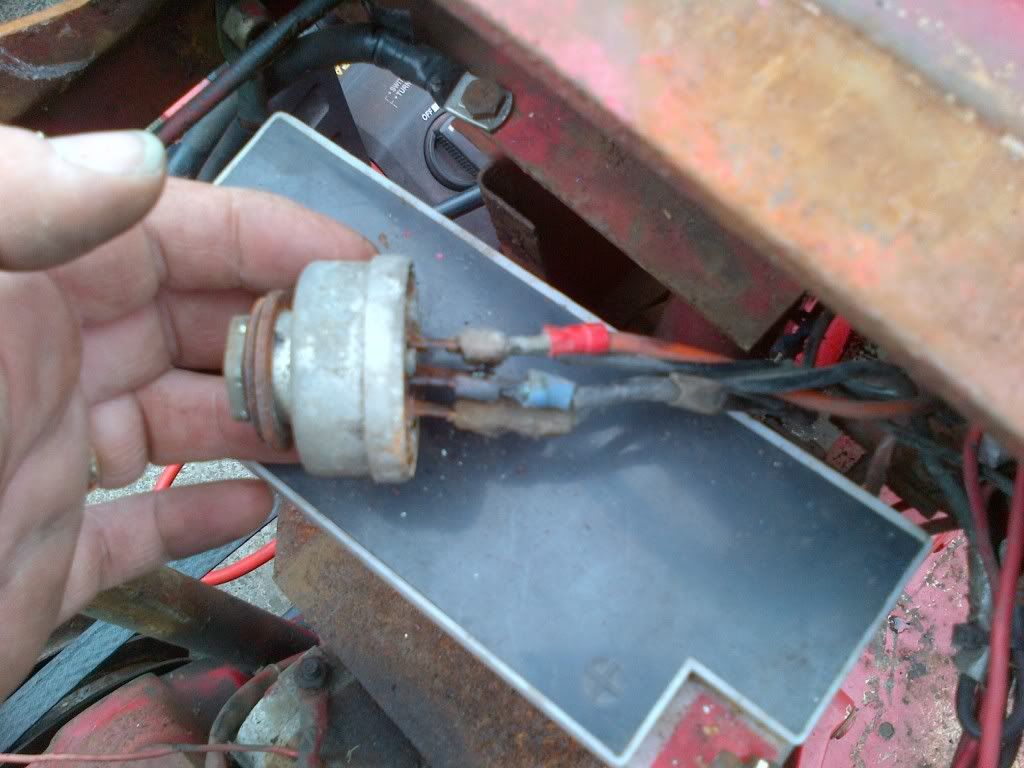

removed ingition switch

Posted Image

terminals and wiring fairly shot - but I thought I'd try clean it up a little...

Add some fuel - it starts then stops :confusion-scratchheadblue:

wiggle wires, starts again and warms up for a minute or too - then stops :banghead:

Try to start it, starter engages and jams on - try to push gearback but it's jammed. Squirt WD40 inside gear, it then spins, but doesnt turn main ring gear... :confusion-scratchheadblue:

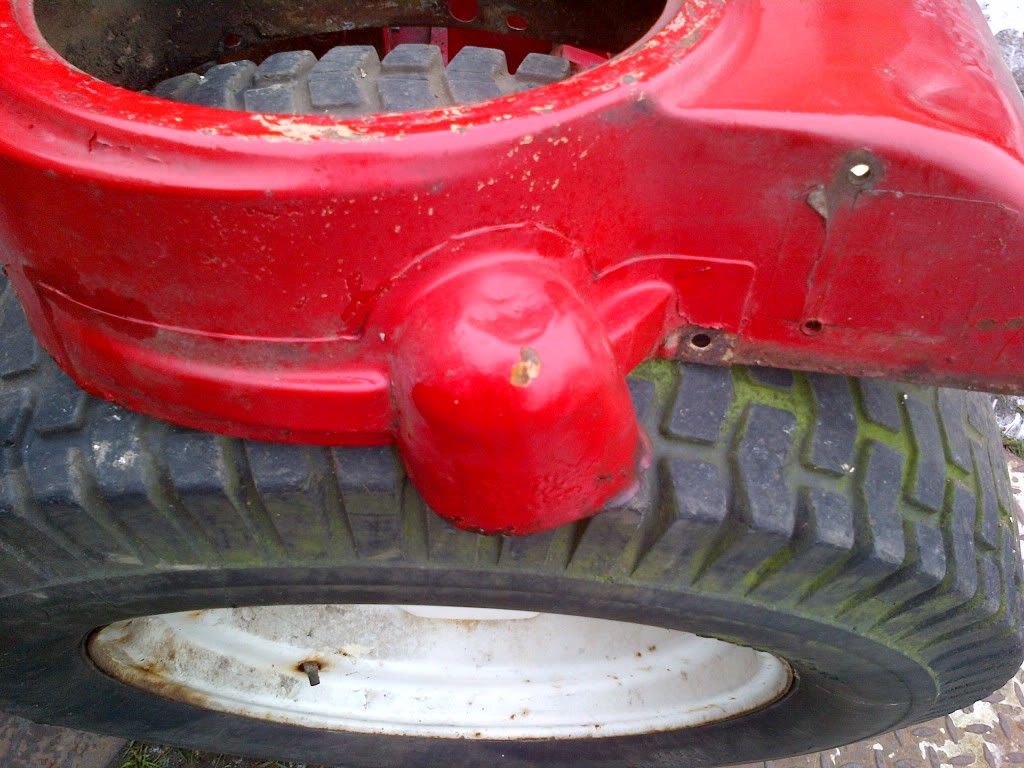

Undo cowl, note previous owner has beaten the crap out of it before


Posted Image

Remove starter and take starter pinion off, theres no actual mechanical connection from the collar on the bendix to the gear. Appears to be rubber cone and rely on friction???
Thinks it's broken...looks on ebay $30-50 for new one - looks closely at pictures and it seems thats how it is :confusion-scratchheadblue:

Clean with carb cleaner reassemble, try turning over - it engages and fires :banana-tux:

note wire on rectifier look at bit sorry and one is trapped under casting, remove regulator and can see why !

Posted Image

replace rectifier and put back together...


...So back to where I planned 3 hours earlier !!!!

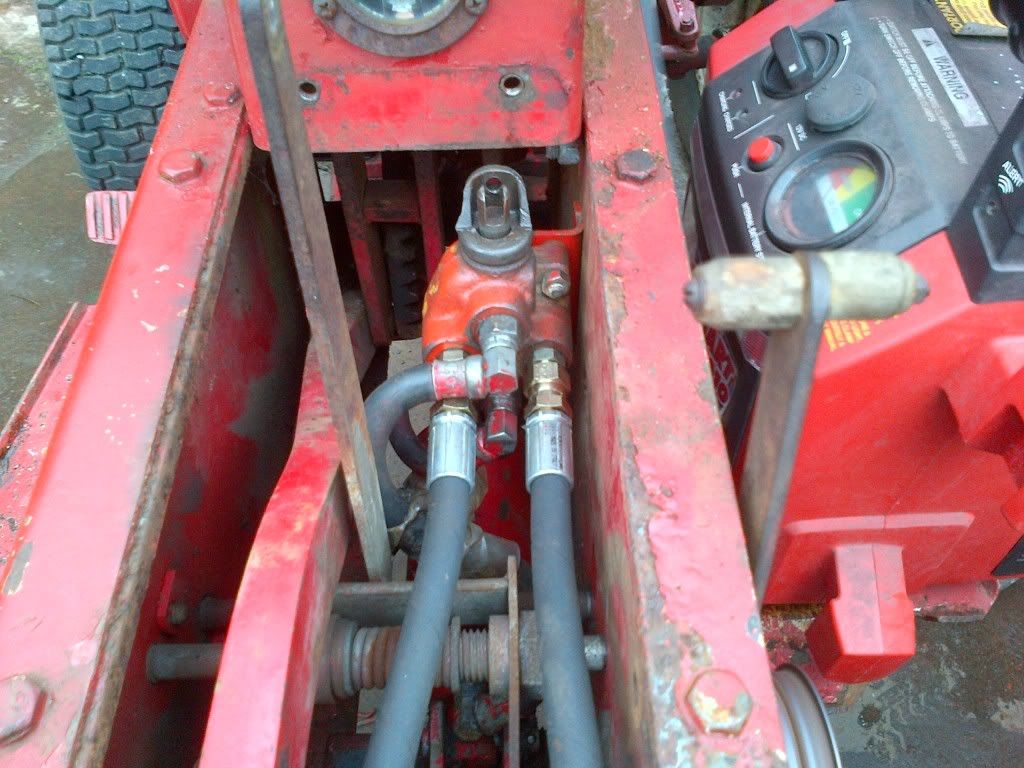

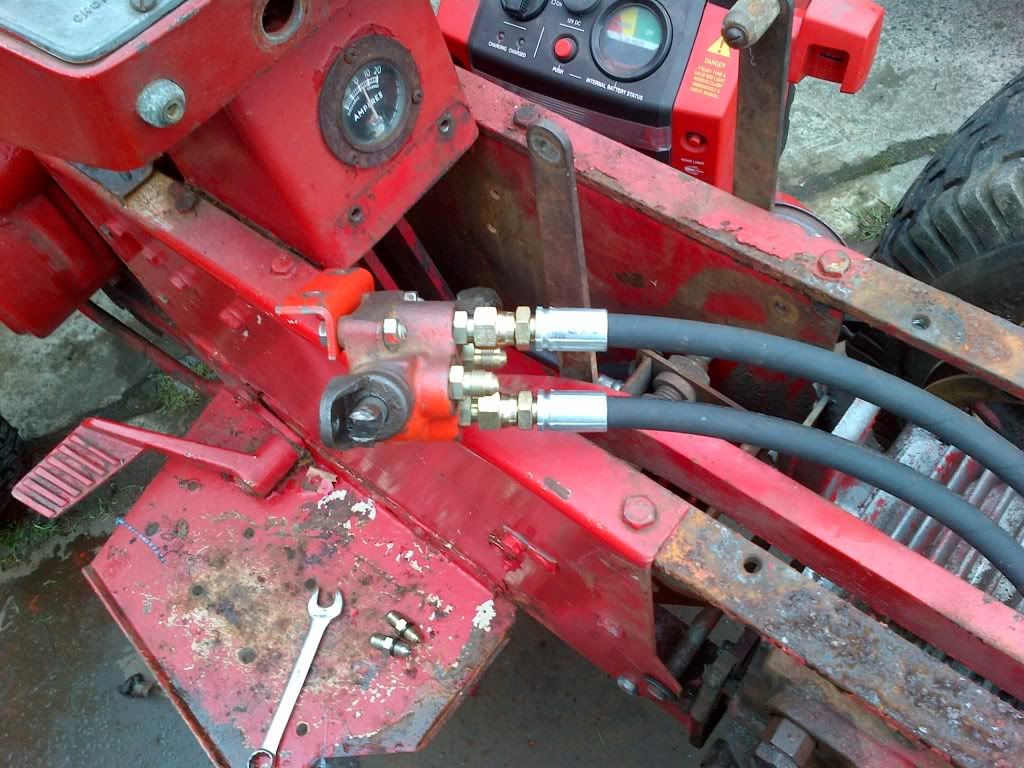

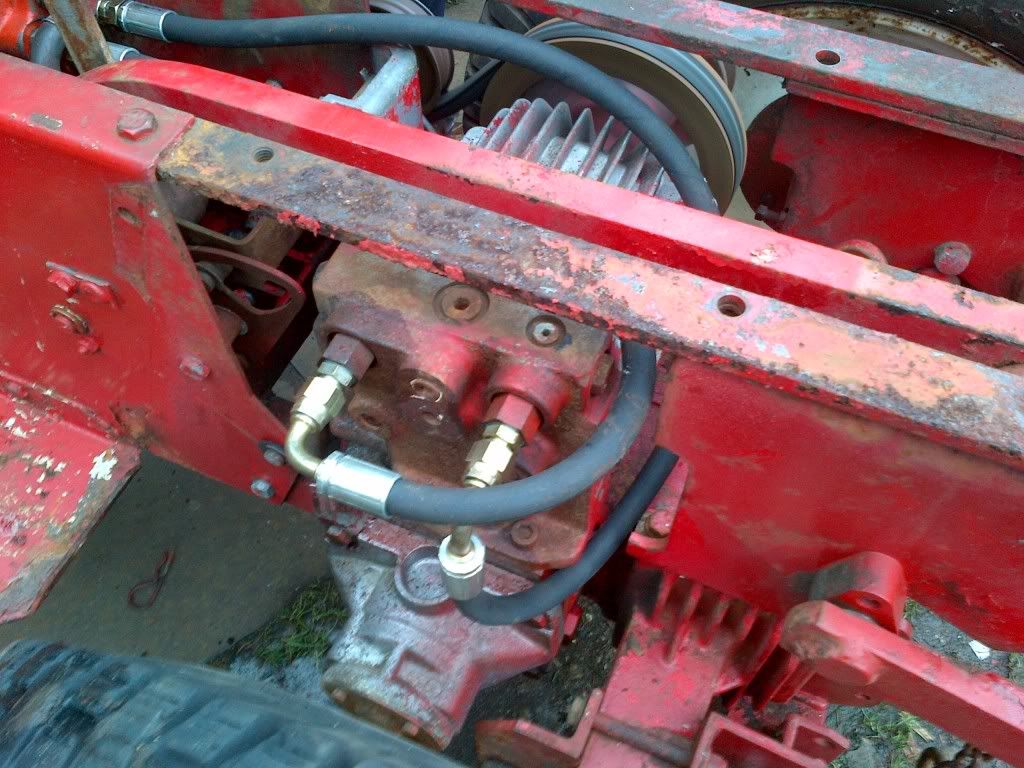

I've got the lift valve and the hoses - and now the know how to put it together :icecream:

Posted Image

Posted Image

Posted Image


The result... started her up, moved the valve and it worked!! :woohoo:

Even had the pipes in the right order too!
My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#22 OFFLINE   meadowfield


meadowfield

    Nut Job :)

  • Topic Starter
  • Supporter
  • 2,423 posts
  • Joined 24-July 10
  • 57 thanks
    • Member No: 3321
  • LocationYorkshire - England


Posted 11 February 2012 - 04:13 PM

and heres the video to prove it !


  • condo630 likes this
My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#23 ONLINE   neil-(Moderator)


neil

    Neil

  • Moderators-(Moderator)
  • 2,341 posts
  • Joined 30-October 09
  • 59 thanks
    • Member No: 2119
  • Military Member: RCT
  • LocationBridgwater Somerset united Kingdom


Posted 11 February 2012 - 06:55 PM

Congratulations Mark :happy-jumpeveryone: :flags-wavegreatbritain: :flags-wavegreatbritain:

#24 OFFLINE   meadowfield


meadowfield

    Nut Job :)

  • Topic Starter
  • Supporter
  • 2,423 posts
  • Joined 24-July 10
  • 57 thanks
    • Member No: 3321
  • LocationYorkshire - England


Posted 24 February 2012 - 12:52 PM

made a little more progress today...

we now have a new implement lift control :D

Posted Image

pretty proud of my handiwork :tools-hammerdrill:

Got the 3 point lift working with my new lift arms

Posted Image

and finally got the transmission to temperature by trying to pull two tons uphill! :scared-eek: and am pleased to say it's working pretty well but for the worn control linkage!

Posted Image


mark
My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses


#25 OFFLINE   meadowfield


meadowfield

    Nut Job :)

  • Topic Starter
  • Supporter
  • 2,423 posts
  • Joined 24-July 10
  • 57 thanks
    • Member No: 3321
  • LocationYorkshire - England


Posted 25 February 2012 - 06:03 PM

Well today I have really made some progress !

Posted Image

pulled both hubs off - which was good news as we thought we might have had to split the diff and press them out !


Posted Image

dropped the transmission and oil...

Posted Image


converted the GT14 into a hostess trolley of sorts... a rather natty coffee table if a little oily :D

Posted Image


removed the pump and motor

Posted Image


stopped for a refuel... :thumbs:

Posted Image


back on with things, splitting the gearbox to see what goes on inside :handgestures-fingerscrossed:


Posted Image

it's very clean, but wait there's a bearing shot to pieces :confusion-confused:

Posted Image

and what remains of the parking brake.... I wonder where the rest is???

Posted Image

well there is a neat little pile of filings on the strainer :o

Posted Image

and heres just how clean the insides have come up - note the trashed torrington bearing.

Fingers crossed I'll get new seals and bearings early next week then I can get it back together.

mark
  • Martin and condo630 like this
My Signature

1979 C-101 - Project C4, 4x4 conversion

1979 C-161
1970 Lawn Ranger 30" sd deck
1970 Commando 800 (in bits)
1972 Raider 10 (ditto)
1972 GT14
1979 C-121
1982 C-105

Project 'bendy'

12" moldboard plough
42" snowplough
10cuft Agri-fab trailer



Project C4 - 4x4


http://www.wheel-horse.co.uk - home of the UK Wheel Horse register


www.restorationdecals.co.uk - Complete decal sets for all Euro Wheel Horses





0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users
