3 SPEED #5003 RJ 58-59 rebuild

Recommended Posts

Steve, you did check fluid levels before starting? :wh:

:help:

Sure did John...takes 1 qt of 90W. That is the reason for giving it a test run...to get the oil circulating and into the bearings...and to check for leaks. I do not have an RJ to bolt it back into to check it out...and did not want to store it without running it for some time in all gears. I have a 5025 that I need to do the same thing to. :dunno:

Share this post


Link to post
Share on other sites

Steve,

Attach a couple of pulleys and belts from the axles to the front wheels and have all-wheel-drive. :dunno:

Share this post


Link to post
Share on other sites

Nice idea on the carrage bolt tool, that was the most time consuming part of my rebuild. A zip lock bag of crushed ice on it for a while helps get them out, as well. I couldn't get the last video to come up, but nice job. Your carrage bolt worked a hole lot better than the flat screwdriver that I heated and bent and attempted to temper, long story and process. :dunno:

Share this post


Link to post
Share on other sites

Thanks Terry. As far as the last video...it seems that the Forumer thingy takes a little while to load sometimes. Try again and give it some time...it is just me running it through the gears and basically giving the transmission a chance to lube up properly and make sure it was running OK before I store it. Nice to be able to run it before you put it back into a horse though... I have taken them back apart a couple of times because something just did not seem right...saves a ton of time and headache. :dunno: Thanks

Share this post


Link to post
Share on other sites

I could watch the video, this time. Neat little set up you have there. You have done a good job on this post, good information for future rebuilds. I jumped right in on mine, with only a few people for support, had this been on here, at the time, it would have been a blessing. You've done good Steve. :dunno:

Share this post


Link to post
Share on other sites

Steve, I really Like these videos!!! Just watched it and love your testing set-up. :handgestures-thumbupright: It will make fixing one of these a lot easier. Thanks again :bow-blue:

Share this post


Link to post
Share on other sites

Really neat But if you dont mind I have something I do on everyone of these

I rebuild I take the axle shafts and put a new roll pin hole in the other end and

turn the axles end for end this gives your outer bearings and seals a fairly new

surface to run on. If this makes any sence to you. If I still had a milling machine

I would just cut new woodruff key slots and make new shafts but this works just

about as well. My old shafts have not been the very best on the outer end.

Jim In TEXAS

  • Like 1

Share this post


Link to post
Share on other sites

Here is a short video concerning the replacement differential that Wheel Horse sent out. It has the bolted on bull gear to the differential housing...you may not have one, but they are out there...I know of 2 now and it makes a difference how you put the pinions in...click on the picture.



  • Like 2

Share this post


Link to post
Share on other sites

SUBURBANS & RJ 58/59 TRANSMISSION CROSS OVER CHART FOR WH #5003 and #5010 TRANSMISSIONS

DESCRIPTION..............................................................WH #......................VENDOR..........QUANTITY...........SIZE

BRONZE BEARING (AXLE)..........................................1503.......................CB-1618-12..........2..................1" X 1 1/8" X 1 1/2"

BRONZE BEARING (DIFFERENTIAL HOUSING)..........1517.......................CB-2224-14..........2..................1 3/8" X 1 1/2" X 1 7/16"

INPUT SHAFT & OUT END OF BRAKE SHAFT.............1519........................S8K ground..........4..................3/4" X 1 5/8" X 5/16"

CLUSTER GEAR SHAFT & 11/44 GEAR BASE............1502........................NICE 412-35........3..................3/4" X 1 5/8" X 3/8"

INPUT GEAR NEEDLE BEARING.................................1518........................B-108...................1..................5/8" X 15/16" X 1/2"

BRONZE BEARINGS (CLUSTER GEAR SHAFT............1504.......................EP-1214-12..........2..................3/4" X 7/8" X 3/4"

BRAKE SHAFT (NEEDLE) IF YOU HAVE THIS............1508.......................B-1212.................1..................3/4" X 1" X 3/4"

SEALS AXLE (FROM TORO ONLY)..(CAP)...................1257.......................83-2840...............2

SEALS INPUT SHAFT & BRAKE SHAFT (BALL BRNG)..1234......................741643 timken......2

SEAL BRAKE SHAFT (IF NEEDLE BRNG).....................1303......................7410 skf................1

Share this post


Link to post
Share on other sites

Thanks for the video Steve, that's good to know.... I like the bearing and seal chart too, think I'll print a copy of that and put in in my notes. Well done!

  • Like 1

Share this post


Link to post
Share on other sites

hi i have to rebuild the same one but i cant get the video can you help me

Share this post


Link to post
Share on other sites
Posted (edited)

this is going to be a useful thread for me and Ewan.

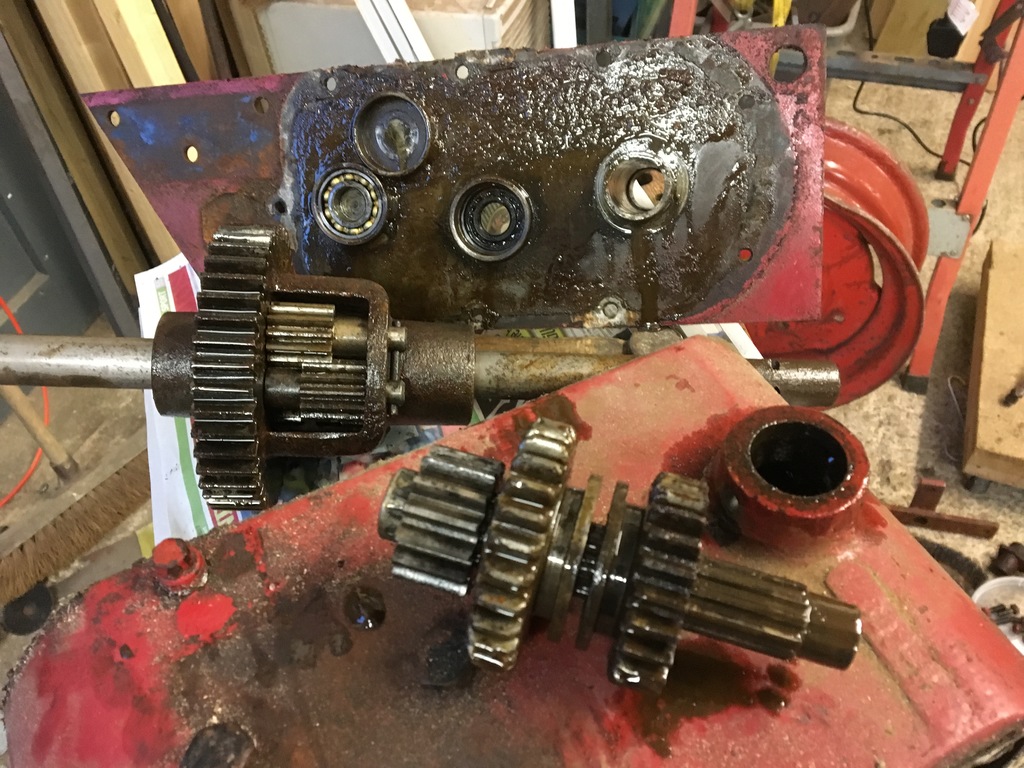

his RJ has been full of water for 25 years and all 6 bearings are seized. It's in a rough shape...






watch this space!



thanks Steve :D

Edited by meadowfield
  • Like 1

Share this post


Link to post
Share on other sites

Well we got it rebuilt... it's a tight fit!



Just waiting for ewan to post an update

  • Like 3

Share this post


Link to post
Share on other sites

Really great to see members digging these threads out of the cellar and using them! :handgestures-thumbupright:

Share this post


Link to post
Share on other sites

All of the pictures and videos disappeared last Friday, June 30 when photobucket decided to hold everybody hostage for 3rd party usage.  I spent Saturday and Sunday replacing everything right off of my computer and You-tube.  :)

  • Like 6

Share this post


Link to post
Share on other sites

:greetings-clapyellow:   Dino...

Image result for godzilla gif



                                             :text-thankyoublue::text-thankyoublue::text-thankyoublue:

  • Like 2
