My intent here is to show lots of pictures so if anyone is rebuilding one of these or some of the others...you can do it without fear and I am adding some very helpful information. I had a post that lead up to this that has some information in it also, and while it overlaps, I wanted to do the rebuild separate. This post is meant to be used with the manual...the pictures help explain better then the pictures in the manual.

the lead up post.
http://www.wheelhors...showtopic=14943

Now I want to share what I learned as I rebuild this...I realize that some have done this, but this was my first time (transmission virgin) and I know I am not the last one to do this. If I can help or make this easier, then I have given back a little from all the help I have received from this site. :thumbs:

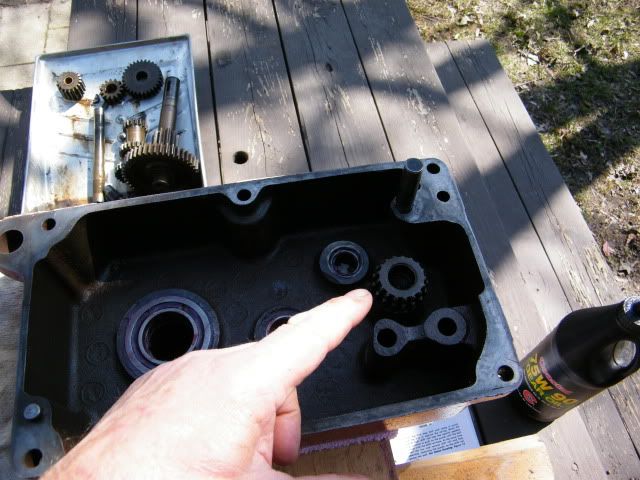

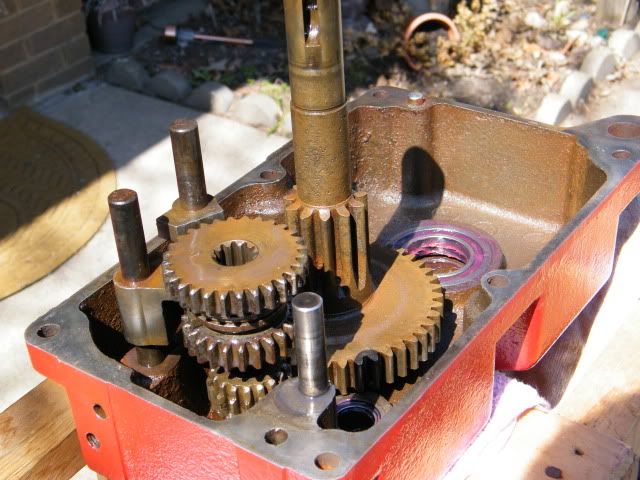

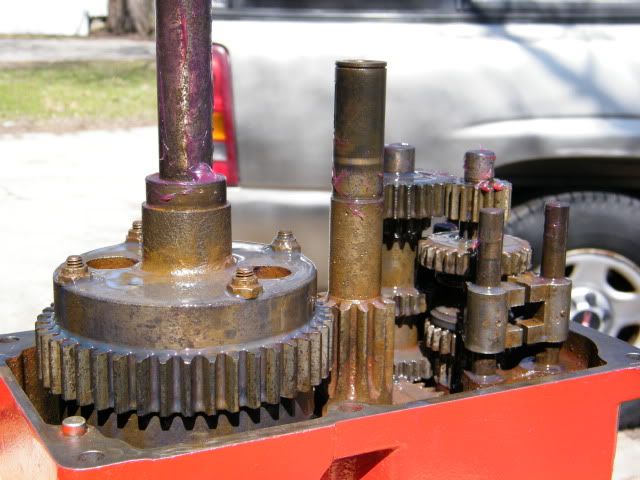

This is a shot showing gear placement in the left side of the case. Notice the bevel of the reverse gear (front right). The left side is the shallow side of the transmission halves.

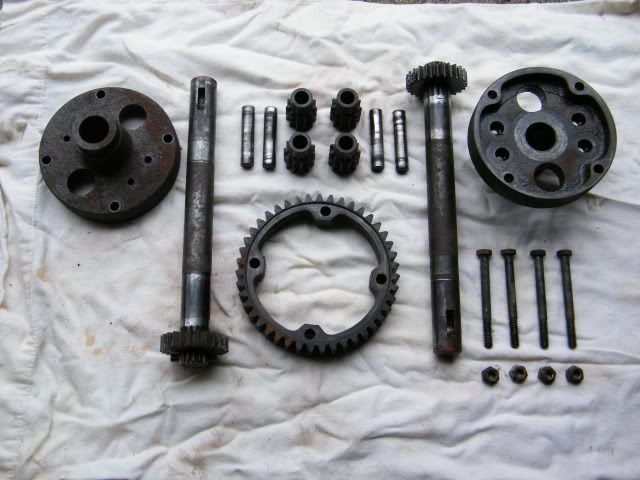

These are the parts of the differential..the 2 casings on the outside, the 2 axles, the differential bull gear, the 4 posts and the pinions that go on these, and the bolts and nuts that hold it all together.

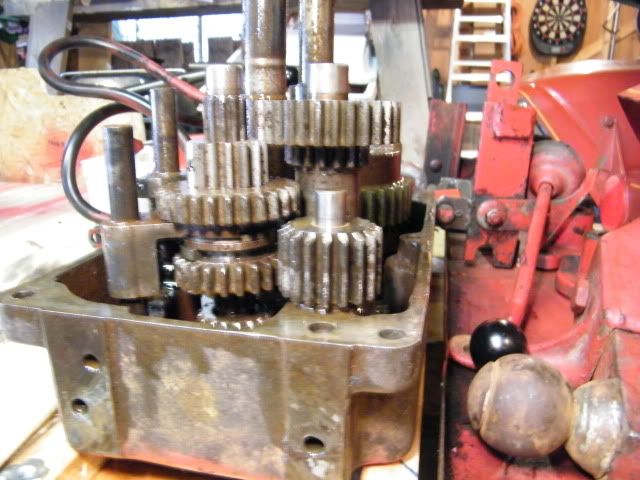

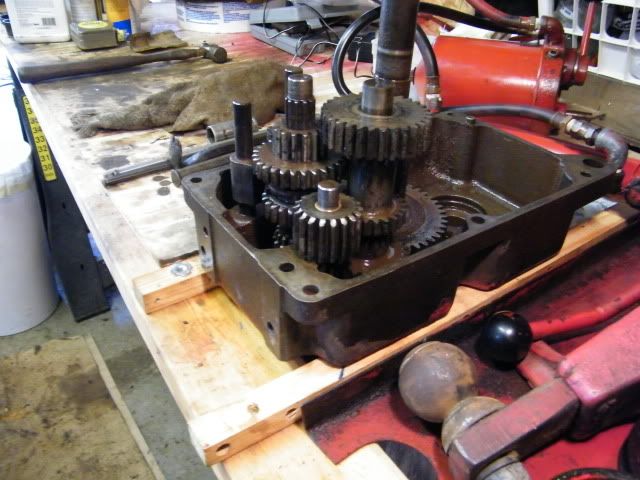

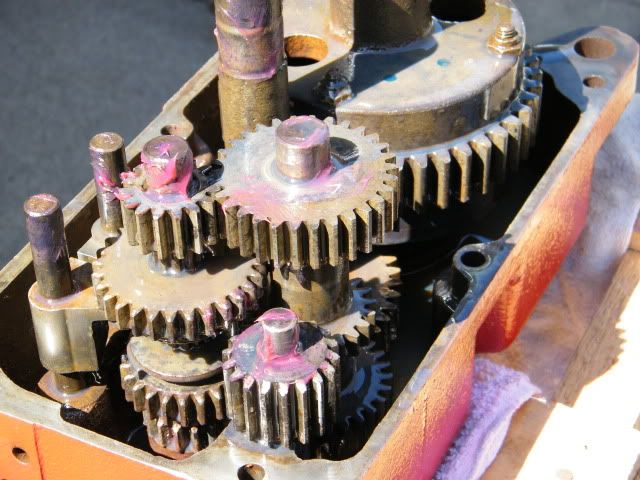

I can't get enough looks at the gears before I tear it apart...next 2 pictures are for future reference.

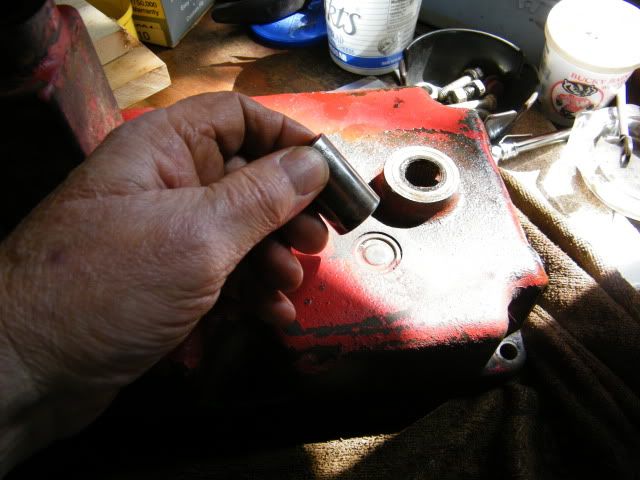

I found a good assortment of 3/8 and 1/2 sockets that made fair to good arbors for pounding out and tapping in most of the bearings and seals.

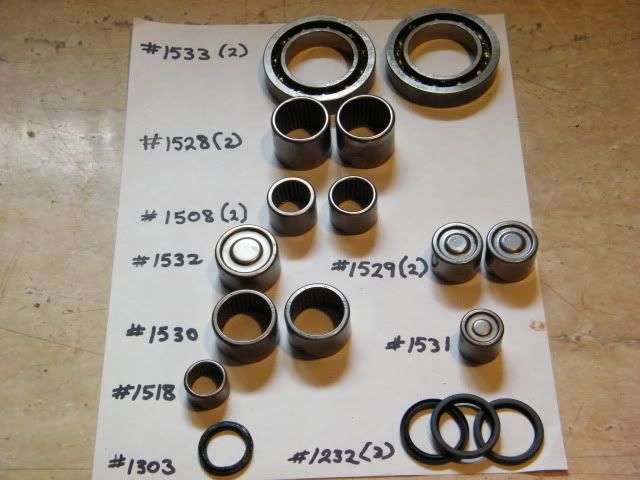

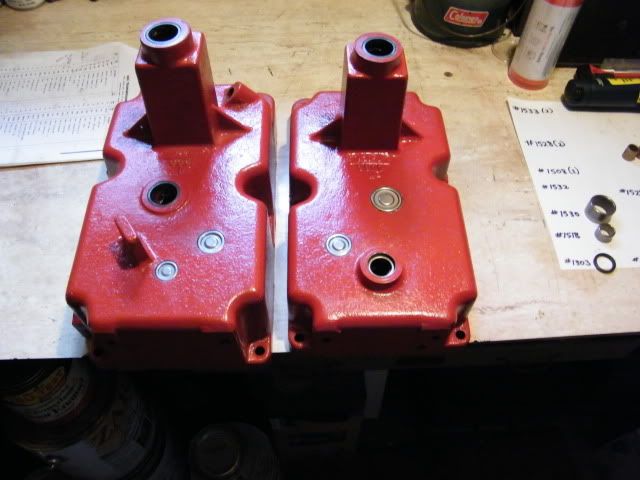

These are the bearings and seals you need to do the R&R. You can get all the stuff from Toro or the site that Jason gave in the related post. One note...the Toro#1303 seal is discontinued. This is called a cup seal, because it has a cup shape. I replaced it with a kind of match (SKF #7410) same dimensions but more like a regular oil seal...it will work. This place used to be Berry Bearings in Elgin...now it is "Motion Industries"...the web site MotionMRO.com...they can match up any bearing or seal. Excellent info. and prices were very good.

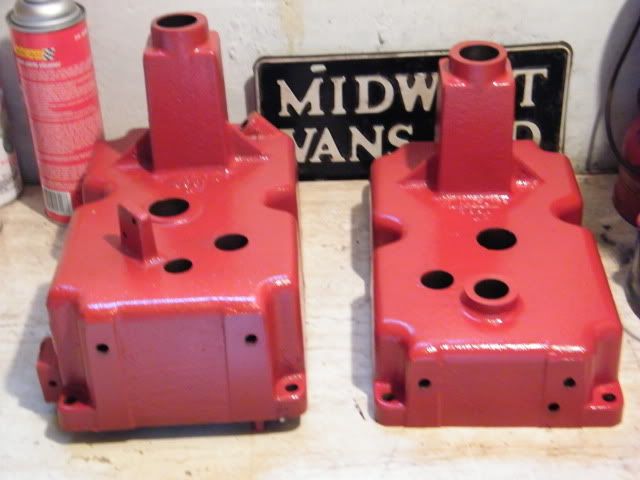

Shot of the bearings and seals removed, cleaned and sanded. Used Valspar Restoration series...I like the red match with my 702 and I like the hardness of the paint.

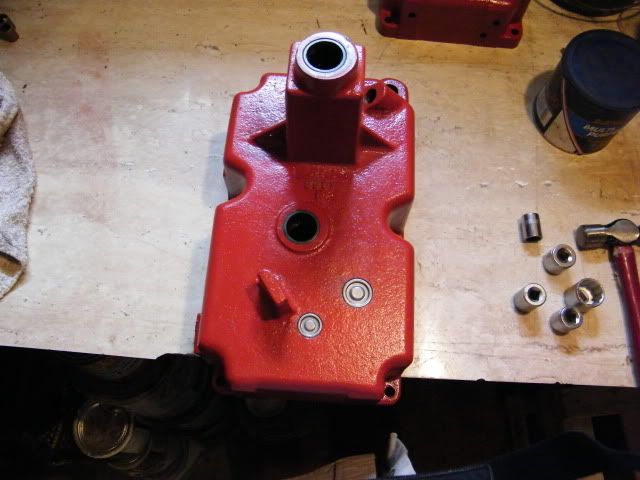

Showing bearings and seals installed...notice (arbors on right).

Putting differential back together...show axle in place with bolts in place.

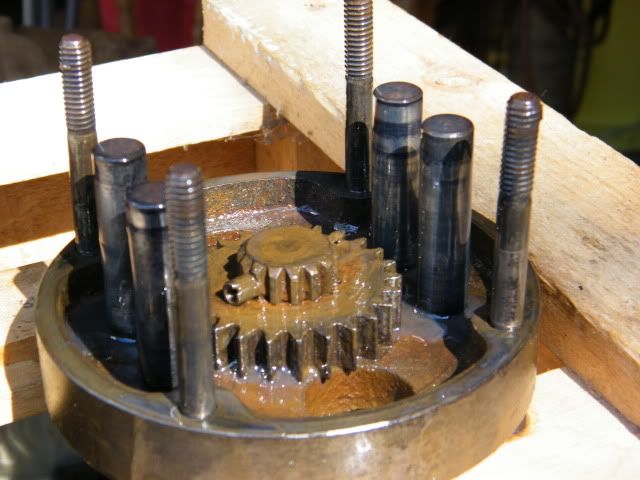

Added pinion posts and in 2nd picture...added pinions (alternating one up and one down).

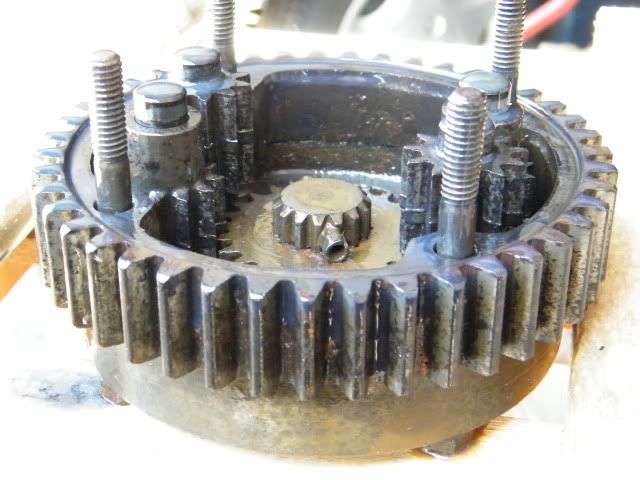

Added Bull Gear

Added other axle and case and bolted together. At this point, make sure you can rotate the axles...they should rotate in opposite directions.

Placing input shaft and gear (one piece) and the reverse idler shaft.

Installed the 2nd & high shift rail and fork. (one on the left). Also installed both ball bearings, spring and stop pin, and low & reverse shift rail. The 2 sliding gears were then placed...the grooves face each other and the smaller gear goes on the bottom.
I had a pencil magnet that I used to hold the 2nd ball bearing, while I took an Allen wrench through the hole to hold the bearing out of the way while I placed the low and reverse shift rail. the picture also shows the reverse idler and brake shaft in place.

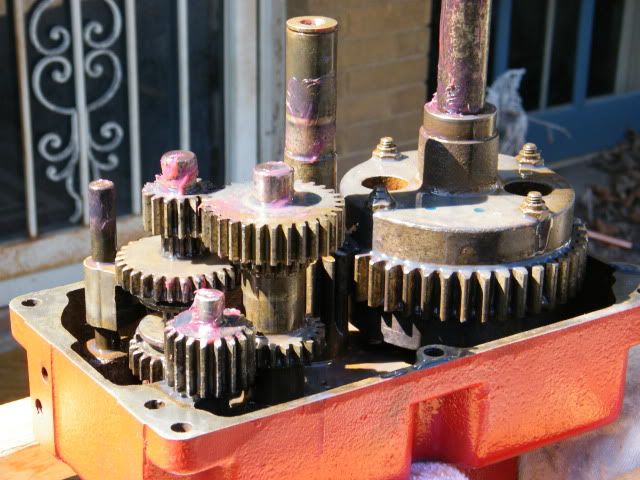

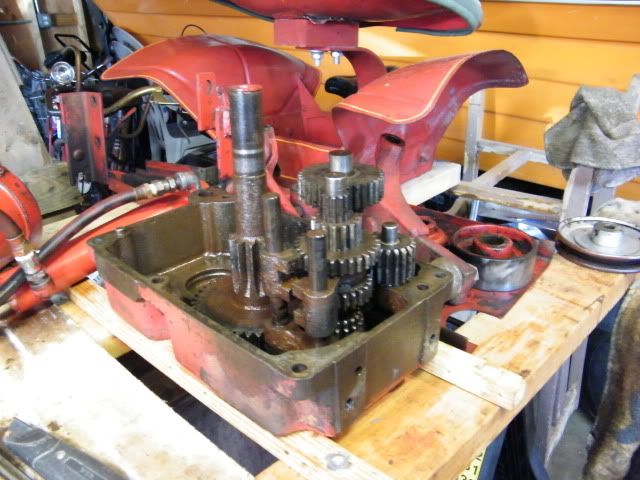

Another view showing forks and gears.

Showing reverse idler (bevel up...I hope) in front. Splined shaft installed through the shift fork sliding gears. The cluster gear is then installed( 2 wood-ruff keys here...one on each end). Also, the differential and axles are placed (note the nuts are facing up).

different angle

yet one more angle

Put together..old 5 gal wood create works great as a work bench (all shafts fit through and keep work level). Used a hard rubber hammer to tap halves together.

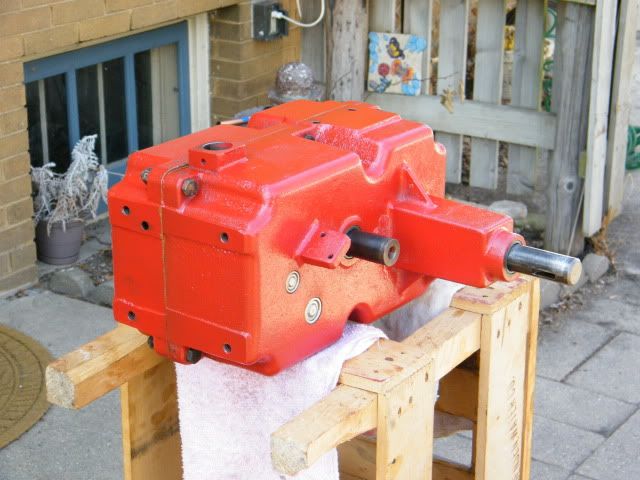

No leaks when I filled with 90wt gear oil...approx 1 1/2 qts. Checked shifting and started to put the 702 back together today. A final picture or a video tomorrow (hope).

I want to thank Rickv1957 Fan, MikeRJ, Buckrancher,Suburban550,IndyWH Smokin'Joe, the Helmett and Charlie for all their help and advice...a huge thank you guys. :wh: :wh: :thumbs:


  • trainman, woodbird007 and rhlineman like this
702, 857, 1972 Raider 10, 1976 B-100
Elgin, Illinois

Thanked by 2 Members:
bob393 , woodbird007

#2 OFFLINE   rickv1957

rickv1957

    RedSquare Expert

  • Members
  • PipPipPipPipPipPipPip
  • 5,167 posts
  • Joined 14-December 08
  • 2 thanks
    • Member No: 924
  • LocationLawson Mo

Posted 30 March 2010 - 06:35 PM

Steve,Tranny is looking good,glad to have helped! :omg: :D Rick

Thanked by 1 Member:
woodbird007

#3 OFFLINE   clintonnut

clintonnut

    Senior Advanced Member

  • Members
  • PipPipPipPipPip
  • 1,569 posts
  • Joined 15-August 08
  • 3 thanks
    • Member No: 601
  • Locationsoutheast pennsylvania

Posted 30 March 2010 - 06:36 PM

Looks great. How much did you pay for all of the bearings together? You bought the 1533 bearings from toro? They are around $70 now.

What is Jason's site? I am interested because my bearing distributers prices have gone through the roof. I'm getting tired paying $12 for a bearing I can slip over my little finger!

Charlie

RJ35, RJ58, 953 PULLER, 1277

Charlie from SE Pennsylvania. Clinton Engines parts/restorations http://clintonengines.us/Home.html

SUNY Maritime Class of 2017!


#4 ONLINE   Lane Ranger

Lane Ranger

    Supporter

  • Supporter
  • 1,845 posts
  • Joined 17-May 08
  • 55 thanks
    • Member No: 339
  • LocationGreencastle, Indiana 46135

Posted 30 March 2010 - 06:52 PM

Steve: This is great that you took so much time and care to share with others on Red Square for the rebuild.


A fantastic job!


:omg:

#5 OFFLINE   stevasaurus

stevasaurus

    RedSquare Expert

  • Topic Starter
  • Supporter
  • 6,410 posts
  • Joined 29-October 08
  • 192 thanks
    • Member No: 818
  • Military Member: Navy
  • LocationElgin, Illinois

Posted 30 March 2010 - 07:42 PM

Charlie and everyone else...this is Jason's site...
http://www.rcpw.com/...3&search=Search

The old berry bearings in Elgin is now Motion Industries
e-mail....MotionMRO.com They can match any bearing(I am told) or seal if you give them the O.D. I.D. and height of the bearing or seal. The guy behind the counter is a guy I have known since the late 60's and the service station days. He is still excellent and very helpful. If you end up calling him, you can mention my name, will not lower the price though. He is the kind of guy that...if you are an a-hole...but if you are serious, he will bend over backwards. When I told him that only Toro made the #1533 bearing and had to get it from them...he looked at me and rolled his eyes. I did not have the I.D. O.D. and height at the time to check it out. If someone has those measurements, I will go back and see if he can match it up. Well worth the time. :omg:
702, 857, 1972 Raider 10, 1976 B-100
Elgin, Illinois

#6 OFFLINE   stevasaurus

stevasaurus

    RedSquare Expert

  • Topic Starter
  • Supporter
  • 6,410 posts
  • Joined 29-October 08
  • 192 thanks
    • Member No: 818
  • Military Member: Navy
  • LocationElgin, Illinois

Posted 30 March 2010 - 07:48 PM

Sorry Charlie...(remember that from a tuna commercial), I don't know how you can do the trans rebuild for $150 with core deposit. I spent a little more then that.

House prices may have come down, wages are lower, but machined parts are not cheap. :omg:
702, 857, 1972 Raider 10, 1976 B-100
Elgin, Illinois

#7 OFFLINE   bmuone

bmuone

    Senior Member

  • Members
  • PipPipPipPip
  • 320 posts
  • Joined 08-September 08
  • 1 thanks
    • Member No: 664
  • LocationNE Texas

Posted 30 March 2010 - 08:13 PM

A+ on that post Steve. Tk U for that effort. :omg:

#8 OFFLINE   Indy w h

Indy w h

    Senior Member

  • Members
  • PipPipPipPip
  • 993 posts
  • Joined 23-September 09
  • 0 thanks
    • Member No: 1993
  • LocationNew Richmond IN. 47967

Posted 30 March 2010 - 11:31 PM

Glad to help ya out Steve!!! Just be careful putting it back in
the 702 !!! Hate to see you hurt yourself again :omg:

Indy

#9 OFFLINE   tgranthamfd

tgranthamfd

    Senior Advanced Member

  • Members
  • PipPipPipPipPip
  • 1,063 posts
  • Joined 19-April 09
  • 0 thanks
    • Member No: 1330
  • LocationMarlow, OK.

Posted 31 March 2010 - 01:35 AM

Nice tutorial. Looking forward to the video of her back on her feet. Good job. :omg:
Terry in Oklahoma
2005, 1960, 1974, (2) 1980's. Wheel Horse Tractors
12" Plow, 42" blade, 50" Grader Blade, & 36" tiller.
36" & 42" Decks, Wheel Weights, & Snow Chains

#10 OFFLINE   JimD

JimD

    24-1 What a ride...

  • Supporter
  • 3,695 posts
  • Joined 29-August 08
  • 40 thanks
    • Member No: 636
  • LocationGarrettsville,Ohio

Posted 31 March 2010 - 02:12 AM

We all knew ya could do it Steve. Great job on the tranny and the thread! :omg:

Jim in "G-ville"

Making the world a happier place since 1951.
"always leave em laughin" 4chsmu1.gifcollector-smiley.gif?1292867573






#11 OFFLINE   Save Old Iron

Save Old Iron

    A wise man gains more from an enemy than a fool from a friend

  • Members
  • PipPipPipPipPipPip
  • 2,723 posts
  • Joined 16-July 09
  • 111 thanks
    • Member No: 1689
  • LocationUpstate NY

Posted 31 March 2010 - 04:41 AM

Way to go Steve,

just a quick ? about the orange coloration. Is this just surface rust on the gears, shafts, etc, or is it residue from old water / oil contanimation ?

I'm assuming if you could have just wiped it off, it would have been.

Great Job :omg:

If your battery charge is low and you're facing electrical adversity, come see us at SOI University !

http://saveoldiron.47.forumer.com


#12 OFFLINE   Suburban 550

Suburban 550

    Senior Advanced Member

  • Members
  • PipPipPipPipPip
  • 1,492 posts
  • Joined 09-January 08
  • 0 thanks
    • Member No: 118
  • LocationShenandoah, Pennsylvania 17976

Posted 31 March 2010 - 05:50 AM

Great job, Steve. :D I'm really proud of you, not only for rebuilding the tranny, but doing it without any injuries to yourself. :D Good luck reinstalling it and great pics. :omg:

#13 OFFLINE   dclarke

dclarke

    Supporter

  • Supporter
  • 1,750 posts
  • Joined 19-March 09
  • 36 thanks
    • Member No: 1209
  • Locationpawnee il.

Posted 31 March 2010 - 06:18 AM

great job Steve! this will benefit a lot of people, including me. thank you. :omg:

Denny in central Illinois.    RJ58 - 701 - 854 - '74 C160  L107 Ranger - 857 - '78 C121
                                          WWW.Redoyourhorse.com



#14 ONLINE   Coadster32

Coadster32

    RedSquare Pro

  • Supporter
  • 3,148 posts
  • Joined 03-December 08
  • 16 thanks
    • Member No: 905
  • LocationMilford,CT

Posted 31 March 2010 - 09:08 AM

Good job Steve. :omg: Thanks for sharing.

May the force be with you.

Chris in Milford,CT





Become a Red Square supporter..click here






#15 OFFLINE   trapperjoe

trapperjoe

    Newbie

  • Members
  • Pip
  • 7 posts
  • Joined 25-March 10
  • 0 thanks
    • Member No: 2697

Posted 31 March 2010 - 10:14 PM

Great informational post and great pics too!
Now... who wants to do a tutorial with my... their GT-14 hydraustat ?

Joe

#16 OFFLINE   stevasaurus

stevasaurus

    RedSquare Expert

  • Topic Starter
  • Supporter
  • 6,410 posts
  • Joined 29-October 08
  • 192 thanks
    • Member No: 818
  • Military Member: Navy
  • LocationElgin, Illinois

Posted 01 April 2010 - 04:59 PM

The transmission is working fantastic...after witnessing the water damage in a trans...I would tear down every trans suspected of having water or sledge in it. Way to easy and the cost of a $5.00 gasket and piece of mind, versus the cost of bearings...up to $300.00 and going up. I have 3 more horses that were stored with this one...guess what I will be doing in the next few months?
:D

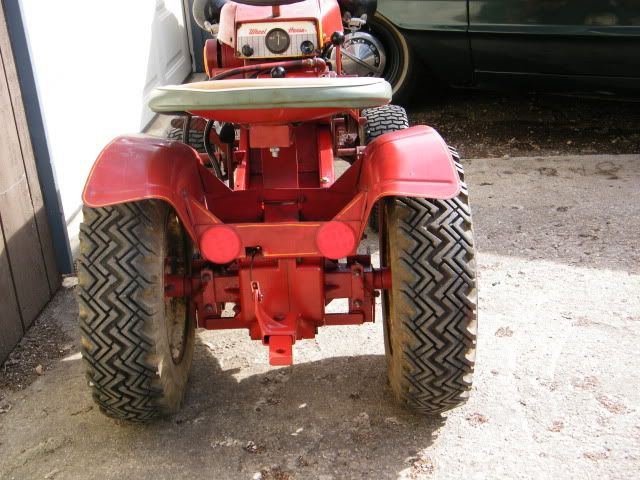

Anyway...a couple of shots of the horse recipient of the rebuild...
