Mower Rotary 42in RD 1980-1983 05-42MR01 OM IPL SN.pdf

Sign in to follow this

admin

4 Screenshots

About This File

Operator manual #810306R1 or 810306 R1
7 pages 1.29MB

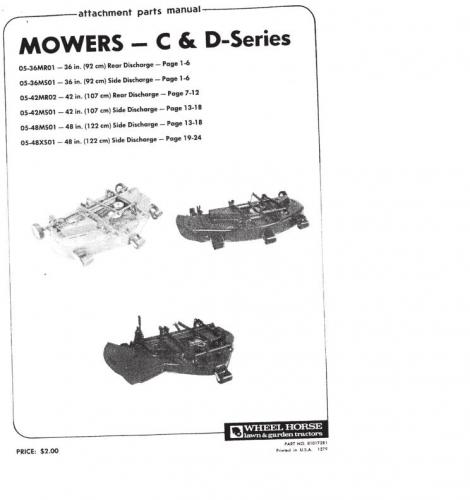

IPL #810172R1 or 810172 R1
7 pages 692.32KB
Dated 12/79

Fits C-Series tractors


Drive belt 108834 (1/2" x 98") [Replaces 102741 as per PSB #272 in this application]
Spindle belt 106125 (1/2" x 89.03")

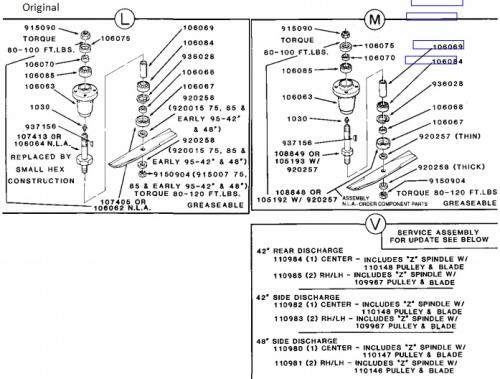

Mower spindle assemblies could be L, M, V or Z

For V see service bulletin 207B



106079 and 106108 blades replaced by 106635 3-blade set (3/4" center hole)

Mower Rotary 1980 42in RD model 05-42MR01
1980 serial numbers that have shown up for the 05-42MR01 (Samples 77 to 196487)
00003479
00003549 - Build date 1979 9274 October 01 Monday
00004358
00004381 - Build date 1980 0087 March 27 Thursday [087]

Mower Rotary 1981 42in RD model 05-42MR01
1981 serial numbers that have shown up for the 05-42MR01 (Samples 175 to 267746)
033664 - Build date 1980 0256 September 12 Friday - Serial looks wrong Build date is clear
034957
035059 - Could be 1983 model
035240 - Build date 1981 1148 May 28 Thursday - Build date looks wrong

Mower Rotary 1982 42in RD model 05-42MR01

1982 serial numbers that have shown up for the 05-42MR01 (Samples 1292 to 39008)
37597 - Build date 1981 1345 December 11 Friday


Mower Rotary 1983 42in RD model 05-42MR01

1983 serial numbers that have shown up for the 05-42MR01 (Samples 2335 to 61160)




×
×
