Tractor 1966 876 D&A OM IPL Wiring Rev SN.pdf

Sign in to follow this

admin

5 Screenshots

About This File

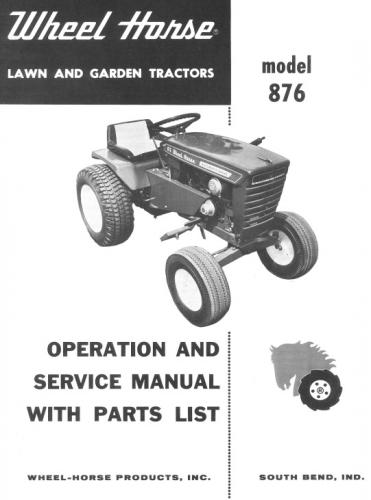

Operator manual #269
IPL

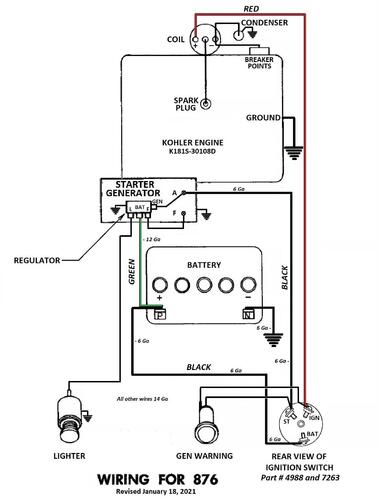

Wiring
16 pages 3.09MB
Dated 8/16/65



Wiring Color pdf

1 page 298KB



Tractor drive belt 6146 replaced by 8005 and both no longer available from Toro - (4L x 72" or 1/2" x 72")



Starter/Generator belt
Original Wheel Horse 1583 nla Used on 6, 7, 8hp Kohler Starter generator {3Lx33" in belt charts is 3/8" x 33" but some applications use a shorter belt. Belt should have raw rubber sides for grip.}
3V315 Gates .38"x31.5"
3V315 Napa .38"x31.5"



Kohler #231605 Starter generator belt Replaces 232613 [.41"x32.08" 36 degree] PSB #061 Should use raw edge belt
7315 Gates .41"x32.08" 36 degree
25-7315 Napa .41"x32.08" 36 degree



Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41

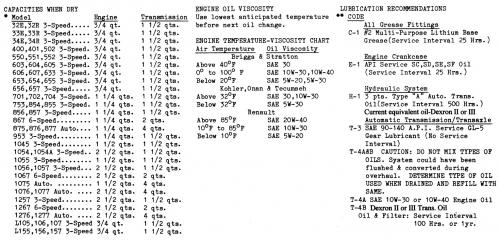

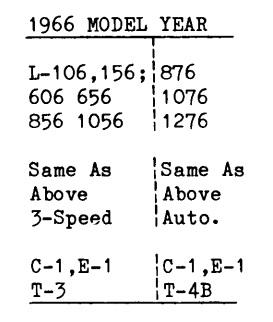

Lube chart SS



Details & Attachments
3 pages 116.24KB


1966 model 876
1966 serial numbers that have shown up for the 876
173201
174935
175201
175270
192847
192937
192948
192954

193017
193029
193056 - See PSB #073 Nylon clutch pedal bushing changed to bronze after this serial number
193124





×
×
