Spring Extension 1014 & 1486 replaced by 83-2730.jpg 1.0.0

Sign in to follow this

gwest_ca

4 Screenshots

About This File

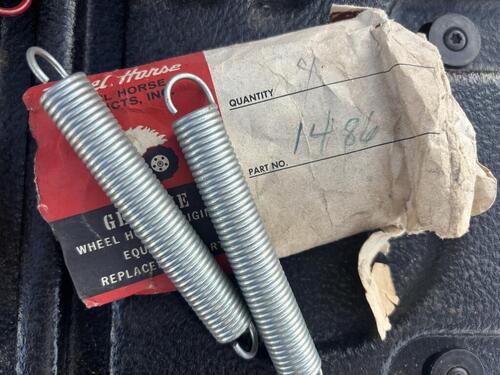

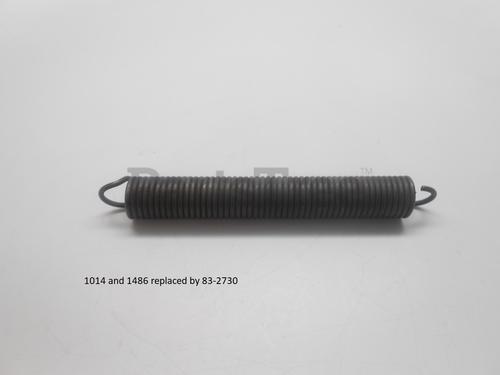

Found the 83-2730 spring replaced 1486 that was used as a pair on the early Lawn Ranger mower deck clutch. Photo appears to have 50 + 2 half coils

It may have also replaced 1014

Still available from Toro 05-06-18

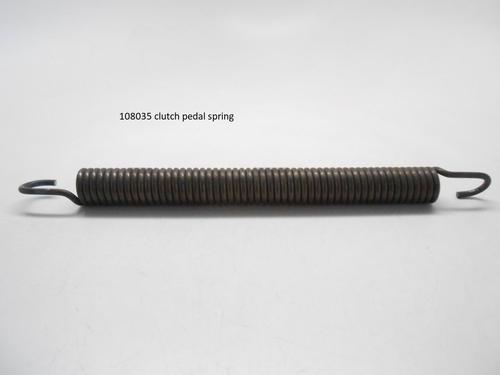

1014 spring used as a clutch pedal return spring now replaced by 108035 does not look correct - too long



4-1/2" between hooks

.070" wire

.520" coil OD

.380" coil ID

3.570" coil length

52 + 2 half coils




×
×
