Tractor 1986 300-Series IPL SM Wiring.pdf 1.0.0

Sign in to follow this

tunahead72

9 Screenshots

About This File

Illustrated parts list #810405R1

Wiring diagrams

Section 18 - Service information



Dated 0985

Appears the early and late model numbers identify a change made to the transmission differential side bearings.

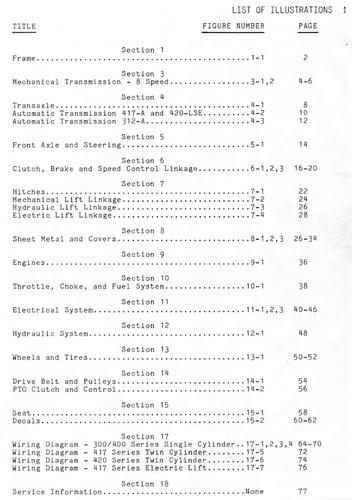

Front Cover and Index

3 pages 2MB



Section 01

Frame pages 2-3

2 pages 478KB



No Section 02



Section 03

Mechanical Transmission 8-speed Pages 4-7

4 pages 2MB



Section 04

Transaxle pages 8-9

Automatic Transmission 417-A and 420-LSE Pages 10-11

Automatic Transmission 312-A Pages 12-13

6 pages 2.7MB



Section 05

Front Axle and Steering Pages 14-15

2 pages 942KB



Section 06

Clutch, Brake and Speed Control Linkage Pages 16-21

6 pages 2.5MB



Section 07

Hitches Pages 22-23

Mechanical Lift Linkage Pages 24-25

Hydraulic Lift Linkage Pages 26-27

Electric Lift Linkage Pages 28-29

8 pages 3MB



Section 08

Sheet Metal and Covers Pages 26-35

10 pages 2.3MB



Section 09 -----------------------Note - Wrong engine model for 308-8 but the spec number is correct. Should be M8S-301511

Engines Pages 36-37

2 pages 857KB



Section 10

Throttle, Choke and Fuel system Pages 38-39

2 pages 786KB



Section 11

Electrical System Pages 40-47

8 pages 3.3MB



Section 12

Hydraulic System Pages 48-49

2 pages 856KB



Section 13

Wheels and Tires Pages 50-53

4 pages 1.7MB



Section 14

Drive Belt and Pulleys Pages 54-55

Pto Clutch and Control Pages 56-57

4 pages 1.6MB



Section 15

Seat Pages 58-59

Decals Pages 60-63

6 pages 2.7MB



No Section 16



Section 17

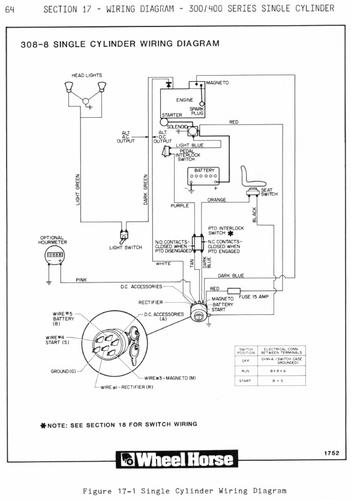

308-8 Pages 64-65

2 pages 2.7MB



Section 17

310-8 Pages 66-67

2 pages 3MB



Section 17

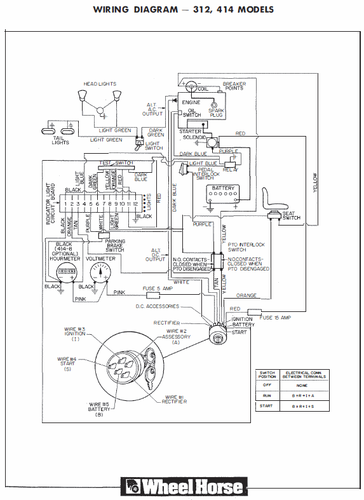

312-8, 312-A and 414-8 Single Cylinder Pages 68-69

2 pages 3.3MB



Section 18

Service Information

Page 77 1.5MB

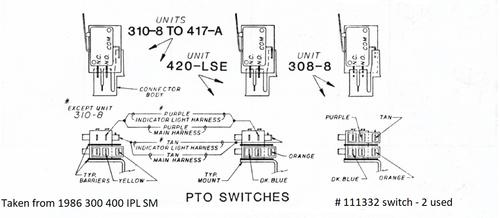

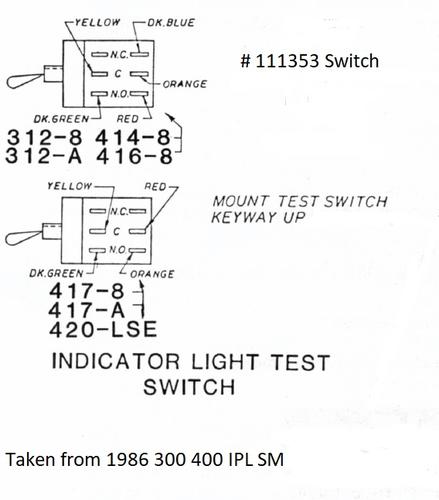

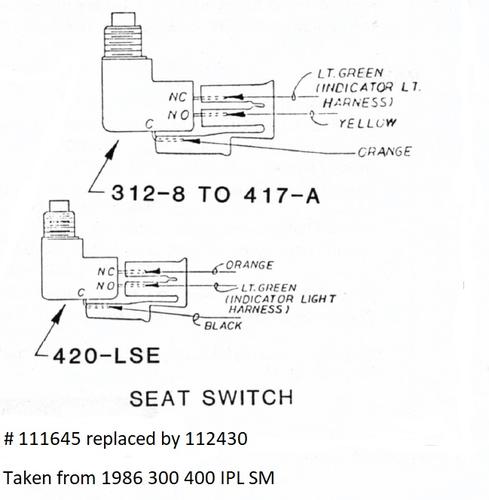

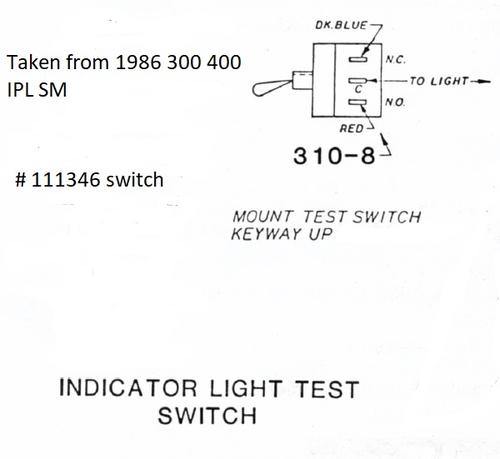

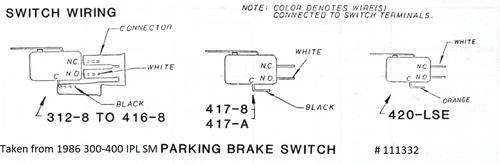

Parking brake switch, Pto switch, Indicator light test switch, Seat switch



Page 78 1.7MB

General torque specs., Toro paint



Page 79 2.5MB

Steering wheel alignment, Automatic transmission neutral adjustment - continued on page 80



Page 80 2.3MB

Continued from page 79 - Automatic transmission neutral adjustment, Brake adjustment, 308 throttle and choke adjustment



Page 81 2.1MB

310, 312, 414 and 416 choke, throttle and governor adjustments



Page 82 2.2MB

Single cylinder carb adjustments, Single cylinder point adjustments, Twin cylinder choke, throttle and carb adjustments - continued on page 83



Page 83 2.4MB

Continued from page 82 - Twin cylinder choke, throttle and choke adjustments, Carb and governor adjustments, Twin cylinder points, Engine cable and wire routing



Page 84 2.4MB

Indicator lights, Electric lift switch, Pto switches, Pressure testing hydraulics, Lift valve removal



Page 85 2.4MB

Drive belts and belt guide adjustments, Pto adjustments, Unregulated charging system stators



Page 86 1.9MB

Bottom of tractor photo, 420-LSE dash panel photos



Page 87 2.4MB

414, 416, 417 dash panel photos



Page 88 2.2MB

300-Series dash panel photos



Page 89 2.0MB

Shift plate decal locations, Hood decals



Page 90 1.3MB

Rear fender decal location, Electric lift components



Numerical Index

5 pages 3MB



1986 308-8 8-Speed model 21-08K801

1986 308-8 8-Speed model 21-08K802



1986 310-8 8-Speed model 21-10K802

1986 310-8 8-Speed model 21-10K803



1986 312-8 8-Speed model 21-12K802

1986 312-8 8-Speed model 21-12K803



1986 312-A Automatic model 21-12KE01

1986 312-A Automatic model 21-12KE02




×
×
