About This File

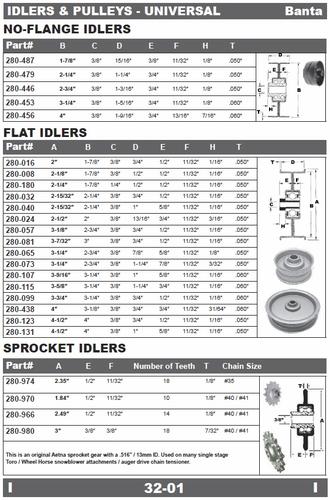

Banta Saw Stens pulley catalog

22 pages 1.1MB



WH = Wheel Horse

Toro

LB = Lawnboy

HD = heavy duty (Better bearing)

Std = standard (Light bearing)



V-idler pulley - ????? OD - 1616 replaced by 1618 with mounting stud

V-idler pulley - ????? OD - 4458 replaced 4974 Cast iron with 4567 bearing



V-idler pulley - 2.500" OD - HD (Stens replacement for 280-255 {$21.55} 2-1/2" OD x 3/8" ID) For 1/2" belt

V-idler pulley - 2.625" OD - Std  WH 12-5820 {$18.73} (Napa 7-05213, Rotary 729, Stens 280-255 {$11.48} 2-5/8" OD x 19/32" wide x 3/8" ID)

V-idler pulley - 2.625" OD - 110370 replaced by LB 93-0320 {$15.43} (Stens 280-255 {$11.48} 2-5/8" OD x 19/32" wide x 3/8" ID)

V-idler pulley - 2.625" OD - WH 102545 {nla} 2-5/8" OD x 3/8" ID) For 1/2" belt (Used on 77-42VX01 lawn vacuum)



V-idler pulley - 2.875" OD - Toro 46-5650 replaced by 117-5299 {$31.30} (Stens 280-020 HD {$24.00} 2-7/8" OD x 5/8" wide x 7/16" ID) For 1/2" belt



V-idler pulley - 3.000" OD - Toro 7-0823 replaced by 62-4530 {$22.97} (Stens 280-339 HD {$18.21} 3" OD x 1/2" ID x 1/2" wide 3/4" overall width for 1/2" belt (May be wrong because mounting bolt is 3/8")

V-idler pulley - 3.000" OD - Toro 7-0823 replaced by 62-4530 {$22.97} (Stens 280-818 Std {$13.50} 3" OD x 1/2" ID x 1/2" wide 3/4" overall width for 1/2" belt (May be wrong because mounting bolt is 3/8")



V-idler pulley - 3.062" OD - 100335 and 3-4243 replaced by 8205 (Stens 280-248, 280-127, 280-188, 280-263, 280-271, Napa 7-05212, 7-05214, 7-05215, 7-05477, Rotary 728) 3.0625" OD x .375" ID x 25/32" HT [Toro 3-4243 is similar]

V-idler pulley - 3.062" OD - 7-0823 replaced by 62-4530 (Stens 280-271, Rotary 731, Napa 7-05212, 7-05215, 7-05491) 3.0625" OD x .375" ID x 5/8" W

V-idler pulley - 3.062" OD - 109444 (Napa 7-05491) 3.0625" OD x .375" ID for 1/2" belt

V-idler pulley - 3.062" OD - 1623 replaced by 92-7102 (Generic 1614ZZ bearing Used in belt idler for 5-2321 deck) 3.0625" OD x .375" ID



V-idler pulley - 3.500" OD - 107195 replaced by 8510 (Stens 280-297) 3.500" OD x .375" ID x .750" W

V-idler pulley - 3.563" OD - 109823 (Napa 7-05482) 3.5625" OD x .375" ID 5/8" belt groove

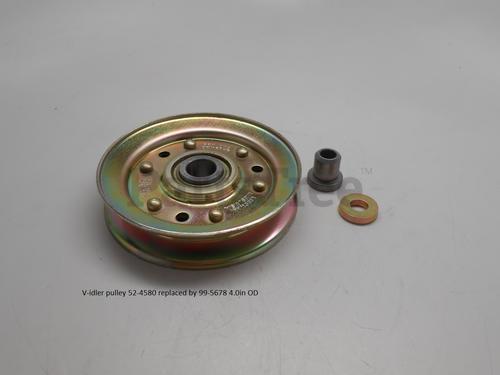

V-idler pulley - 4.000" OD - HD 52-4580 or 524580 replaced by WH 99-5678 or 995678 {$40.84} (Stens 280-362 HD  4.000" OD x .375" ID (1/4" offset) x 3/4" HT, Napa 7-05485 HD) HD picture

V-idler pulley - 4.000" OD - Std 7451 replaced by WH 95-7668 or 957668 {$16.20} (Stens 280-313 Std 4.000" OD x 13/64" wide x 3/8" ID)

V-idler pulley - 4.000" OD - Std Toro 7-0431 (Stens 280-305 4.000" OD x 23/32" wide x 3/8" ID, Napa 7-05217)

V-idler pulley - 4.000" OD - LB 24445 replaced by LB 703715 {$36.89} (Napa 7-05218, Stens 280-313)



V-idler pulley - 4.250" OD - 104143 replaced by 92-7103 (Stens 280-750 HD) 4.250" OD x .750" ID x 53/64" W

V-idler pulley - 4.250" OD - 104974 replaced by 92-7103 (3/4" ID) (Stens 280-750 HD, Napa 7-05486)

V-idler pulley - 4.250" OD - 101763 replaced by 92-7103 (Stens 280-750 HD) 4.250" OD x .750" ID x 53/64" W [Uses 101480 bearing]

V-idler pulley - 4.250" OD - 111170 Two used on the 05-37SC01 mower deck with 6-sided belt - No picture



V-idler pulley - 4.500" OD - Less bearing 103247 nla

V-idler pulley - 4.500" OD - 105616 4.500" OD x .375" ID

V-idler pulley - 4.500" OD - 103245 nla 4.500" OD x .625" ID






×
