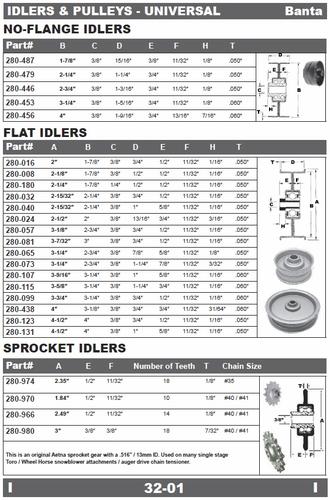

Banta Saw Stens pulley catalog

22 pages 1.1MB



Some flat idlers have short flanges on each side of the OD to help keep the belt on the pulley. For some of the following dimensions it is not clear if the OD is the flat diameter or the flange diameter.

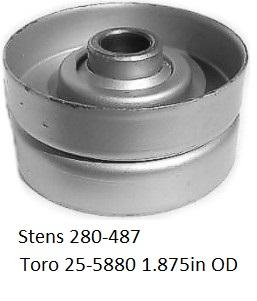

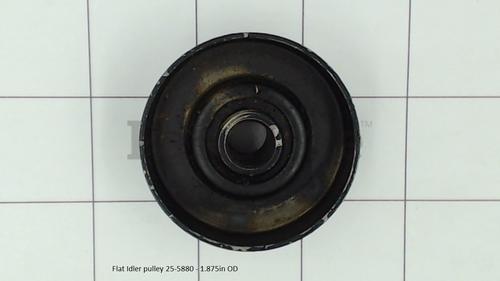

Flat idler pulley - 1.875" OD - WH 25-5880 or 255880 (Stens 280-487 Std bearing Width 15/16" ID 3/8" No flanges)



Flat idler pulley - 2.000" OD - WH 3542 with Nice 7206 bearing - No picture

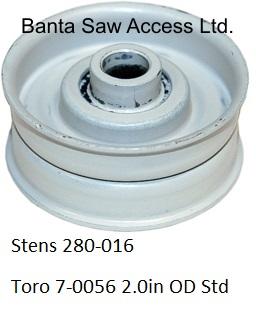

Flat idler pulley - 2.000" OD - WH 7-0056 or 70056 (Napa 7-05202 with flanges, Rotary 718, Stens 280-016 Std bearing Flat OD 1.875" Width 7/8" Flat width 11/16" ID 3/8" - Stens Std picture

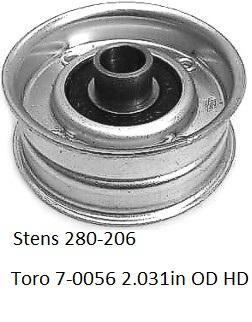

Flat idler pulley - 2.031" OD - WH 7-0056 or 70056 (Napa 7-05202 with flanges, Rotary 718, Stens 280-206 HD bearing Flat OD 1.875" Width 13/16" Flat width 11/16" ID 3/8") - Stens HD picture

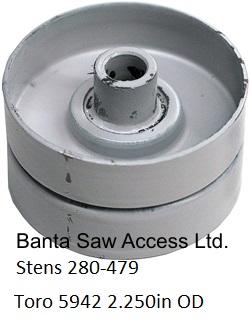

Flat idler pulley - 2.250" OD - WH 5942 (Stens 280-479 Std bearing Width 1-1/4" Flat width 3/4" ID 3/8" No flanges) - Stens picture

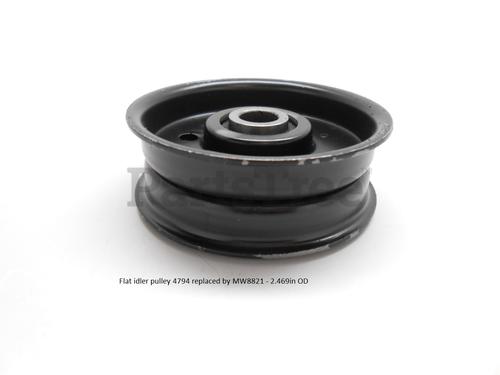

Flat idler pulley - 2.469" OD - 4794 replaced by WH  MW8821 (Napa 7-05203 with flanges, Stens 280-032 Std bearing Flat OD 2.250" Width 3/4" ID 3/8")

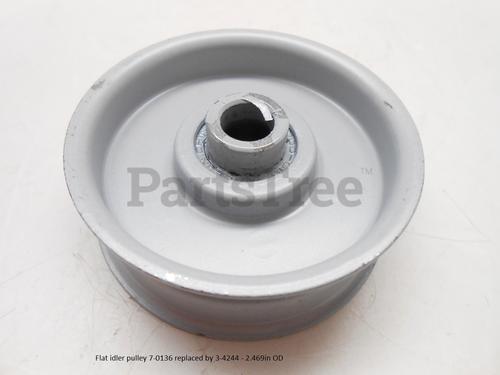

Flat idler pulley - 2.469" OD - 7-0136 replaced by WH 3-4244 or 34244 (Napa 7-05203 with flanges, Stens 280-032 Std bearing Flat OD 2.250" Width 3/4" ID 3/8", Rotary 719)

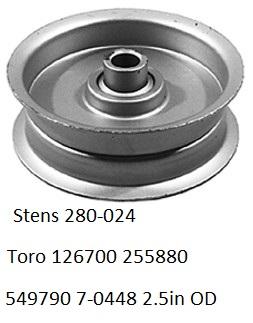

Flat idler pulley - 2.500" OD - 7-0448 replaced by WH 12-6700 or 126700 (Stens 280-024 Std bearing Flat OD 2.000" Width 1" Flat width 13/16" ID 3/8") - Stens picture (25-5880 or 255880 and 54-9790 or 549790)



Flat idler pulley - 3.094" OD - 6719, 112425 and 519537 replaced by WH 92-7101 or 927101 (Stens 280-222 HD bearing Flat OD 2.750" Width 7/8" ID 3/8" with flanges)

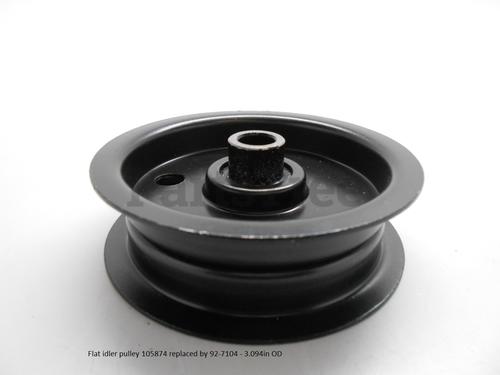

Flat idler pulley - 3.094" OD - 105874 replaced by WH 92-7104 or 927104 May replace 6704 (Stens 280-222 HD bearing Flat OD 2.750" Width 7/8" ID 3/8" with flanges, Napa 7-05205 with flanges)

Flat idler pulley - 3.187" OD - 7-4660 replaced by WH 62-4540 (Napa 7-05434 may work) - No picture

Flat idler pulley - 3.219" OD - WH 51-4810 or 514810 (Stens 280-081 Std Flat OD 3.000" Width 7/8" Flat width 3/4" ID 3/8") No picture

Flat idler pulley - 3.219" OD - WH 51-4810 or 514810 (Stens 280-586 HD bearing Flat OD 3.000" Width 7/8" ID 3/8") No picture

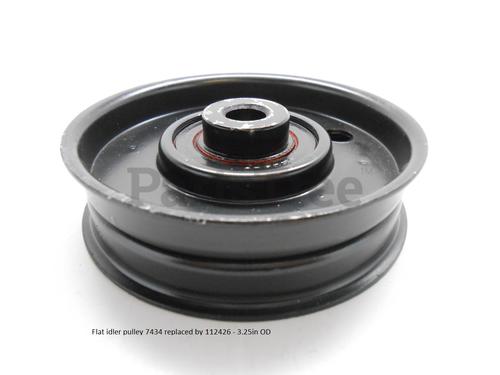

Flat idler pulley - 3.219" OD - 2-4463 or 24463, 7434, 112426 replaced by WH 244-63 (Napa 7-05206 with flanges, Napa 7-05434 with flanges, Rotary 722, Stens 280-081 Std Flat OD 3.000" Width 7/8" Flat width 3/4" ID 3/8") No picture

Flat idler pulley - 3.219" OD - 2-4463 or 24463, 7434, 112426 replaced by WH 244-63 (Napa 7-05206 with flanges, Napa 7-05434 with flanges, Rotary 722, Stens 280-586 HD bearing Flat OD 3.000" Width 7/8" ID 3/8") No picture

Flat idler pulley - 3.219" OD - WH 51-3660 or 513660 (Stens 280-586 HD, Napa 7-05435 with flanges) No picture

Flat idler pulley - 3.219" OD - WH 51-3660 or 513660 (Stens 280-586 HD bearing Flat OD 3.000" Width 7/8" ID 3/8") No picture

Flat idler pulley - 3.250" OD - WH 56-9870 (Napa 7-05429 with flanges) Flat OD 2.750" No picture

Flat idler pulley - 3.250" OD - 7437 replaced by WH 112426 (Stens 280-081 Std Flat OD 3.000", Stens 280-586 HD Flat OD 3.000", Napa 7-05434, Rotary 722)

Flat idler pulley - 3.500" OD - 88-5680 replaced by WH 104-4180 (Napa 7-05430 with flanges) No picture

Flat idler pulley - 3.500" OD - WH 109828 (Stens 280-529 HD Flat OD 2.750") No picture

Flat idler pulley - 3.563" OD - WH 43-1040 (Stens 280-107 Std Flat OD 3.250") No picture

Flat idler pulley - 3.750" OD - 6719, 112425, 519567 replaced by WH 92-7101 (Napa 7-05207 with flanges, Stens 280-099 Std Flat OD 3.250", Stens 280-578 replaced by 280-114 HD Flat OD 3.250") No picture



Flat idler pulley - 4.125" OD - 101762 and 104144 replaced by WH 104975 (Stens 280-743 Flat OD 3.500" x .750" wide Overall width 1-1/8" ID 3/4" , Oregon 34-039, Rotary 8373)  No picture

Flat idler pulley - 4.125" OD - 115119 replaced by WH 92-7084 (Napa 7-05443 with flanges) No picture

Flat idler pulley - 4.438" OD - WH 103241 No picture

Flat idler pulley - 4.500" OD - 6769 replaced by WH 93-1622 (Napa 7-05207 with flanges, Stens 280-131 Std, 280-826 HD Flat OD 4.125") No picture

Flat idler pulley - 4.500" OD - 55-2860, 62-4520 and 62-4520-03 replaced by WH 36-3220 (Stens 280-826 HD Flat OD 4.125", Stens 280-131 Std) No picture

Flat idler pulley - 4.500" OD - WH 26-1840 (Napa 7-05445 with flanges, Stens 280-890 HD) No picture

Flat idler pulley - 4.500" OD - WH 112791 Can replace with 93-1622 by swapping the bushings in the bearing or adding shims washers to the mounting bolt

Flat idler pulley - 4.500" OD - 6769, 106144 and 112895 replaced by WH 93-1622 (Stens 280-123 Std, Napa 7-05211 with flanges, Stens 280-495 HD) No picture



Flat idler pulley - 5.000" OD - 51-4480 and 95-2800 replaced by WH 99-5879 (Stens 280-711 No flanges) No picture

Flat idler pulley - 5.500" OD - WH 106107 No picture

Flat idler pulley - 5.750" OD - WH95-2800 (Stens 280-713 HD Flat OD 5.125" with flanges, 280-711 = 5.000" OD x .500" ID x 1.1875" W no flanges) No picture

Flat idler pulley - 5.750" OD - 51-4480 replaced by WH 99-5879 (Stens 280-713 HD Flat OD 5.125" with flanges) No picture



Flat idler pulley - 6.250" OD - WH 105169 and 105613 replaced by 106023 No picture








×
