Tractor 1987 8-32 RER D&A IPL Wiring sn.pdf 1.0.0

Sign in to follow this

3 Screenshots

About This File

IPL #3313-237

Wiring
32 pages 6.04MB


Includes
Easy-Empty Grass Catcher model 59111
Leaf Bag model 59123
Mulcher Kit model 59155
Twin Bagger Grass Catcher model 59122
Twin Bagger Grass Catcher model 59184

Wet Grass Bagging Kit model 38-5730
B&S IPL for model 191702-2160-01 - Recoil start

B&S IPL for model 191707-2161-01 - Electric start



Transmission drive belt 47-1410 - (HA x 47.74" or 1/2" x 47.74")

Mower drive and spindle belt 47-1420 - (HA x 65.56" or 1/2" x 65.56")


Details & Attachments
2 pages 62.28KB

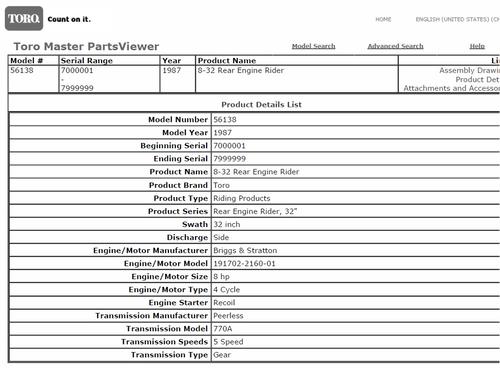

1987 8-32 Rear Engine Rider model 56138 Serial 7000001-7999999 - Recoil start



Details & Attachments
2 pages 62.53KB

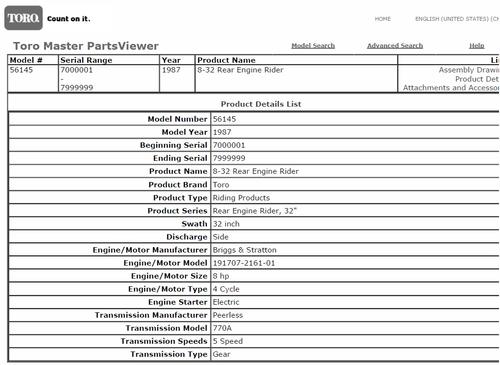

1987 8-32 Rear Engine Rider model 56145 Serial 7000001-7999999 - Electric start




×
