Tractor 1986 8-32 RER D&A OM IPL Wiring sn.pdf 1.0.0

Sign in to follow this

4 Screenshots

About This File

Operator manual #3312-714

Wiring

32 pages 8.3MB

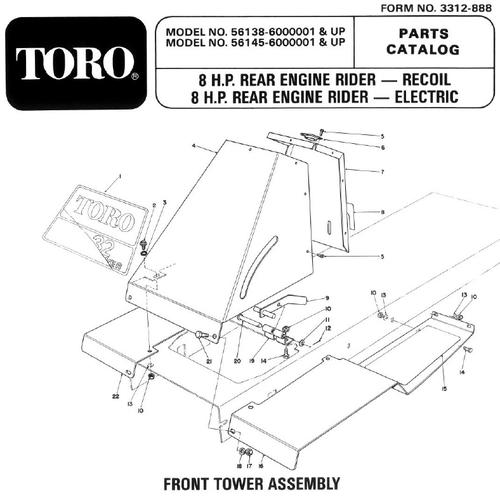

IPL #3312-888

Wiring
28 pages 5.2MB



Transmission drive belt 47-1410 - (HA x 47.74" or 1/2" x 47.74")

Mower drive and spindle belt 47-1420 - (HA x 65.56" or 1/2" x 65.56")



IPL includes
Easy-Empty Grass Catcher model 59111

Leaf Bag model 59123

Mulching kit 59155
Twin Bagger Grass Catcher model 59122

Wet Grass Bagging Kit model 38-5730



B&S IPL for model 191702-2160-01 -  Recoil start

B&S IPL for model 191707-2161-01 - Electric start

Details & Attachments
2 pages 62.14KB

1986 8-32 Rear Engine Rider model 56138 Serial 6000001-6999999 - Recoil start



Details & Attachments
2 pages 62.39KB

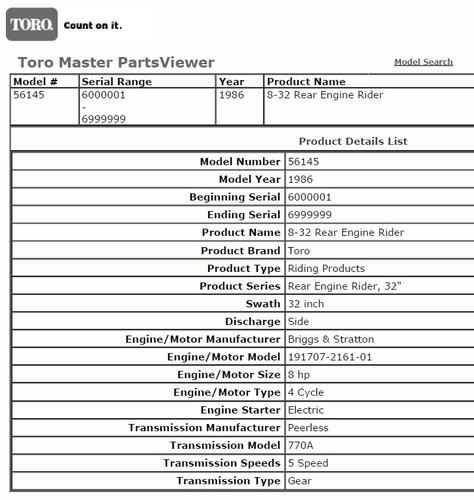

1986 8-32 Rear Engine Rider model 56145 Serial 6000001-6999999 - Electric start




×
