Tractor 1984 8-32 RER D&A IPL Wiring sn.pdf 1.0.0

Sign in to follow this

2 Screenshots

About This File

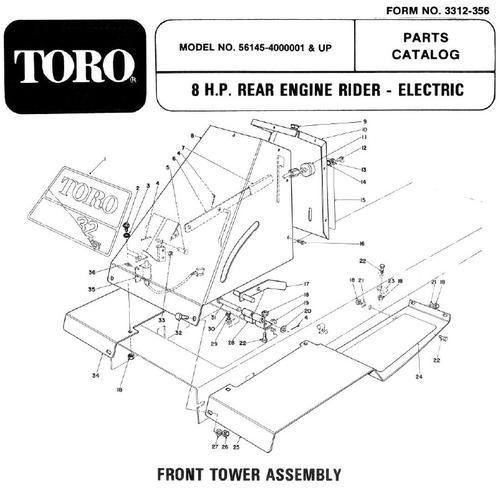

IPL #3312-356

Wiring
24 pages 4.6MB



Transmission drive belt 47-1410 - (HA x 47.74" or 1/2" x 47.74")

Mower drive and spindle belt 47-1420 - (HA x 65.56" or 1/2" x 65.56")



Includes
Easy-Empty Grass Catcher model 59111

Leaf Bag model 59123

Mulching kit 59155
Twin Bagger Grass Catcher model 59122

Wet Grass Bagging Kit model 38-5730
B&S IPL for model 191707-2132-01

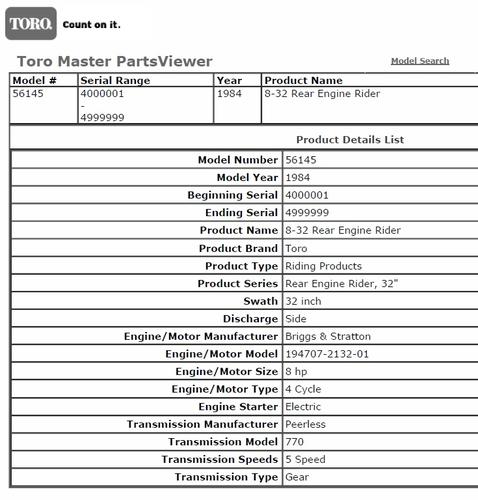

Details & Attachments
2 pages 62.39KB

1984 8-32 Rear Engine Rider model 56145 Serial 4000001-4999999 - Electric start




×
