Tractor 1983 8-32 RER D&A IPL Wiring sn.pdf 1.0.0

Sign in to follow this

4 Screenshots

About This File

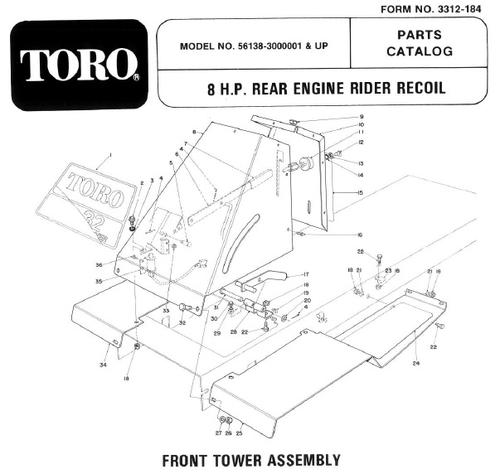

IPL #3312-184 for recoil start model 56138

Wiring
24 pages 4.5MB



IPL #3312-185 for electric start model 56145

Wiring
24 pages 4.4MB



Transmission drive belt 47-1410 - (HA x 47.74" or 1/2" x 47.74")

Mower drive and spindle belt 47-1420 - (HA x 65.56" or 1/2" x 65.56")



Includes
Easy-Empty Grass Catcher model 59111

Easy-Fill Grass catcher 59120

Leaf Bag model 59123
Twin Bagger Grass Catcher model 59122
Wet Grass Bagging Kit model 38-5730

B&S IPL for model 191702-2133-01 - Recoil start

B&S IPL for model 191707-2132-01 - Electric start

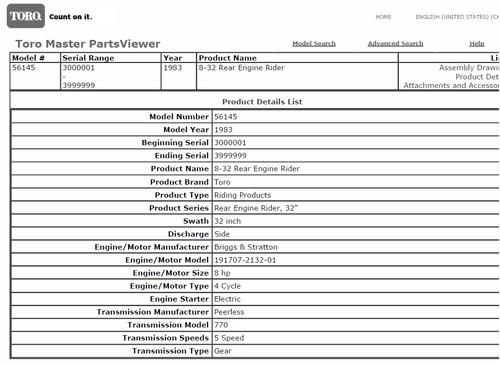

Details & Attachments for 56138 RS
2 pages 62KB


Details & Attachments for 56145 ES
2 pages 62.39KB



1983 8-32 Rear Engine Rider model 56138 Serial 3000001-3999999 - Recoil start
1983 8-32 Rear Engine Rider model 56145 Serial 3000001-3999999 - Electric start




×
