About This File

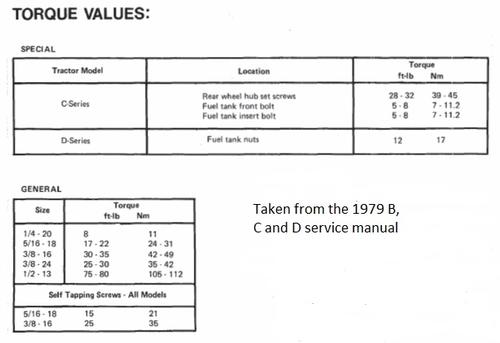

Hardware - What we know about it



[1-807004 key replaced by 3257-24 Woodruff #5 (1/8"x5/8")

[1-807009 key replaced by 3257-5 Woodruff #9 (3/16" x 3/4")

[7-2581 key replaced by 3257-24 Woodruff #5 (1/8"x5/8")

[7-2583 key replaced by 3257-27 Woodruff #4 (3/32"x5/8")



[25-2490 ball replaces 104-2187 (7/16")

[30-8610 set screw replaced by 3247-2 .3125"-18x.500" Socket head Cup point

[31-4400 key replaced by 3257-5 Woodruff #9 (3/16" x 3/4")

[38-1490 bearing wheel replaced by110513 bearing wheel replaces (3/4"x1-3/8"x3/8")

[56-3010 ball replaces 112610 (5/16") Grade 200

[56-3030 ball replaces 112648 (7/16")

[56-3210 ball replaces 112663 (5/8")

[88-4400 bearing wheel replaced by 110513 (3/4"x1-3/8"x3/8")

[99-5379 bearing ball replaces 5269 (3/4" ID) Self aligning and locking



[100-4580 key replaced by 3257-33 Woodruff #91 (1/4"x3/4")

[100-5822 key replaced by 3257-33 Woodruff #91 (1/4"x3/4")

[104-2187 ball replaced by 25-2490 (7/16")

[104-2874 bearing wheel replaced by 110513 (3/4"x1-3/8"x3/8")

[108-8549 ball (1/4")

[251-58 bearing ball replaced by 251-123 (.6693" ID or 67mm ID)

[251-123 bearing ball replaces 251-58, 251-136 (.6693" ID or 67mm ID)

[251-136 bearing ball replaced by 251-123 (.6693" ID or 67mm ID)

[251-145 ball bearing replaced by 251-183 (3/8")

[251-171 bearing ball replaced by 251-180 (1/2")

[251-180 bearing ball replaces 251-171 (1/2")

[251-183 ball bearing replaces 251-145 (3/8")

[251-210 bearing wheel replaced by 110513 (3/4"x1-3/8"x3/8")

[251-271 bearing wheel replaced by 110513 (3/4"x1-3/8"x3/8")

[255-6 ball (1/2")



[1005 key Square (3/16"x3/16"x1")

[1008 key #15 Woodruff (.250"x1.000")

[1023 set screw .375"-16x1.000" Square head Cup point

[1042 set screw .3125"-18x.3125" Socket head Cup point

[1066 set screw .250"-20x.250" Socket head

[1088 key Square (3/16"x3/16"x2")

[1120 key Square (3/16"x3/16"x2")

[1121 key Square (1/4"x1/4"x1-3/16")

[1122 key replaced by 3257-5 Woodruff #9 (3/16" x 3/4")

[1161 set screw .375"-16x.625" Square head Cup point

[1188 key Square (1/4"x1/4"x3")

[1194 key replaced by 937084 Woodruff #5 (1/8"x5/8")

[1206 set screw .375"-16x1.250" Square head Cup point

[1239 set screw .250"-20x.750" Socket head Dog-point

[1252 set screw .375"-16x.875" Square head

[1278 shim used with 5210 shim and 109114 hub cap washer

[1348 set screw .3125"-18x1.000" Square head Cup point

[1349 key Square (1/4"x1/4"x1-1/2")

[1395 key Woodruff #6 (5/32"x5/8")

[1499 bearing ball (11/16" ID)

[1502 bearing ball (3/4"x1-5/8"x3/8")

[1514 bearing wheel replaced by 110513 (3/4"x1-3/8"x3/8")

[1515 bearing ball replaced by 101480 (3/4"x1-5/8"x1/2")

[1519 bearing ball Ground (3/4"x1-5/8"x5/16")

[1521 & 1521P 110513 bearing wheel replaced by 110513 (3/4"x1-3/8"x3/8")

[1533 bearing ball (1-1/2"x2-1/2"x1/2") Have seen a typo 1133

[1545 bearing ball replaced by 101411 (3/4"x1-5/8"x5/16")

[1968 bearing ball replaced by 107743 (3/4" ID) Self aligning and locking

[2119-555 key replaced by 3257-27 Woodruff #4 (3/32"x5/8")

[2119-561 key replaced by 3257-5 key Woodruff #9 (3/16" x 3/4")

[2525 key replaced by 3257-5 Woodruff #9 (3/16"x3/4")

[3242-1 set screw replaces 909539 .3125"-18x.375" Square head Cup point

[3242-2 set screw replaces 909540, 9095404 .3125"-18x.500" Square head Cup point

[3242-6 set screw replaces 513685 .3125"-18x1.000" Square head Cup point

[3243-5 set screw replaces 909554 .375"-16x1.000" Square head Cup point

[3243-6 set screw replaces 909555 .375"-16x1.250" Square head Cup point

[3243-13 set screw replaces 909556 .375"-16x1.500" Square head Cup point

[3245-32 set screw replaces 3245-34, 909484, 909848, MW4251, MW4252 .250"-20x.250" Socket head Cup point

[3245-34 set screw replaced by 3245-32 .250"-20x.250" Socket head Cup point

[3245-35 set screw .250"-28x.250" Socket head Cup point

[3246-2 set screw replaces 32137-1, 909862, MW4257 .3125"-18x.3125" Socket head Nylok

[3246-3 set screw replaces 909863 .3125"-18x.375" Socket

[3246-15 set screw .3125"-18x.250" Socket head Cup point

[3247-2 set screw replaces 30-8610 909878 .3125"-18x.500" Socket head Cup point

[3247-4 set screw replaces NN10385 .375"-16x.625" Socket head Cup point

[3248-6 set screw .3125"-18x.3125" Square head Cup point

[3257-2 key replaced by 3257-24 Woodruff #5 (1/8"x5/8")

[3257-3 key replaces 937155 Woodruff #6 (5/32"x5/8")

[3257-5 key replaces 1-807009, 31-4400, 1122, 2119-561, 2525, 937014, E807009 Woodruff #9 (3/16" x 3/4")

[3257-21 key Woodruff #2 (3/32"x1/2")

[3257-24 key replaces 1-807004, 3257-2, 7-2581, E807004 Woodruff #5 (1/8"x5/8")

[3257-27 key replaces 2119-555, 7-2583 Woodruff #4 (3/32"x5/8")

[3257-32 key Woodruff #61 (3/16"x5/8")

[3257-33 key replaces 100-4580, 100-5822 Woodruff #91 (1/4"x3/4")

[3517 ball (1/4") Also 3517P

[4571 bearing ball replaced by 107744 (3/4" ID) Self aligning and locking

[4831 ball (5/16")

[4999 bearing wheel replaced by 110513 (3/4"x1-3/8"x3/8")

[5210 shim used with 1278 shim and 109114 hub cap washer

[5269 bearing ball replaced by 99-5379 (3/4" ID) Self aligning and locking

[5493 bearing ball replaced by 101480 (3/4"x1-5/8"x1/2")

[5596 bearing ball (11/16" ID sealed)

[5740 bearing ball replaced by 7060 (5/8" ID)

[5741 bearing ball (1-1/4" ID)

[5804 bearing ball (7/16" ID x 29/32" OD x 5/16" wide)

[6192 bearing ball (5/8" ID)

[6438 set screw .250"-20x.750" Square head Dog-point

[6507 key Square replaced by 105453 (1/4"x1/4"x1/2")

[6593 bearing ball (7/16" ID x 1-1/8" OD x 3/8" wide)

[6639 bearing ball (1-1/4" ID)

[7060 bearing ball replaces 5740 (5/8" ID)

[7758 set screw replaced by 7977 .3125"-18x.500" Square head Cup point

[7977 set screw replaces 7758 .3125"-18x.500" Square head Cup point

[8649 bearing ball replaced by 101411 (3/4"x1-5/8"x5/16")

[9554-4 set screw .375"-16x1.000" Square head

[9849-6 set screw .250"-20x.3125" Socket head



[32133-4 set screw .3125"-24x.500" Socket head

[32137-1 set screw replaced by 3246-2 .3125"-18x.3125" Socket head Nylok

[90865-6 set screw .3125"-18x.750" Socket head

[93065 key Woodruff #6 (5/32"x5/8")



[100907 bearing ball replaced by 107744 (3/4" ID) Self aligning and locking

[100908 bearing ball replaced by 107743 (3/4" ID) Self aligning and locking

[101411 bearing ball replaces 1544,  8649 (3/4"x1-5/8"x5/16")

[101480 bearing ball replaces 1515, 5493 (3/4"x1-5/8"x1/2") ------------------------------------------------

[101702 bearing ball replaced by 107743 (3/4" ID) Self aligning and locking

[101781 bearing ball replaced by 107743 (3/4" ID) Self aligning and locking

[101782 bearing ball replaced by 107744 (3/4" ID) Self aligning and locking

[102534 bearing ball Self aligning and locking

[103456 ball (7/16")

[104396 bearing ball Front wheel

[105453 key Square replaces 6507 (1/4"x1/4"x1/2")

[106499 bearing ball (1" ID?)

[107124 bearing ball Uses 1278 and 5210 shims and 109114 hub cap washer

[107491 bearing ball replaced by 519557

[107743 bearing ball replaces 1968, 100908, 101702, 101781 (3/4" ID) Self aligning and locking

[107744 bearing ball replaces 4571, 100907 101782 (3/4" ID) Self aligning and locking

[107854 key replaces 225566 Woodruff #3 (1/8"x1/2")

[107856 key replaces 225565 Woodruff #61 (3/16"x5/8")

[107869 key Woodruff #3 Special

[107891 set screw 8-32x.3125" Socket head

[107914 set screw .250"-20x.500" Socket head

[107919 key replaces 225542 Woodruff #9 (3/16" x 3/4")

[108483 bearing wheel replaced by 110513 (3/4"x1-3/8"x3/8")

[108922 key Square (1/4"x1/4"x3/4")

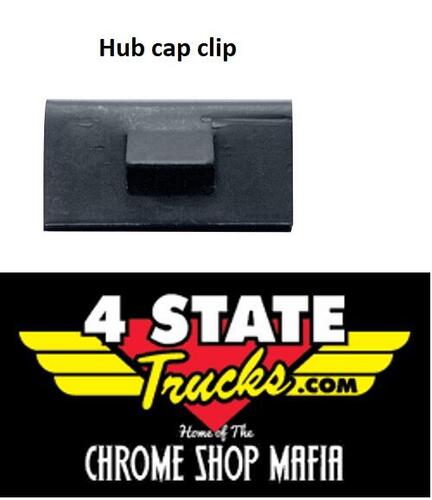

[109114 hub cap washer used with 1278 and 5210 shims

[110513 bearing wheel replaces 38-1490, 88-4400, 104-2874, 251-210, 251-271, 1514, 1521, 1521P, 4999,  108483, 518213 (3/4"x1-3/8"x3/8")

[111199 bearing ball (1-37/64" ID or 40mm ID)

[112094 set screw .3125"-24x.3125" Socket head

[112610 ball replaced by 56-3010 (5/16") Grade 200

[112648 ball replaced by 56-3030 (7/16")

[112663 ball replaced by 56-3210 (5/8")

[200122 key Square (3/16"x3/16"x1")

[200154 set screw .3125"-18x.500" Square head

[225542 key replaced by 107919 Woodruff #9 (3/16" x 3/4")

[225565 key replaced by 107856 Woodruff #61 (3/16"x5/8")

[225566 key replaced by 107854 Woodruff #3 (1/8"x1/2")

[309540 set screw .3125"-18x1.500" Square head

[513439 key replaced by 937007 Woodruff #3 (1/8"x1/2")

[513441 key Woodruff #9 (3/16"x3/4")

[513442 key Woodruff #18 (1/4"x1-1/8")

[513685 set screw replaced by 3242-6 .3125"-18x1.000" Square head Cup point

[518213 bearing wheel replaced by 110513 (3/4"x1-3/8"x3/8")

[519557 bearing ball replaces 107491

[792047 key Woodruff #9 (3/16"x3/4")

[792077 ball (5/16")

[792078 set screw .375"-16x.375" Socket head

[792139 ball (3/8")

[908540 set screw .3125"-18x.625" Socket head Cup point

[909348-5 set screw .250"-20x.250" Socket head

[909352-5 set screw .250"-20x.500" Socket head

[909362-5 set screw .3125"-18x.3125" Socket head Cup point

[909484 set screw replaced by 3245-32 .250"-20x.250" Socket head Cup point

[909531 set screw .250"-20x.375" Square head Cup point

[909531-4 set screw .250"-20x.375" Square head Cup point

[909532 set screw .250"-20x.500" Square head Cup point

[909532-4 set screw .250"-20x.500" Square head Cup point

[909532-6 set screw .250"-20x.500" Square head Cup point

[909534 set screw .250"-20x.750" Square head Cup point

[909535 set screw .250"-20x.750" Square head Cup point

[909537 set screw .250"-20x1.250" Square head Cup point

[909538 set screw .250"-20x1.750" Square head Cup point

[909539 set screw replaced by 3242-1 .3125"-18x.375" Square head Cup point

[909539-4 set screw .3125"-18x.375" Square head Cup point

[909540 set screw replaced by 3242-2 .3125"-18x.500" Square head Cup point

[909540-4 set screw .3125"-18x.500" Square head Cup point

[909541 set screw .3125"-18x.625" Square head Cup point

[909543-4 set screw .3125"-18x.875" Square head Cup point

[909544 set screw replaced by 3242-6 .3125"-18x.9375" Square head Cup point

[909545-4 set screw .3125"-18x1.250" Square head Cup point

[909551 set screw .375"-16x.625" Square head Cup point

[909551-4 set screw 375"-16x.625" Square head Cup point

[909554 set screw replaced by 3243-5 .375"-16x1.000" Square head Cup point

[909554-4 set screw .375"-16x1.000" Square head Cup point

[909555 set screw replaced by 3243-6 .375"-16x1.250" Square head Cup point

[909555-4 set screw .375"-16x1.250" Square head Cup point

[909556 set screw replaced by 3243-13 .375"-16x1.500" Square head Cup point

[909574 set screw .500"-13x2.000" Square head Cup point

[909576 set screw .500"-13x3.000" Square head Cup point

[909621 set screw .250"-20x1.750" Square head Cup point

[909677 set screw .500"-13x2.000" Square head Cup point

[909691 set screw .250"-20x1.750" Square head Cup point

[909825 set screw 10-24x.250" Socket head

[909843-5 set screw .250"-20x.250" Socket head

[909848 set screw replaced by 3245-32 .250"-20x.250" Socket head Cup point

[909848-5 set screw .250"-20x.250" Socket head Cup point

[909848-6 set screw .250"-20x.250" Socket head Cup point Nylock

[909848-S set screw .250"-20x.250" Socket head Cup point

[909849 set screw .250"-20x.3125" Socket head

[909849-5 set screw .250"-20x.3125" Socket head

[909849-6 set screw .250"-20x.3125" Socket head Nylock

[909849-S set screw .250"-20x.3125" Socket head

[909850 set screw .250"-20x.375" Socket head

[909850-3 set screw .250"-20x.375" Socket head

[909850-5 set screw .250"-20x.375" Socket head

[909850-6 set screw .250"-20x.375" Socket head

[909851 set screw .250"-20x.4375" Socket head (A guess)

[909852 set screw replaces MW4254 .250"-20x.500" Socket head (A guess)

[909852-S set screw .250"-20x.500" Socket head

[909852-4 set screw .250"-20x.500" Socket head

[909852-5 set screw .250"-20x.500" Socket head

[909853-5 set screw .250"-20x.625" Socket head

[909854-4 set screw .250"-20x.750" Socket head

[909854-6 set screw .250"-20x.750" Socket head

[909861 set screw .3125"-18x.250" Socket head

[909861-5 set screw .3125"-18x.250" Socket head Nylok

[909861-6 set screw .3125"-18x.250" Socket head Nylok

[909862 set screw replaced by 3246-2 .3125"-18x.3125" Socket head Nylok

[909862-4 set screw .3125"-18x.3125" Socket head

[909862-5 set screw .3125"-18x.3125" Socket head

[909862-6 set screw .3125"-18x.3125" Socket head Nylock

[909862-S set screw .3125"-18x.3125" Socket head

[909863 set screw replaced by 3246-3 .3125"-18x.375" Socket

[909865-5 set screw .3125"-18x.500" Socket head Cup point Nylok

[909865-6 set screw .3125"-18x.750" Socket head

[909865-S set screw .3125"-18x.500" Socket head Cup point

[909878 set screw replaced by 3247-2 .3125"-18x.500" Socket head Cup point

[909879 set screw .375"-16x.625" Socket head Cup point

[909879-6 set screw .375"-16x.625" Socket head Cup point

[909880 set screw .375"-16x.750" Socket head Cup point

[909880-5 set screw .375"-16x.750" Socket head Cup point

[909885 set screw .375"-16x1.750" Socket head Cup point

[909950 set screw 10-32x.250" Socket head

[909962 set screw replaces MW5724 .250"-28x.250" Socket head Cup point

[909962-6 set screw .250"-28x.250" Socket head Cup point

[909963 set screw .250"-28x.3125" Socket head Cup point

[909963-5 set screw .250"-28x.3125" Socket head Cup point

[920880-5 set screw .375"-16x.750" Socket head Cup point

[933269 set screw .250"-20x.250" Socket head Cup point is WRONG

[937002 replaced by 937022 Woodruff #15 (1/4"x1")

[937007 key replaces 513439 Woodruff #3 (1/8"x1/2")

[937009 key replaced by 937084 Woodruff #5 (1/8"x5/8")

[937010 key Woodruff #6 (5/32"x5/8")

[937011 key Woodruff #61 (3/16"x5/8")

[937014 key replaced by 3257-5 Woodruff #9 (3/16" x 3/4")

[937017 key Woodruff #11 (3/16"x7/8")

[937022 key replaces 937002 Woodruff #15 (1/4"x1")

[937024 key replaces 937099 Woodruff #16 (3/16"x1-1/8") May be hardened

[937034 key Woodruff #5 (1/8"x5/8")

[937036 key Woodruff #6 (5/32"x5/8")

[937039 key Woodruff #9 (3/16"x3/4")

[937045 key Woodruff #129 (3/8"x2-1/8")

[937046 key Woodruff #RX (1/4"x2-3/4") Actual length 2"

[937058 key Woodruff #128 (5/16"x2-1/8")

[937079 key Woodruff #213 (1/8"x3/8")

[937082 key replaces K101 Woodruff #3 (1/8"x1/2")

[937084 key replaces 1194, 937009 Woodruff #5 (1/8"x5/8")

[937085-1 key Woodruff #6 (5/32"x5/8")

[937086 key Woodruff #61 (3/16"x5/8") One of these is WRONG?

[937086 key Woodruff #6 (5/32"x5/8") One of these is WRONG?

[937089 key Woodruff #9 (3/16"x3/4")

[937090 key Woodruff #91 (1/4"x3/4")

[937094 key Woodruff #A (1/4"x7/8")

[937097 key Woodruff #15 (1/4"x1")

[937099 key replaced by 937024 Woodruff #16 (3/16"x1-1/8") Hardened

[937108 key Woodruff #22 Long (1/4" x 1-3/8") in wheel/axle hub. Some places the key is listed as 937128 and may be a typo

[937121 key Woodruff #RX (1/4"x2-3/4") Hardened

[937152 key Woodruff #3 Hi-pro (1/8"x17/32") HI-PRO

[937155 key replaced by 3257-3 Woodruff #6 (5/32"x5/8")

[937156 key replaced by 937222 Woodruff #61 (3/16"x5/8") This may be WRONG

[937159 key replaces MW4627 Woodruff #9 HI-PRO (3/16"x25/32") This may be WRONG

[937159 key replaced by 937225 Woodruff #9 HI-PRO (3/16"x25/32") This may be WRONG

[937159 key Woodruff #606 HI-PRO ((3/16"x3/4") This may be WRONG

[937168 key Woodruff #808 HI-PRO (1/4"x1")

[937221 key Woodruff #6 (5/32"x5/8")

[937222 key replaces 937156 Woodruff #61 (3/16"x21/32" Hard HI-PRO) This may be WRONG

[937225 key replaces 937159 Woodruff #9 HI-PRO (3/16"x25/32") This may be WRONG

[937225 key Woodruff #606 HI-PRO This may be WRONG

[937232 key Woodruff #806 HI-PRO



[6937082 key Woodruff #3 (1/8"x1/2")

[9095404 set screw replaced by 3242-2 .3125"-18x.500" Square head

[9098485 set screw .250"-20x.250" Socket head Cup point

[9098505 set screw .250"-20x.375" Socket head

[9098624 set screw .3125"-18x.3125" Socket head



[20937082 key Woodruff #3 (1/8"x1/2")



[E807004 key replaced by 3257-24 Woodruff #5 (1/8"x5/8")

[E807009 key replaced by 3257-5 Woodruff #9 (3/16" x 3/4")

[K100 key Square (1/4"x1/4"x2-1/2")

[K101 key replaced by 937082 Woodruff #3 (1/8"x1/2")

[KH10588 key Woodruff #13 (3/16"x1")

[MW4251 set screw replaced by 3245-32 .250"-20x.250" Socket head Cup point

[MW4252 set screw replaced by 3245-32 .250"-20x.250" Socket head Cup point

[MW4254 set screw replaced by 909852 .250"-20x.500" Socket head (A guess)

[MW4257 set screw replaced by 3246-2 .3125"-18x.3125" Socket head Nylok

[MW4627 key replaced by 937159 Woodruff #9 HI-PRO (3/16"x25/32") This may be WRONG

[MW5724 set screw replaced by 909962 .250"-28x.250" Socket head Cup point

[NN10385 set screw replaced by 3247-4 .375"-16x.625" Socket head Cup point

[NN10534 ball (5/16")

[X-43-1 key Woodruff #3 (1/8"x1/2")

[X-46-3 key Woodruff #13 (3/16"x1")




×
