Mower Rotary 36in RD Self propelled WB2000 IPL.pdf 1.0.0

Sign in to follow this

1 Screenshot

About This File

IPL

21 pages 757KB



Appears to be a Belgium built model

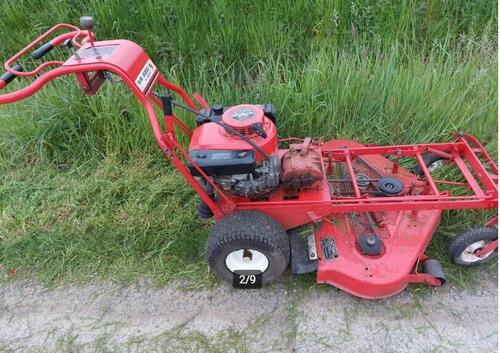

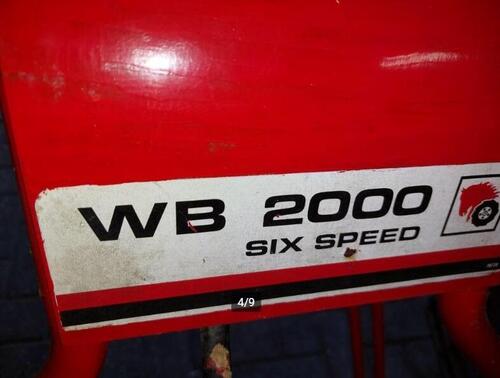

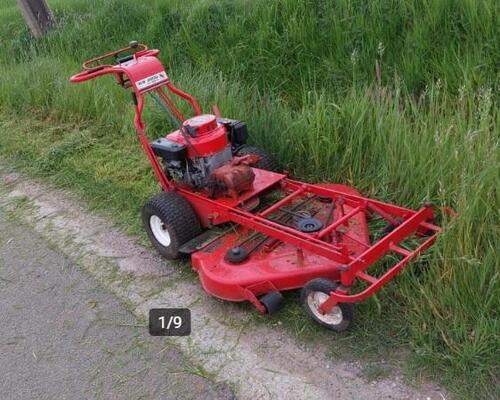

WB2000 Six-Speed self propelled walking mower model 04-08BP01

Sulky model 07-00SW-91

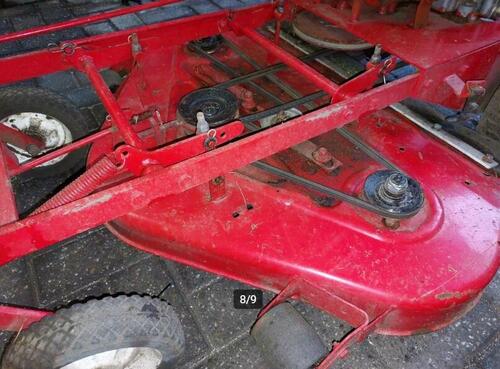

36" rear discharge deck model 05-36WR-91



Includes Peerless 700 transmission IPL



Transmission drive belt 78623



Mower drive belt 78624

Spindle belt 8411 (1/2" x 76.94")



107982 3-blade set replaces 107435 left and right blades (12-1/8") and 107436 center blade (14-1/8") (Hole 3/4" round)



Possibly a 1980 model because the B&S 191702-5648-01 was also used on the 1980 model 03-08XP01 A-81(R) 5-Speed rear engine rider.








×
