Blade Dozer 48in 1990-1997 520-Series adapter 81640 Dimensions TPL.pdf 1.0.0


gwest_ca

6 Screenshots

About This File

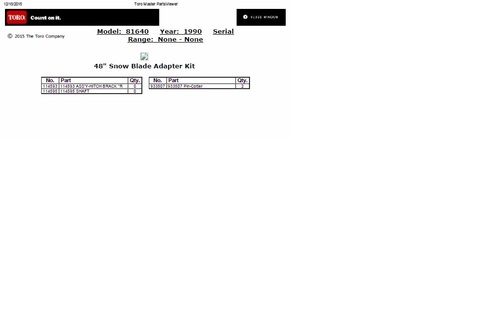

Parts list from Toro Master Parts Viewer

1 page 97KB

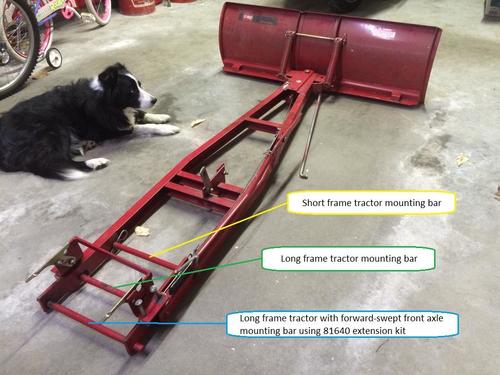

Required on the 520-Series tractors with the forward swept front axle.

1988-1989 model 8-1630 or 81630 replaced by 8-1640 or 81640

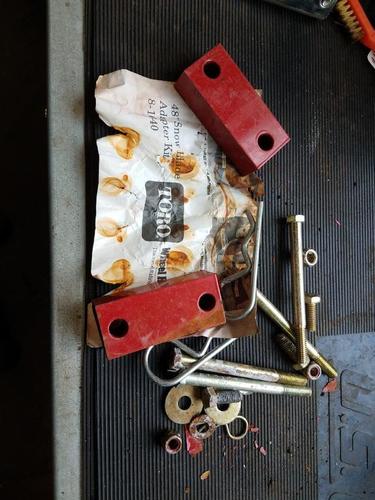

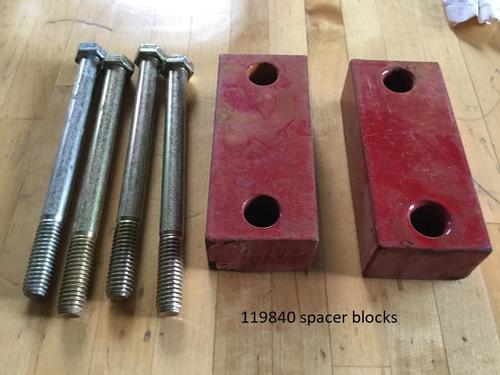

The 1990 model 520-8 requires two 1" x 1-1/2" spacer blocks 119840 to go between the hitch and the axle housing. This spaces the hitch down so the frame clears the drive pulley.



1990 Dozer blade A-frame extension adapter model 81640 or 8-1640

1991 Dozer blade A-frame extension adapter model 81640 or 8-1640

1992 Dozer blade A-frame extension adapter model 81640 or 8-1640

1993 Dozer blade A-frame extension adapter model 81640 or 8-1640

1994 Dozer blade A-frame extension adapter model 81640 or 8-1640

1995 Dozer blade A-frame extension adapter model 81640 or 8-1640

1996 Dozer blade A-frame extension adapter model 81640 or 8-1640

1997 Dozer blade A-frame extension adapter model 81640 or 8-1640

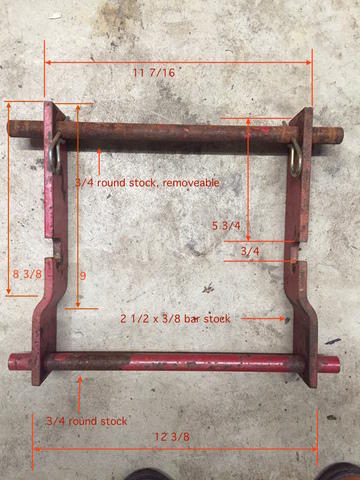

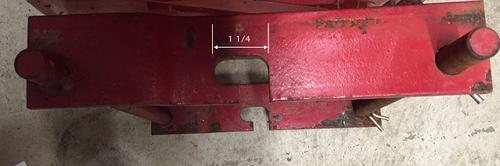

Link to photos with dimensions
