Tractor 1989 212-H D&A TIPL SN.pdf 1.0.0

Sign in to follow this

5 Screenshots

About This File

IPL from the Toro Master Parts Viewer
35 pages 2.39MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Original operator manual #810578R1
Original IPL #810611R1



Transmission drive belt 114433 - (HA x 83.0" or 1/2" x 83")



Lube chart SS

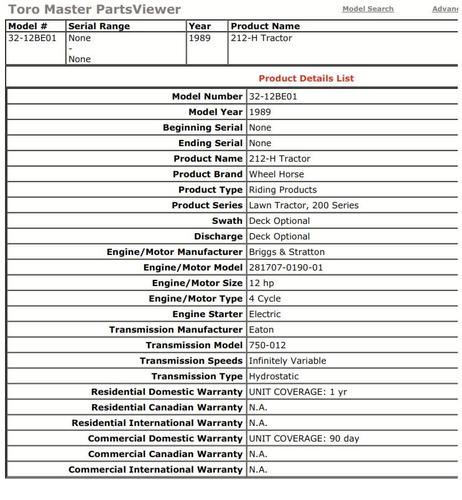

Details and Attachments
2 pages 112.26KB

1989 212-H model 32-12BE01
1989 serial numbers that have shown up for the 32-12BE01
0045078 - Located in Australia
0046053 - Build date 1988 8272 September 28 Wednesday

0047159

0047243

0047342 - Build date 1989 9120 April 30 Sunday [120]

----------------------------------------------------------------------------------------------------


IPL from the Toro Master Parts Viewer not available for the A2-12KE01
Original operator manual #810677R1
Original IPL #810785R1



This is a guess - Transmission drive belt 114433 - (HA x 83.0" or 1/2" x 83")


Details and Attachments
2 pages 109.26KB

1989 212-H model A2-12KE01

1989 serial numbers that have shown up for the A2-12KE01




×
