Tractor 1969 Lawn Ranger D&A IPL SN.pdf

Sign in to follow this

admin

7 Screenshots

About This File

IPL #A-5344
8 pages 1.92MB
Dated 10/72



IPL #A-5502
9 pages 2.19MB
Dated 4/11/69



5-8321 mower deck included

4380 blade replaced by 6758 blade replaced by 100355 2-blade set (5/8" x 3/4" hole)

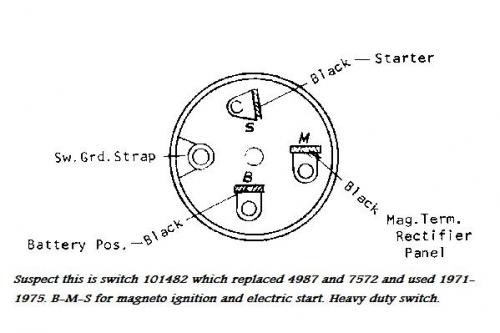

Ignition switch 7572 replaced by 101482 for electric start
1 page 98KB



Transmission drive belt 8911 (4L x 83.10" or 1/2" x 83.1")

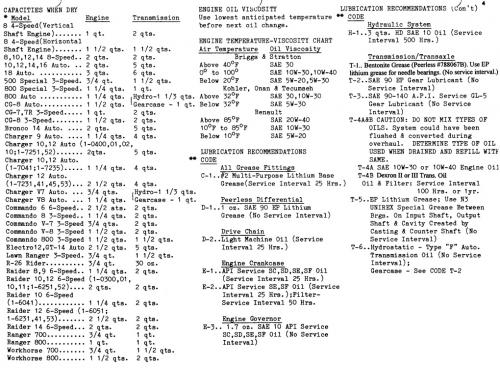

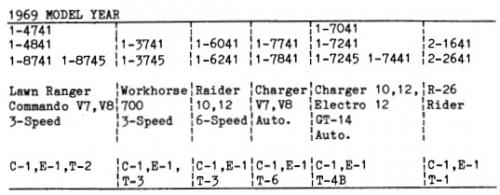

Lube chart SS



Details & Attachments
2 pages 108.78KB
1969 Lawn Ranger model 1-8741 - Recoil start - Wrong on details page
1969 serial numbers that have shown up for the 1-8741
609401



--------------------------------------------------------------------------------------------



Transmission drive belt 8911 (4L x 83.10" or 1/2" x 83.1")



Details & Attachments
2 pages 107.79KB
1969 Lawn Ranger model 1-8745 - Electric start
1969 serial numbers that have shown up for the 1-8745
607004




×
×
