Tractor 1996 260-Series SM.pdf

Sign in to follow this

gwest_ca

8 Screenshots

About This File

Service manual #492-4765
134 pages 32.9MB

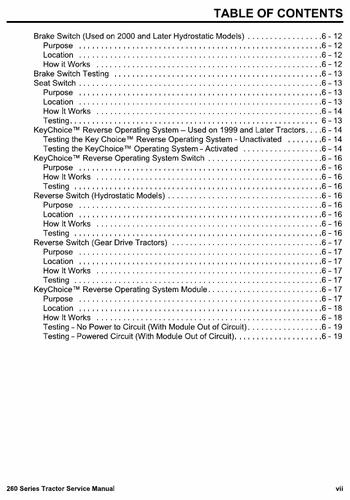

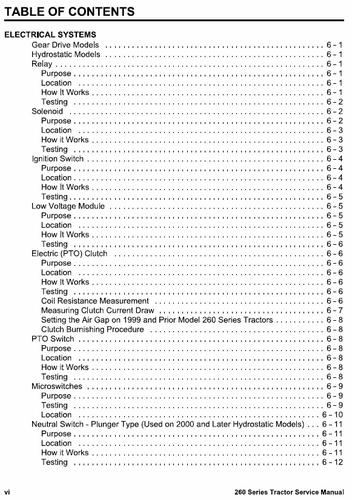

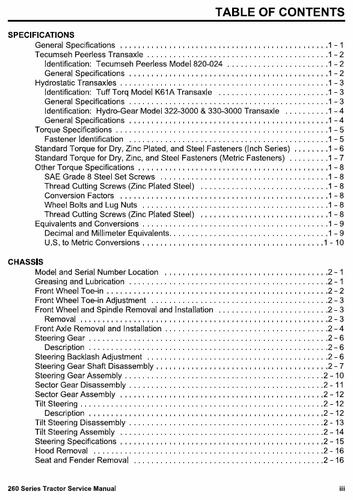

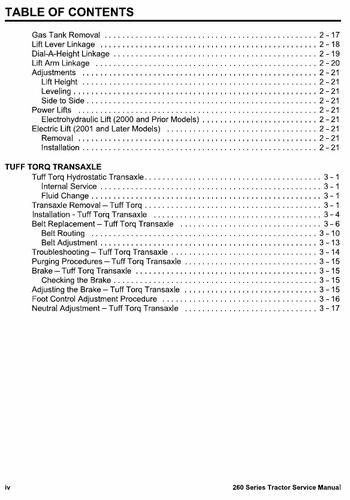

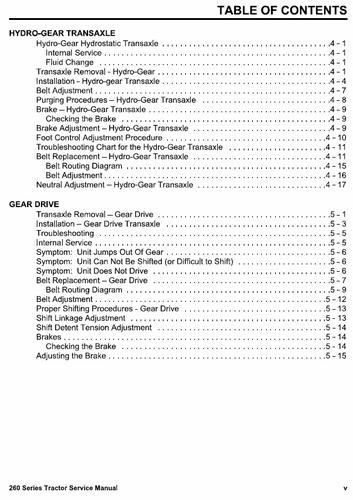

Section 1 - Index and Specifications
18 pages 3.02MB



Section 2 - Chassis
26 pages 6.52MB



Section 3 - Tuff Torq Transaxle
23 pages 6.06MB
Belt replacement instructions



Section 4 - Hydro-Gear Transaxle
23 pages 6.04MB
Belt replacement instructions



Section 5 - Gear Drive Transaxle
20 pages 4.94MB



Section 6 - Electrical
24 pages 6.33MB

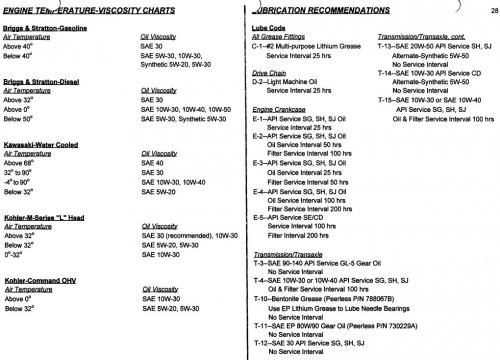

Lube chart SS



1996 264-6 model 72042 Serial 6900001-6999999 - May be the same as Ford New Holland model LS25



1996 264-6 model 72062 Serial 6900001-6999999



1996 264-H model 72043 Serial 6900001-6999999



1996 265-6 model 72045 Serial 6900001-6999999 - Export model 265-6e



1996 265-H model 72046 Serial 6900001-6999999



1996 265-H model 72064 Serial 6900001-6999999 - Export model 265-He



1996 266-H model 72084 Serial 6900001-6999999



1996 267-H model 72085 Serial 6900001-6999999 - This is possibly the same as a Ford or New Holland model LS45



1996 267-H model 72104 Serial 6900001-6999999 - Export model 267-He



1996 269-H model 72102 Serial 6900001-6999999



1996 270-H model 72110 Serial 6900001-6999999 - Export model 270-He




×
×
