About This File
IPL from Toro Master Parts Viewer
36 pages 2.19MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Includes standard equipment 32" SD mower model 05-32XS02 IPL - Requires 108503 drive belt (1/2" x 65.25")
Original tractor OM #810311R1
Original tractor IPL #810364R1
Original mower OM #810354R1
Transmission drive belt 9430 - (4L x 36.31" or 1/2" x 36.31")

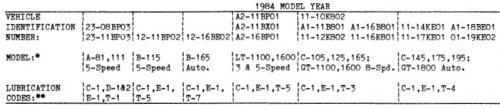

Lubbe chart SS
Details & Attachments
2 pages 112.40KB
1984 A-111 5-Speed Rear Engine Rider model 23-11BP03
Links
For engine OM and IPL see
For Peerless transmission 724A IPL see
For Stewart differential patent see
