Tractor 1987 416-8 D&A TIPL SN.pdf

Sign in to follow this

4 Screenshots

About This File

IPL from Toro Master Parts Viewer
41 pages 3.73MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.



Original IPL #810480R1
4-pinion differential @ Toro not correct so replaced the ipl with the correct pages
On the Belgium list



Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

Tractor weight 553 lbs.

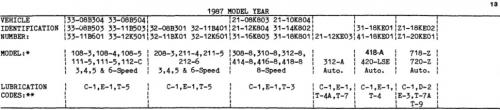

Lube chart SS



Details & Attachments
3 pages 118.21KB

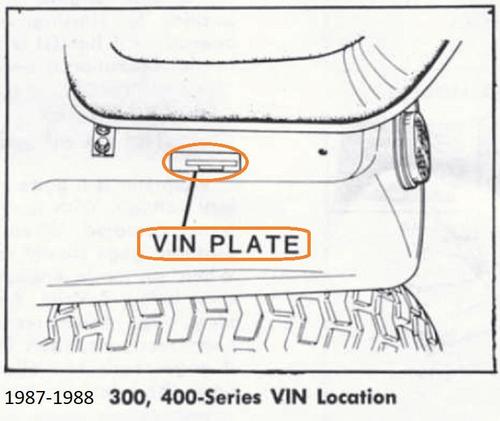

1987 416-8 model 31-16K803 with magneto ignition and 15 amp stator

1987 serial numbers that have shown up for the 31-16K803

20262

20334
20421
21396

21522
21603










×
