About This File
IPL from Toro Master Parts Viewer
30 pages 1.95MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Includes IPL for 32" SD mower deck. Replacement deck is model 05-32SA01
Transmission drive belt 9430 - (4L x 36.31" or 1/2" x 36.31")
Mower drive belt 108491 (1/2" x 67")
107277 blade replaced by 106163 2-blade set (5/8" x 3/4" double-D hole)

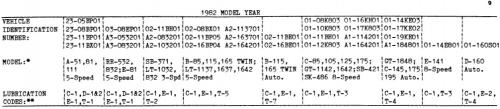

Lube chart SS
Details & Attachments
3 pages 116.00KB
1982 RR-832 5-Speed model A3-083201
Original operator manual #810275R1
Original IPL #810284R1
Mower operator manual #810276R1
Links
For engine operator manual and IPL see
For 724A Peerless transmission IPL see
For Electrical service manual see
