Tractor 1982 RR-532 5-speed RER D&A TIPL sn.pdf

Sign in to follow this

gwest_ca

4 Screenshots

About This File

IPL from Toro Master Parts Viewer
28 pages 1.81MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

Includes IPL for 32" SD mower deck model 05-32MS01



Transmission drive belt 9430 - (4L x 36.31" or 1/2" x 36.31")


Mower drive belt 108491 (1/2" x 67")



107277 blade replaced by 106163 2-blade set (5/8" x 3/4" double-D hole)

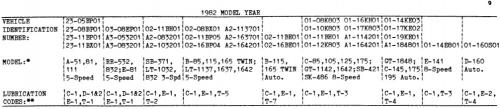

Lube chart SS


Details & Attachments
2 pages 110.46KB

1982 RR-532 5-Speed model A3-053201

Original operator manual #810275R1
Original IPL #810284R1
Mower operator manual #810276R1

Links

For engine operator manual and IPL see

For 724A Peerless transmission IPL see

For Electrical service manual see




×
×
